PE Anti-LAG-3 antibody [EPR20261]
- RabMAb
- Recombinant
- What is this?
Be the first to review this product! Submit a review
|
(0 Publication)
Rabbit Recombinant Monoclonal LAG-3 antibody - conjugated to PE. Suitable for Flow Cyt and reacts with Human samples.
View Alternative Names
CD223, FDC, LAG3, Lymphocyte activation gene 3 protein, LAG-3
- Flow Cyt
Unknown

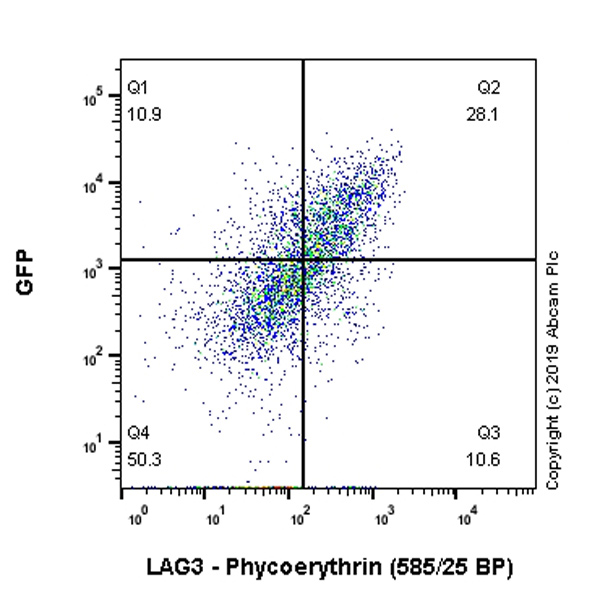

Flow Cytometry - PE Anti-LAG-3 antibody [EPR20261] (AB225484)
Flow cytometric analysis of HEK-293T (Human epithelial cell line from embryonic kidney) cells transfected with a GFP-tagged human LAG3 construct labelling LAG-3 with ab225484 at 1/50 dilution.
Note : Fresh cells without fixation and permeabilization were used to perform FC testing. Only GFP positive population results in LAG3 positive staining (Q2).
- Flow Cyt (Intra)
Lab
Flow Cytometry (Intracellular) - PE Anti-LAG-3 antibody [EPR20261] (AB225484)
Overlay histogram showing A431 cells stained with ab225284 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab225484, 1/1000 dilution) for 30 min at 22°C.
Isotype control antibody (black line) was Rabbit IgG (monoclonal) Phycoerythrin (ab209478) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.
Acquisition of >5,000 events were collected using a 50 mW Yellow/Green laser (561nm) and 586/15 bandpass filter.
Related conjugates and formulations (6)
-
Anti-LAG-3 antibody [EPR20261]
-
519 Alexa Fluor® 488
Alexa Fluor® 488 Anti-LAG-3 antibody [EPR20261]
-
665 Alexa Fluor® 647
Alexa Fluor® 647 Anti-LAG-3 antibody [EPR20261]
-
617 Alexa Fluor® 594
Alexa Fluor® 594 Anti-LAG-3 antibody [EPR20261]
-
565 Alexa Fluor® 555
Alexa Fluor® 555 Anti-LAG-3 antibody [EPR20261]
-
Anti-LAG-3 antibody [EPR20261] - BSA and Azide free
Reactivity data
You may be interested in:
Why is this recommended?
We recommend this product because it’s often used in the same experiment or related research.
We advise that you always check the datasheet to ensure it fits your experiments, or contact ourtechnical teamfor help.
Product details
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage duration
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Aliquoting information
Storage information
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
LAG-3 is involved in maintaining immune homeostasis and preventing autoimmunity. It is not part of a complex but works in synergy with other immune checkpoint molecules. When interacting with MHC class II LAG-3 transmits inhibitory signals that attenuate immune cell responses. Its role in immune regulation helps to balance immune activation and tolerance which is essential for preventing tissue damage while protecting against pathogens.
Pathways
The inhibitory role of LAG-3 integrates into the T cell receptor (TCR) signaling pathway and is also linked to the PD-1 signaling pathway. In TCR signaling LAG-3 negatively regulates T cell activation. LAG-3 is functionally related to proteins like PD-1 and CTLA-4 sharing similar roles in immune checkpoint pathways that are critical for maintaining immune balance.
