PE Anti-Neuropilin 1 antibody [EPR3113]

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal Neuropilin 1 antibody - conjugated to PE. Suitable for ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat samples. Cited in 1 publication.

View Alternative Names

CD304, NRP, VEGF165R, NRP1, Neuropilin-1, Vascular endothelial cell growth factor 165 receptor

2 Images
Flow Cytometry (Intracellular) - PE Anti-Neuropilin 1 antibody [EPR3113] (AB209445)
  • Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - PE Anti-Neuropilin 1 antibody [EPR3113] (AB209445)

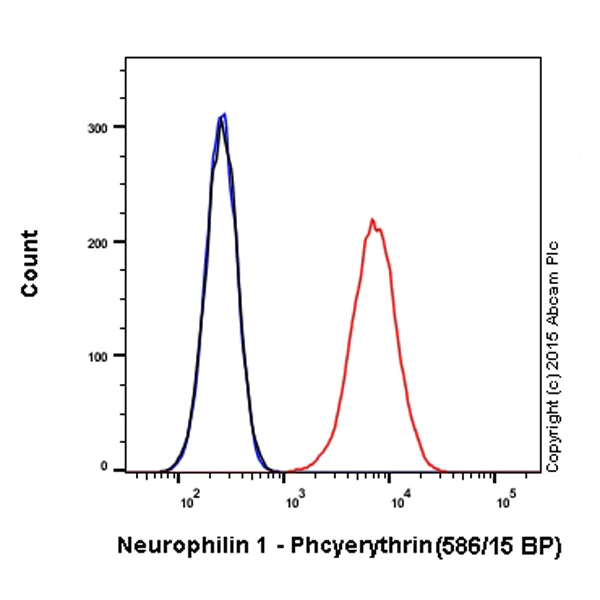

Overlay histogram showing MCF7 cells stained with ab209445 (red line). The cells were fixed with 4% formaldehyde (10 min) and then permeabilized with 90% methanol (-20°C) for 30 min. The cells were then incubated in 1x PBS / 10% normal goat serum to block non-specific protein-protein interactions followed by the antibody (ab209445, 1/2500 dilution) for 30 min at 22°C.

Isotype control antibody (black line) was rabbit IgG (monoclonal) Phycorythrin (ab209478) used at the same concentration and conditions as the primary antibody. Unlabelled sample (blue line) was also used as a control.

Acquisition of >5,000 events were collected using a 50mW Yellow-Green laser (561nm) and 586/15 bandpass filter.

Immunocytochemistry/ Immunofluorescence - PE Anti-Neuropilin 1 antibody [EPR3113] (AB209445)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - PE Anti-Neuropilin 1 antibody [EPR3113] (AB209445)

ab209445 staining Neuropilin 1 in MCF7 cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with ab209445 at 1/100 dilution (Pseudocolored in green) and ab195884, Rat monoclonal to Tubulin (Alexa Fluor® 647), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR3113

Isotype

IgG

Conjugation

PE

Excitation/Emission

Ex: 480;565nm, Em: 578nm

Carrier free

No

Reacts with

Human, Human, Mouse, Rat

Applications

Flow Cyt (Intra), ICC/IF, IHC-P

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB83435

Biotin Anti-Neuropilin 1 antibody

  • 0
  • 0
Primary Antibodies

AB25998

Anti-Neuropilin 1 antibody

BOND RX™ Validated

Immunocytochemistry/ Immunofluorescence - Anti-Neuropilin 1 antibody (AB25998)

  • 2
  • 1

Complementary Products

Assay Kits

AB227901

Human Neuropilin-1 ELISA Kit

Recombinant|SimpleStep

Sandwich ELISA - Human Neuropilin-1 ELISA Kit (AB227901)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB108252

Anti-ACE2 antibody [EPR4435(2)]

BOND RX™ Validated|RabMAb|Recombinant|KO Validated|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-ACE2 antibody [EPR4435(2)] (AB108252)

  • 4
  • 10
Assay Kits

AB227901

Human Neuropilin-1 ELISA Kit

Recombinant|SimpleStep

Sandwich ELISA - Human Neuropilin-1 ELISA Kit (AB227901)

  • 0
  • 0
Primary Antibodies

AB133616

Anti-CD4 antibody [EPR6855]

BOND RX™ Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size|Advanced Validation

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-CD4 antibody [EPR6855] (AB133616)

  • 5
  • 19
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "<p>This product gave a positive signal in MCF-7 cells fixed with 4% formaldehyde (10 min)</p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/2500", "FlowCytIntra-species-notes": "<p><a href='/en-us/products/primary-antibodies/pe-rabbit-igg-monoclonal-epr25a-isotype-control-ab209478'>ab209478</a> - Rabbit monoclonal IgG (Phycoerythrin), is suitable for use as an isotype control with this antibody.</p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Mouse": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Rat": { "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "guaranteed", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" }, "Common marmoset": { "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" }, "Monkey": { "ICCIF-species-checked": "predicted", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "predicted", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS, 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Aliquoting information
Upon delivery aliquot
Storage information
Do Not Freeze|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Neuropilin-1 also known as NRP1 is a transmembrane protein with a significant role in the nervous and vascular systems. It has a molecular mass of approximately 130 kDa. Neuropilin-1 expression occurs broadly in tissues including neurons endothelial cells and tumor cells. Its structure includes a large extracellular domain that binds various ligands mediating several cellular functions. Neuropilin-1 is sometimes targeted in experiments using methods like neuropilin-1 ELISA and PE immunofluorescence to study its distribution and function in different tissues.
Biological function summary

Neuropilin-1 serves as a co-receptor for both the Vascular Endothelial Growth Factor (VEGF) and Semaphorin family proteins. It plays an important role in processes such as angiogenesis axonal guidance and the immune system. Neuropilin-1 does not function alone; it forms complexes with neuropilin-2 and other receptors like Plexin and VEGFR enhancing signal transduction pathways for angiogenesis and neuronal development. This involvement allows cells to respond appropriately to their environment especially during organismal development and repair processes.

Pathways

Neuropilin-1 facilitates interactions within the VEGF and Semaphorin pathways. In the VEGF pathway Neuropilin-1 enhances binding and signaling efficiency with VEGF closely working alongside VEGFR to promote endothelial cell survival migration and new blood vessel formation. In the Semaphorin pathway Neuropilin-1 interacts with Plexins mediating neuronal pathfinding and axonal growth. These interactions highlight Neuropilin-1's adaptive capabilities in various physiological processes critical for system development.

Neuropilin-1 is linked to pathological conditions like cancer and cardiovascular diseases. Neuropilin-1 overexpression is frequently observed in tumors driving cancer progression through enhanced angiogenesis and tissue invasion closely interacting with proteins like VEGF-A. In cardiovascular disease Neuropilin-1 contributes to abnormal blood vessel formation and stability. By studying Neuropilin-1 and other biomarkers like CD304 FITC researchers aim to develop therapeutic strategies targeting its role in these diseases.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Cell-surface receptor involved in the development of the cardiovascular system, in angiogenesis, in the formation of certain neuronal circuits and in organogenesis outside the nervous system. Mediates the chemorepulsant activity of semaphorins (PubMed : 10688880, PubMed : 9288753, PubMed : 9529250). Recognizes a C-end rule (CendR) motif R/KXXR/K on its ligands which causes cellular internalization and vascular leakage (PubMed : 19805273). It binds to semaphorin 3A, the PLGF-2 isoform of PGF, the VEGF165 isoform of VEGFA and VEGFB (PubMed : 10688880, PubMed : 19805273, PubMed : 9288753, PubMed : 9529250). Coexpression with KDR results in increased VEGF165 binding to KDR as well as increased chemotaxis. Regulates VEGF-induced angiogenesis. Binding to VEGFA initiates a signaling pathway needed for motor neuron axon guidance and cell body migration, including for the caudal migration of facial motor neurons from rhombomere 4 to rhombomere 6 during embryonic development (By similarity). Regulates mitochondrial iron transport via interaction with ABCB8/MITOSUR (PubMed : 30623799).. (Microbial infection) Acts as a host factor for human coronavirus SARS-CoV-2 infection. Recognizes and binds to CendR motif RRAR on SARS-CoV-2 spike protein S1 which enhances SARS-CoV-2 infection.. Isoform 2. Binds VEGF-165 and may inhibit its binding to cells (PubMed : 10748121, PubMed : 26503042). May induce apoptosis by sequestering VEGF-165 (PubMed : 10748121). May bind as well various members of the semaphorin family. Its expression has an averse effect on blood vessel number and integrity.
See full target information NRP1
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Communications biology 2:386 PubMed31646189

2019

Cancer-derived small extracellular vesicles promote angiogenesis by heparin-bound, bevacizumab-insensitive VEGF, independent of vesicle uptake.

Applications

Unspecified application

Species

Unspecified reactive species

Song Yi Ko,WonJae Lee,Hilary A Kenny,Long H Dang,Lee M Ellis,Eric Jonasch,Ernst Lengyel,Honami Naora
