Armenian hamster Monoclonal ZNFN1A2/HELIOS antibody - conjugated to PE. Suitable for Flow Cyt (Intra) and reacts with Human samples. Immunogen corresponding to Synthetic Peptide within Human IKZF2 aa 50-150.

Be the first to review this product! Submit a review

Images

Flow Cytometry (Intracellular) - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (AB199397), expandable thumbnail
  • Flow Cytometry (Intracellular) - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (AB199397), expandable thumbnail
  • Flow Cytometry - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (AB199397), expandable thumbnail
  • Flow Cytometry (Intracellular) - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (AB199397), expandable thumbnail

Key facts

Isotype
IgG
Host species
Armenian hamster
Conjugation
PE
Excitation/Emission
Ex: 480;565nm, Em: 578nm
Storage buffer

pH: 7.4
Preservative: 0.0975% Sodium azide
Constituents: 99% PBS, 0.2% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • Synthetic Peptide within Human IKZF2 aa 50-150. The exact immunogen used to generate this antibody is proprietary information. Database link Q9UKS7

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
Flow Cyt (Intra)
Human
Tested

Tested
Tested

Species
Human
Dilution info
10 µL for 106 Cells
Notes

Use at 10 μl / 100 μl of whole blood

Associated Products

Select an associated product type

1 product for Alternative Product

Target data

Function

Associates with Ikaros at centromeric heterochromatin.

Alternative names

Recommended products

Armenian hamster Monoclonal ZNFN1A2/HELIOS antibody - conjugated to PE. Suitable for Flow Cyt (Intra) and reacts with Human samples. Immunogen corresponding to Synthetic Peptide within Human IKZF2 aa 50-150.

Key facts

Isotype
IgG
Conjugation
PE
Excitation/Emission
Ex: 480;565nm, Em: 578nm
Form
Liquid
Clonality
Monoclonal
Immunogen
  • Synthetic Peptide within Human IKZF2 aa 50-150. The exact immunogen used to generate this antibody is proprietary information. Database link Q9UKS7
Clone number
22F6
Purification technique
Size-exclusion chromatography
Concentration
Loading...
Purification notes

The antibody is purified from cell culture supernatant by protein-A affinity chromatography (Purity: > 95% (by SDS-PAGE)) and then conjugated with R-Phycoerythrin (PE) under optimum conditions. The conjugate is purified by size-exclusion chromatography and adjusted for direct use.

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Store in the dark

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

ZNFN1A2 also known as HELIOS is a transcription factor with an estimated mass of approximately 65 to 70 kDa. It is a member of the Ikaros family of zinc finger proteins which are essential in regulating gene expression. HELIOS is expressed mainly in the thymus with significant levels also found in peripheral T cells. This protein plays a role in lymphocyte development and differentiation influencing the function and survival of T cells.

Biological function summary

ZNFN1A2 performs critical functions in maintaining T cell homeostasis and promoting regulatory T cell development. It forms part of transcriptional complexes that regulate gene expression necessary for immune response modulation. ZNFN1A2 interacts with other members of the Ikaros family sharing overlapping roles in immune cell regulation which highlights its importance in immune regulation.

Pathways

ZNFN1A2 integrates into critical signaling networks related to T cell regulation particularly the T cell receptor (TCR) signaling pathway. Within these pathways HELIOS collaborates with proteins such as FOXP3 and GATA3 to mediate immune tolerance and maintain immune system balance. These interactions underline the protein's involvement in modulating immune responses and preventing autoimmunity.

Associated diseases and disorders

ZNFN1A2 demonstrates significant associations with autoimmune diseases such as systemic lupus erythematosus (SLE) where dysregulation leads to improper T cell function. Furthermore it is implicated in leukemias particularly T-cell acute lymphoblastic leukemia (T-ALL) due to altered expression affecting T cell maturation. In these diseases ZNFN1A2 often interacts with proteins like AIRE and BCL11B influencing disease progression and clinical outcomes.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

4 product images

  • Flow Cytometry (Intracellular) - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (ab199397), expandable thumbnail

    Flow Cytometry (Intracellular) - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (ab199397)

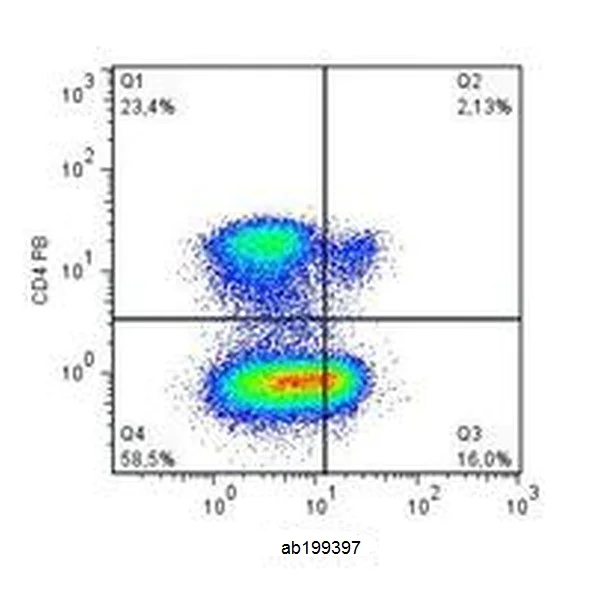

    Intracellular flow cytometric analysis of human peripheral blood lymphocytes labeling ZNFN1A2/HELIOS with ab199397 (10μL ab199397 / 100μL at4°C, in the dark). The cells were first labeled withanti-CD4 Pacific BlueTM, fixed and permeabilized .

  • Flow Cytometry (Intracellular) - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (ab199397), expandable thumbnail

    Flow Cytometry (Intracellular) - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (ab199397)

    ZNFN1A2/HELIOS Flow Cytometry (Intracellular) staining using armenian hamster Anti-ZNFN1A2/HELIOS antibody

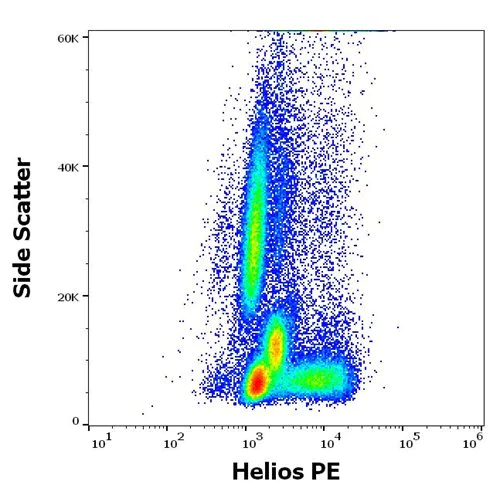

    Flow cytometry intracellular staining pattern of human peripheral whole blood stained using ab199397 (10 μl reagent/100 μl of peripheral whole blood).

  • Flow Cytometry - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (ab199397), expandable thumbnail

    Flow Cytometry - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (ab199397)

    ZNFN1A2/HELIOS Flow Cytometry staining using armenian hamster Anti-ZNFN1A2/HELIOS antibody

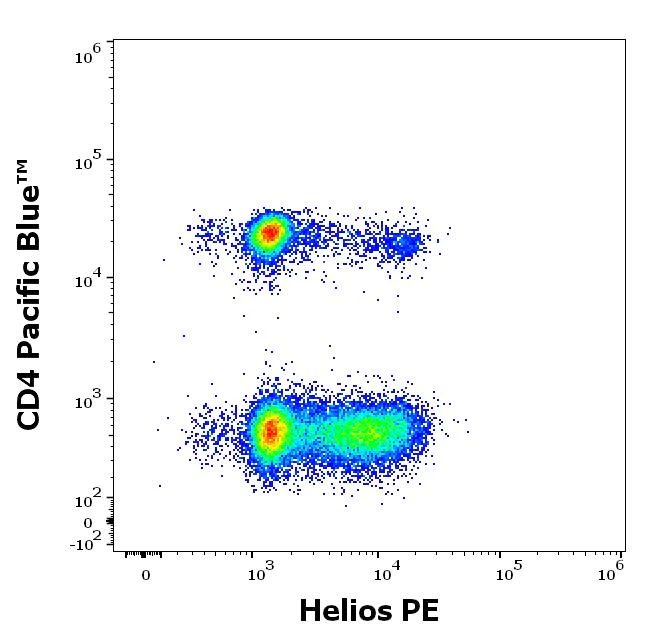

    Flow cytometry multicolor surface staining pattern of human lymphocytes using anti-human CD4 (MEM-241) APC antibody (10 ul reagent / 100 ul of peripheral whole blood) and intracellular staining of human lymphocytes using ab199397 (10 ul reagent / 100 ul of peripheral whole blood).

  • Flow Cytometry (Intracellular) - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (ab199397), expandable thumbnail

    Flow Cytometry (Intracellular) - PE Anti-ZNFN1A2/HELIOS antibody [22F6] (ab199397)

    ZNFN1A2/HELIOS Flow Cytometry (Intracellular) staining using armenian hamster Anti-ZNFN1A2/HELIOS antibody

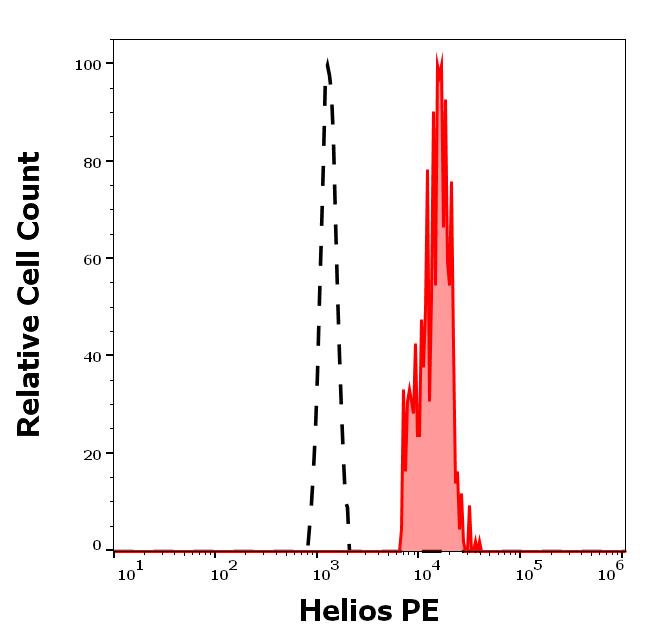

    Separation of human CD4 positive Helios positive T cells (red-filled) from neutrophil granulocytes (black-dashed) in flow cytometry analysis (intracellular staining) of human peripheral whole blood stained using ab199397 (10 ul reagent / 100 ul of peripheral whole blood).
