Anti-PFKFB2 antibody

• IP

Supplier Data

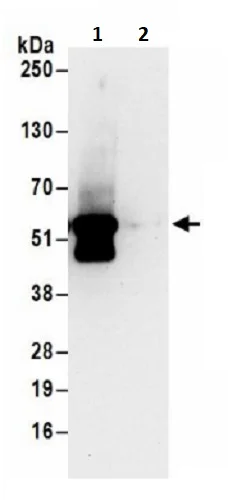

Immunoprecipitation - Anti-PFKFB2 antibody (AB241506)

PFKFB2 was immunoprecipitated from HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate (1 mg per IP reaction; 20% of IP loaded).
ab241506 used for IP at 6 μg per reaction. Western blot was perfomed on the immunoprecipitate using ab241506 at 0.4 μg/ml.

Lane 1 : ab241506 IP in HEK-293T whole cell lysate.
Lane 2 : Control IgG HEK-293T whole cell lysate.

Detection : Chemiluminescence with an exposure time of 30 seconds.

All lanes:

Immunoprecipitation - Anti-PFKFB2 antibody (ab241506)

Predicted band size: 58 kDa

false

• WB

Supplier Data

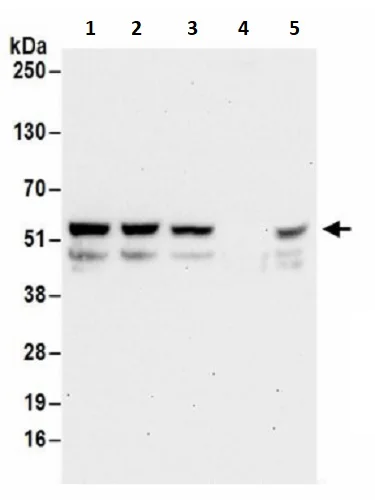

Western blot - Anti-PFKFB2 antibody (AB241506)

All lanes:

Western blot - Anti-PFKFB2 antibody (ab241506) at 0.1 µg/mL

Lane 1:

HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 50 µg

Lane 2:

HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 50 µg

Lane 3:

Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate at 50 µg

Lane 4:

TCMK-1 (mouse kidney epithelial cell line) whole cell lysate at 50 µg

Lane 5:

NIH/3T3 (mouse embryo fibroblast cell line) whole cell lysate at 50 µg

Predicted band size: 58 kDa

true

Exposure time: 30s
