Anti-PGP9.5 antibody [13C4 / I3C4] - BSA and Azide free

• ICC

Lab

Immunocytochemistry - Anti-PGP9.5 antibody [13C4 / I3C4] - BSA and Azide free (AB180872)

This data was developed using the same antibody clone in a different buffer formulation containing PBS and sodium azide (ab8189).

ab8189 staining PGP9.5 in primary rat neurons/glia, DIV14 (prepared from E18 rat hippocampal brain area, obtained from Transnetyx Tissue by BrainBits, LLC, cat.no. SDHEP) cells. The cells were fixed with 4% paraformaldehyde (10 min), permeabilized with 0.1% PBS-Tween for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1%PBS-Tween for 1h. The cells were then incubated overnight at 4°C with ab8189 at 5µg/ml and ab6046, Rabbit polyclonal to beta Tubulin - Loading Control. Cells were then incubated with ab150121, Goat polyclonal Secondary Antibody to Mouse IgM - mu chain (Alexa Fluor^® 488) at 1/1000 dilution (shown in green) and ab150080, Goat polyclonal Secondary Antibody to Rabbit IgG - H&L (Alexa Fluor^® 594) at 1/1000 dilution (shown in pseudocolour red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was acquired with a high-content analyser (Operetta CLS, Perkin Elmer) and a maximum intensity projection of confocal sections is shown.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PGP9.5 antibody [13C4 / I3C4] - BSA and Azide free (AB180872)

Image produced using the same antibody clone but different formulation, ab8189.

IHC image of PGP9.5 staining in rat pancreas formalin-fixed, paraffin-embedded tissue section, performed on a Leica Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab8189, 0.02μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with hematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• WB

Lab

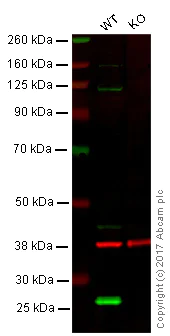

Western blot - Anti-PGP9.5 antibody [13C4 / I3C4] - BSA and Azide free (AB180872)

Image produced using the same antibody clone but different formulation, ab8189.

Lane 1 : Wild-type HAP1 whole cell lysate (20 μg)
Lane 2 : PGP9.5 knockout HAP1 whole cell lysate (20 μg)

Lanes 1 - 4 : Merged signal (red and green). Green - ab8189 observed at 25 kDa. Red - loading control, ab181602, observed at 37 kDa.

ab8189 was shown to specifically react with PGP9.5 in wild-type HAP1 cells as signal was lost in PGP9.5 knockout cells. Wild-type and PGP9.5 knockout samples were subjected to SDS-PAGE. ab8189 and ab181602 (Rabbit anti-GAPDH loading control) were incubated overnight at 4°C at 5 μg/ml and 1/20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PGP9.5 antibody [13C4 / I3C4] - Neuronal Marker (<a href='/en-us/products/primary-antibodies/pgp95-antibody-13c4-i3c4-neuronal-marker-ab8189'>ab8189</a>)

Predicted band size: 24 kDa
