Anti-PHD3 antibody [EPR17869] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-PHD3 antibody [EPR17869] - BSA and Azide free (AB238941)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized A549 (Human lung carcinoma) cells labeling PHD3 with ab184714 at 1/250 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing weakly cytoplasm and nuclear staining on A549 cell line.

The nuclear counterstain is DAPI (blue).

Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution (red).

The negative controls are as follows : -

-ve control 1 : ab184714 at 1/250 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution.

-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab184714).

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-PHD3 antibody [EPR17869] - BSA and Azide free (AB238941)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized PC-12 (Rat adrenal gland pheochromocytoma) cells labeling PHD3 with ab184714 at 1/250 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing weakly cytoplasm and nuclear staining on PC-12 cells. The nuclear counterstain is DAPI (blue).

Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution (red).

The negative controls are as follows : -
-ve control 1 : ab184714 at 1/250 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/1000 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab184714).

• IP

Supplier Data

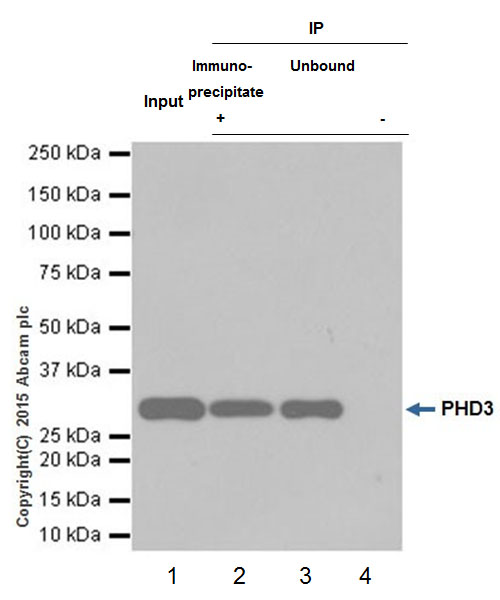

Immunoprecipitation - Anti-PHD3 antibody [EPR17869] - BSA and Azide free (AB238941)

PHD3 was immunoprecipitated from 1mg of NIH/3T3 (Mouse embyro fibroblast cells) whole cell lysate with ab184714 at 1/70 dilution.

Western blot was performed from the immunoprecipitate using ab184714 at 1/1000 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366) was used for detection at 1/10000 dilution.

Lane 1 : NIH/3T3 whole cell lysate 10ug (Input).

Lane 2 : ab184714 IP in NIH/3T3 whole cell lysate.

Lane 3 : NIH/3T3 whole cell lysate supernatant after capture (unbound).

Lane 4 : Rabbit monoclonal IgG (ab172730) instead of ab184714 in NIH/3T3 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 30 seconds.

ab184714 is not a strong binder for IP - only a partial amount of the target protein in the lysate was immune-precipitated.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab184714).

All lanes:

Immunoprecipitation - Anti-PHD3 antibody [EPR17869] (<a href='/en-us/products/primary-antibodies/phd3-antibody-epr17869-ab184714'>ab184714</a>)

Predicted band size: 27 kDa
