Anti-Phosphoserine Aminotransferase antibody [EPR26994-48] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Phosphoserine Aminotransferase antibody [EPR26994-48] - BSA and Azide free (AB308513)

This data was developed using ab308512, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling Phosphoserine Aminotransferase with ab308512 at 1/50 (9.84 ug/ml) dilution, followed by ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing cytoplasmic and weak nuclear staining in HepG2 cell line. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control : Secondary antibody is ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

• Flow Cyt (Intra)

Supplier Data

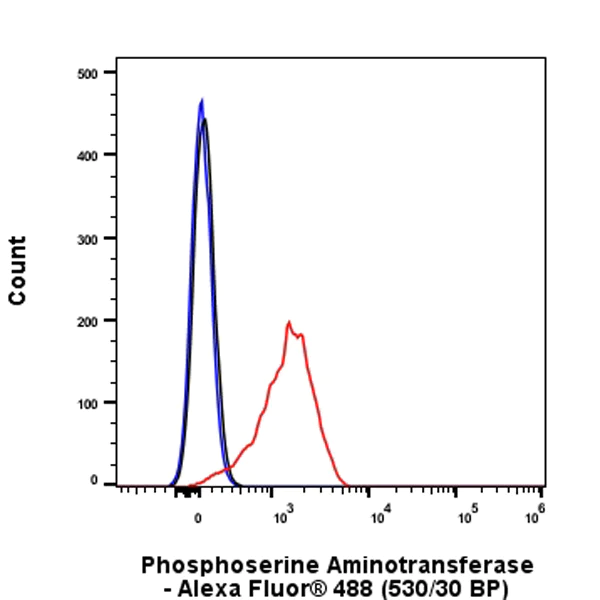

Flow Cytometry (Intracellular) - Anti-Phosphoserine Aminotransferase antibody [EPR26994-48] - BSA and Azide free (AB308513)

This data was developed using ab308512, the same antibody clone in a different buffer formulation. Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HepG2 (human hepatocellular carcinoma epithelial cell) cells labelling Phosphoserine Aminotransferase with ab308512 at 1/500 dilution (0.1 ug)/Red (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody.

• IP

Supplier Data

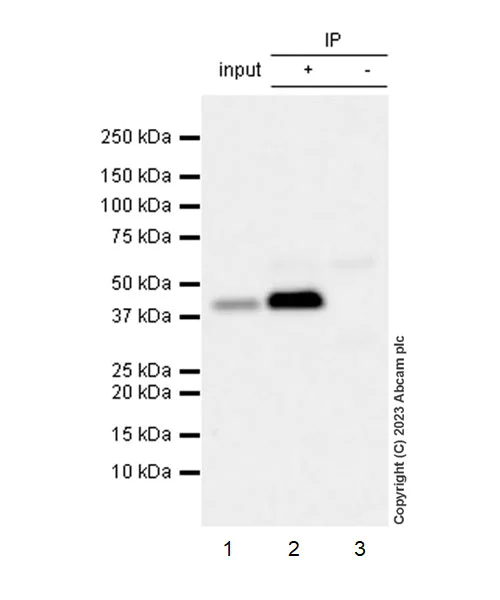

Immunoprecipitation - Anti-Phosphoserine Aminotransferase antibody [EPR26994-48] - BSA and Azide free (AB308513)

This data was developed using ab308512, the same antibody clone in a different buffer formulation.

Phosphoserine Aminotransferase was immunoprecipitated from 0.35 mg HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate with ab308512 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab308512 at 1/1000 dilution. VeriBlot for IP secondary antibody (HRP) (ab131366) was used at 1/5000 dilution.

Lane 1 : HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate
Lane 2 : ab308512 IP in HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab308512 in HepG2 whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 5 seconds

All lanes:

Immunoprecipitation - Anti-Phosphoserine Aminotransferase antibody [EPR26994-48] (<a href='/en-us/products/primary-antibodies/phosphoserine-aminotransferase-antibody-epr26994-48-ab308512'>ab308512</a>) at 1/1000 dilution

All lanes:

HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate at 10 µg

Secondary

All lanes:

Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (<a href='/en-us/products/reagents/veriblot-for-ip-detection-reagent-hrp-ab131366'>ab131366</a>) at 1/5000 dilution

Observed band size: 40 kDa

false

Exposure time: 5s

• WB

Supplier Data

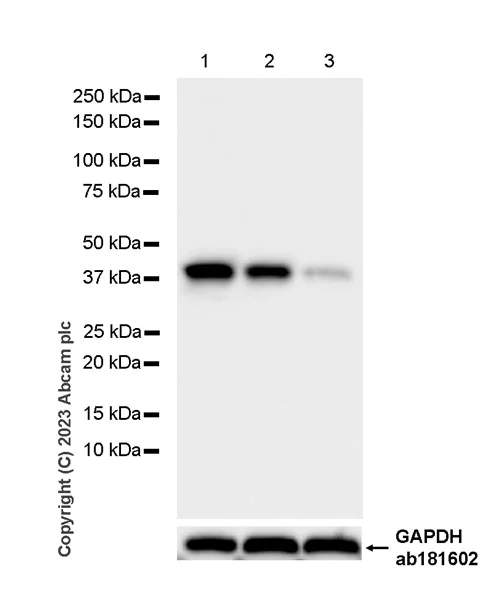

Western blot - Anti-Phosphoserine Aminotransferase antibody [EPR26994-48] - BSA and Azide free (AB308513)

This data was developed using 308512, the same antibody clone in a different buffer formulation.  Blocking and diluting buffer and concentration : 5% NFDM/TBST. In Western blot, anti-GAPDH antibody (ab181602) loading control staining at 1/200000 dilution. Exposure time : 3.25 seconds

All lanes:

Western blot - Anti-Phosphoserine Aminotransferase antibody [EPR26994-48] (<a href='/en-us/products/primary-antibodies/phosphoserine-aminotransferase-antibody-epr26994-48-ab308512'>ab308512</a>) at 1/1000 dilution

Lane 1:

HepG2 (human hepatocellar carcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

293T (human embryonic kidney epithelial cell) transfected with scrambled siRNA control whole cell lysate at 20 µg

Lane 3:

293T transfected with siRNA specifically targeti Phosphoserine Aminotransferase whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 40 kDa

Observed band size: 40 kDa

false

Exposure time: 3.25s

• WB

Supplier Data

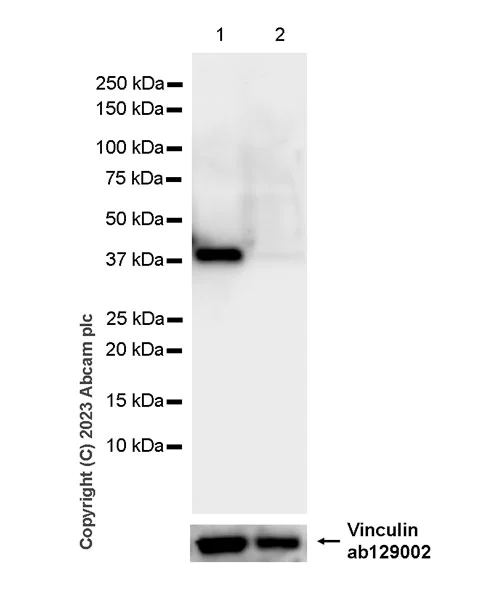

Western blot - Anti-Phosphoserine Aminotransferase antibody [EPR26994-48] - BSA and Azide free (AB308513)

This data was developed using 308512, the same antibody clone in a different buffer formulation.  Blocking and diluting buffer and concentration : 5% NFDM/TBST. Low expression : human skeletal muscle (PMID : 12633500). In Western blot, anti- Vinculin antibody (ab129002) loading control staining at 1/10000 dilution. Exposure time : 15 seconds

All lanes:

Western blot - Anti-Phosphoserine Aminotransferase antibody [EPR26994-48] (<a href='/en-us/products/primary-antibodies/phosphoserine-aminotransferase-antibody-epr26994-48-ab308512'>ab308512</a>) at 1/1000 dilution

Lane 1:

Human kidney tissue lysate, at 20 µg

Lane 2:

Human skeletal muscle tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/2000 dilution

Predicted band size: 40 kDa

Observed band size: 40 kDa

false

Exposure time: 15s
