Anti-PI 3 Kinase catalytic subunit alpha/PIK3CA antibody [EPR19693] - BSA and Azide free

• IP

Supplier Data

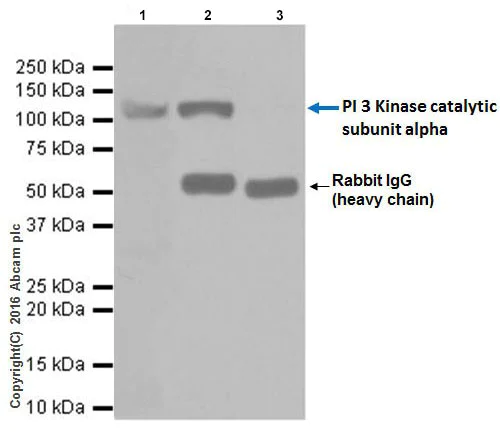

Immunoprecipitation - Anti-PI 3 Kinase catalytic subunit alpha/PIK3CA antibody [EPR19693] - BSA and Azide free (AB223532)

This IP data was generated using the same anti-PI 3 Kinase catalytic sunbunit alpha antibody clone [EPR19693] in a different buffer formulation (cat# ab183957).

PI 3 Kinase catalytic subunit alpha was immunoprecipitated from 0.35 mg of mouse hypothalamus lysate with ab183957 at 1/30 dilution.

Western blot was performed from the immunoprecipitate using ab183957 at 1/500 dilution.

VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/1000 dilution.

Lane 1 : Mouse hypothalamus lysate, 10μg (Input).

Lane 2 : ab183957 IP in mouse hypothalamus lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab183957 in mouse hypothalamus lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 3 minutes.

All lanes:

Immunoprecipitation - Anti-PI 3 Kinase catalytic subunit alpha/PIK3CA antibody [EPR19693] (<a href='/en-us/products/primary-antibodies/pi-3-kinase-catalytic-subunit-alpha-pik3ca-antibody-epr19693-ab183957'>ab183957</a>)

Predicted band size: 124 kDa

Observed band size: 110 kDa

false

• WB

Lab

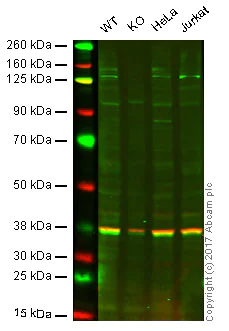

Western blot - Anti-PI 3 Kinase catalytic subunit alpha/PIK3CA antibody [EPR19693] - BSA and Azide free (AB223532)

This WB data was generated using the same anti-PI 3 Kinase catalytic subunit alpha/PIK3CA antibody clone [EPR19693] in a different buffer formulation (cat# ab183957).

Lane 1 : Wild type HAP1 whole cell lysate (20 μg)
Lane 2 : PI 3 Kinase catalytic subunit alpha/PIK3CA knockout HAP1 whole cell lysate (20 μg)
Lane 3 : HeLa whole cell lysate (20 μg)
Lane 4 : Jurkat whole cell lysate (20 μg)

Lanes 1 - 4 : Merged signal (red and green). Green - ab183957 observed at 125 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab183957 was shown to recognize PI 3 Kinase catalytic subunit alpha/PIK3CA in wild type cells as signal was lost at the expected MW in PI 3 Kinase catalytic subunit alpha/PIK3CA knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and PI 3 Kinase catalytic subunit alpha/PIK3CA knockout samples were subjected to SDS-PAGE. ab183957 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PI 3 Kinase catalytic subunit alpha/PIK3CA antibody [EPR19693] (<a href='/en-us/products/primary-antibodies/pi-3-kinase-catalytic-subunit-alpha-pik3ca-antibody-epr19693-ab183957'>ab183957</a>)

Predicted band size: 124 kDa

false
