AB109006

Anti-PI 3 Kinase p110 delta antibody [EPR386]

Be the first to review this product! Submit a review

|

(22 Publications)

Rabbit Recombinant Monoclonal PI 3 Kinase p110 delta antibody. Suitable for WB, ICC/IF and reacts with Mouse, Rat, Human samples. Cited in 22 publications.

View Alternative Names

PI3-kinase subunit delta, PI3K-delta, PI3Kdelta, PtdIns-3-kinase subunit delta, PtdIns-3-kinase subunit p110-delta, p110delta, PIK3CD

4 Images
Immunocytochemistry/ Immunofluorescence - Anti-PI 3 Kinase p110 delta antibody [EPR386] (AB109006)
  • ICC/IF

Unknown

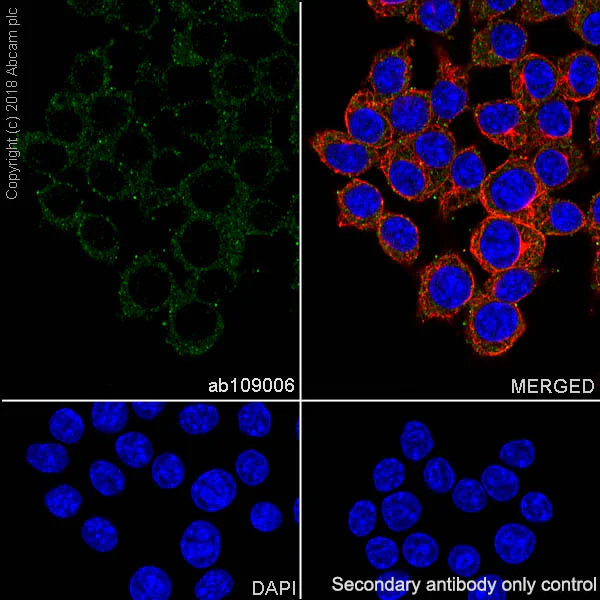

Immunocytochemistry/ Immunofluorescence - Anti-PI 3 Kinase p110 delta antibody [EPR386] (AB109006)

Immunocytochemistry/ Immunofluorescence analysis of RAW264.7 (Mouse Abelson murine leukemia virus-induced tumor macrophage) cells labeling PI 3 Kinase p110 delta with Purified ab109006 at 1 : 150 dilution (9.8 μg/ml). Cells were fixed in 100% Methanol and permeabilized with none. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor®594) 1 : 200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor®488, ab150077) was used as the secondary antibody at 1 : 1000 (2 μg/ml) dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (AB109006)
  • WB

Unknown

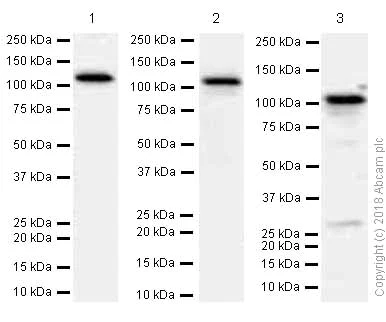

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (AB109006)

Blocking and diluting buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (ab109006) at 1.5 µg/mL

Lane 1:

Raji (Human Burkitt's lymphoma B lymphocyte) whole cell lysates at 15 µg

Lane 2:

RAW264.7 (Mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysates at 15 µg

Lane 3:

Rat spleen lysates at 15 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 119 kDa

false

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (AB109006)
  • WB

Lab

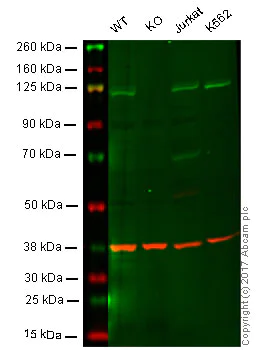

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (AB109006)

Lane 1 : Wild type HAP1 whole cell lysate (40 μg)
Lane 2 : PIK3CD knockout HAP1 whole cell lysate (40 μg)
Lane 3 : Jurkat whole cell lysate (40 μg)
Lane 4 : K562 whole cell lysate (40 μg)
Lanes 1 - 4 : Merged signal (red and green). Green - ab109006 observed at 120 kDa. Red - loading control, ab8245, observed at 37 kDa.

Unpurified ab109006 was shown to specifically react with PIK3CD in wild-type HAP1 cells. No band was observed when PIK3CD knockout samples were used. Wild-type and PIK3CD knockout samples were subjected to SDS-PAGE. ab109006 and ab8245 (Mouse anti GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/10,000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) secondary antibodies at 1/10,000 dilution for 1hr at room temperature before imaging.

All lanes:

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (ab109006)

Predicted band size: 119 kDa

Observed band size: 120 kDa

false

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (AB109006)
  • WB

Unknown

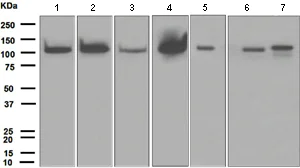

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (AB109006)

All lanes:

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (ab109006) at 1/1000 dilution

Lane 1:

Jurkat cell lysate at 10 µg

Lane 2:

Raji cell lysate at 10 µg

Lane 3:

K562 cell lysate at 10 µg

Lane 4:

RAW 264.7 cell lysate at 10 µg

Lane 5:

Rat brain tissue lysate at 10 µg

Lane 6:

Rat kidney tissue lysate at 10 µg

Lane 7:

Rat spleen tissue lysate at 10 µg

Predicted band size: 119 kDa

false

  • Carrier free

    Anti-PI 3 Kinase p110 delta antibody [EPR386] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR386

Isotype

IgG

Carrier free

No

Reacts with

Mouse, Rat, Human

Applications

ICC/IF, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB200372

Anti-PI 3 Kinase p110 delta antibody

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PI 3 Kinase p110 delta antibody (AB200372)

  • 0
  • 0
Primary Antibodies

AB32401

Anti-PI 3 Kinase p110 delta antibody [Y387]

RabMAb|Recombinant|Trial Size

Immunocytochemistry/ Immunofluorescence - Anti-PI 3 Kinase p110 delta antibody [Y387] (AB32401)

  • 0
  • 0

Complementary Products

Primary Antibodies

AB40776

Anti-PI 3 Kinase catalytic subunit alpha/PIK3CA antibody [EP383Y]

20ul selling size|RabMAb|Recombinant|KO Validated

Immunocytochemistry/ Immunofluorescence - Anti-PI 3 Kinase catalytic subunit alpha/PIK3CA antibody [EP383Y] (AB40776)

  • 0
  • 1
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB32199

Anti-PTEN antibody [Y184]

20ul selling size|RabMAb|Recombinant|KO Validated|Trial Size

Western blot - Anti-PTEN antibody [Y184] (AB32199)

  • 5
  • 15
Primary Antibodies

AB191606

Anti-PI 3 Kinase p85 alpha antibody [EPR18702]

20ul selling size|RabMAb|Recombinant|KO Validated

Immunocytochemistry/ Immunofluorescence - Anti-PI 3 Kinase p85 alpha antibody [EPR18702] (AB191606)

  • 5
  • 2
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000 - 1/10000", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>" }, "Mouse": { "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000 - 1/10000", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100 - 1/250", "ICCIF-species-notes": "<p></p>", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>" }, "Rat": { "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000 - 1/10000", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Phosphoinositide 3-kinase p110 delta also known as PI3Kδ or PIK3CD is a catalytic subunit of the class I PI3K enzyme complex. It plays a significant role in the phosphorylation of the 3'-hydroxyl group of inositol lipids which acts as a signal transducer. The molecular weight of p110 delta is approximately 110 kDa. This protein is highly expressed in leukocytes especially in B and T lymphocytes. Expression can also be seen in other cell types like neutrophils.
Biological function summary

P110 delta is involved in immune cell signaling as it is part of the class I PI3K complex. PI3Kδ functions in conjunction with p85 regulatory subunits to modulate various intracellular processes. The complex plays an important role in regulating cell growth proliferation and survival by mediating signals from growth factors or cytokines. It is also critical in the development and function of the adaptive immune system.

Pathways

PI3Kδ participates in the PI3K/AKT signaling pathway an important regulatory pathway in cell growth and survival. Another significant pathway involving p110 delta is the B-cell receptor (BCR) signaling pathway which is important for B cell development. Within these pathways PI3Kδ interacts with proteins such as AKT mTOR and BCR-related proteins that propagate downstream signaling events.

Aberrant activity of PI3Kδ has been linked to various immune-related diseases such as chronic lymphocytic leukemia (CLL) and rheumatoid arthritis. The overactivation of PI3Kδ in CLL correlates with enhanced survival and proliferation of malignant B cells. Additionally PI3Kδ dysfunction can influence inflammation pathways contributing to autoimmune conditions. The protein often works in concert with other proteins in these disease contexts such as B cells in CLL where it affects signaling via the B-cell receptor pathway.
