AB236049

Anti-PI 3 Kinase p110 delta antibody [EPR386] - BSA and Azide free

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal PI 3 Kinase p110 delta antibody. Carrier free. Suitable for WB, ICC/IF and reacts with Human, Mouse, Rat samples. Cited in 1 publication.

View Alternative Names

PI3-kinase subunit delta, PI3K-delta, PI3Kdelta, PtdIns-3-kinase subunit delta, PtdIns-3-kinase subunit p110-delta, p110delta, PIK3CD

2 Images
Immunocytochemistry/ Immunofluorescence - Anti-PI 3 Kinase p110 delta antibody [EPR386] - BSA and Azide free (AB236049)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-PI 3 Kinase p110 delta antibody [EPR386] - BSA and Azide free (AB236049)

Immunocytochemistry/ Immunofluorescence analysis of RAW264.7 (Mouse Abelson murine leukemia virus-induced tumor macrophage) cells labeling PI 3 Kinase p110 delta with Purified ab109006 at 1 : 150 dilution (9.8 µg/ml). Cells were fixed in 100% Methanol and permeabilized with none. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor®594) 1 : 200 (2.5 µg/ml). Goat anti rabbit IgG (Alexa Fluor®488, ab150077) was used as the secondary antibody at 1 : 1000 (2 µg/ml) dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109006).

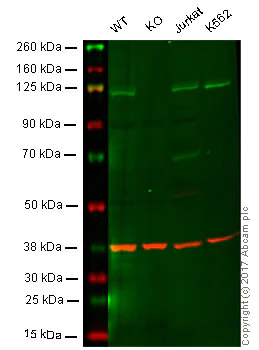

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] - BSA and Azide free (AB236049)
  • WB

Lab

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] - BSA and Azide free (AB236049)

Lane 1 : Wild type HAP1 whole cell lysate (40 μg)
Lane 2 : PIK3CD knockout HAP1 whole cell lysate (40 μg)
Lane 3 : Jurkat whole cell lysate (40 μg)
Lane 4 : K562 whole cell lysate (40 μg)
Lanes 1 - 4 : Merged signal (red and green). Green - ab109006 observed at 120 kDa. Red - loading control, ab8245, observed at 37 kDa.

ab109006 was shown to specifically react with PIK3CD in wild-type HAP1 cells. No band was observed when PIK3CD knockout samples were used. Wild-type and PIK3CD knockout samples were subjected to SDS-PAGE. ab109006 and ab8245 (Mouse anti GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/10,000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) secondary antibodies at 1/10,000 dilution for 1hr at room temperature before imaging.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109006).

All lanes:

Western blot - Anti-PI 3 Kinase p110 delta antibody [EPR386] (<a href='/en-us/products/primary-antibodies/pi-3-kinase-p110-delta-antibody-epr386-ab109006'>ab109006</a>)

Predicted band size: 119 kDa

Observed band size: 120 kDa

false

  • Unconjugated

    Anti-PI 3 Kinase p110 delta antibody [EPR386]

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR386

Isotype

IgG

Carrier free

Yes

Reacts with

Mouse, Rat, Human

Applications

ICC/IF, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "FlowCyt" : {"fullname" : "Flow Cytometry", "shortname":"Flow Cyt"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" }, "Mouse": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/150", "ICCIF-species-notes": "<p></p>" }, "Rat": { "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "<p></p>", "FlowCyt-species-checked": "notRecommended", "FlowCyt-species-dilution-info": "", "FlowCyt-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "ICCIF-species-checked": "guaranteed", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "" } } }

Product details

ab236049 is the carrier-free version of ab109006.

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Phosphoinositide 3-kinase p110 delta also known as PI3Kδ or PIK3CD is a catalytic subunit of the class I PI3K enzyme complex. It plays a significant role in the phosphorylation of the 3'-hydroxyl group of inositol lipids which acts as a signal transducer. The molecular weight of p110 delta is approximately 110 kDa. This protein is highly expressed in leukocytes especially in B and T lymphocytes. Expression can also be seen in other cell types like neutrophils.
Biological function summary

P110 delta is involved in immune cell signaling as it is part of the class I PI3K complex. PI3Kδ functions in conjunction with p85 regulatory subunits to modulate various intracellular processes. The complex plays an important role in regulating cell growth proliferation and survival by mediating signals from growth factors or cytokines. It is also critical in the development and function of the adaptive immune system.

Pathways

PI3Kδ participates in the PI3K/AKT signaling pathway an important regulatory pathway in cell growth and survival. Another significant pathway involving p110 delta is the B-cell receptor (BCR) signaling pathway which is important for B cell development. Within these pathways PI3Kδ interacts with proteins such as AKT mTOR and BCR-related proteins that propagate downstream signaling events.

Aberrant activity of PI3Kδ has been linked to various immune-related diseases such as chronic lymphocytic leukemia (CLL) and rheumatoid arthritis. The overactivation of PI3Kδ in CLL correlates with enhanced survival and proliferation of malignant B cells. Additionally PI3Kδ dysfunction can influence inflammation pathways contributing to autoimmune conditions. The protein often works in concert with other proteins in these disease contexts such as B cells in CLL where it affects signaling via the B-cell receptor pathway.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Phosphoinositide-3-kinase (PI3K) phosphorylates phosphatidylinositol (PI) and its phosphorylated derivatives at position 3 of the inositol ring to produce 3-phosphoinositides (PubMed : 9235916). Uses ATP and PtdIns(4,5)P2 (phosphatidylinositol 4,5-bisphosphate) to generate phosphatidylinositol 3,4,5-trisphosphate (PIP3) (PubMed : 15135396). PIP3 plays a key role by recruiting PH domain-containing proteins to the membrane, including AKT1 and PDPK1, activating signaling cascades involved in cell growth, survival, proliferation, motility and morphology. Mediates immune responses. Plays a role in B-cell development, proliferation, migration, and function. Required for B-cell receptor (BCR) signaling. Mediates B-cell proliferation response to anti-IgM, anti-CD40 and IL4 stimulation. Promotes cytokine production in response to TLR4 and TLR9. Required for antibody class switch mediated by TLR9. Involved in the antigen presentation function of B-cells. Involved in B-cell chemotaxis in response to CXCL13 and sphingosine 1-phosphate (S1P). Required for proliferation, signaling and cytokine production of naive, effector and memory T-cells. Required for T-cell receptor (TCR) signaling. Mediates TCR signaling events at the immune synapse. Activation by TCR leads to antigen-dependent memory T-cell migration and retention to antigenic tissues. Together with PIK3CG participates in T-cell development. Contributes to T-helper cell expansion and differentiation. Required for T-cell migration mediated by homing receptors SELL/CD62L, CCR7 and S1PR1 and antigen dependent recruitment of T-cells. Together with PIK3CG is involved in natural killer (NK) cell development and migration towards the sites of inflammation. Participates in NK cell receptor activation. Plays a role in NK cell maturation and cytokine production. Together with PIK3CG is involved in neutrophil chemotaxis and extravasation. Together with PIK3CG participates in neutrophil respiratory burst. Plays important roles in mast-cell development and mast cell mediated allergic response. Involved in stem cell factor (SCF)-mediated proliferation, adhesion and migration. Required for allergen-IgE-induced degranulation and cytokine release. The lipid kinase activity is required for its biological function. Isoform 2 may be involved in stabilizing total RAS levels, resulting in increased ERK phosphorylation and increased PI3K activity.
See full target information PIK3CD

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Aging 13:16749-16762 PubMed34170851

2021

Bone mesenchymal stem cell derived exosomes alleviate high phosphorus-induced calcification of vascular smooth muscle cells through the NONHSAT 084969.2/NF-κB axis.

Applications

Unspecified application

Species

Unspecified reactive species

Yingjie Liu,Shumin Bao,Weikang Guo,Wenhu Liu
View all publications

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
