Rabbit Recombinant Monoclonal PIGU antibody. C-terminal. Suitable for WB, IHC-P and reacts with Rat, Mouse, Human samples. Cited in 1 publication.

Be the first to review this product! Submit a review

Images

Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (AB192255), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Pigu antibody [EPR16424] - C-terminal (AB192255), expandable thumbnail
  • Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (AB192255), expandable thumbnail
  • Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (AB192255), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Pigu antibody [EPR16424] - C-terminal (AB192255), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
WBIHC-P
Human
Tested
Tested
Mouse
Tested
Tested
Rat
Tested
Expected

Tested
Tested

Species
Rat
Dilution info
1/1000 - 1/10000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Mouse
Dilution info
1/1000 - 1/10000
Notes

-

Species
Human
Dilution info
1/1000 - 1/10000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species
Mouse
Dilution info
1/500 - 1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Human
Dilution info
1/500 - 1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species
Rat
Dilution info
Use at an assay dependent concentration.
Notes

-

Target data

Function

Component of the GPI transamidase complex, necessary for transfer of GPI to proteins (PubMed:34576938). May be involved in the recognition of either the GPI attachment signal or the lipid portion of GPI.

Alternative names

Recommended products

Rabbit Recombinant Monoclonal PIGU antibody. C-terminal. Suitable for WB, IHC-P and reacts with Rat, Mouse, Human samples. Cited in 1 publication.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR16424
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

The target known as PIG-U also referred to as Phosphatidylinositol Glycan Anchor Biosynthesis Class U is an essential component in cellular processes. PIG-U is part of the glycosylphosphatidylinositol (GPI) transamidase complex important for GPI-anchor biosynthesis. This process allows proteins to attach to membranes essential for cell surface functionality. The approximate molecular mass of PIG-U is 50 kDa. It is widely expressed in various tissues especially those with high rates of cell division and growth.

Biological function summary

PIG-U plays an important role in enabling proteins to attach to the cell membrane via GPI anchors. This protein forms a part of a multi-subunit complex including other critical proteins like PIG-S and PIG-T. The function of PIG-U ensures that proteins needing a GPI-anchor for their localization and function on cellular membranes get tethered correctly. GPI-anchored proteins are involved in cell signaling cell adhesion and interactions with the extracellular matrix highlighting the functional diversity PIG-U supports.

Pathways

GPI-anchor synthesis involves PIG-U as a central node in the GPI biosynthesis pathway. This pathway is essential for the post-translational modification of proteins that will become GPI-anchored. An important protein associated with PIG-U through this pathway is the GPI-Anchor Transamidase complex. Another significant pathway related to PIG-U is the N-Glycan biosynthesis where proper glycosylation of proteins is coordinated sharing a network with proteins like GnT-1.

Associated diseases and disorders

Mutations or dysfunctions in PIG-U have links to the pathogenesis of Paroxysmal Nocturnal Hemoglobinuria (PNH) which involves the body's inability to regulate complement on the surface of blood cells. Additionally various forms of intellectual disability relate to abnormalities in the GPI-anchor biosynthesis pathway influenced by PIG-U's functionality. PIG-T and other components of the GPI Transamidase complex are also implicated in these disorders highlighting the importance of PIG-U in maintaining normal cellular function and health.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

5 product images

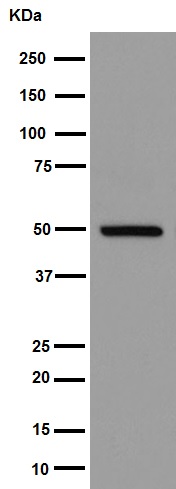

  • Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255), expandable thumbnail

    Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255)

    All lanes: Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255) at 1/10000 dilution

    All lanes: HeLa cell lysate at 20 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

    Predicted band size: 50 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255)

    Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling Pigu with ab192255 at 1/1000 dilution. A ready to use HRP Polymer for Rabbit IgG was used as the secondary. Hematoxylin counterstain.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

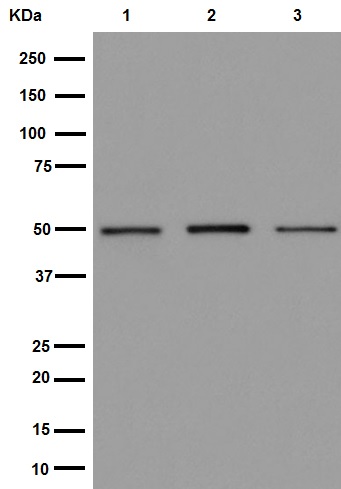

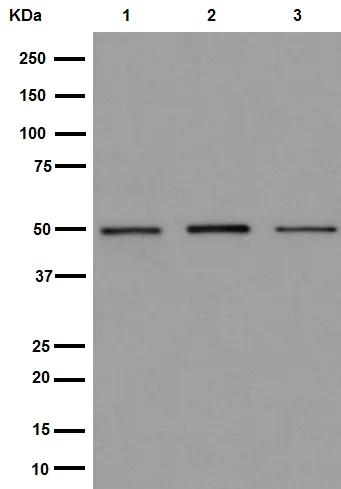

  • Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255), expandable thumbnail

    Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255)

    All lanes: Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255) at 1/1000 dilution

    Lane 1: HT-1376 cell lysate at 20 µg

    Lane 2: 293 cell lysate at 20 µg

    Lane 3: Human fetal brain tissue lysate at 20 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

    Predicted band size: 50 kDa

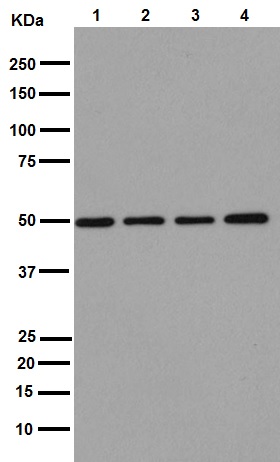

  • Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255), expandable thumbnail

    Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255)

    All lanes: Western blot - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255) at 1/1000 dilution

    Lane 1: C6 cell lysate at 10 µg

    Lane 2: RAW 264.7 cell lysate at 10 µg

    Lane 3: PC12 cell lysate at 10 µg

    Lane 4: NIH 3T3 cell lysate at 10 µg

    Secondary

    All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

    Predicted band size: 50 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Pigu antibody [EPR16424] - C-terminal (ab192255)

    Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling Pigu with ab192255 at 1/1000 dilution. A ready to use HRP Polymer for Rabbit IgG was used as the secondary. Hematoxylin counterstain.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
