Rabbit Recombinant Monoclonal PKA R2/PKR2 antibody. Suitable for IHC-P, ICC/IF, IP, WB, Flow Cyt (Intra) and reacts with Human samples. Cited in 8 publications.


Images

Immunoprecipitation - Anti-PKA R2/PKR2 antibody [Y116] (AB32514), expandable thumbnail
  • Western blot - Anti-PKA R2/PKR2 antibody [Y116] (AB32514), expandable thumbnail
  • Flow Cytometry (Intracellular) - Anti-PKA R2/PKR2 antibody [Y116] (AB32514), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PKA R2/PKR2 antibody [Y116] (AB32514), expandable thumbnail
  • Western blot - Anti-PKA R2/PKR2 antibody [Y116] (AB32514), expandable thumbnail

Publications

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PICC/IFIPWBFlow Cyt (Intra)
Human
Tested
Tested
Tested
Tested
Tested
Cow
Predicted
Predicted
Predicted
Predicted
Predicted

Tested
Tested

Species
Human
Dilution info
1/100
Notes

For unpurified use at 1/100 - 1/250.

Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Predicted
Predicted

Species
Cow
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/500
Notes

For unpurified use at 1/100 - 1/250.

Predicted
Predicted

Species
Cow
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/20
Notes

-

Predicted
Predicted

Species
Cow
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/10000
Notes

For unpurified use at 1/10000 - 1/50000.

Predicted
Predicted

Species
Cow
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/20
Notes

-

Predicted
Predicted

Species
Cow
Dilution info
-
Notes

-

Associated Products

Select an associated product type

5 products for Alternative Product

Target data

Function

Regulatory subunit of the cAMP-dependent protein kinases involved in cAMP signaling in cells. Type II regulatory chains mediate membrane association by binding to anchoring proteins, including the MAP2 kinase.

Alternative names

PKR2, PRKAR2, PRKAR2A, cAMP-dependent protein kinase type II-alpha regulatory subunit

Recommended products

Rabbit Recombinant Monoclonal PKA R2/PKR2 antibody. Suitable for IHC-P, ICC/IF, IP, WB, Flow Cyt (Intra) and reacts with Human samples. Cited in 8 publications.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
Y116
Purification technique
Affinity purification Protein A
Specificity

The antibody recognises PKA RII. It does not cross-react with other cAMP-dependent kinase.

Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Mouse, Rat: We have preliminary internal testing data to indicate this antibody may not react with these species. Please contact us for more information.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

Protein Kinase A R2 (PKR2) also known as PRKAR2A is a regulatory subunit of Protein Kinase A (PKA). PKA is part of a larger complex known as the cAMP-dependent protein kinase which plays an important role in cellular signaling. PKA consists of regulatory and catalytic subunits with PKR2 serving as one of its regulatory forms. PKR2 possesses a molecular mass of approximately 47 kDa and is available in various human tissues with notable expression in the brain and cardiovascular system.

Biological function summary

PKR2 regulates the activity of PKA by binding to the catalytic subunit in the absence of cAMP therefore inhibiting its activity. When cAMP is present it binds to the regulatory subunit PKR2 leading to the release and activation of the catalytic subunit of PKA. PKR2 is an integral part of the PKA holoenzyme complex which plays a critical role in mediating cellular responses to hormonal stimulation.

Pathways

PKR2 is heavily involved in the cAMP-dependent signaling pathway. This pathway is essential for translating extracellular signals into cellular actions. It interacts with various effector proteins including adenylate cyclases and phosphodiesterases to modulate responses such as gene transcription metabolism and memory formation. PKR2-related activity influences pathways shared with proteins like the G-protein subunits which facilitate the effects of neurotransmitters.

Associated diseases and disorders

PKR2 irregularities can impact conditions like heart failure and neurodegenerative diseases. Disrupted PKA pathway signaling involving PKR2 can contribute to cardiac dysfunction by affecting heart muscle contractility and hypertrophy. In neurodegenerative diseases the improper functioning of PKR2 can exacerbate disruptions in neural signaling. A connection exists between PKR2 and proteins such as CREB (cAMP response element-binding protein) which links PKR2's role to memory deficits observed in neurodegeneration.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

5 product images

  • Immunoprecipitation - Anti-PKA R2/PKR2 antibody [Y116] (ab32514), expandable thumbnail

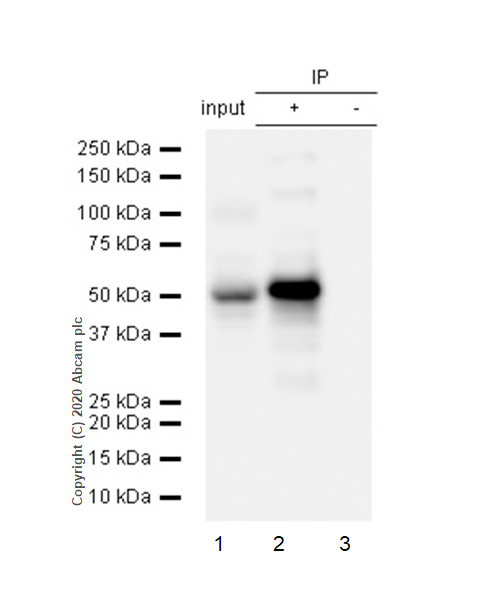

    Immunoprecipitation - Anti-PKA R2/PKR2 antibody [Y116] (ab32514)

    Purified ab32514 at 1/20 dilution (0.5μg) immunoprecipitating PKA R2/PKR2 in K-562 whole cell lysate.
    Lane 1 (input): K-562 (Human chronic myelogenous leukemia lymphoblast) whole cell lysate 10μg
    Lane 2 (+): ab32514 + K-562 whole cell lysate.
    Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab32514 in K-562 whole cell lysate.
    VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) (1/1000 dilution) was used for Western blotting.
    Blocking Buffer and concentration: 5% NFDM/TBST.
    Diluting buffer and concentration: 5% NFDM/TBST.
    Observed band size: 50 kDa

    All lanes: Immunoprecipitation - Anti-PKA R2/PKR2 antibody [Y116] (ab32514)

    Predicted band size: 45 kDa

  • Western blot - Anti-PKA R2/PKR2 antibody [Y116] (ab32514), expandable thumbnail

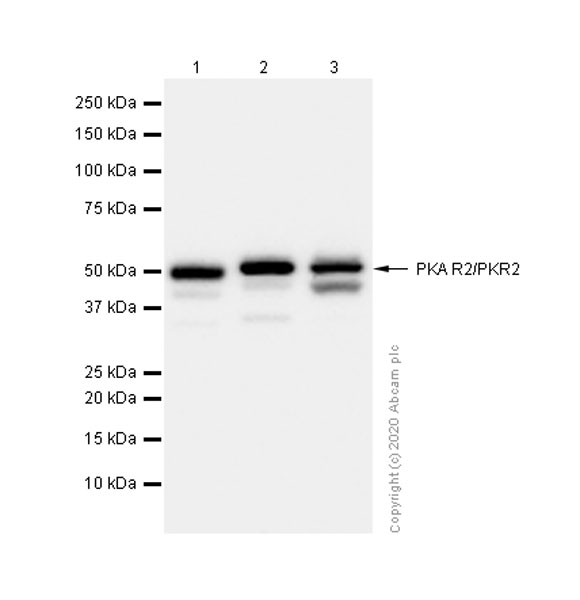

    Western blot - Anti-PKA R2/PKR2 antibody [Y116] (ab32514)

    All lanes: Western blot - Anti-PKA R2/PKR2 antibody [Y116] (ab32514) at 1/10000 dilution

    Lane 1: K-562 (Human chronic myelogenous leukemia lymphoblast) whole cell lysate at 20 µg

    Lane 2: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

    Lane 3: Jurkat (Human T cell leukemia T lymphocyte) whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Predicted band size: 45 kDa

    Observed band size: 50 kDa

  • Flow Cytometry (Intracellular) - Anti-PKA R2/PKR2 antibody [Y116] (ab32514), expandable thumbnail

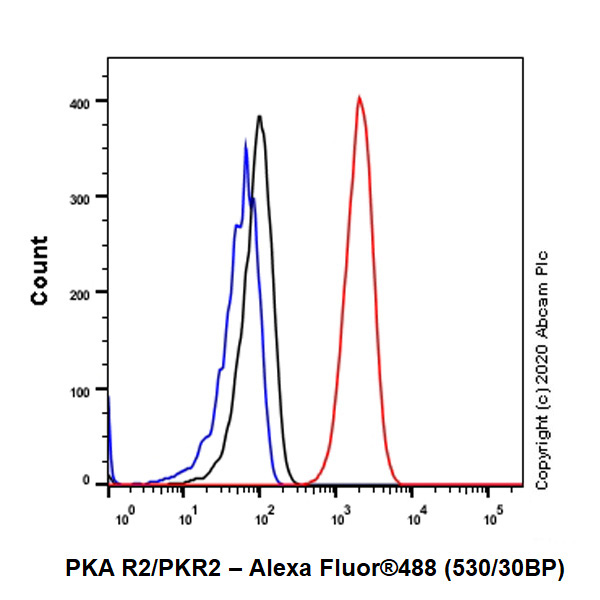

    Flow Cytometry (Intracellular) - Anti-PKA R2/PKR2 antibody [Y116] (ab32514)

    Intracellular Flow Cytometry analysis of MCF7 (Human breast adenocarcinoma epithelial cell) cells labeling PKA R2/PKR2 with purified ab32514 at 1/20 dilution (10 μg/mL) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PKA R2/PKR2 antibody [Y116] (ab32514), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PKA R2/PKR2 antibody [Y116] (ab32514)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colon cancer tissue sections labeling PKA R2/PKR2 with purified ab32514 at 1/100 dilution (0.84 µg/mL). Heat mediated antigen retrieval using Bond™ Epitope Retrieval Solution 2 (pH 9.0). Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

  • Western blot - Anti-PKA R2/PKR2 antibody [Y116] (ab32514), expandable thumbnail

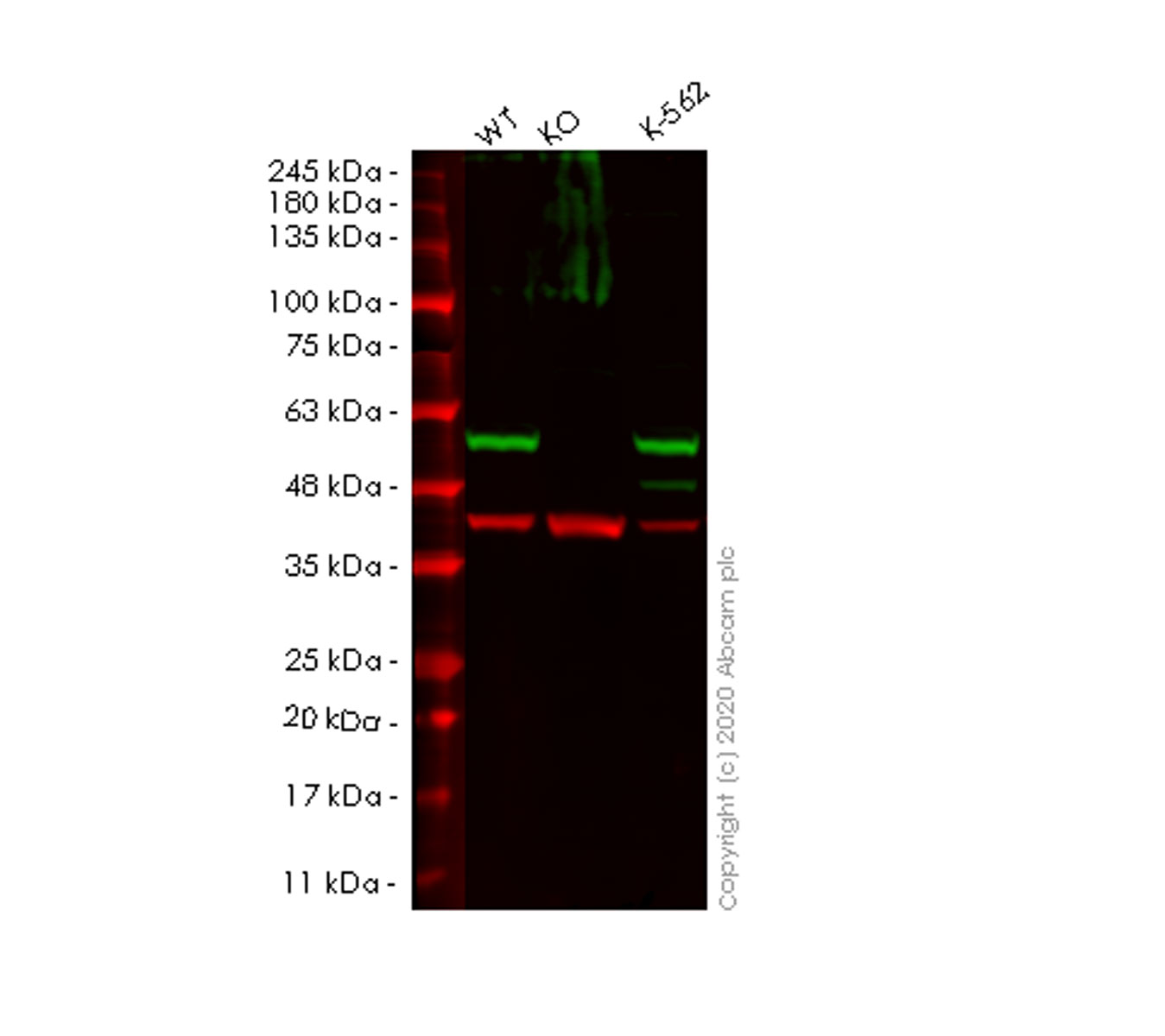

    Western blot - Anti-PKA R2/PKR2 antibody [Y116] (ab32514)

    Lanes 1-3: Merged signal (red and green). Green - ab32514 observed at 50 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 36 kDa.

    Unpurified ab32514 Anti-PKA R2/PKR2 antibody [Y116] was shown to specifically react with PKA R2/PKR2 in wild-type HeLa cells. Loss of signal was observed when knockout cell line Human PRKAR2A (PKA R2/PKR2) knockout HeLa cell line ab265748 (knockout cell lysate Human PRKAR2A (PKA R2/PKR2) knockout HeLa cell lysate ab257607) was used. Wild-type and PKA R2/PKR2 knockout samples were subjected to SDS-PAGE. ab32514 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated at room temperature for 2. 5 hours at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

    All lanes: Western blot - Anti-PKA R2/PKR2 antibody [Y116] (ab32514) at 1/1000 dilution

    Lane 1: Wild-type HeLa cell lysate at 20 µg

    Lane 2: PRKAR2A knockout HeLa cell lysate at 20 µg

    Lane 2: Western blot - Human PRKAR2A (PKA R2/PKR2) knockout HeLa cell line (Human PRKAR2A (PKA R2/PKR2) knockout HeLa cell line ab265748)

    Lane 3: K-562 cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution

    Predicted band size: 45 kDa

    Observed band size: 50 kDa
