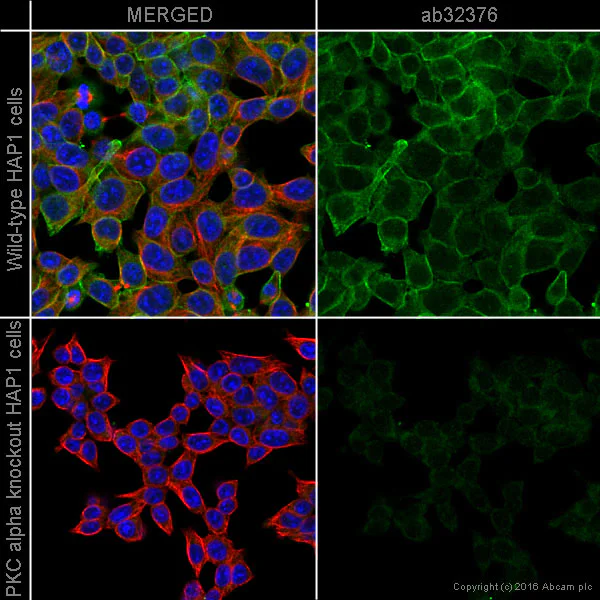

Anti-PKC alpha antibody [Y124] - BSA and Azide free

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

Unpurified ab32376 staining PKCα in 200nM PMA-treated wild-type HAP1 cells (top panel) and PKCα in 200nM PMA-treated knockout HAP1 cells (bottom panel). The cells were treated with 200nM PMA for 30 minutes to induce translocation of PKCα to the cell membrane. The cells were then fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab32376 at 1/200 dilution and ab7291 at 1ug/ml concentration overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (ab150081) at 2 μg/ml (shown in green) and a goat secondary antibody to Mouse IgG (Alexa Fluor® 594) (ab150117) at 2ug/ml (shown in pseudo-color red). Nuclear DNA was labelled in blue with DAPI.

This product also gave a positive signal under the same testing conditions in HAP1 cells fixed with 4% formaldehyde (10 min).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

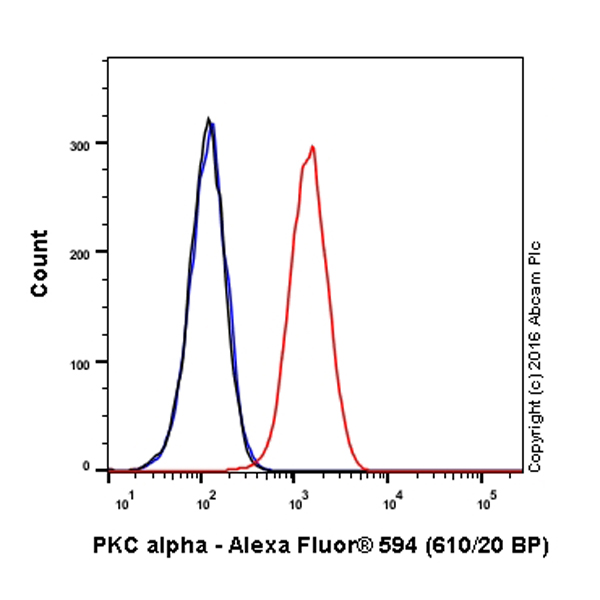

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

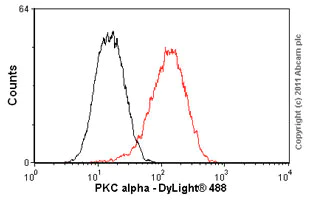

Overlay histogram showing HeLa cells stained with unpurified ab32376 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab32376, 1/100 dilution) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-rabbit IgG (H+L) (ab96899) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit monoclonal IgG (1μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed. This antibody gave a positive signal in HeLa cells fixed with methanol (5 min)/permeabilized in 0.1% PBS-Tween used under the same conditions.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

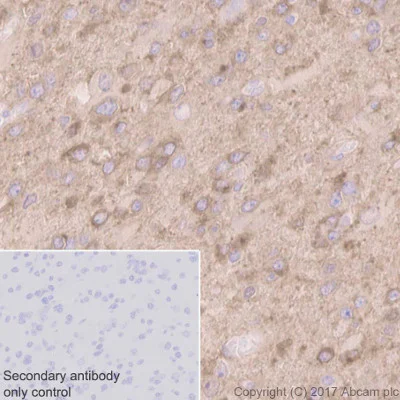

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human glioma tissue sections labeling PKC alpha with purified ab32376 at 1 : 100 dilution (1.01 μg/ml). Heat mediated antigen retrieval was performed using EDTA Buffer, pH9.0. Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

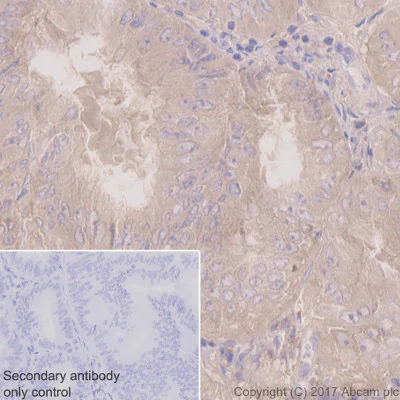

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human endometrium carcinoma tissue sections labeling PKC alpha with purified ab32376 at 1 : 100 dilution (1.01 μg/ml). Heat mediated antigen retrieval was performed using EDTA Buffer, pH9.0. Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

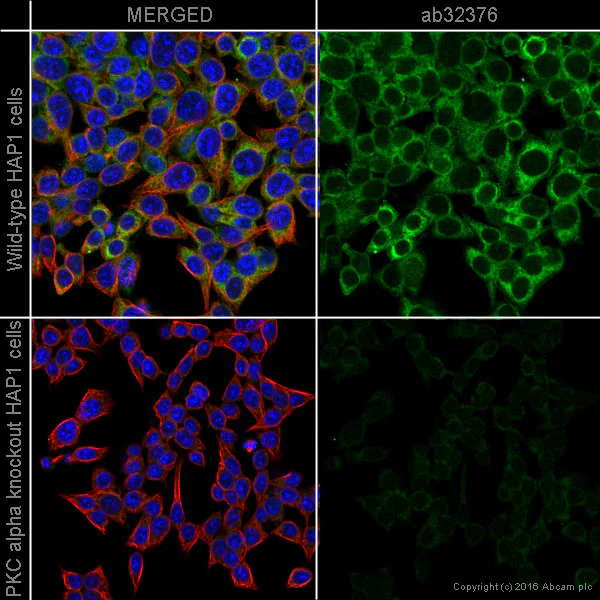

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

This ICC/IF data was generated using the same anti-PKC alpha antibody clone, Y124, in a different buffer formulation (cat# ab32376).

Unpurified ab32376 staining PKCα in wild-type HAP1 cells (top panel) and PKCα in knockout HAP1 cells (bottom panel). In untreated conditions, PKCα is expressed in the cytoplasm of the cells. The cells were then fixed with 100% methanol (5min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated with ab32376 at 1/200 dilution and ab7291 at 1ug/ml concentration overnight at +4°C, followed by a further incubation at room temperature for 1h with a goat secondary antibody to Rabbit IgG (Alexa Fluor® 488) (ab150081) at 2 μg/ml (shown in green) and a goat secondary antibody to Mouse IgG (Alexa Fluor® 594) (ab150117) at 2ug/ml (shown in pseudo-color red). Nuclear DNA was labelled in blue with DAPI.

This product also gave a positive signal under the same testing conditions in HAP1 cells fixed with 4% formaldehyde (10 min).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

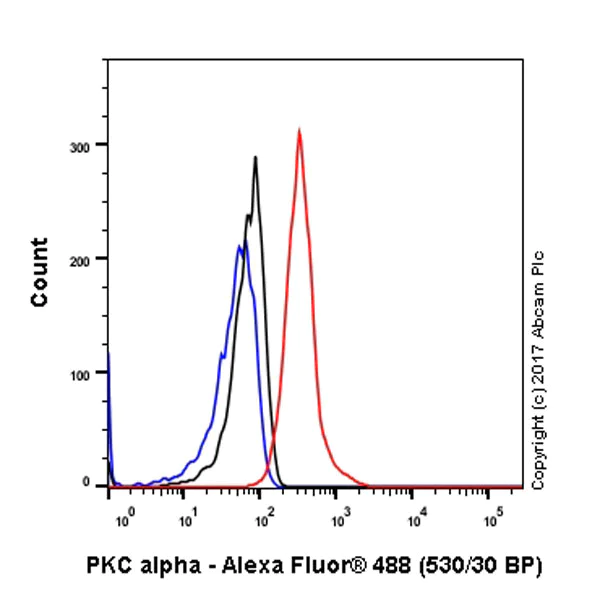

Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling PKC alpha with purified ab32376 at 1/20 dilution (5 ug/ml) (red). Cells were fixed with 4% Paraformaldehyde. A Goat anti rabbit IgG (Alexa Fluor^® 488) secondary antibody was used at 1/2000 dilution. Isotype control - 90% methanol. Unlabeled control - Rabbit monoclonal IgG (Black). Cell without incubation with primary antibody and secondary antibody (Blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

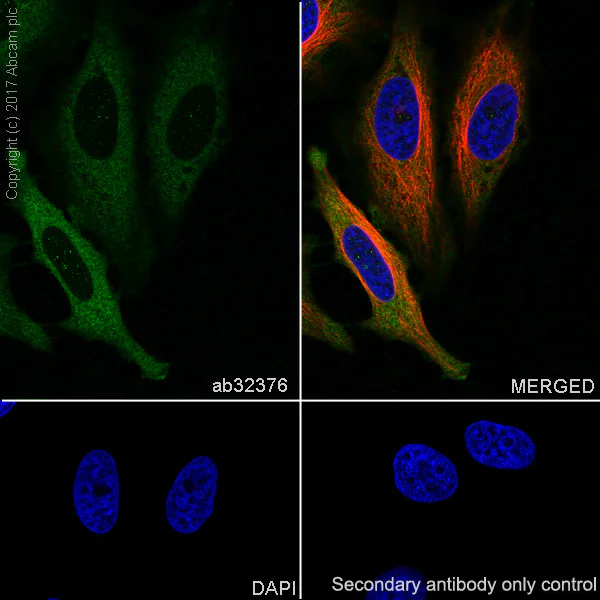

Immunocytochemistry/ Immunofluorescence analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling PKC alpha with Purified ab32376 at 1 : 250 dilution (0.4μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1 : 200 (2.5 μg/ml). ab150077 Goat anti rabbit IgG(Alexa Fluor^® 488) was used as the secondary antibody at 1 : 1000 dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

• IP

Unknown

Immunoprecipitation - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

ab32376 (purified) at 1 : 20 dilution (0.5ug) immunoprecipitating PKC alpha in Jurkat (Human T cell leukemia T lymphocyte) whole cell lysate.

Lane 1 (input) : Jurkat (Human T cell leukemia T lymphocyte) whole cell lysate 10ug

Lane 2 (+) : ab32376 & Jurkat (Human T cell leukemia T lymphocyte) whole cell lysate

Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab32376 in Jurkat (Human T cell leukemia T lymphocyte) whole cell lysate

For western blotting, VeriBlot for IP Detection Reagent (HRP) (ab131366) was used for detection at 1 : 1000 dilution.

Blocking and diluting buffer : 5% NFDM/TBST.

The band between 37kDa and 50kDa might be the C-term fragment. (PMID : 10381525)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

All lanes:

Immunoprecipitation - Anti-PKC alpha antibody [Y124] (<a href='/en-us/products/primary-antibodies/pkc-alpha-antibody-y124-ab32376'>ab32376</a>)

Predicted band size: 76 kDa

false

• IP

Unknown

Immunoprecipitation - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

ab32376 (purified) at 1 : 20 dilution (0.5ug) immunoprecipitating PKC alpha in 293 (Human embryonic kidney epithelial cell) whole cell lysate.

Lane 1 (input) : 293 (Human embryonic kidney epithelial cell) whole cell lysate 10ug

Lane 2 (+) : ab32376 & 293 (Human embryonic kidney epithelial cell) whole cell lysate

Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab32376 in 293 (Human embryonic kidney epithelial cell) whole cell lysate

For western blotting, VeriBlot for IP Detection Reagent (HRP) (ab131366) was used for detection at 1 : 1000 dilution.

Blocking and diluting buffer : 5% NFDM/TBST.

The band between 37kDa and 50kDa might be the C-term fragment. (PMID : 10381525)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

All lanes:

Immunoprecipitation - Anti-PKC alpha antibody [Y124] (<a href='/en-us/products/primary-antibodies/pkc-alpha-antibody-y124-ab32376'>ab32376</a>)

Predicted band size: 76 kDa

false

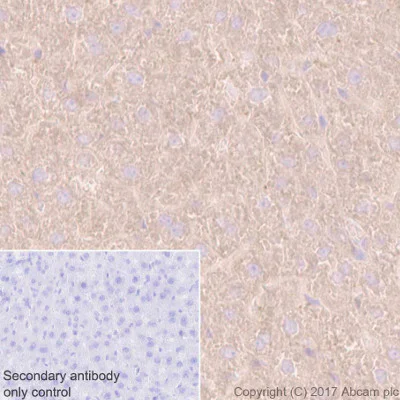

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Rat liver tissue sections labeling PKC alpha with purified ab32376 at 1 : 100 dilution (1.01 μg/ml). Heat mediated antigen retrieval was performed using EDTA Buffer, pH9.0. Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

• ICC/IF

AbReview17096****

Immunocytochemistry/ Immunofluorescence - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

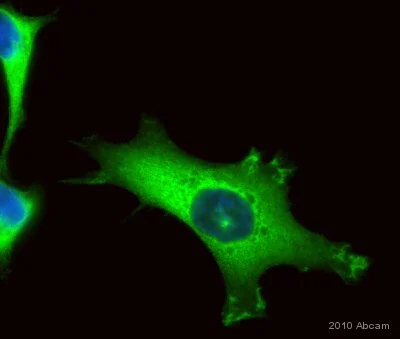

ab32376 staining PKC in the HT1080 Cell line by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with paraformaldehyde, permeabilized with 0.1% Triton X-100. Samples were incubated with primary antibody (1/400 in PBS) for 1 hour at 22°C. An Alexa Fluor® 488-conjugated Goat anti-rabbit IgG polyclonal was used as the secondary antibody (1/1000).This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

This image is courtesy of an anonymous Abreview.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Mouse liver tissue sections labeling PKC alpha with purified ab32376 at 1 : 100 dilution (1.01 μg/ml). Heat mediated antigen retrieval was performed using EDTA Buffer, pH9.0. Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1 : 0 dilution. PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376).

• WB

Unknown

Western blot - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

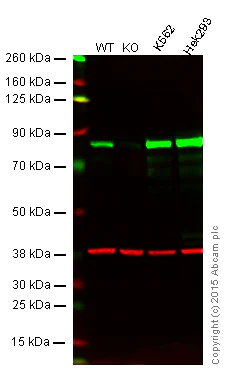

This WB data was generated using the same anti-PKC alpha antibody clone, Y124, in a different buffer formulation (cat# ab32376).

Lane 1 : Wild-type HAP1 cell lysate (20 μg)
Lane 2 : PKC alpha knockout HAP1 cell lysate (20 μg)
Lane 3 : K562 cell lysate (20 μg)
Lane 4 : HEK293 cell lysate (20 μg)
Lanes 1 - 4 : Merged signal (red and green). Green - ab32376 observed at 77 kDa. Red - loading control, ab8245, observed at 37 kDa.

Unpurified ab32376 was shown to specifically react with PKC alpha when PKC alpha knockout samples were used. Wild-type and PKC alpha knockout samples were subjected to SDS-PAGE. ab32376 and ab8245 (loading control to GAPDH) were diluted 1/5000 and 1/1000 respectively and incubated overnight at 4°C. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1/10 000 dilution for 1 h at room temperature before imaging.

All lanes:

Western blot - Anti-PKC alpha antibody [Y124] - BSA and Azide free (ab221611)

Predicted band size: 76 kDa

false

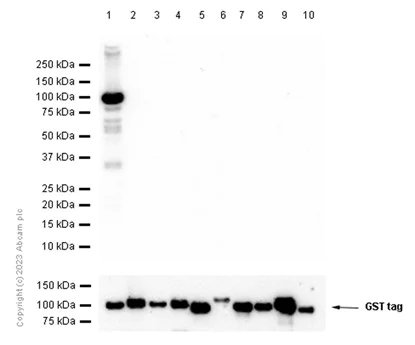

• WB

Supplier Data

Western blot - Anti-PKC alpha antibody [Y124] - BSA and Azide free (AB221611)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32376). Blocking and diluting buffer and concentration : 5% NFDM/TBST.

All lanes:

Western blot - Anti-PKC alpha antibody [Y124] (<a href='/en-us/products/primary-antibodies/pkc-alpha-antibody-y124-ab32376'>ab32376</a>) at 1/2000 dilution

Lane 1:

Western blot - Recombinant human PKC alpha protein (Active) (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-alpha-protein-active-ab55672'>ab55672</a>)

Lane 2:

Western blot - Recombinant human PKC beta 1 protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-beta-1-protein-ab60840'>ab60840</a>)

Lane 3:

Western blot - Recombinant human PKC beta 2 protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-beta-2-protein-ab60841'>ab60841</a>)

Lane 4:

Western blot - Recombinant human PKC gamma protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-gamma-protein-ab60842'>ab60842</a>)

Lane 5:

Western blot - Recombinant human PKC delta protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-delta-protein-ab60844'>ab60844</a>)

Lane 6:

Western blot - Recombinant human PKC epsilon protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-epsilon-protein-ab60847'>ab60847</a>)

Lane 7:

Western blot - Recombinant human PKC zeta protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-zeta-protein-ab60848'>ab60848</a>)

Lane 8:

Western blot - Recombinant human PKC eta protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-eta-protein-ab60849'>ab60849</a>)

Lane 9:

Western blot - Recombinant human PKC theta/PRKCQ protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-theta-prkcq-protein-ab56641'>ab56641</a>)

Lane 10:

Western blot - Recombinant human PKC iota protein (<a href='/en-us/products/proteins-peptides/recombinant-human-pkc-iota-protein-ab60850'>ab60850</a>)

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 76 kDa

Observed band size: 105 kDa

false

Exposure time: 20s
