Anti-PODXL antibody [EPR9518] - BSA and Azide free

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

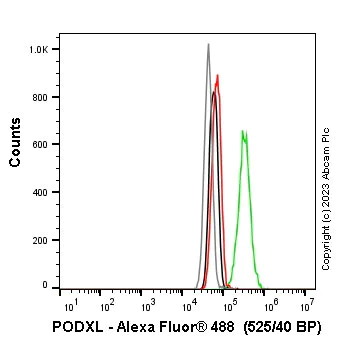

Flow cytometry overlay histogram showing wild-type Hela (green line) and PODXL knockout Hela stained with ab150358 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilised with 0.1% PBS-Triton X-100 for 15 min. The cells were then incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab150358) (1x 106 in 100μl at 1.0 μg/ml (1/2250)) for 30min at 22°C.

The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min at 22°C

Isotype control antibody Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control was used at the same concentration and conditions as the primary antibody (wild-type Hela - black line, PODXL knockout Hela - grey line). Unlabelled sample was also used as a control (this line is not shown for the purpose of simplicity).

Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

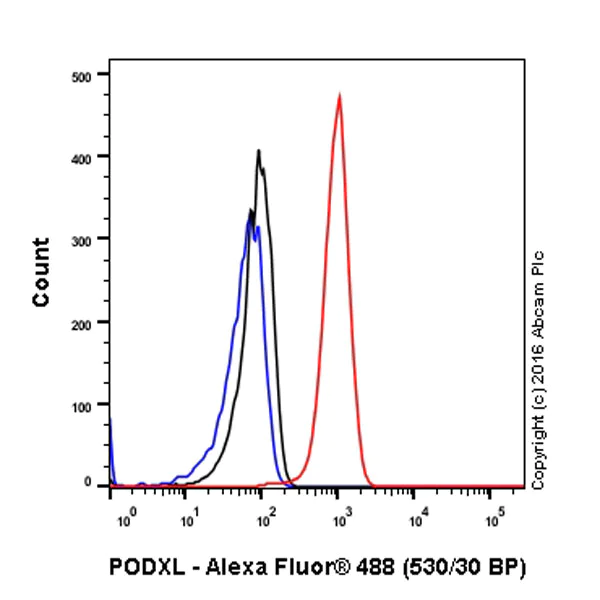

Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labeling PODXL with purified ab150358 at 1/250 dilution (red). The secondary antibody was Goat anti rabbit IgG (Alexa Fluor^®488) at 1/2000 dilution. A Rabbit monoclonal IgG (Black) was used as the isotype control and cells without incubation with primary antibody and secondary antibody (Blue) were used as unlabeled control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

Immunohistochemical analysis of paraffin embedded normal human kidney tissue using unpurified ab150358 showing positive staining. Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

Immunohistochemical analysis of paraffin embedded human glioma tissue using unpurified ab150358 showing positive staining. Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

Immunohistochemical analysis of paraffin embedded human kidney tissue labeling PODXL with unpurified ab150358 antibody at a dilution of 1/100. Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

Immunohistochemical analysis of paraffin embedded human endometrial carcinoma tissue using unpurified ab150358 showing positive staining. Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

Immunohistochemical analysis of paraffin embedded human skeletal muscle tissue using unpurified ab150358 showing negative staining. Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human kidney tissue sections labeling PODXL with purified ab150358 at 1/1000 dilution (0.44 μg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) is the secondary antibody.

PBS instead of the primary antibody was used as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

Immunocytochemistry/Immunofluorescence analysis of HeLa (human cervix adenocarcinoma) cells labeling PODXL with purified ab150358 at 1/500. Cells were fixed with 100% methanol. An Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (ab150077) at 1/1000 dilution was used as the secondary antibody. Nuclei couterstained with DAPI (blue).

Secondary Only Control : PBS was used instead of the primary antibody as the negative control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

Immunohistochemical analysis of paraffin embedded human hepatocellular carcinoma vessels using unpurified ab150358 showing positive staining. Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

Immunohistochemical analysis of paraffin embedded human breast adenocarcinoma tissue using unpurified ab150358 showing positive staining. Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

• WB

Lab

Western blot - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

This data was developed using the same antibody clone in a different buffer formulation (ab150358).

Lanes 1- 2 : Merged signal (red and green). Green - ab150358 observed at 160 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (ab8245) observed at 37 kDa.

ab150358 was shown to react with PODXL in wild-type HeLa cells in western blot. Loss of signal was observed when knockout cell line ab264984 (knockout cell lysate ab257210) was used. Wild-type HeLa and PODXL knockout HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab150358 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) overnight at 4°C at a 1 in 10000 Dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PODXL antibody [EPR9518] (<a href='/en-us/products/primary-antibodies/podxl-antibody-epr9518-ab150358'>ab150358</a>) at 1/10000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

PODXL knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human PODXL knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-podxl-knockout-hela-cell-line-ab264984'>ab264984</a>)

Predicted band size: 58 kDa

Observed band size: 160 kDa

false

• WB

Lab

Western blot - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

This data was developed using the same antibody clone in a different buffer formulation (ab150358).

Lanes 1- 2 : Merged signal (red and green). Green - ab150358 observed at 200 kDa. Red - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) observed at 50 kDa.

ab150358 was shown to react with PODXL in wild-type HCT116 cells in western blot. Loss of signal was observed when knockout cell line ab266887 (knockout cell lysate ab257211) was used. Wild-type HCT116 and PODXL knockout HCT116 cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab150358 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PODXL antibody [EPR9518] (<a href='/en-us/products/primary-antibodies/podxl-antibody-epr9518-ab150358'>ab150358</a>) at 1/1000 dilution

Lane 1:

Wild-type HCT116 cell lysate at 20 µg

Lane 2:

PODXL knockout HCT116 cell lysate at 20 µg

Lane 2:

Western blot - Human PODXL knockout HCT116 cell line (<a href='/en-us/products/cell-lines/human-podxl-knockout-hct116-cell-line-ab266887'>ab266887</a>)

Predicted band size: 58 kDa

Observed band size: 200 kDa

false

• WB

Lab

Western blot - Anti-PODXL antibody [EPR9518] - BSA and Azide free (AB269888)

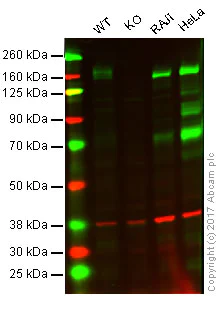

Lanes 1 - 4 : Merged signal (red and green). Green - ab150358 observed at 160 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab150358 was shown to specifically react with PODXL in wild-type cells as signal was lost in PODXL knockout cells. Wild-type and PODXL knockout samples were subjected to SDS-PAGE. ab150358 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at a 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150358).

All lanes:

Western blot - Anti-PODXL antibody [EPR9518] (<a href='/en-us/products/primary-antibodies/podxl-antibody-epr9518-ab150358'>ab150358</a>) at 1/1000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

PODXL knockout HAP1 whole cell lysate at 20 µg

Lane 3:

Raji whole cell lysate at 20 µg

Lane 4:

HeLa whole cell lysate at 20 µg

Predicted band size: 58 kDa

false
