Anti-Polyethylene glycol antibody [PEG-B-47] - BSA and Azide free

• FuncS

Lab

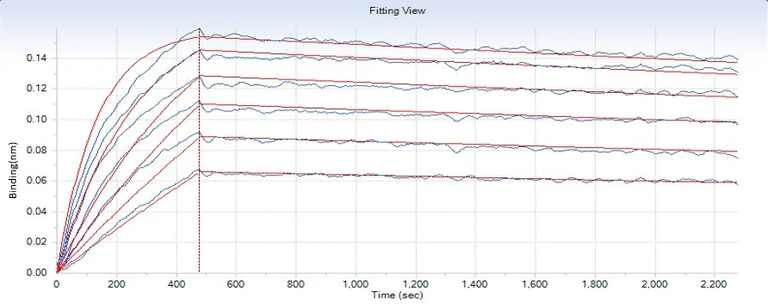

Functional Studies - Anti-Polyethylene glycol antibody [PEG-B-47] - BSA and Azide free (AB170969)

This antibody affinity data was generated using the same anti-PEG antibody clone, PEG-B-47, in a different buffer formulation (ab51257).

Method：Protein A sensor + Antigen (PEG 5K-BSA at 0.3μg/ml)+ antibody (ab51257 at 0.0312, 0.0625, 0.125, 0.25, 0.5, 1 μg/m).

Results :

Sample ID : PEG-5K-BSA

KD (M) : 2.41E-09

kon(1/Ms) : 2.67E+04

kon Error : 6.81E+02

kdis(1/s) : 6.43E-05

kdis Error : 2.92E-06

Full X^2 : 0.018444

Full R^2 : 0.982059

• ELISA

Unknown

ELISA - Anti-Polyethylene glycol antibody [PEG-B-47] - BSA and Azide free (AB170969)

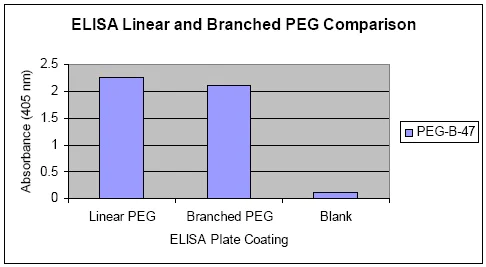

Comparison of 10 ug/well of activated linear (PEG5K) and branched (PEG40K) PEG using 5 ug/ml of ab51257 in Direct ELISA assay. Accuracy : By detecting the methoxy group of the PEG molecule itself, ab51257 is useful in measuring the pharmacokinetics of PEG-modified molecules in vivo. Data indicate that ab51257 detects various length Y-chain PEG molecules as well as single chain PEG molecules with equal affinity. ab51257 does not cross react with non-specific targets in blood or serum.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab51257).

• ELISA

Unknown

ELISA - Anti-Polyethylene glycol antibody [PEG-B-47] - BSA and Azide free (AB170969)

ELISA assay using ab51257 to detect different forms of PEG. PEG40000-BSA is a 40 kDa PEG molecule attached to BSA. PEG5000-BSA is a 5 kDa linear PEG molecule attached to BSA.This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab51257).

• ELISA

Supplier Data

ELISA - Anti-Polyethylene glycol antibody [PEG-B-47] - BSA and Azide free (AB170969)

This data was developed using ab51257, the same antibody clone in a different buffer formulation.

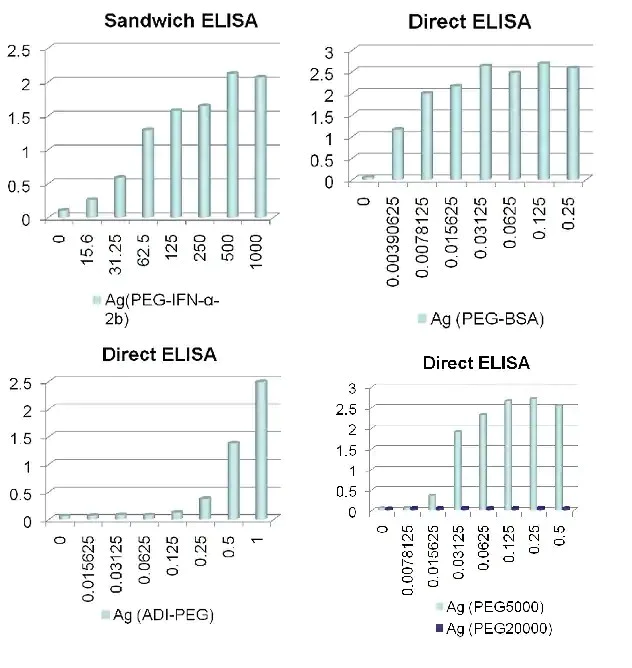

ELISA Graph generated using purified ab51257 at 1μg/mL.

Antigen concentration range :

PEG5000 and PEG20000 : 0.0078 - 0.5 μg/mL
ADI-PEG : 0.0156 - 1 μg/mL
PEG-BSA : 0.0039 - 0.25μg/mL
PEG-IFN-α-2b0.0156 - 1 μg/mL

Secondary antibody was an Alkaline Phosphatase-conjugated Goat Anti-Rabbit IgG(H+L) at 1/2500.

• ELISA

Unknown

ELISA - Anti-Polyethylene glycol antibody [PEG-B-47] - BSA and Azide free (AB170969)

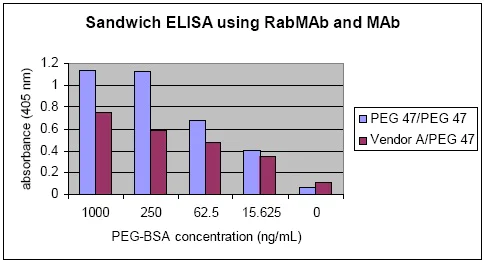

Comparison of sandwich ELISA using RabMAb/RabMAb (ab51257/ab51257) and MAb/RabMAb (Vendor A/ab51257) for capture/detection. ab51257/ab51257* : Plate coated with 5 ug/mL of #47; 5 ug/mL of #47 used for detection (*Anti-PEG 47 biotin labeled)

Vendor A/ ab51257* : Plates coated with 100 ug/mL of Vendor A Mouse MAb; 5 ug/mL of #47 used for detection (*Anti-PEG 47 biotin labeled)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab51257).

• ELISA

Unknown

ELISA - Anti-Polyethylene glycol antibody [PEG-B-47] - BSA and Azide free (AB170969)

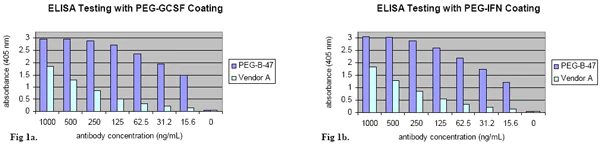

Comparison of ab51257 and Vendor A mouse MAb in Direct ELISA assy. Goat anti-rabbit IgG-AP used for anti-PEG-47 detection; goat anti-mouse IgM-AP used for Vendor A MAb detection.

Fig 1a. Direct ELISA using 1 ug/mL of PEG-GCSF.

Fig 1b. Direct ELISA using 1 ug/mL of PEG-IFN.

Comparison to other anti-PEG : In both direct and sandwich ELISA assays, ab51257 shows greater affinity and accuracy than other anti-PEG antibodies when determining the concentration of PEG or PEG-modified proteins. Results were similar whether detecting PEG itself or PEG-modified targets.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab51257).
