Anti-PRC1 antibody [EP1513Y] - BSA and Azide free

• Flow Cyt (Intra)

Lab

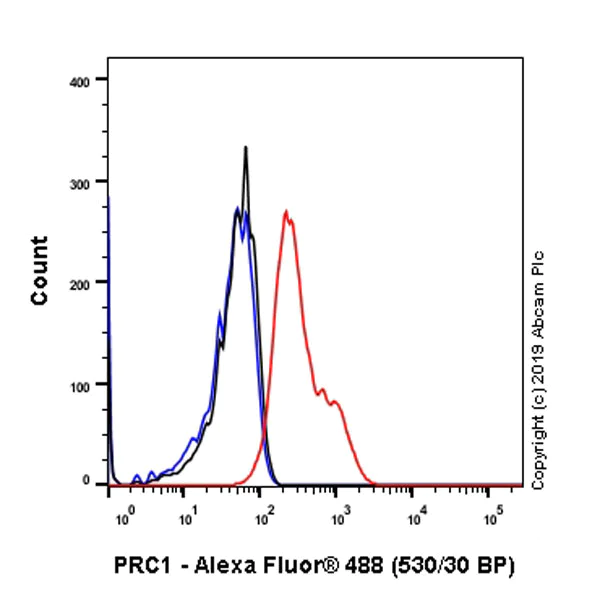

Flow Cytometry (Intracellular) - Anti-PRC1 antibody [EP1513Y] - BSA and Azide free (AB238427)

This data was developed using 238427, the same antibody clone in a different buffer formulation. Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling PRC1 with Purified 238427 at 1/30 dilution (10 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-PRC1 antibody [EP1513Y] - BSA and Azide free (AB238427)

This data was developed using 238427, the same antibody clone in a different buffer formulation.
Immunocytochemistry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling PRC1 with Purified 238427 at 1 : 50 dilution (5.06 μg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1 : 200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor® 488,ab150077) was used as the secondary antibody at 1 : 1000 (2 μg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

• ICC/IF

AbReview13261****

Immunocytochemistry/ Immunofluorescence - Anti-PRC1 antibody [EP1513Y] - BSA and Azide free (AB238427)

ab51248 staining PRC1 in human breast cancer cells by ICC/IF. The cells were paraformaldehyde fixed and blocked in 1% serum for 1 hour at 37°C without permeation step. The primary antibody was diluted 1/100 (PBS) and incubated with sample for 1 hour at 20°C. An Alexa Fluor® 488 conjugated donkey polyclonal to rabbit IgG, diluted 1/200 was used as secondary.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab51248).

This image is courtesy of an anonymous Abreview.

• WB

Unknown

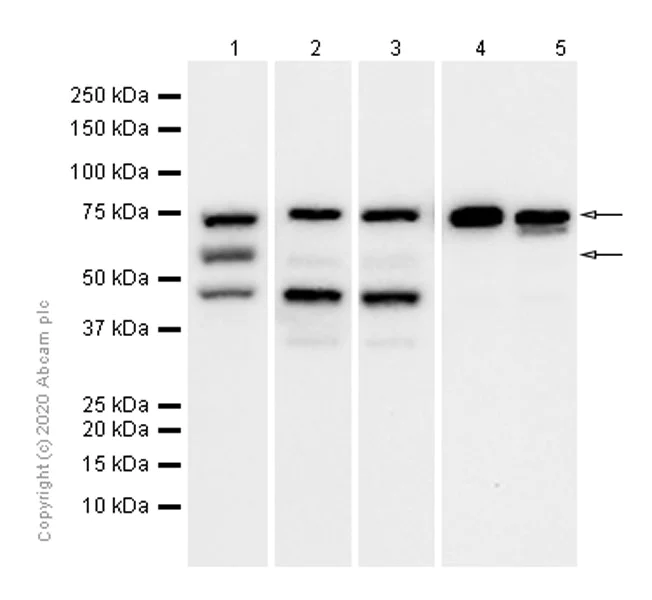

Western blot - Anti-PRC1 antibody [EP1513Y] - BSA and Azide free (AB238427)

ab51248 recognise two isoforms of PRC1. But we are unsure how to define the extra bands at ~50kDa.

All lanes:

Western blot - Anti-PRC1 antibody [EP1513Y] (<a href='/en-us/products/primary-antibodies/prc1-antibody-ep1513y-ab51248'>ab51248</a>) at 1/1000 dilution

Lane 1:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Lane 2:

C6 (Rat glial tumor glial cell) whole cell lysate at 20 µg

Lane 3:

C2C12 (Mouse myoblasts myoblast) whole cell lysate at 20 µg

Lane 4:

Mouse kidney lysate at 20 µg

Lane 5:

Rat kidney lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 72 kDa
