Rabbit Recombinant Monoclonal Presenilin 2/AD5 antibody. Suitable for IHC-P, ICC/IF, IP, WB, Flow Cyt (Intra) and reacts with Human, Rat, Mouse samples. Cited in 21 publications.


Images

Western blot - Anti-Presenilin 2/AD5 antibody [EP1515Y] (AB51249), expandable thumbnail
  • Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (AB51249), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Presenilin 2/AD5 antibody [EP1515Y] (AB51249), expandable thumbnail
  • Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (AB51249), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-Presenilin 2/AD5 antibody [EP1515Y] (AB51249), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PICC/IFIPWBFlow Cyt (Intra)
Human
Tested
Expected
Tested
Tested
Tested
Mouse
Expected
Expected
Expected
Tested
Expected
Rat
Expected
Tested
Tested
Tested
Expected

Tested
Tested

Species

Human

Dilution info
1/500
Notes

The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat.

Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Expected
Expected

Species

Rat, Mouse

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Rat

Dilution info
1/50 - 1/250
Notes

-

Expected
Expected

Species

Human, Mouse

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Rat

Dilution info
1/20
Notes

-

Species

Human

Dilution info
1/20
Notes

-

Expected
Expected

Species

Mouse

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Mouse

Dilution info
1/20000
Notes

-

Species

Rat

Dilution info
1/20000
Notes

-

Species

Human

Dilution info
1/20000
Notes

-

Tested
Tested

Species

Human

Dilution info
1/50
Notes

-

Expected
Expected

Species

Rat, Mouse

Dilution info

Use at an assay dependent concentration.

Notes

-

Associated Products

Select an associated product type

2 products for Alternative Product

Target data

Function

Probable catalytic subunit of the gamma-secretase complex, an endoprotease complex that catalyzes the intramembrane cleavage of integral membrane proteins such as Notch receptors and APP (amyloid-beta precursor protein). Requires the other members of the gamma-secretase complex to have a protease activity. May play a role in intracellular signaling and gene expression or in linking chromatin to the nuclear membrane. May function in the cytoplasmic partitioning of proteins. The holoprotein functions as a calcium-leak channel that allows the passive movement of calcium from endoplasmic reticulum to cytosol and is involved in calcium homeostasis (PubMed:16959576). Is a regulator of mitochondrion-endoplasmic reticulum membrane tethering and modulates calcium ions shuttling between ER and mitochondria (PubMed:21285369).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal Presenilin 2/AD5 antibody. Suitable for IHC-P, ICC/IF, IP, WB, Flow Cyt (Intra) and reacts with Human, Rat, Mouse samples. Cited in 21 publications.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EP1515Y

Purification technique

Affinity purification Protein A

Specificity

The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat.

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

The presenilin 2 (PSEN2) protein also known as AD5 plays a role as a catalytic subunit in the gamma-secretase complex. This complex is involved in intramembrane proteolysis of several type-I transmembrane proteins. PSEN2 has a mass of about 52 kDa and is expressed mainly in the brain and several other tissues throughout the body. Its gene is located on chromosome 1 and has the alternative name 'EP-2614'. Presenilin 2 is closely associated with presenilin 1 (PSEN1) a related protein within the same family.

Biological function summary

Presenilin 2 functions in the regulation of proteolytic processing of the amyloid precursor protein (APP) within the gamma-secretase complex. This action produces amyloid beta peptides which are critical for normal brain function but may accumulate under pathological conditions. The protein is also involved in NOTCH receptor activation which plays a part in cell fate determination during development. The gamma-secretase complex includes other key proteins such as nicastrin anterior pharynx-defective 1 (APH-1) and presenilin enhancer 2 (PEN-2).

Pathways

Presenilin 2 is central to the amyloidogenic pathway through its role in APP processing. This pathway links to Alzheimer's disease where dysregulation of amyloid beta peptide production leads to plaque formation. Additionally presenilin 2 takes part in the NOTCH signaling pathway which influences neurogenesis and cellular differentiation. Presenilin 1 is a partner protein of presenilin 2 within these pathways sharing overlapping functions and regulation.

Associated diseases and disorders

Presenilin 2's connection to Alzheimer's disease arises from its role in amyloid beta production. Mutations in the PSEN2 gene can lead to familial Alzheimer's disease where altered processing of APP results in neurotoxic peptide accumulation. Additionally presenilin 2 influences cardiovascular disease development through its involvement in cell signaling pathways affecting vascular biology. Presenilin 1 mutations also associate with similar disorders due to its analogous role and participation in these pathological processes.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

8 product images

  • Western blot - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249), expandable thumbnail

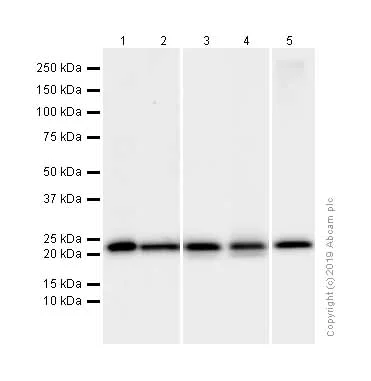

    Western blot - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    All lanes: Western blot - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249) at 1/20000 dilution

    Lane 1: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates at 20 µg

    Lane 2: HepG2 (Human hepatocellular carcinoma epithelial cell) whole cell lysates at 20 µg

    Lane 3: C2C12 (Mouse myoblasts myoblast) whole cell lysates at 20 µg

    Lane 4: C6 (Rat glial tumor glial cell) whole cell lysates at 20 µg

    Lane 5: Neuro-2a (Mouse neuroblastoma neuroblast) whole cell lysates at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Predicted band size: 50 kDa

    Observed band size: 23 kDa

  • Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249), expandable thumbnail

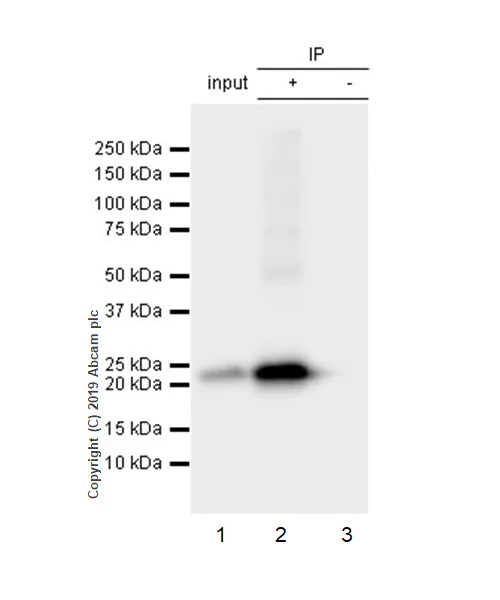

    Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    ab51249 (purified ) at 1/20 dilution (1ug) immunoprecipitating Presenilin 2/AD5 in HeLa whole cell lysate. Lane 1 (input): HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate 10ug Lane 2 (+): ab51249 & HeLa whole cell lysateLane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab51249 in HeLa whole cell lysateFor western blotting, VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/1000 dilution.Blocking and diluting buffer: 5% NFDM/TBST.

    All lanes: Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    Predicted band size: 50 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cerebrum tissue sections labeling Presenilin 2/AD5 with purified ab51249 at 1/500 dilution (0.51 μg/ml). Heat mediated antigen retrieval using BondTM Epitope Retrieval Solution 2 (pH 9.0). Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

  • Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249), expandable thumbnail

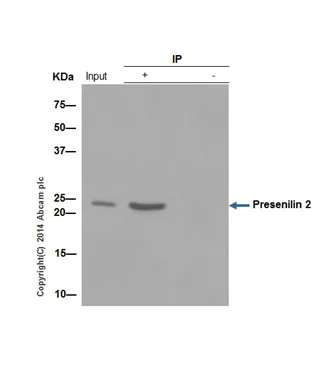

    Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    Presenilin was immunoprecipitated from 1 mg of PC-12 (rat adrenal gland pheochromocytoma) whole cell extract with unpurified ab51249 at 1/50 dilution. Western blot was performed from the immunoprecipitate using ab51249 at 1/5000 dilution. Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG, was used as secondary antibody at 1/1500 dilution.

    Input: PC-12 whole cell extract 10 μg.

    IP (+): ab51249 IP in PC-12 whole cell extract.

    IP (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab51249 in PC-12 whole cell extract.
    Blocking and dilution buffer and concentration: 5% NFDM/TBST.

    All lanes: Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    Predicted band size: 50 kDa

    Observed band size: 24 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    Immunocytochemistry/ Immunofluorescence analysis of PC-12 (Rat adrenal gland pheochromocytoma) cells labeling Presenilin 2/AD5 with purified ab51249 at 1/50 dilution (5 µg/ml). Cells were fixed in 100% Methanol and permeabilized with None. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1/200 (2.5 µg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/1000 (2 µg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

  • Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249), expandable thumbnail

    Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    Presenilin was immunoprecipitated from 1 mg of HeLa whole cell extract with unpurified ab51249 at 1/50 dilution. Western blot was performed from the immunoprecipitate using ab51249 at 1/5000 dilution. Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG, was used as secondary antibody at 1/1500 dilution.

    Input: HeLa whole cell extract 10 μg.

    IP (+): ab51249 IP in HeLa whole cell extract.

    IP (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab51249 in HeLa whole cell extract.
    Blocking and dilution buffer and concentration: 5% NFDM/TBST.

    All lanes: Immunoprecipitation - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    Predicted band size: 50 kDa

    Observed band size: 24 kDa

  • Flow Cytometry (Intracellular) - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249), expandable thumbnail

    Flow Cytometry (Intracellular) - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling Presenilin 2/AD5 with purified ab51249 at 1/50 dilution (5 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

  • Western blot - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249), expandable thumbnail

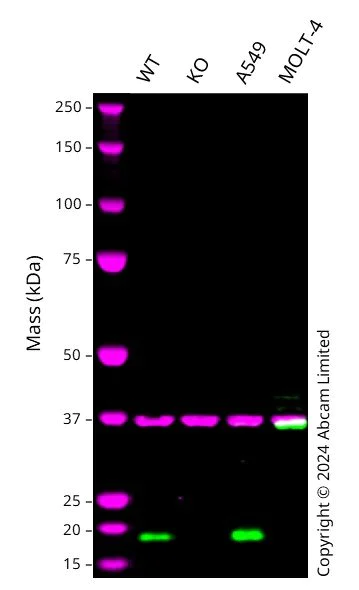

    Western blot - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249)

    Western blot: Rabbit Monoclonal[EP1515Y] to Presenilin 2/AD5 ab51249 staining at 1/20000 dilution, shown in green; Mouse anti GAPDH (Anti-GAPDH antibody [6C5] - Loading Control ab8245) loading control staining at 1/20,000 dilution, shown in magenta. A band was observed at 18 kDa in Wild-type U-87 MG Human wild-type U-87 MG cell line ab278079 cell lysates with no signal observed at this size in PSEN2 knockout U-87 MG cell line. To generate this image, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3pc Milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit 800CW & Goat anti-Mouse 680RD at 1/20,000 dilution.

    All lanes: Western blot - Anti-Presenilin 2/AD5 antibody [EP1515Y] (ab51249) at 1/20000 dilution

    Lane 1: Wild-type U-87 MG Human wild-type U-87 MG cell line ab278079 at 20 µg

    Lane 3: A549 at 20 µg

    Lane 4: MOLT-4 at 20 µg

    Secondary

    All lanes: Goat anti-Rabbit 800CW & Goat anti-Mouse 680RD at 1/20000 dilution

    Performed under reducing conditions.

    Predicted band size: 50 kDa

    Observed band size: 18 kDa

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
