Anti-Prion protein PrP antibody [EP1802Y]

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Prion protein PrP antibody [EP1802Y] (AB52604)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cerebrum tissue sections labeling Prion protein PrP with purified ab52604 at 1/500 dilution (1.32 µg/mL). Heat mediated antigen retrieval was performed using Bond™ Epitope Retrieval Solution 1 (pH 6.0). Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Prion protein PrP antibody [EP1802Y] (AB52604)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse cerebrum tissue sections labeling Prion protein PrP with purified ab52604 at 1/500 dilution (1.32 µg/mL). Heat mediated antigen retrieval was performed using Bond™ Epitope Retrieval Solution 1 (pH 6.0). Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Prion protein PrP antibody [EP1802Y] (AB52604)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat cerebrum tissue sections labeling Prion protein PrP with purified ab52604 at 1/500 dilution (1.32 µg/mL). Heat mediated antigen retrieval was performed using Bond™ Epitope Retrieval Solution 1 (pH 6.0). Rabbit specific IHC polymer detection kit HRP/DAB (ab209101) was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.
The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

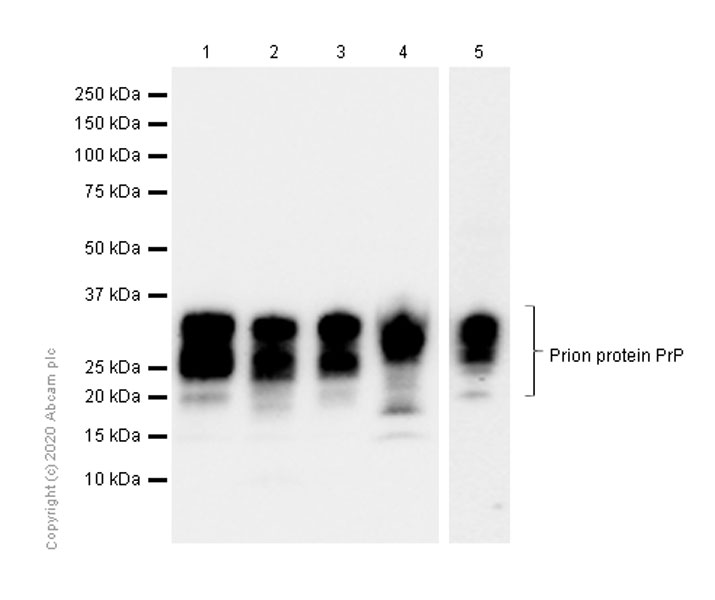

• WB

Unknown

Western blot - Anti-Prion protein PrP antibody [EP1802Y] (AB52604)

The molecular weights observed represent different glycosation states and are consistent with what has been described in the literature (PMID : 20670940, PMID : 19568430, PMID : 15240877 and PMID : 22558368).

Blocking/Diluting buffer : 5% NFDM/TBST

All lanes:

Western blot - Anti-Prion protein PrP antibody [EP1802Y] (ab52604) at 1/5000 dilution

Lane 1:

Human brain lysate at 20 µg

Lane 2:

Mouse brain lysate at 20 µg

Lane 3:

Rat brain lysate at 20 µg

Lane 4:

SK-MEL-28 (Human malignant melanoma ) whole cell lysate at 20 µg

Lane 5:

Neuro-2a (Mouse neuroblastoma neuroblast) whole cell lysate at 20 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG (HRP) with minimal cross-reactivity with human IgG at 1/2000 dilution

Predicted band size: 28 kDa

Observed band size: 20-37 kDa

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Prion protein PrP antibody [EP1802Y] (AB52604)

Immunohistochemical analysis of brain glioma using ab52604 (unpurified) at a dilution of 1/100. Heat mediated antigen retrieval was performed with citrate buffer pH 6 before commencing with IHC staining protocol.

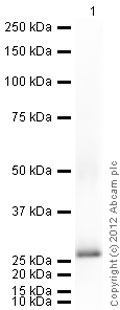

• WB

Unknown

Western blot - Anti-Prion protein PrP antibody [EP1802Y] (AB52604)

This blot was produced using a 4-12% Bis-tris gel under the MES buffer system. The gel was run at 200V for 35 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab52604 overnight at 4°C. Antibody binding was detected using an anti-rabbit antibody conjugated to HRP, and visualised using ECL development solution ab133406.

All lanes:

Western blot - Anti-Prion protein PrP antibody [EP1802Y] (ab52604) at 1/5000 dilution

All lanes:

Recombinant Mouse Prion protein PrP (<a href='/en-us/products/unavailable/recombinant-mouse-prion-protein-prp-ab74056'>ab74056</a>) at 0.01 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-preadsorbed-ab97080'>ab97080</a>) at 1/5000 dilution

Predicted band size: 28 kDa

true

Exposure time: 10s
