Anti-proCathepsin D antibody [EPR3054]

8 product images

•

  Western blot - Anti-proCathepsin D antibody [EPR3054] (ab134169)

  Lanes 1 - 4: Merged signal (red and green). Green - ab134169 observed at 46 kDa. Red - loading control, Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (mouse anti-tubulin), observed at 50 kDa.


  ab134169 was shown to recognize in wild-type A431 cells as signal was lost at the expected MW in CTSD knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and CTSD knockout samples were subjected to SDS-PAGE. The membrane was blocked with 3% NF Milk. ab134169 and Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (Mouse anti-tubulin loading control) were incubated overnight at 4°C at 1/2000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-proCathepsin D antibody [EPR3054] (ab134169) at 1/2000 dilution

  Lane 1: Wild-type A-431 (Human epidermoid carcinoma cell line) whole cell lysate at 40 µg

  Lane 2: Cathepsin D knockout A-431 (Human epidermoid carcinoma cell line) whole cell lysate at 40 µg

  Lane 2: Western blot - Human CTSD knockout A-431 cell line (Human CTSD knockout A-431 cell line ab261891)

  Lane 3: Hep G2 (Human liver hepatocellular carcinoma cell line) whole cell lysate at 40 µg

  Lane 4: MCF7 (Human breast adenocarcinoma cell line) whole cell lysate at 40 µg

  Performed under reducing conditions.

  Predicted band size: 44 kDa, 45 kDa

  Observed band size: 46 kDa

•

  Western blot - Anti-proCathepsin D antibody [EPR3054] (ab134169)

  Blocking buffer: 5% NFDM/TBST

  Dilution buffer: 5% NFDM/TBST

  All lanes: Western blot - Anti-proCathepsin D antibody [EPR3054] (ab134169) at 1/2000 dilution

  Lane 1: MCF-7 cell lysate at 20 µg

  Lane 2: A431 cell lysate at 20 µg

  Lane 3: SKBR-3 cell lysate at 20 µg

  Secondary

  All lanes: HRP goat anti-rabbit (H+L) at 1/1000 dilution

  Predicted band size: 45 kDa

  Observed band size: 44 kDa

•

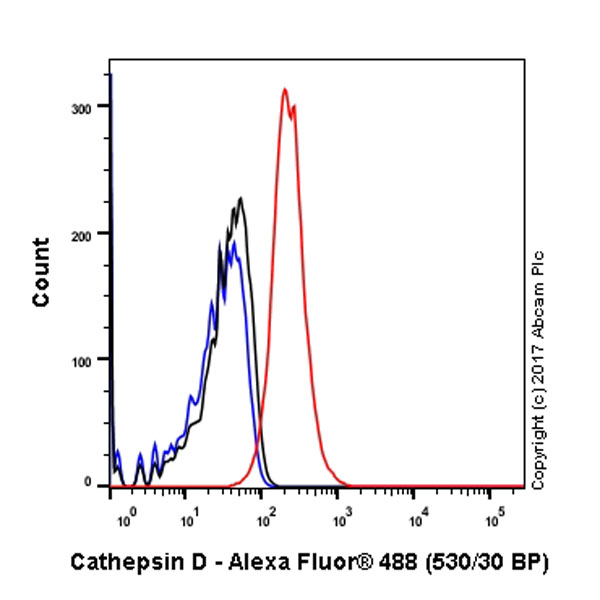

  Flow Cytometry (Intracellular) - Anti-proCathepsin D antibody [EPR3054] (ab134169)

  Intracellular Flow Cytometry analysis of A431 (human epidermoid carcinoma) cells labeling proCathepsin D with purified ab134169 at 1/100 dilution (10ug/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488) (1/2000 dilution) was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) were used as the unlabeled control.


•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-proCathepsin D antibody [EPR3054] (ab134169)

  Immunohistochemical staining of paraffin embedded human breast carcinoma with purified ab134169 at a working dilution of 1 in 50. The secondary antibody used is a HRP polymer for rabbit IgG. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

•

  Immunocytochemistry/ Immunofluorescence - Anti-proCathepsin D antibody [EPR3054] (ab134169)

  Immunofluorescence staining of MCF7 cells with purified ab134169 at a working dilution of 1 in 50, counter-stained with DAPI. The secondary antibody was Alexa Fluor^® 488 goat anti rabbit (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077), used at a dilution of 1 in 500. The cells were fixed in 4% PFA and permeabilized using 0.1% Triton X 100. The negative control is shown in bottom right hand panel - for the negative control, purified ab134169 was used at a dilution of 1/200 followed by an Alexa Fluor^® 594 goat anti-mouse antibody at a dilution of 1/500.

•

  Western blot - Anti-proCathepsin D antibody [EPR3054] (ab134169)

  All lanes: Western blot - Anti-proCathepsin D antibody [EPR3054] (ab134169) at 1/2000 dilution

  Lane 1: MCF7 cell lysate at 10 µg

  Lane 2: A431 cell lysate at 10 µg

  Lane 3: SKBR3 cell lysate at 10 µg

  Secondary

  All lanes: Standard HRP labelled goat anti-rabbit at 1/2000 dilution

  Developed using the ECL technique.

  Predicted band size: 45 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-proCathepsin D antibody [EPR3054] (ab134169)

  Immunohistochemical analysis of paraffin-embedded Human breast ductal infiltrating carcinoma tissue, staining proCathepsin D using unpurified ab134169 at a 1/250 dilution.


  Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

•

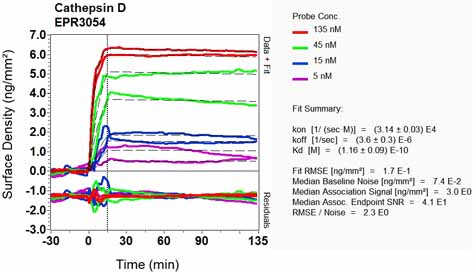

  OI-RD Scanning - Anti-proCathepsin D antibody [EPR3054] (ab134169)

  We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody.
  Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
