Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free

9 product images

•

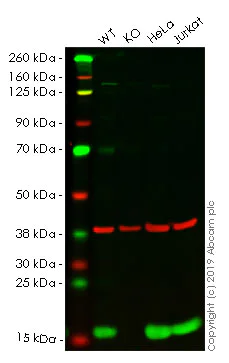

  Western blot - Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free (ab232020)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Profilin 1 antibody [EPR6304] ab124904).


  Lanes 1 - 4: Merged signal (red and green). Green - Anti-Profilin 1 antibody [EPR6304] ab124904 observed at 15 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa.

  Anti-Profilin 1 antibody [EPR6304] ab124904 was shown to specifically react with in wild-type HAP1 cells as signal was lost in PFN1 knockout cells. Wild-type and PFN1 knockout samples were subjected to SDS-PAGE. The membrane was blocked with 3% NF Milk. Anti-Profilin 1 antibody [EPR6304] ab124904 and Anti-GAPDH antibody [6C5] - Loading Control ab8245 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/10000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-Profilin 1 antibody [EPR6304] (Anti-Profilin 1 antibody [EPR6304] ab124904) at 1/1000 dilution

  Lane 1: Wild-type HAP1 whole cell lysate at 20 µg

  Lane 2: PFN1 knockout HAP1 whole cell lysate at 20 µg

  Lane 3: HeLa whole cell lysate at 20 µg

  Lane 4: Jurkat whole cell lysate at 20 µg

  Predicted band size: 15 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free (ab232020)

  This image was made using Anti-Profilin 1 antibody [EPR6304] ab124904 which is the same antibody as ab232020 with BSA and Azide
  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human breast carcinoma tissue sections labeling Profilin 1 with Purified Anti-Profilin 1 antibody [EPR6304] ab124904 at 1:800 dilution (0.18 μg/ml). Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use)was used as the secondary antibody. Negative control:PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free (ab232020)

  This image was made using Anti-Profilin 1 antibody [EPR6304] ab124904 which is the same antibody as ab232020 with BSA and Azide
  Immunocytochemistry/ Immunofluorescence analysis of Jurkat (Human T cell leukemia T lymphocyte) cells labeling Profilin 1 with Purified Anti-Profilin 1 antibody [EPR6304] ab124904 at 1:100 dilution (1.4 µg/ml). Cells were fixed in 100% Methanol. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1:200 (2.5 µg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1:1000 (2 µg/ml) dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

•

  Flow Cytometry (Intracellular) - Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free (ab232020)

  This image was made using Anti-Profilin 1 antibody [EPR6304] ab124904 which is the same antibody as ab232020 with BSA and Azide Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling Profilin 1 with Purified Anti-Profilin 1 antibody [EPR6304] ab124904 at 1/200 dilution (1 μg/ml) (red). Cells were fixed with 80% Methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free (ab232020)

  Unpurified Anti-Profilin 1 antibody [EPR6304] ab124904, at 1/250 dilution, staining Profilin 1 in HeLa cells by Immunofluorescence.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Profilin 1 antibody [EPR6304] ab124904).

•

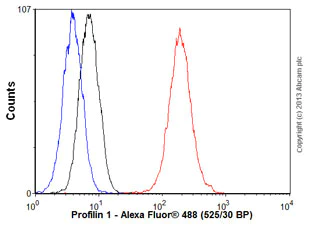

  Flow Cytometry (Intracellular) - Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free (ab232020)

  Overlay histogram showing HeLa cells stained with unpurifiedab124904 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (Anti-Profilin 1 antibody [EPR6304] ab124904, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H&L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Profilin 1 antibody [EPR6304] ab124904).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free (ab232020)

  Unpurified Anti-Profilin 1 antibody [EPR6304] ab124904, at 1/500 dilution, staining Profilin 1 in paraffin-embedded human colon tissue by Immunohistochemistry.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Profilin 1 antibody [EPR6304] ab124904).

  Heat mediated antigen retrieval was performed before commencing with IHC staining protocol.

•

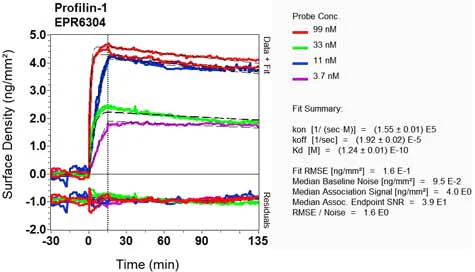

  OI-RD Scanning - Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free (ab232020)

  We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody.
  Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.

•

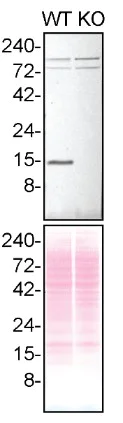

  Western blot - Anti-Profilin 1 antibody [EPR6304] - BSA and Azide free (ab232020)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Profilin 1 antibody [EPR6304] ab124904)


  Anti-Profilin 1 antibody [EPR6304] ab124904 was shown to react with PFN1 in wild-type HAP1 cells in Western blot with loss of signal observed in a PFN1 knockout cell line. Wild-type HAP1 and PFN1 knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 5% milk in TBST for 1 hr before incubation with Anti-Profilin 1 antibody [EPR6304] ab124904 overnight at 4 °C at a 1/30000 dilution. Blots were incubated with secondary antibodies at 0.2ug/mL before imaging.

  This data was provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

  All lanes: Western blot - Anti-Profilin 1 antibody [EPR6304] (Anti-Profilin 1 antibody [EPR6304] ab124904) at 1/30000 dilution

  Lane 1: Wild-type HAP1 lysate at 20 µg

  Lane 2: PFN1 knock-out HAP1 lysate at 20 µg

  Observed band size: 15 kDa
