Anti-PSD95 antibody [EPR23124-118] – Goat IgG (Chimeric) – BSA and Azide Free

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSD95 antibody [EPR23124-118] – Goat IgG (Chimeric) – BSA and Azide Free (AB317803)

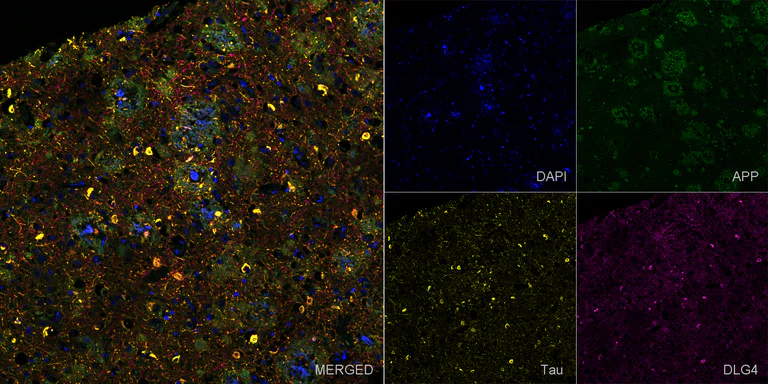

Composite multiplex immunofluorescence staining of APP, PSD95 and Tau staining in a section of formalin-fixed paraffin-embedded human Alzheimer’s brain*.

Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with EDTA (Ph9.0) using retrieval settings of 100°C for 40 minutes. The section was then incubated at room temperature for 1 hour with ab201060 at 1µg/ml dilution (shown in green), ab317793 at 1µg/ml (shown in magenta), and ab317841 at 1µg/ml (shown in yellow). Then incubated for 1 hour with ab150118 Goat Anti-Mouse IgG H&L (Alexa Fluor® 555) preadsorbed 1/1000, ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed 1/1000, and ab150135 Donkey Anti-Goat IgG H&L (Alexa Fluor® 647) preadsorbed 1/1000. Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium ^®.

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSD95 antibody [EPR23124-118] – Goat IgG (Chimeric) – BSA and Azide Free (AB317803)

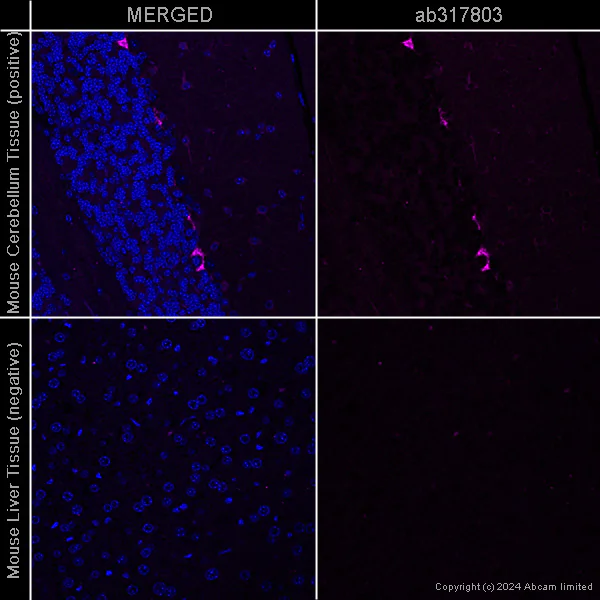

Immunofluorescence staining of PSD95 in sections of formalin-fixed paraffin-embedded mouse brain (positive) and mouse liver (negative). Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with ab317803 at 1/100 dilution, and then incubated for 1 hour with ab150135 Donkey Anti-Goat IgG H&L (Alexa Fluor® 647) preadsorbed at 1/1000 dilution (shown in magenta). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSD95 antibody [EPR23124-118] – Goat IgG (Chimeric) – BSA and Azide Free (AB317803)

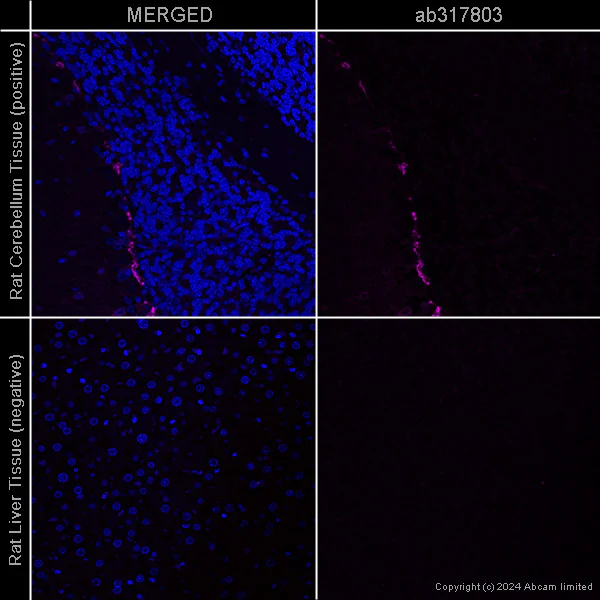

Immunofluorescence staining of PSD95 in sections of formalin-fixed paraffin-embedded rat brain (positive) and rat liver (negative). Performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate (pH6.0) for 20 minutes. The section was then incubated at room temperature for 1 hour with ab317803 at 1/100 dilution, and then incubated for 1 hour with ab150135 Donkey Anti-Goat IgG H&L (Alexa Fluor® 647) preadsorbed at 1/1000 dilution (shown in magenta). Nuclear DNA was labelled with DAPI (shown in blue). The section was then mounted using Dako Fluorescence Mounting Medium®. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). For other IHC staining systems (automated and non-automated), customers should optimize variable parameters such as antigen retrieval conditions, antibody concentrations and incubation times.
