Anti-PSGL-1 antibody [EPR28170-27]

12 product images

•

  Western blot - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  PSGL-1 Western blot staining using rabbit Anti-PSGL-1 antibody

  Low expression: EL4.IL-2 (PMID: 34090013), NIH/3T3; skeletal muscle (PMID 8639776), kidney (PMID 8639776).

  The molecular weight observed is consistent with what has been described in the literature (PMID: 18519846, 9660879).

  PSGL-1(P-selectin is the P-selectin glycoprotein ligand-1) is a 125KD glycoprotein and the 250KD band represents the dimer.

  The identity of the bands below 75 kDa are unknown.

  In Western blot, Anti-Vinculin antibody [EPR8185] (Anti-Vinculin antibody [EPR8185] - Loading Control ab129002) staining at 1/10000 dilution.

  Exposure time: Lane 1-4 : 81 seconds; Lane 5-9 : 10 seconds

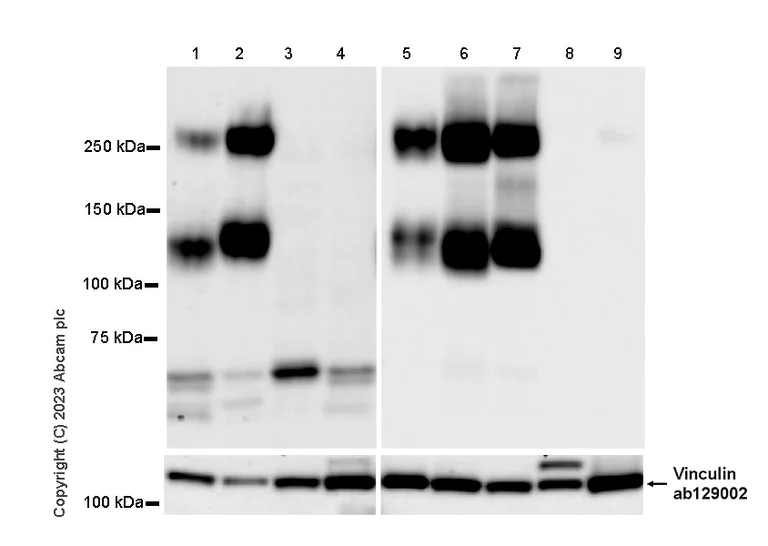

  All lanes: Western blot - Anti-PSGL-1 antibody [EPR28170-27] (ab316113) at 1/1000 dilution

  Lane 1: RAW 264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg with 5% NFDM/TBST

  Lane 2: A20 (mouse reticum sarcoma B lymphocyte) whole cell lysate at 20 µg with 5% NFDM/TBST

  Lane 3: EL4.IL-2 (mouse lymphoma T lymphocyte) whole cell lysate at 20 µg with 5% NFDM/TBST

  Lane 4: NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 20 µg with 5% NFDM/TBST

  Lane 5: Mouse spleen tissue lysate at 20 µg with 5% NFDM/TBST

  Lane 6: Mouse lymph node tissue lysate at 20 µg with 5% NFDM/TBST

  Lane 7: Mouse thymus tissue lysate at 20 µg with 5% NFDM/TBST

  Lane 8: Mouse skeletal muscle tissue lysate at 20 µg with 5% NFDM/TBST

  Lane 9: Mouse kidney tissue lysate at 20 µg with 5% NFDM/TBST

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Observed band size: 125 kDa, 250 kDa, 124 kDa

•

  Western blot - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  PSGL-1 Western blot staining using rabbit Anti-PSGL-1 antibody

  Low expression: skeletal muscle, kidney (PMID 8639776).

  The molecular weight observed is consistent with what has been described in the literature (PMID: 18519846, 9660879).

  PSGL-1(P-selectin is the P-selectin glycoprotein ligand-1) is a 125KD glycoprotein and the 250KD band represents the dimer.

  The identity of the bands below 75 kDa are unknown.

  In Western blot, Anti-Vinculin antibody [EPR8185] (Anti-Vinculin antibody [EPR8185] - Loading Control ab129002) staining at 1/10000 dilution.

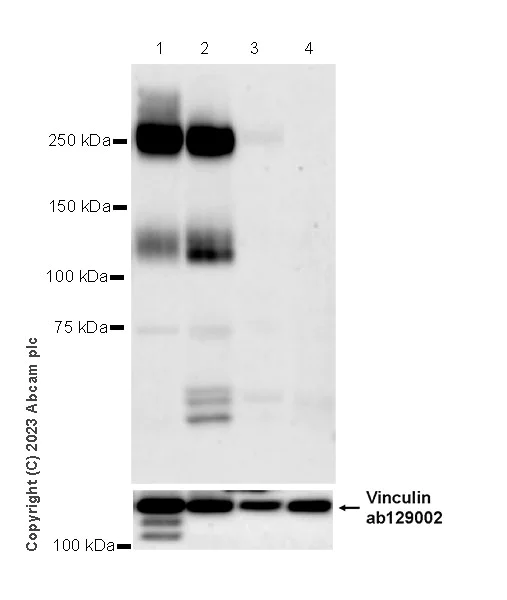

  All lanes: Western blot - Anti-PSGL-1 antibody [EPR28170-27] (ab316113) at 1/1000 dilution

  Lane 1: Rat spleen tissue lysate at 20 µg with 5% NFDM/TBST

  Lane 2: Rat lymph node tissue lysate at 20 µg with 5% NFDM/TBST

  Lane 3: Rat skeletal muscle tissue lysate at 20 µg with 5% NFDM/TBST

  Lane 4: Rat kidney tissue lysate at 20 µg with 5% NFDM/TBST

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Observed band size: 125 kDa, 250 kDa, 124 kDa

  Exposure time: 103s

•

  Flow Cytometry - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

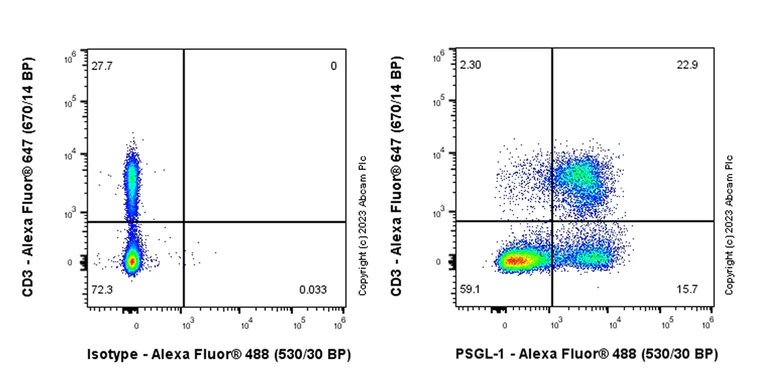

  Flow cytometric analysis of Mouse splenocytes cells labelling PSGL-1 with ab316113 at 1/500 dilution (0.1 ug)/Right compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Left isotype control.

  Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.

  Gated on viable cells. Cells are co-stained with CD3 conjugated to Alexa Fluor®647.

•

  Immunocytochemistry/ Immunofluorescence - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Mouse splenocyte cells labelling PSGL-1 with ab316113 at 1/50 (10.08 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 (2 ug/mL) dilution (Green).

  Confocal image showing membrane staining in a subset of mouse splenocytes.

  Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8).

  Anti-rat CD3 mouse monoclonal antibody (Alexa Fluor® 647) was used to counterstain at 1/100 (5ug/ml) dilution (Red). The Nuclear counterstain was DAPI (Blue).

  Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 (2 ug/mL) dilution.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  Immunohistochemical analysis of paraffin-embedded Rat skeletal muscle tissue labeling PSGL-1 with ab316113 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Low expression tissue: weak staining on rat skeletal muscle. The section was incubated with ab316113 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscle tissue labeling PSGL-1 with ab316113 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Low expression tissue: weak staining on mouse skeletal muscle (PMID: 8639776). The section was incubated with ab316113 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  Immunohistochemical analysis of paraffin-embedded (A) HEK-293T (human embryonic kidney epithelial cell) transfected with a mouse PSGL-1 expression vector containing a Myc-His tag. (B) HEK-293T transfected with empty vector containing a Myc-His tag. tissue labeling PSGL-1 with ab316113 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on HEK-293T transfected with a Myc-His-tagged mouse PSGL-1 construct (image A). No staining on HEK-293T transfected with empty plasmid (image B). The section was incubated with ab316113 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labeling PSGL-1 with ab316113 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on rat spleen. The section was incubated with ab316113 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  Immunohistochemical analysis of paraffin-embedded Rat colon tissue labeling PSGL-1 with ab316113 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on immune cells of rat colon. The section was incubated with ab316113 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  Immunohistochemical analysis of paraffin-embedded Mouse glioblastoma tissue labeling PSGL-1 with ab316113 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on mouse glioblastoma. The section was incubated with ab316113 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labeling PSGL-1 with ab316113 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on mouse spleen. The section was incubated with ab316113 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSGL-1 antibody [EPR28170-27] (ab316113)

  Immunohistochemical analysis of paraffin-embedded Mouse colon tissue labeling PSGL-1 with ab316113 at 1/2000 (0.252 ug/ml) dilution, followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Positive staining on immune cells of mouse colon. The section was incubated with ab316113 for 30 mins at room temperature.

  The immunostaining was performed on a Leica Biosystems BOND® RX instrument.

  Counterstained with Hematoxylin.

  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.
