Anti-PSMB5/MB1 antibody

• ICC

Supplier Data

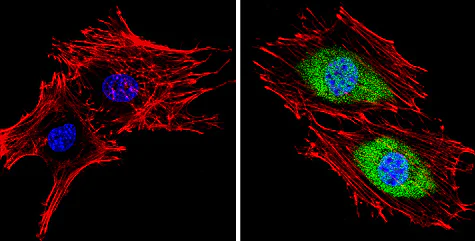

Immunocytochemistry - Anti-PSMB5/MB1 antibody (AB3330)

Immunocytochemistry/Immunofluorescence analysis of PSMB5/MB1 (green) showing staining in the cytoplasm and nucleus of HeLa (Human epithelial adenocarcinoma cell line) cells (right) compared to a negative control without primary antibody (left). Formalin-fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 5-10 minutes and blocked with 3% BSA-PBS for 30 minutes at room temperature. Cells were incubated with ab3330 in 3% BSA-PBS at a dilution of 1 : 100 and incubated overnight at 4°C in a humidified chamber. Cells were washed with PBST and incubated with a DyLight-conjugated secondary antibody in PBS at room temperature in the dark. F-actin (red) was stained with a fluorescent red phalloidin and nuclei (blue) were stained with Hoechst or DAPI. Images were taken at a magnification of 60x.

• ICC

Supplier Data

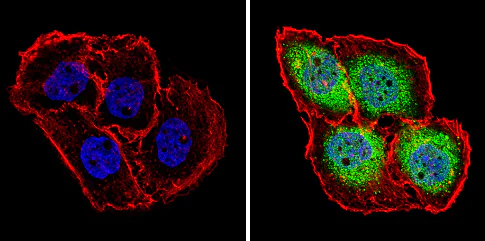

Immunocytochemistry - Anti-PSMB5/MB1 antibody (AB3330)

Immunocytochemistry/Immunofluorescence analysis of PSMB5/MB1 (green) showing staining in the cytoplasm and nucleus of A431 (Human epidermoid carcinoma cell line) cells (right) compared to a negative control without primary antibody (left). Formalin-fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 5-10 minutes and blocked with 3% BSA-PBS for 30 minutes at room temperature. Cells were incubated with ab3330 in 3% BSA-PBS at a dilution of 1 : 100 and incubated overnight at 4°C in a humidified chamber. Cells were washed with PBST and incubated with a DyLight-conjugated secondary antibody in PBS at room temperature in the dark. F-actin (red) was stained with a fluorescent red phalloidin and nuclei (blue) were stained with Hoechst or DAPI. Images were taken at a magnification of 60x.

• WB

Supplier Data

Western blot - Anti-PSMB5/MB1 antibody (AB3330)

All lanes:

Western blot - Anti-PSMB5/MB1 antibody (ab3330) at 1/1000 dilution

Lane 1:

NCI-H1299 (Human lung carcinoma cell line) whole cell lysate at 25 µg

Lane 2:

HeLa (Human epithelial adenocarcinoma cell line) whole cell lysate at 25 µg

Lane 3:

Mouse liver cell lysate at 25 µg

Predicted band size: 28 kDa

Observed band size: 23 kDa

false

• ICC

Supplier Data

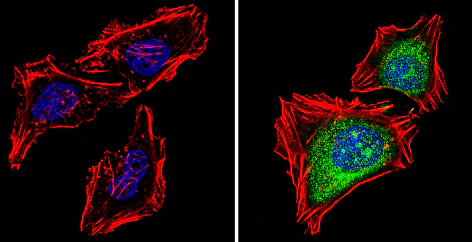

Immunocytochemistry - Anti-PSMB5/MB1 antibody (AB3330)

Immunocytochemistry/Immunofluorescence analysis of PSMB5/MB1 (green) showing staining in the cytoplasm and nucleus of BAEC (Bovine aortic endothelial cell line) cells (right) compared to a negative control without primary antibody (left). Formalin-fixed cells were permeabilized with 0.1% Triton X-100 in TBS for 5-10 minutes and blocked with 3% BSA-PBS for 30 minutes at room temperature. Cells were incubated with ab3330 in 3% BSA-PBS at a dilution of 1 : 100 and incubated overnight at 4°C in a humidified chamber. Cells were washed with PBST and incubated with a DyLight-conjugated secondary antibody in PBS at room temperature in the dark. F-actin (red) was stained with a fluorescent red phalloidin and nuclei (blue) were stained with Hoechst or DAPI. Images were taken at a magnification of 60x.
