Anti-PSMD7/Mov34 antibody

• ICC/IF

Unknown

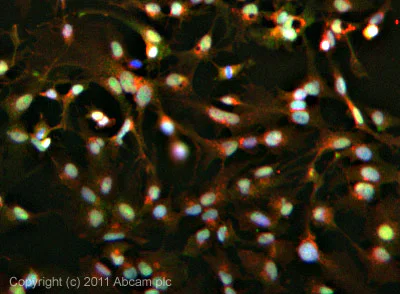

Immunocytochemistry/ Immunofluorescence - Anti-PSMD7/Mov34 antibody (AB11436)

ICC/IF image of ab11436 stained HepG2 cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (ab11436, 5µg/ml) overnight at +4°C. The secondary antibody (green) was ab96899, DyLight® 488 goat anti-rabbit IgG (H+L) used at a 1/250 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

• IHC-P

Unknown

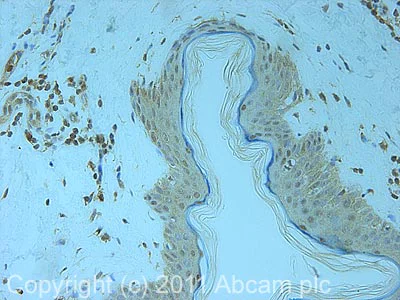

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PSMD7/Mov34 antibody (AB11436)

IHC image of ab11436 staining in human normal skin formalin fixed paraffin embedded tissue section, performed on a Leica Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab11436, 1µg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• WB

Unknown

Western blot - Anti-PSMD7/Mov34 antibody (AB11436)

Western blot of PSDM7 in K562 cell lysate using ab11436.
Lane 1 is ab11436
Lane 2 is ab11436 pre-incubated with peptide

All lanes:

Western blot - Anti-PSMD7/Mov34 antibody (ab11436)

Predicted band size: 37 kDa
