Anti-PTBP1 antibody [EPR9048(B)] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PTBP1 antibody [EPR9048(B)] - BSA and Azide free (AB240079)

Immunohistochemical analysis of PTBP1 in paraffin embedded Human breast carcinoma tissue stained with ab133734 at a 1/100 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133734).

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-PTBP1 antibody [EPR9048(B)] - BSA and Azide free (AB240079)

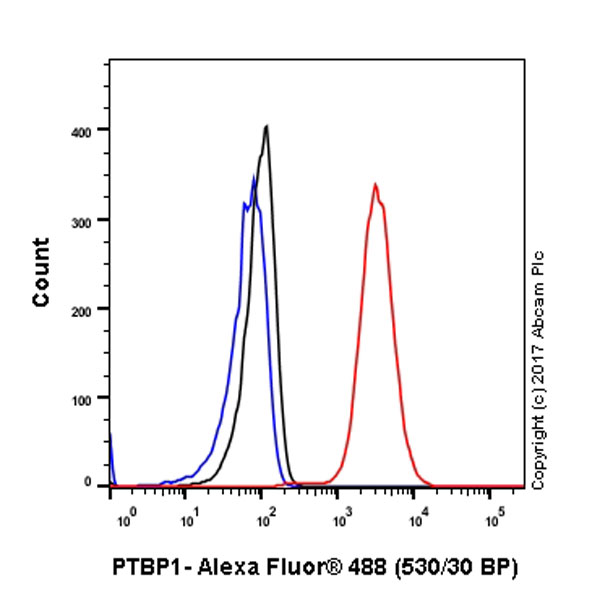

Intracellular Flow Cytometry analysis of A549 (Human lung carcinoma epithelial cell) cells labeling PTBP1 (red) with purified ab133734 at a 1/2000 dilution (1ug/mL). Cells were fixed with 4% paraformaldehyde and permeabilized with 90% methanol. A goat anti rabbit IgG (Alexa Fluor^® 488) (ab150077) was used as the secondary antibody at a 1/2000 dilution. Black - Rabbit monoclonal IgG (Black) (ab172730). Blue (unlabeled control) - Cell without incubation with primary antibody and secondary antibody (Blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133734).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-PTBP1 antibody [EPR9048(B)] - BSA and Azide free (AB240079)

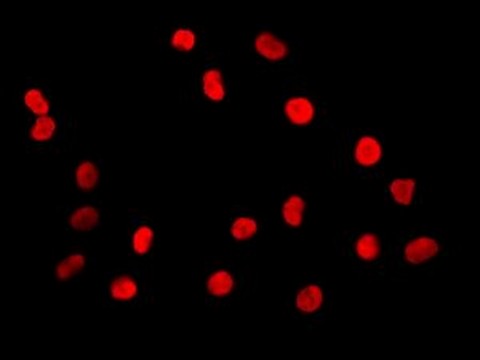

Immunofluorescent staining of PTBP1 in A549 cells, using ab133734 at a 1/250 dilution.This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133734).

• WB

Lab

Western blot - Anti-PTBP1 antibody [EPR9048(B)] - BSA and Azide free (AB240079)

This data was developed using the same antibody clone in a different buffer formulation (ab133734).

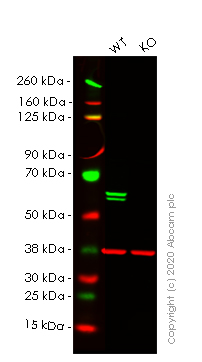

Lanes 1- 2 : Merged signal (red and green). Green - ab133734 observed at 57 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (ab8245) observed at 37 kDa.

ab133734 was shown to react with PTBP1 in wild-type HeLa cells in western blot. Loss of signal was observed when knockout cell line ab265155 (knockout cell lysate ab257614) was used. Wild-type HeLa and PTBP1 knockout HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab133734 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) overnight at 4°C at a 1 in 10000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-PTBP1 antibody [EPR9048(B)] (<a href='/en-us/products/primary-antibodies/ptbp1-antibody-epr9048b-ab133734'>ab133734</a>) at 1/10000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

PTBP1 knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human PTBP1 knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-ptbp1-knockout-hela-cell-line-ab265155'>ab265155</a>)

Predicted band size: 57 kDa

Observed band size: 57 kDa

false

• WB

Supplier Data

Western blot - Anti-PTBP1 antibody [EPR9048(B)] - BSA and Azide free (AB240079)

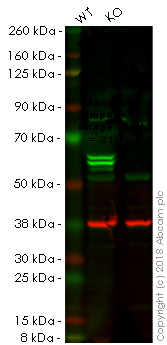

Lanes 1 - 2 : Merged signal (red and green). Green - ab133734 observed at 57 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab133734 was shown to recognize PTBP1 in wild-type HAP1 cells as signal was lost at the expected MW in PTBP1 knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and PTBP1 knockout samples were subjected to SDS-PAGE. ab133734 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/10000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab133734).

All lanes:

Western blot - Anti-PTBP1 antibody [EPR9048(B)] (<a href='/en-us/products/primary-antibodies/ptbp1-antibody-epr9048b-ab133734'>ab133734</a>) at 1/1000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

PTBP1 knockout HAP1 whole cell lysate at 20 µg

Predicted band size: 57 kDa

false
