Rabbit Recombinant Monoclonal PU.1/Spi1 antibody. Suitable for ChIP, IP, Flow Cyt (Intra), ICC/IF, IHC-P, WB, ChIC/CUT&RUN-seq and reacts with Human samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-PU.1/Spi1 antibody [EPR25123-110] (AB302623), expandable thumbnail
  • Western blot - Anti-PU.1/Spi1 antibody [EPR25123-110] (AB302623), expandable thumbnail
  • ChIC/CUT&RUN sequencing - Anti-PU.1/Spi1 antibody [EPR25123-110] (AB302623), expandable thumbnail
  • ChIC/CUT&RUN sequencing - Anti-PU.1/Spi1 antibody [EPR25123-110] (AB302623), expandable thumbnail
  • ChIC/CUT&RUN sequencing - Anti-PU.1/Spi1 antibody [EPR25123-110] (AB302623), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
ChIPIPFlow Cyt (Intra)ICC/IFIHC-PWBChIC/CUT&RUN-seq
Human
Tested
Tested
Tested
Tested
Tested
Tested
Tested
Mouse
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Rat
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended
Not recommended

Tested
Tested

Species
Human
Dilution info
5 µg/mL
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/30
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/500
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/250
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species
Rat
Dilution info
-
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Species
Mouse
Dilution info
-
Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Tested
Tested

Species
Human
Dilution info
1/1000
Notes

-

Not recommended
Not recommended

Species
Rat, Mouse
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Target data

Function

Pioneer transcription factor, which controls hematopoietic cell fate by decompacting stem cell heterochromatin and allowing other transcription factors to enter otherwise inaccessible genomic sites. Once in open chromatin, can directly control gene expression by binding genetic regulatory elements and can also more broadly influence transcription by recruiting transcription factors, such as interferon regulatory factors (IRFs), to otherwise inaccessible genomic regions (PubMed:23658224, PubMed:33951726). Transcriptionally activates genes important for myeloid and lymphoid lineages, such as CSF1R (By similarity). Transcriptional activation from certain promoters, possibly containing low affinity binding sites, is achieved cooperatively with other transcription factors. FCER1A transactivation is achieved in cooperation with GATA1 (By similarity). May be particularly important for the pro- to pre-B cell transition (PubMed:33951726). Binds (via the ETS domain) onto the purine-rich DNA core sequence 5'-GAGGAA-3', also known as the PU-box (PubMed:33951726). In vitro can bind RNA and interfere with pre-mRNA splicing (By similarity).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal PU.1/Spi1 antibody. Suitable for ChIP, IP, Flow Cyt (Intra), ICC/IF, IHC-P, WB, ChIC/CUT&RUN-seq and reacts with Human samples.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR25123-110
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

PU.1 also known as Spi1 is a transcription factor that belongs to the ETS family of transcription factors. It plays a major role in gene regulation and is an important player in hematopoietic cell differentiation. PU.1 has a molecular mass of approximately 31 kDa and is predominantly expressed in hematopoietic cells such as myeloid and B-lymphoid cells. It actively interacts with specific DNA sequences to regulate the expression of target genes.

Biological function summary

PU.1 influences the development and function of various blood cells including macrophages neutrophils and B-cells. It is essential for the regulation of genes involved in immune responses cell proliferation and survival. PU.1 functions as part of a larger transcriptional regulatory complex and often partners with other transcription factors and coactivators to exert its effects. This cooperation allows precise gene expression control in specific cell lineages.

Pathways

Expression of PU.1 is critical in the hematopoietic development pathway and the immune response pathway. It closely interacts with other transcription factors like GATA-1 and C/EBPα forming a network that affects hematopoietic lineage commitment. Within these pathways PU.1 constantly coordinates signals that influence progenitor cell fate and differentiation ensuring a balanced proportion of cell types within the blood.

Associated diseases and disorders

PU.1 has significant implications in leukemia and other hematological malignancies. Dysregulation or mutation of PU.1 can lead to improper hematopoietic cell development and contribute to acute myeloid leukemia (AML) and other blood disorders. Additionally its expression level is closely linked with immune system function associating PU.1 indirectly with autoimmune conditions. In these contexts the interaction with other proteins like AML1 and C/EBPγ can influence disease pathogenesis by modulating gene expression patterns critical for normal hematopoietic and immune function.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

13 product images

  • Western blot - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

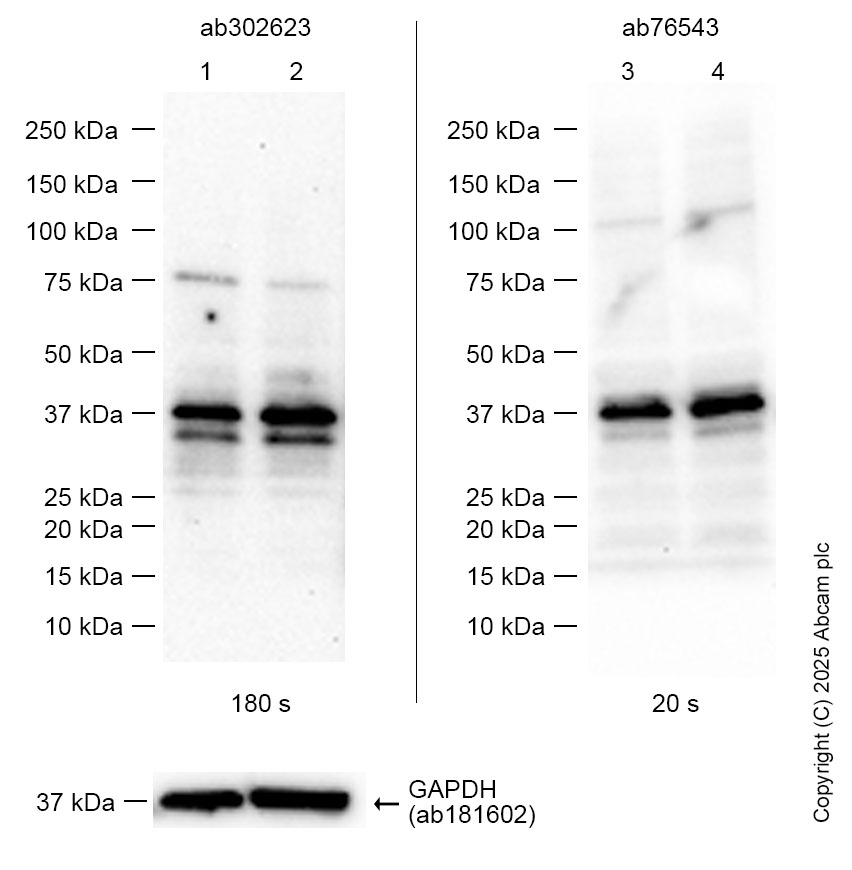

    Western blot - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    PU.1/Spi1 Western blot staining using rabbit Anti-PU.1/Spi1 antibody

    Exposure time: Lane 1-2: 180 seconds; Lane 3-4: 20 seconds

    In Western blot, Anti-GAPDH antibody [EPR16891] - Loading Control (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) staining at 1/1000000 dilution.

    Anti-PU.1/Spi1 antibody [EPR3158Y] ab76543 is more sensitive than ab302623 in WB testing.

    Lanes 1 - 2: Western blot - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623) at 1/1000 dilution

    Lanes 1 - 4: Western blot - Anti-PU.1/Spi1 antibody [EPR25123-110] (BSA and Azide free) (Anti-PU.1/Spi1 antibody [EPR25123-110] (BSA and Azide free) ab302624) at 1/1000 dilution

    Lanes 3 - 4: Western blot - Anti-PU.1/Spi1 antibody [EPR3158Y] (Anti-PU.1/Spi1 antibody [EPR3158Y] ab76543) at 1/1000 dilution

    Lanes 1 and 3: Daudi whole cell lysate at 20 µg

    Lanes 2 and 4: Raji whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Predicted band size: 31 kDa

    Observed band size: 37-42 kDa

  • Western blot - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    Western blot - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST.

    Negative control: HeLa (PMID: 27010793)

    This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

    All lanes: Western blot - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623) at 1/1000 dilution

    Lane 1: THP-1 (human monocytic leukemia monocyte), whole cell lysate at 20 µg

    Lane 2: U937 (human histiocytic lymphoma monocyte), whole cell lysate at 20 µg

    Lane 3: Daudi (human Burkitts lymphoma lymphoblast), whole cell lysate at 20 µg

    Lane 4: HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Developed using the ECL technique.

    Observed band size: 31 kDa

    Exposure time: 3min

  • ChIC/CUT&RUN sequencing - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    ChIC/CUT&RUN sequencing - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 THP-1 (Human monocytic leukemia monocyte) cells and 5 µg of ab302623 [EPR25123-110]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods."

  • ChIC/CUT&RUN sequencing - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    ChIC/CUT&RUN sequencing - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 THP-1 (Human monocytic leukemia monocyte) cells and 5 µg of ab302623 [EPR25123-110]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods."

  • ChIC/CUT&RUN sequencing - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    ChIC/CUT&RUN sequencing - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 THP-1 (Human monocytic leukemia monocyte) cells and 5 µg of ab302623 [EPR25123-110]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods."

  • Immunoprecipitation - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    Immunoprecipitation - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    PU.1/Spi1 was immunoprecipitated from 0.35 mg THP-1 (human monocytic leukemia monocyte), whole cell lysate 10 µg with ab302623 at 1/30 dilution (2µg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab302623 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.

    Lane 1: THP-1 (human monocytic leukemia monocyte), whole cell lysate 10 µg

    Lane 2: ab302623 IP in THP-1 whole cell lysate

    Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab302623 in THP-1 whole cell lysate

    Blocking and dilution buffer and concentration: 5% NFDM/TBST.

    All lanes: Immunoprecipitation - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623) at 1/30 dilution

    All lanes: THP-1 (human monocytic leukemia monocyte), whole cell lysate

    Secondary

    All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution

    Predicted band size: 31 kDa

    Observed band size: 31 kDa

    Exposure time: 3min

  • ChIP - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    ChIP - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    Chromatin was prepared from U-937 cells according to the Abcam Dual-X-ChIP protocol. Cells were fixed with 1.5 mM EGS for 30mins and then formaldehyde for 10min. The ChIP was performed with 25 µg of chromatin, 5 µg of ab302623 (red), or 5 µg of rabbit normal IgG Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 (gray) and 25 µl of Protein A/G Dynabeads. The immunoprecipitated DNA was quantified by real time PCR (Sybr green approach).

    Primers and probes are from paper PMID:21402070, 21094529, 26622774

  • Flow Cytometry (Intracellular) - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    Flow Cytometry (Intracellular) - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized THP-1 (human monocytic leukemia monocyte) cells labelling PU.1/Spi1 with ab302623 at 1/500 dilution (0.1ug) (Red) (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody.

  • Flow Cytometry (Intracellular) - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    Flow Cytometry (Intracellular) - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (human cervix adenocarcinoma epithelial cell, Left) / U937 (human histiocytic lymphoma monocyte, Right) cells labelling PU.1/Spi1 with ab302623 at 1/500 dilution (0.1ug) (Red) (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody. Negative control: HeLa (PMID: 27010793)

  • Immunocytochemistry/ Immunofluorescence - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized U-937 (human histiocytic lymphoma monocyte) cells labelling PU.1/Spi1 with ab302623 at 1/250 (1.868 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/mL dilution (Green). Confocal image showing nuclear staining in U-937 cell line. is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).
    Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2ug/mL dilution.

  • Immunocytochemistry/ Immunofluorescence - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized THP-1 (human monocytic leukemia monocyte) cells labelling PU.1/Spi1 with ab302623 at 1/250 (1.868 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2ug/mL dilution (Green). Confocal image showing nuclear staining in THP-1 cell line.Negative control: Hela (PMID: 27010793) is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).
    Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2ug/mL dilution.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    Immunohistochemical analysis of paraffin-embedded Human diffuse large tissue labeling PU.1/Spi1 with ab302623 at 1/1000 (0.467 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Positive staining in human diffuse large B-cell lymphoma (PMID: 16648862). The section was incubated with ab302623 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PU.1/Spi1 antibody [EPR25123-110] (ab302623)

    Immunohistochemical analysis of paraffin-embedded Human colon tissue labeling PU.1/Spi1 with ab302623 at 1/1000 (0.467 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used. Positive staining in immune cells of human colon (PMID: 28681454). The section was incubated with ab302623 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
    Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection) was used.
    Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
