Anti-Rab5 antibody [EPR5438] - BSA and Azide free

8 product images

•

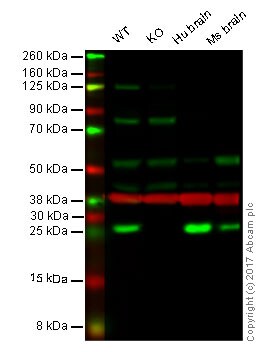

  Western blot - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908)

  Lane 1: Wild type HAP1 whole cell lysate (20 μg)
  Lane 2: Rab5 knockout HAP1 whole cell lysate (20 μg)
  Lane 3: Hu brain whole cell lysate (20 μg)
  Lane 4: Ms brain whole cell lysate (20 μg)
  Lanes 1 - 4: Merged signal (red and green). Green - Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534 observed at 25 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534).

  All lanes: Western blot - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908)

  Predicted band size: 24 kDa

•

  Western blot - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908)

  Blocking buffer: 5% NFDM/TBST


  Dilution buffer: 5% NFDM/TBST

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534).

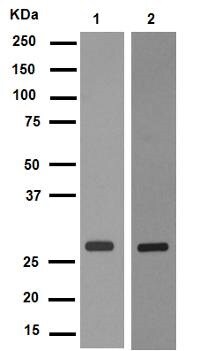

  All lanes: Western blot - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908) at 1/5000 dilution

  Lane 1: Mouse brain at 10 µg

  Lane 2: Rat brain at 10 µg

  Secondary

  All lanes: HRP goat anti-rabbit (H+L) at 1000 µg

  Predicted band size: 24 kDa

  Observed band size: 24 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908)

  Immunohistochemical staining of paraffin embedded human pancreas with purified Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534 at a working dilution of 1 in 1000. The secondary antibody used is a HRP polymer for rabbit IgG. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534).

•

  Western blot - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908)

  Blocking buffer: 5% NFDM/TBST


  Dilution buffer: 5% NFDM/TBST

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534).

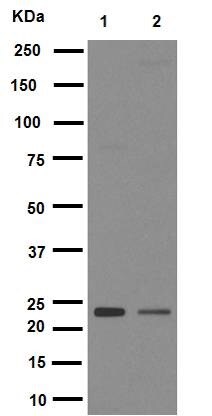

  All lanes: Western blot - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908) at 1/5000 dilution

  Lane 1: MCF7 cell lysate at 10 µg

  Lane 2: HEK293 cell lysate at 10 µg

  Secondary

  All lanes: HRP goat anti-rabbit (H+L) at 1/1000 dilution

  Predicted band size: 24 kDa

  Observed band size: 24 kDa

•

  This image is courtesy of an anonymous customer review.

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Pancreas tissue sections (with ADM and PanIN lesions) from KC mice labeling Rab5 with Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534 at 1/200 dilution. Tissue was fixed with paraformaldehyde and permeabilized with TritonX100 0.1% for 10 min at room temperature. Heat-mediated antigen retrieval was performed using TRIS-EDTA pH9 buffer. Tissue sections were blocked with 10% goat serum for 1 hour at 20°C. A polyclonal goat anti-rabbit Alexa Fluor 488 secondary antibody was used at 1/500 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534).

•

  Western blot - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534).

  All lanes: Western blot - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908) at 1/1000 dilution

  Lane 1: 293T cell lysate at 10 µg

  Lane 2: HeLa cell lysate at 10 µg

  Lane 3: Jurkat cell lysate at 10 µg

  Predicted band size: 24 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908)

  Immunohistochemical staining of Rab5 in paraffin embedded human brain tissue with unpurified Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534, at 1/100 dilution.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534).

  Perform heat mediated antigen retrieval via the pressure cooker method before commencing with IHC staining protocol.

•

  Western blot - Anti-Rab5 antibody [EPR5438] - BSA and Azide free (ab234908)

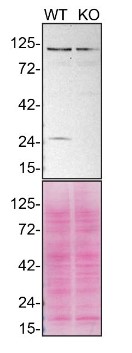

  Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534 was shown to react with RAB5A in wild-type HAP1 cells in Western blot with loss of signal observed in a RAB5A knockout cell line. Wild-type HAP1 and RAB5A knockout cell lysates were subjected to SDS-PAGE. Membranes were blocked in 5% milk in TBST for 1 hr before incubation with Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534 overnight at 4 °C at a 1000 dilution. Blots were incubated with secondary antibodies at 0.2ug/mL before imaging.

  These data were provided by YCharOS Inc., an open science company with the mission of characterizing commercially available antibody reagents for all human proteins. Abcam and YCharOS are working together to help address the reproducibility crisis by enabling the life science community to better evaluate commercially available antibodies.

  All lanes: Western blot - Anti-Rab5 antibody [EPR5438] - Early Endosome Marker (Anti-Rab5 antibody [EPR5438] - Early Endosome Marker ab109534) at 1/1000 dilution

  Lane 1: Wild-type HAP1 lysate at 20 µg

  Lane 2: RAB5A Knockout HAP1 lysate at 20 µg

  Observed band size: 24 kDa
