Rabbit Recombinant Monoclonal RAGE antibody. Carrier free. Suitable for WB and reacts with Mouse, Rat samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-RAGE antibody [EPR12206] - BSA and Azide free (AB249692), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Storage buffer

pH: 7.2 - 7.4
Constituents: PBS

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPWBIHC-PICC/IF
Mouse
Not recommended
Tested
Not recommended
Not recommended
Rat
Not recommended
Tested
Not recommended
Not recommended

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Tested
Tested

Species
Mouse
Dilution info
-
Notes

We recommend ab181369 for human samples.

Species
Rat
Dilution info
-
Notes

We recommend ab181369 for human samples.

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Not recommended
Not recommended

Species
Mouse, Rat
Dilution info
-
Notes

-

Target data

Function

Cell surface pattern recognition receptor that senses endogenous stress signals with a broad ligand repertoire including advanced glycation end products, S100 proteins, high-mobility group box 1 protein/HMGB1, amyloid beta/APP oligomers, nucleic acids, phospholipids and glycosaminoglycans (PubMed:27572515, PubMed:28515150, PubMed:34743181). Advanced glycosylation end products are nonenzymatically glycosylated proteins which accumulate in vascular tissue in aging and at an accelerated rate in diabetes (PubMed:21565706). These ligands accumulate at inflammatory sites during the pathogenesis of various diseases, including diabetes, vascular complications, neurodegenerative disorders, and cancers and RAGE transduces their binding into pro-inflammatory responses. Upon ligand binding, uses TIRAP and MYD88 as adapters to transduce the signal ultimately leading to the induction or inflammatory cytokines IL6, IL8 and TNFalpha through activation of NF-kappa-B (PubMed:21829704, PubMed:33436632). Interaction with S100A12 on endothelium, mononuclear phagocytes, and lymphocytes triggers cellular activation, with generation of key pro-inflammatory mediators (PubMed:19386136). Interaction with S100B after myocardial infarction may play a role in myocyte apoptosis by activating ERK1/2 and p53/TP53 signaling (By similarity). Contributes to the translocation of amyloid-beta peptide (ABPP) across the cell membrane from the extracellular to the intracellular space in cortical neurons (PubMed:19906677). ABPP-initiated RAGE signaling, especially stimulation of p38 mitogen-activated protein kinase (MAPK), has the capacity to drive a transport system delivering ABPP as a complex with RAGE to the intraneuronal space. Participates in endothelial albumin transcytosis together with HMGB1 through the RAGE/SRC/Caveolin-1 pathway, leading to endothelial hyperpermeability (PubMed:27572515). Mediates the loading of HMGB1 in extracellular vesicles (EVs) that shuttle HMGB1 to hepatocytes by transferrin-mediated endocytosis and subsequently promote hepatocyte pyroptosis by activating the NLRP3 inflammasome (PubMed:34743181). Promotes also extracellular hypomethylated DNA (CpG DNA) uptake by cells via the endosomal route to activate inflammatory responses (PubMed:24081950, PubMed:28515150).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal RAGE antibody. Carrier free. Suitable for WB and reacts with Mouse, Rat samples.

Key facts

Isotype
IgG
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Carrier free
Yes
Clone number
EPR12206
Purification technique
Affinity purification Protein A
Specificity

Recent tests in our laboratory showed that the antibody detects the band of interest in tissue lysates, but it did not detect the protein in cell lysate.

RAGE is typically expressed at low levels under normal physiological conditions in majority of tissues except normal lung tissue. When testing other tissues, please use lung tissue as a positive control.

Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
+4°C
Storage information
Do Not Freeze

Notes

ab249692 is the carrier-free version of Anti-RAGE antibody [EPR12206] ab172473.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

RAGE also known as Receptor for Advanced Glycation End-products is a multi-ligand cell surface receptor with a molecular weight of approximately 45 kDa. It belongs to the immunoglobulin superfamily consisting of three extracellular immunoglobulin-like domains a transmembrane domain and a cytoplasmic tail. RAGE is widely expressed in various tissues throughout the body with high expression levels in the lungs heart and cells of the nervous system. The receptor can interact with several ligands such as advanced glycation end-products (AGEs) amyloid beta and S100/calgranulin proteins facilitating signal transduction into the cells.

Biological function summary

RAGE functions in the immune and inflammatory response where it mediates cell signaling that leads to cellular activation and the release of pro-inflammatory cytokines. It acts as part of complexes with different proteins contributing to cellular processes such as proliferation and migration. RAGE also plays roles in the regulation of oxidative stress and apoptosis impacting cellular health and survival. Researchers employ tools like 'anti-RAGE' antibodies and 'RAGER ELISA' assays to measure and study RAGE expression levels and its interactions in various experimental setups.

Pathways

RAGE is significantly involved in the NF-kB pathway and the MAPK signaling cascade. Its activation can lead to the release of NF-kB a transcription factor that plays an essential role in immune and inflammatory responses. RAGE interacts with proteins such as p38 MAPK leading to a cascade of events that regulate inflammation and stress responses. The signaling pathways involving RAGE are important in maintaining cell homeostasis and responding to cellular stressors and tools like 'anti-RAGE' and 'mouse RAGE' antibodies serve to elucidate these complex pathways further.

Associated diseases and disorders

RAGE has strong associations with chronic diseases like diabetes and Alzheimer's disease. In diabetes RAGE binds to AGEs contributing to inflammation and vascular complications where it often interacts with proteins like iNOS and VEGF. In Alzheimer's disease RAGE is implicated in the accumulation and toxicity of amyloid-beta peptides interacting with proteins such as APP and tau. Understanding RAGE's role in these diseases can aid in developing therapeutic strategies employing reagents such as 'phen RAGE' and 'anti-RAGE' for targeted treatment approaches.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

1 product image

  • Western blot - Anti-RAGE antibody [EPR12206] - BSA and Azide free (ab249692), expandable thumbnail

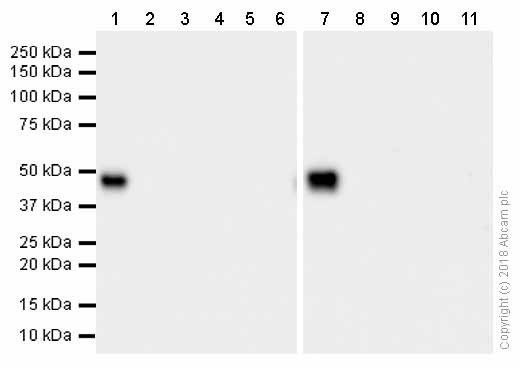

    Western blot - Anti-RAGE antibody [EPR12206] - BSA and Azide free (ab249692)

    RAGE Western blot staining using rabbit Anti-RAGE antibody

    This data was developed using Anti-RAGE antibody [EPR12206] ab172473, the same antibody clone in a different buffer formulation.

    Blocking and dilution buffer: 5% NFDM/TBST.

    Exposure time:

    Lanes 1-6: 3 second
    Lanes 7-11: 20 seconds

    The expression profile and molecular mass observed is consistent with what has been described in the literature (PMID: 16315007; 18355449; 18245812).

    All lanes: Western blot - Anti-RAGE antibody [EPR12206] (Anti-RAGE antibody [EPR12206] ab172473) at 1/1000 dilution

    Lane 1: Mouse lung lysates at 20 µg

    Lane 2: Mouse brain lysates at 20 µg

    Lane 3: Mouse kidney lysates at 20 µg

    Lane 4: Mouse heart lysates at 20 µg

    Lane 5: Mouse liver lysates at 20 µg

    Lane 6: Mouse spleen lysates at 20 µg

    Lane 7: Rat lung lysates at 20 µg

    Lane 8: Rat brain lysates at 20 µg

    Lane 9: Rat kidney lysates at 20 µg

    Lane 10: Rat heart lysates at 20 µg

    Lane 11: Rat spleen lysates at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

    Predicted band size: 42 kDa

    Observed band size: 43 kDa
