Anti-RAP1GAP antibody [Y134] - BSA and Azide free

11 product images

•

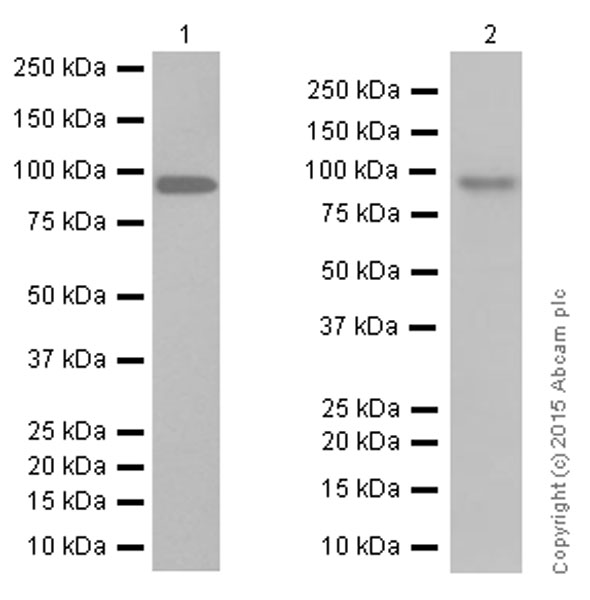

  Western blot - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.


  Blocking and dilution buffer: 5% NFDM/TBST.

  The molecular weight observed is consistent with what has been described in the literature (PMID: 9346962, PMID: 15632203, PMID: 30144784).

  All lanes: Western blot - Anti-RAP1GAP antibody [Y134] (Anti-RAP1GAP antibody [Y134] ab32373) at 1/10000 dilution

  Lane 1: Mouse brain lysate at 20 µg

  Lane 2: Rat brain lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 73 kDa

  Observed band size: 95 kDa

•

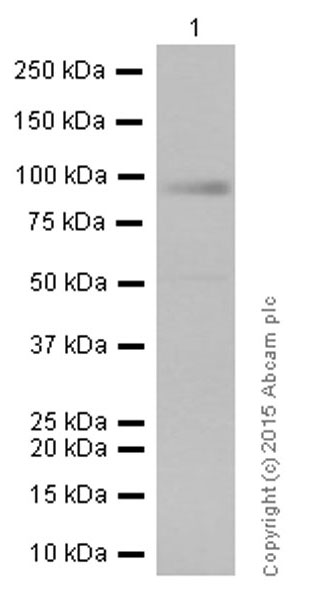

  Western blot - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.


  Blocking and dilution buffer: 5% NFDM/TBST.

  The molecular weight observed is consistent with what has been described in the literature (PMID: 9346962, PMID: 15632203, PMID: 30144784).

  All lanes: Western blot - Anti-RAP1GAP antibody [Y134] (Anti-RAP1GAP antibody [Y134] ab32373) at 1/10000 dilution

  All lanes: Jurkat cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Predicted band size: 73 kDa

  Observed band size: 95 kDa

•

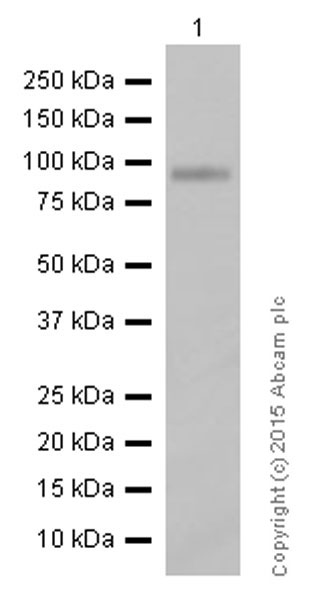

  Western blot - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.


  Blocking and dilution buffer: 5% NFDM/TBST.

  The molecular weight observed is consistent with what has been described in the literature (PMID: 9346962, PMID: 15632203, PMID: 30144784).

  All lanes: Western blot - Anti-RAP1GAP antibody [Y134] (Anti-RAP1GAP antibody [Y134] ab32373) at 1/10000 dilution

  All lanes: SH-SY5Y cell lysate at 20 µg

  Secondary

  All lanes: Anti-rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

  Predicted band size: 73 kDa

  Observed band size: 95 kDa

•

  Western blot - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.


  The molecular weight observed is consistent with what has been described in the literature (PMID: 9346962, PMID: 15632203, PMID: 30144784).

  All lanes: Western blot - Anti-RAP1GAP antibody [Y134] (Anti-RAP1GAP antibody [Y134] ab32373) at 1/50000 dilution

  All lanes: Jurkat cell lysate

  Predicted band size: 73 kDa

  Observed band size: 95 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.Immunohistochemical staining of paraffin embedded human cerebral cortex with purified Anti-RAP1GAP antibody [Y134] ab32373 at a working dilution of 1/1000. The secondary antibody used is Goat Anti-Rabbit IgG H&L (HRP) ab97051, a goat anti-rabbit IgG (H&L) at a dilution of 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.Immunohistochemical staining of paraffin-embedded human breast cancer tissue using unpurified Anti-RAP1GAP antibody [Y134] ab32373 at 1/100 dilution.

•

  Immunocytochemistry/ Immunofluorescence - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.Immunofluorescence staining of HeLa cells with purified Anti-RAP1GAP antibody [Y134] ab32373 at a working dilution of 1/250, counter-stained with DAPI. The secondary antibody was Alexa Fluor^® 488 goat anti-rabbit (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077), used at a dilution of 1/1000. Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291, a mouse anti-tubulin antibody (1/1000), was used to stain tubulin along with Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 (Alexa Fluor^® 594 goat anti-mouse, 1/1000), shown in the top right hand panel. The cells were fixed in 4 % PFA and permeabilized using 0.1% Triton X 100. The negative controls are shown in bottom middle and right hand panels - for negative control 1, purified Anti-RAP1GAP antibody [Y134] ab32373 was used at a dilution of 1/500 followed by an Alexa Fluor^® 594 goat anti-mouse antibody (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at a dilution of 1/500. For negative control 2, Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (mouse anti-tubulin) was used at a dilution of 1/500 followed by an Alexa Fluor^® 488 goat anti-rabbit antibody (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at a dilution of 1/400.

•

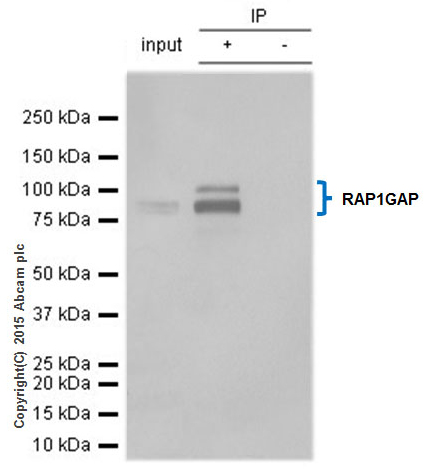

  Immunoprecipitation - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.Anti-RAP1GAP antibody [Y134] ab32373 (purified) at 1/20 immunoprecipitating RAP1GAP in 10 μg C6 cell lysate (Lanes 1 and 2, observed at 82-95 kDa). Lane 3 - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730). For western blotting, HRP Veriblot for IP Detection Reagent (VeriBlot for IP Detection Reagent (HRP) ab131366) was used for detection (1/1000). Blocking buffer and concentration: 5% NFDM/TBST Dilution buffer and concentration: 5% NFDM/TBST

  All lanes: Immunoprecipitation - Anti-RAP1GAP antibody [Y134] (Anti-RAP1GAP antibody [Y134] ab32373)

  Predicted band size: 73 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.ICC/IF image of unpurified Anti-RAP1GAP antibody [Y134] ab32373 stained HeLa cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (Anti-RAP1GAP antibody [Y134] ab32373, 1µg/ml) overnight at +4°C. The secondary antibody (green) was Goat Anti-Rabbit IgG H&L (DyLight® 488) preadsorbed ab96899, DyLight^® 488 goat anti-rabbit IgG (H+L) used at a 1/250 dilution for 1h.Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.



•

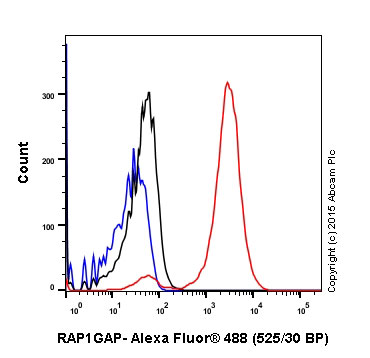

  Flow Cytometry (Intracellular) - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.


  Overlay histogram showing Jurkat cells fixed in 4% PFA and stained with purified Anti-RAP1GAP antibody [Y134] ab32373 at a dilution of 1/30 (red line). The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit at a dilution of 1/500. Rabbit monoclonal IgG was used as an isotype control (black line) and cells incubated in the absence of both primary and secondary antibody were used as a negative control (blue line).

•

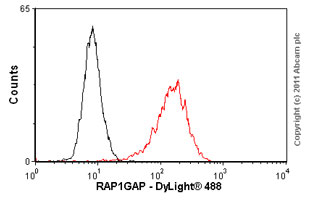

  Flow Cytometry (Intracellular) - Anti-RAP1GAP antibody [Y134] - BSA and Azide free (ab247250)

  This data was developed using Anti-RAP1GAP antibody [Y134] ab32373, the same antibody clone in a different buffer formulation.Overlay histogram showing SH-SY5Y cells stained with unpurified Anti-RAP1GAP antibody [Y134] ab32373 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (Anti-RAP1GAP antibody [Y134] ab32373, 1/100) for 30 min at 22ºC. The secondary antibody used was DyLight^® 488 goat anti-rabbit IgG (H+L) (Goat Anti-Rabbit IgG H&L (DyLight® 488) preadsorbed ab96899) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1µg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.
