Anti-RENT1/hUPF1 antibody [EPR4681] - BSA and Azide free

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-RENT1/hUPF1 antibody [EPR4681] - BSA and Azide free (AB243911)

Immunocytochemistry/ Immunofluorescence analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling RENT1/hUPF1 with Purified ab109363 at 1 : 100 dilution (5.1 μg/ml). Cells were fixed in 100% Methanol and permeabilized with None. Cells were counterstained with ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1 : 200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) was used as the secondary antibody at 1 : 1000 (2 μg/ml) dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109363)

• Flow Cyt (Intra)

Unknown

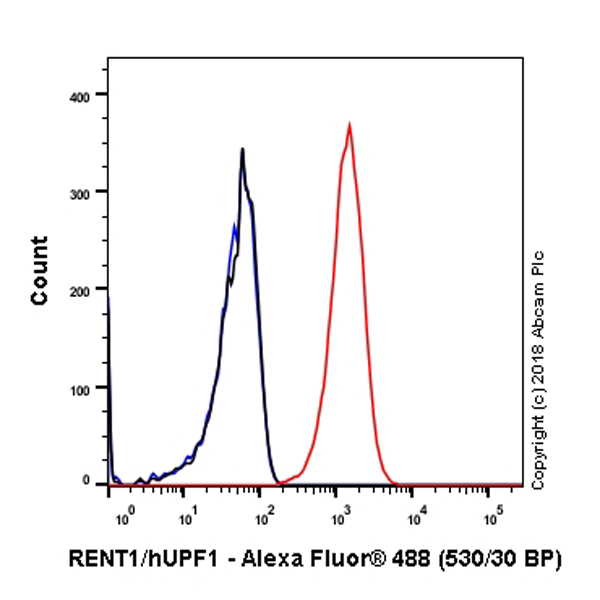

Flow Cytometry (Intracellular) - Anti-RENT1/hUPF1 antibody [EPR4681] - BSA and Azide free (AB243911)

Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling RENT1/hUPF1 with Purified ab109363 at 1/50 dilution (10μg/ml) (red). Cells were fixed with 4% Paraformaldehyde. A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109363)

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RENT1/hUPF1 antibody [EPR4681] - BSA and Azide free (AB243911)

ab109363, at 1/100, staining RENT1/hUPF1 in Human transitional cell carcinoma tissue by immunohistochemistry.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109363)

This image was generated using the unpurified version of the product.

Heat mediated antigen retrieval was performed with citrate buffer pH 6 before commencing with IHC staining protocol.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RENT1/hUPF1 antibody [EPR4681] - BSA and Azide free (AB243911)

ab109363, at 1/100, staining RENT1/hUPF1 in Human kidney tissue by immunohistochemistry.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109363)

This image was generated using the unpurified version of the product.

Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-RENT1/hUPF1 antibody [EPR4681] - BSA and Azide free (AB243911)

ab109363, at 1/100, staining RENT1/hUPF1 in HeLa cells by immunofluorescence.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109363)

This image was generated using the unpurified version of the product.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-RENT1/hUPF1 antibody [EPR4681] - BSA and Azide free (AB243911)

Immunocytochemistry/Immunofluorescence analysis of HeLa (human cervix adenocarcinoma) cells labelling RENT1/hUPF1 with purified ab109363 at 1/500. Cells were fixed with 100% methanol. ab150077, Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. Nuclei were counterstained with DAPI (blue).

Secondary Only Control : PBS was used instead of the primary antibody as the negative control

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109363)

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RENT1/hUPF1 antibody [EPR4681] - BSA and Azide free (AB243911)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human liver tissue sections labeling RENT1/hUPF1 with Purified ab109363 at 1 : 100 dilution (5.14 μg/ml). Heat mediated antigen retrieval was performed using ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use)was used as the secondary antibody. Negative control : PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109363)

• IP

Unknown

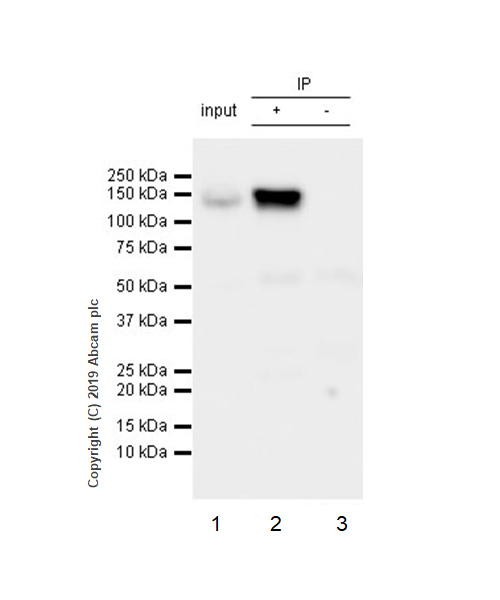

Immunoprecipitation - Anti-RENT1/hUPF1 antibody [EPR4681] - BSA and Azide free (AB243911)

ab109363 (purified) at 1 : 30 dilution (2μg) immunoprecipitating RENT1/hUPF1 in Raji whole cell lysate.

Lane 1 (input) : Raji (Human Burkitt's lymphoma B lymphocyte) whole cell lysate 10μg
Lane 2 (+) : ab109363 & Raji whole cell lysate
Lane 3 (-) : Rabbit monoclonal IgG (ab172730) instead of ab109363 in Raji whole cell lysate
For western blotting, VeriBlot for IP Detection Reagent (HRP) (ab131366) was used for detection at 1 : 1000 dilution.
Blocking and diluting buffer : 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109363)

All lanes:

Immunoprecipitation - Anti-RENT1/hUPF1 antibody [EPR4681] (<a href='/en-us/products/primary-antibodies/rent1-hupf1-antibody-epr4681-ab109363'>ab109363</a>)

Predicted band size: 124 kDa
