Anti-RHEB antibody [EPR2971]

7 product images

•

  Western blot - Anti-RHEB antibody [EPR2971] (ab92313)

  All lanes: Western blot - Anti-RHEB antibody [EPR2971] (ab92313) at 1/2000 dilution

  All lanes: Raji (Human Burkitt's lymphoma B lymphocyte) whole cell lysates at 15 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution

  Predicted band size: 20 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RHEB antibody [EPR2971] (ab92313)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human glioma tissue sections labeling RHEB with purified ab92313 at 1:500 dilution (0.73 µg/ml). Heat mediated antigen retrieval was performed using Bond ™ Epitope Retrieval Solution 2 (pH 9.0). Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

•

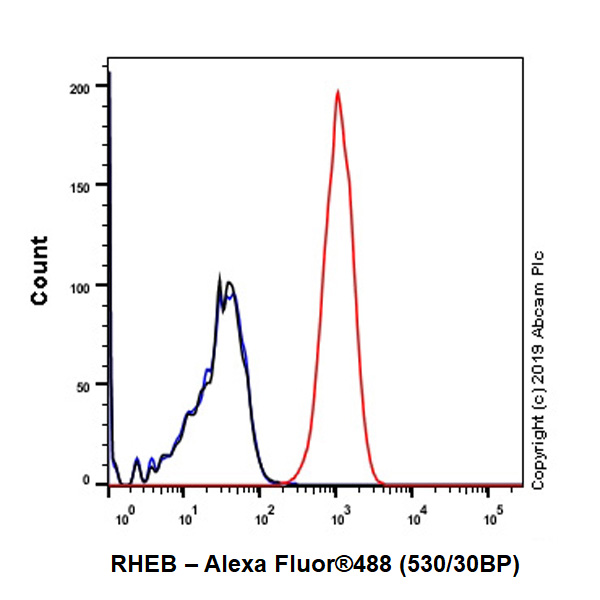

  Flow Cytometry (Intracellular) - Anti-RHEB antibody [EPR2971] (ab92313)

  Intracellular Flow Cytometry analysis of Raji (Human Burkitt's lymphoma B lymphocyte) cells labeling RHEB with purified ab92313 at 1/40 dilution (10 μg/ml) (Red). Cells were fixed with 4% Paraformaldehyde and permeabilised with 90% Methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

•

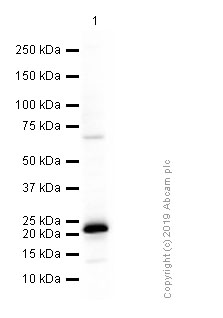

  Western blot - Anti-RHEB antibody [EPR2971] (ab92313)

  All lanes: Western blot - Anti-RHEB antibody [EPR2971] (ab92313) at 1/2000 dilution

  Lane 1: Raji cell lsyate at 10 µg

  Lane 2: SH-SY5Y cell lsyate at 10 µg

  Secondary

  All lanes: HRP labelled goat anti-rabbit at 1/2000 dilution

  Predicted band size: 20 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-RHEB antibody [EPR2971] (ab92313)

  Immunocytochemistry/ Immunofluorescence analysis of Raji (Human Burkitt's lymphoma B lymphocyte) cells labeling RHEB with purified ab92313 at 1:250 dilution (1.46 µg/ml). Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1:200 (2.5 µg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1:1000 (2 µg/ml) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

•

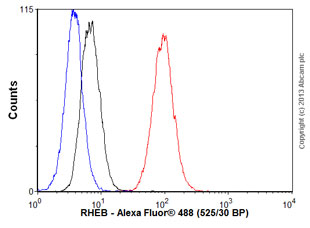

  Flow Cytometry (Intracellular) - Anti-RHEB antibody [EPR2971] (ab92313)

  Overlay histogram showing Raji cells stained with unpurifiedab92313 (red line). The cells were fixed with 4% paraformaldehyde (10 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab92313, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H&L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in Raji cells fixed with 80% methanol (5 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.


•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RHEB antibody [EPR2971] (ab92313)

  Unpurified ab92313, at 1/100 dilution, staining RHEB in paraffin-embedded Human brain tissue, by Immunohistochemistry.


  Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
