Rabbit Recombinant Monoclonal RNA polymerase II RPB1 phospho S5 antibody. Suitable for IP, Dot, WB, ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat, Synthetic peptide samples. Cited in 6 publications.

Be the first to review this product! Submit a review

Images

Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (AB193467), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (AB193467), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (AB193467), expandable thumbnail
  • Flow Cytometry (Intracellular) - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (AB193467), expandable thumbnail
  • Dot Blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (AB193467), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPDotWBICC/IFFlow Cyt (Intra)IHC-P
Human
Tested
Expected
Tested
Tested
Tested
Expected
Mouse
Expected
Expected
Tested
Tested
Expected
Tested
Rat
Expected
Expected
Tested
Tested
Expected
Expected
Synthetic peptide
Not recommended
Tested
Not recommended
Not recommended
Not recommended
Not recommended

Tested
Tested

Species

Human

Dilution info

1/20

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Not recommended
Not recommended

Species

Synthetic peptide

Dilution info

-

Notes

-

Tested
Tested

Species

Synthetic peptide

Dilution info

1/1000

Notes

-

Expected
Expected

Species

Human, Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/1000

Notes

-

Species

Rat

Dilution info

1/1000

Notes

-

Species

Human

Dilution info

1/1000

Notes

-

Not recommended
Not recommended

Species

Synthetic peptide

Dilution info

-

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/250

Notes

-

Species

Rat

Dilution info

1/250

Notes

-

Species

Human

Dilution info

1/250

Notes

-

Not recommended
Not recommended

Species

Synthetic peptide

Dilution info

-

Notes

-

Tested
Tested

Species

Human

Dilution info

1/30

Notes

Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Not recommended
Not recommended

Species

Synthetic peptide

Dilution info

-

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/500

Notes

Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Expected
Expected

Species

Human, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Not recommended
Not recommended

Species

Synthetic peptide

Dilution info

-

Notes

-

Associated Products

Select an associated product type

15 products for Alternative Product

Target data

Function

DNA-dependent RNA polymerase catalyzes the transcription of DNA into RNA using the four ribonucleoside triphosphates as substrates. Largest and catalytic component of RNA polymerase II which synthesizes mRNA precursors and many functional non-coding RNAs. Forms the polymerase active center together with the second largest subunit. Pol II is the central component of the basal RNA polymerase II transcription machinery. During a transcription cycle, Pol II, general transcription factors and the Mediator complex assemble as the preinitiation complex (PIC) at the promoter. 11-15 base pairs of DNA surrounding the transcription start site are melted and the single-stranded DNA template strand of the promoter is positioned deeply within the central active site cleft of Pol II to form the open complex. After synthesis of about 30 bases of RNA, Pol II releases its contacts with the core promoter and the rest of the transcription machinery (promoter clearance) and enters the stage of transcription elongation in which it moves on the template as the transcript elongates. Pol II appears to oscillate between inactive and active conformations at each step of nucleotide addition. Elongation is influenced by the phosphorylation status of the C-terminal domain (CTD) of Pol II largest subunit (RPB1), which serves as a platform for assembly of factors that regulate transcription initiation, elongation, termination and mRNA processing. Pol II is composed of mobile elements that move relative to each other. The core element with the central large cleft comprises RPB3, RBP10, RPB11, RPB12 and regions of RPB1 and RPB2 forming the active center. The clamp element (portions of RPB1, RPB2 and RPB3) is connected to the core through a set of flexible switches and moves to open and close the cleft. A bridging helix emanates from RPB1 and crosses the cleft near the catalytic site and is thought to promote translocation of Pol II by acting as a ratchet that moves the RNA-DNA hybrid through the active site by switching from straight to bent conformations at each step of nucleotide addition. In elongating Pol II, the lid loop (RPB1) appears to act as a wedge to drive apart the DNA and RNA strands at the upstream end of the transcription bubble and guide the RNA strand toward the RNA exit groove located near the base of the largely unstructured CTD domain of RPB1. The rudder loop (RPB1) interacts with single-stranded DNA after separation from the RNA strand, likely preventing reassociation with the exiting RNA. The cleft is surrounded by jaws: an upper jaw formed by portions of RBP1, RPB2 and RPB9, and a lower jaw, formed by RPB5 and portions of RBP1. The jaws are thought to grab the incoming DNA template, mainly by RPB5 direct contacts to DNA.

Alternative names

Recommended products

Rabbit Recombinant Monoclonal RNA polymerase II RPB1 phospho S5 antibody. Suitable for IP, Dot, WB, ICC/IF, Flow Cyt (Intra), IHC-P and reacts with Human, Mouse, Rat, Synthetic peptide samples. Cited in 6 publications.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EPR19015

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

RNA polymerase II CTD repeat YSPTSPS also known as the C-terminal domain of RNA polymerase II is a critical component of the RNA polymerase II enzyme commonly referred to as pol II. This domain is characterized by the repetitive sequence YSPTSPS which plays a significant role in the regulation of transcription. The mass of RNA polymerase II including its CTD varies but is essential for its function in gene expression. RNA polymerase II with the CTD is expressed in the nucleus of eukaryotic cells where it orchestrates the transcription of DNA into mRNA.

Biological function summary

RNA polymerase II CTD repeat YSPTSPS is essential for the transcription progression from initiation to termination. It is part of the large RNA polymerase II complex interacting with various transcription factors and enzymes necessary for RNA processing. The phosphorylation state of the CTD particularly on serine residues regulates interactions with splicing machinery and other RNA processing factors. This modulation ensures the coupling between transcription and RNA processing events controlling mRNA synthesis and maturation.

Pathways

RNA polymerase II CTD repeat YSPTSPS is important in the mRNA synthesis pathway specifically in transcriptional regulation and processing of nascent RNA transcripts. It interacts with proteins such as the transcription factors TFIIH and TFIIB which aid in promoter recognition and open complex formation. The CTD's dynamic phosphorylation pattern allows integration into multiple cellular pathways most importantly connecting transcription with RNA splicing and transport pathways.

Associated diseases and disorders

Abnormal function or mutations in RNA polymerase II CTD repeat YSPTSPS associate with diseases such as transcription-related syndromes and certain cancers. Deficient CTD phosphorylation can lead to improper mRNA processing resulting in neural developmental disorders. Additionally its interaction with proteins like CDK7 which phosphorylates the CTD links it to tumors where transcriptional dysregulation is a hallmark. Understanding the CTD's role in these diseases provides insight into therapeutic targets and strategies for intervention.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

12 product images

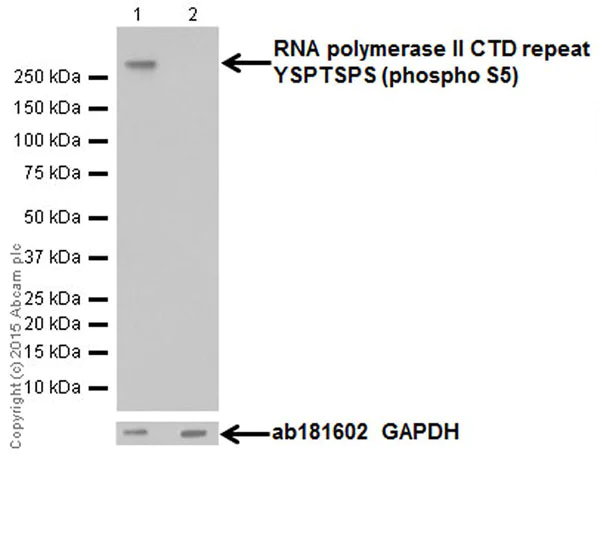

  • Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

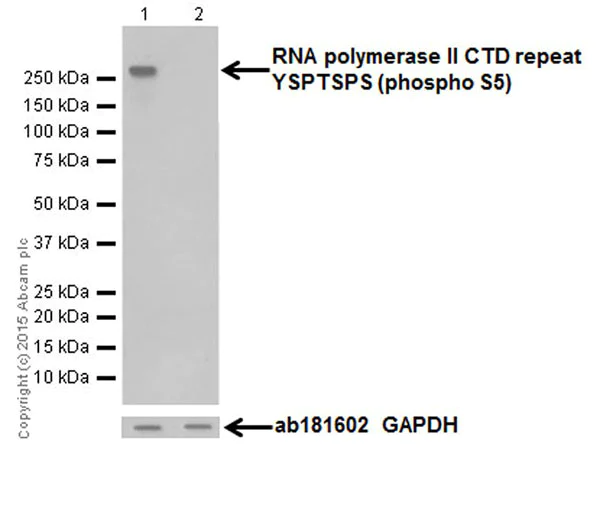

    Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Blocking/Dilution buffer: 2% BSA/TBST.

    All lanes: Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467) at 1/5000 dilution

    Lane 1: HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 10 µg

    Lane 2: HeLa (Human epithelial cell line from cervix adenocarcinoma) treated with Lambda Phosphatase whole cell lysate at 10 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Predicted band size: 217 kDa

    Observed band size: 270 kDa

    Exposure time: 5s

  • Immunocytochemistry/ Immunofluorescence - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized PC-12 (Rat adrenal gland pheochromocytoma cell line) cells labeling RNA polymerase II CTD repeat YSPTSPS (phospho S5) with ab193467 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green).

    Confocal image showing nuclear staining on PC-12 cell line. The expression decreased after treatment with Lambda Phosphatase at 31°C for 5h.

    The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin mouse MAb (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) secondary antibody at 1/1000 dilution (red).

    The negative controls are as follows:
    -ve control 1: ab193467 at 1/250 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) secondary antibody at 1/1000 dilution.
    -ve control 2: Anti-alpha Tubulin mouse MAb (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Immunohistochemical analysis of paraffin-embedded mouse kidney tissue labeling RNA polymerase II CTD repeat YSPTSPS (phospho S5) with ab193467 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution. Nuclear staining on epithelial cells of mouse kidney is observed. Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Flow Cytometry (Intracellular) - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

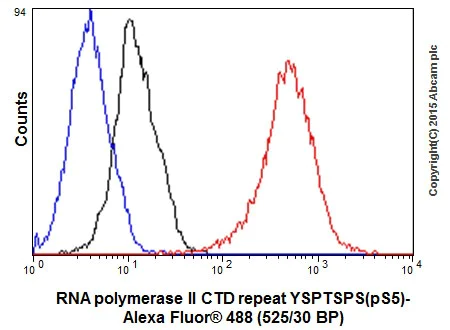

    Flow Cytometry (Intracellular) - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling RNA polymerase II CTD repeat YSPTSPS (phospho S5) with ab193467 at 1/30 dilution (red) compared with a rabbit monoclonal IgG isotype control (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730; black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/500 dilution was used as the secondary antibody.

  • Dot Blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

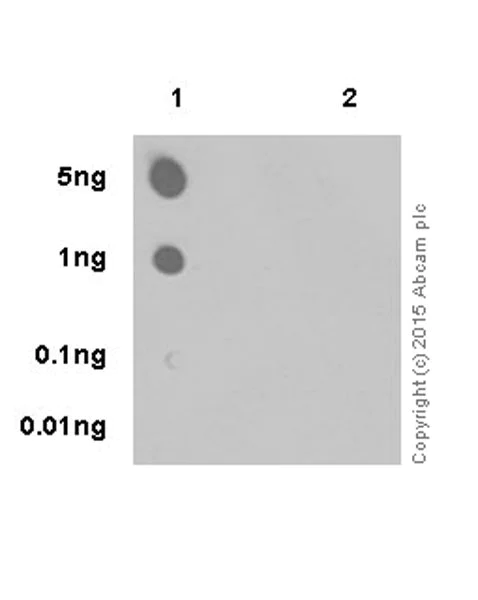

    Dot Blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Lane 1: RNA polymerase II CTD repeat YSPTSPS (phospho S5) phospho peptide
    Lane 2: RNA polymerase II CTD repeat YSPTSPS non-phospho peptide (peptide of ab193467)
    Lane 3: RNA polymerase II CTD repeat YSPTSPS (phospho S2) phospho peptide
    Lane 4: RNA polymerase II CTD repeat YSPTSPS non-phospho peptide (peptide of Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S2) antibody [EPR18855] ab193468)

    Labeled using ab193467 at 1/1000 dilution (0.1 μg/ml), followed by Goat Anti-Rabbit IgG H&L (HRP) secondary antibody (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution.

    Blocking/Dilution buffer: 5% NFDM/TBST.

    Exposure time: 3 minutes.

  • Immunocytochemistry/ Immunofluorescence - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling RNA polymerase II CTD repeat YSPTSPS (phospho S5) with ab193467 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green).

    Confocal image showing nuclear staining on HeLa cell line. The expression decreased after treatment with Lambda Phosphatase 31°C for 5h.

    The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin mouse MAb (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) secondary antibody at 1/1000 dilution (red).

    The negative controls are as follows:
    -ve control 1: ab193467 at 1/250 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) secondary antibody at 1/1000 dilution.
    -ve control 2: Anti-alpha Tubulin mouse MAb (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution.

  • Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

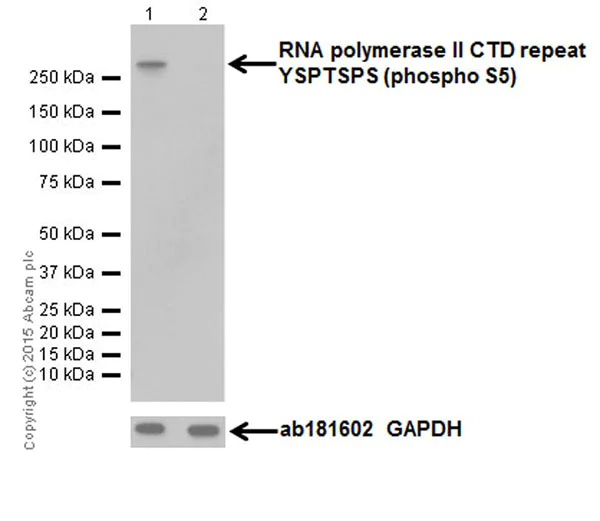

    Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Blocking/Dilution buffer: 2% BSA/TBST.

    All lanes: Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467) at 1/1000 dilution

    Lane 1: RAW 264.7 (Mouse macrophage cell line transformed with Abelson murine leukemia virus) whole cell lysate at 10 µg

    Lane 2: RAW 264.7 (Mouse macrophage cell line transformed with Abelson murine leukemia virus) treated with Lambda Phosphatase whole cell lysate at 10 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Predicted band size: 217 kDa

    Observed band size: 270 kDa

    Exposure time: 5s

  • Immunoprecipitation - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

    Immunoprecipitation - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    RNA polymerase II CTD repeat YSPTSPS (phospho S5) was immunoprecipitated from 1mg of HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate with ab193467 at 1/20 dilution. Western blot was performed from the immunoprecipitate using ab193467 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/10000 dilution.

    Lane 1: HeLa whole cell lysate 10μg (Input).
    Lane 2: ab193467 IP in HeLa whole cell lysate.
    Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab193467 in HeLa whole cell lysate.

    Blocking and dilution buffer and concentration: 5% NFDM/TBST.

    All lanes: Immunoprecipitation - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Predicted band size: 217 kDa

    Exposure time: 5s

  • Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

    Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Blocking/Dilution buffer: 2%BSA/TBST.

    All lanes: Western blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467) at 1/1000 dilution

    Lane 1: PC-12 (Rat adrenal gland pheochromocytoma cell line) whole cell lysate at 10 µg

    Lane 2: PC-12 (Rat adrenal gland pheochromocytoma cell line) treated with Lambda Phosphatase whole cell lysate at 10 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Predicted band size: 217 kDa

    Observed band size: 270 kDa

    Exposure time: 1s

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Immunohistochemical analysis of paraffin-embedded mouse spleen tissue labeling RNA polymerase II CTD repeat YSPTSPS (phospho S5) with ab193467 at 1/500 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution. Nuclear staining on lymphocytes of mouse spleen is observed. Counter stained with Hematoxylin.

    Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

    Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

  • Immunocytochemistry/ Immunofluorescence - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized RAW 264.7 (Mouse macrophage cell line transformed with Abelson murine leukemia virus) cells labeling RNA polymerase II CTD repeat YSPTSPS (phospho S5) with ab193467 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution (green).

    Confocal image showing nuclear staining on RAW 264.7 cell line. The expression decreased after treatment with Lambda Phosphatase 31°C for 5h.

    The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin mouse MAb (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) secondary antibody at 1/1000 dilution (red).

    The negative controls are as follows:
    -ve control 1: ab193467 at 1/250 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) secondary antibody at 1/1000 dilution.
    -ve control 2: Anti-alpha Tubulin mouse MAb (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/1000 dilution.

  • Dot Blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467), expandable thumbnail

    Dot Blot - Anti-RNA polymerase II CTD repeat YSPTSPS (phospho S5) antibody [EPR19015] (ab193467)

    Dot blot analysis of RNA polymerase II CTD repeat YSPTSPS (phospho S5) phospho peptide (Lane 1) and RNA polymerase II CTD repeat YSPTSPS non-phospho peptide (Lane 2) labeled using ab193467 at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) secondary antibody (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/1000 dilution.

    Blocking/Dilution buffer: 5% NFDM/TBST.

    Exposure time: 3 minutes.
