Anti-RUNX1 / AML1 antibody [EPR23309-113] - ChIP Grade - BSA and Azide free

• Flow Cyt (Intra)

Unknown

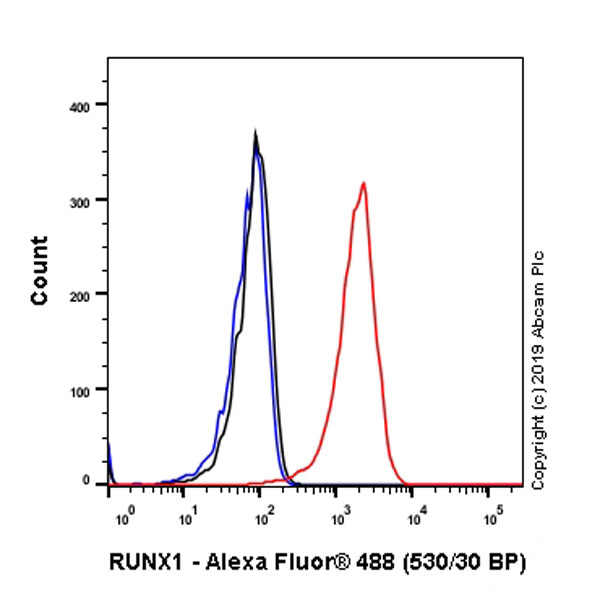

Flow Cytometry (Intracellular) - Anti-RUNX1 / AML1 antibody [EPR23309-113] - ChIP Grade - BSA and Azide free (AB272458)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized Jurkat (Human T cell leukemia T lymphocyte) cells labelling RUNX1 / AML1 with ab272456 at 1/500 dilution (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab272456).

• IP

Unknown

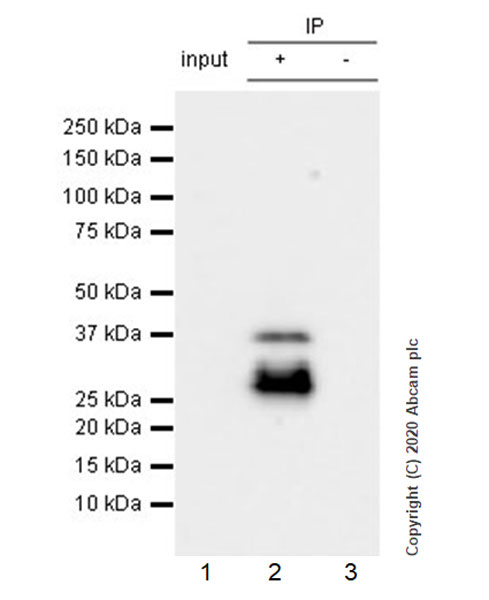

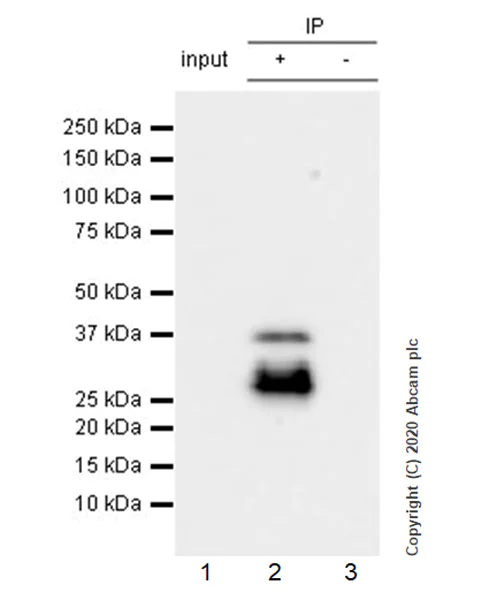

Immunoprecipitation - Anti-RUNX1 / AML1 antibody [EPR23309-113] - ChIP Grade - BSA and Azide free (AB272458)

RUNX1 / AML1 was immunoprecipitated from 0.35 mg Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate with ab272456 at 1/30 dilution. Western blot was performed on the immunoprecipitate using ab272456 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate 20 ug

Lane 2 : ab272456 IP in Jurkat whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab272456 in Jurkat whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 32 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab272456).

All lanes:

Immunoprecipitation - Anti-RUNX1 / AML1 antibody [EPR23309-113] - ChIP Grade (<a href='/en-us/products/primary-antibodies/runx1-aml1-antibody-epr23309-113-chip-grade-ab272456'>ab272456</a>)

Predicted band size: 48 kDa

Observed band size: 27-38 kDa

false

• ChIP

Supplier Data

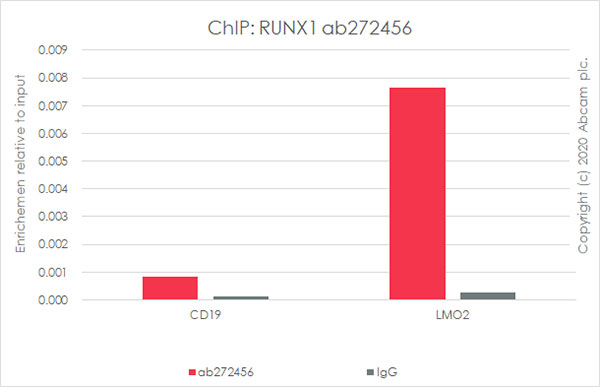

ChIP - Anti-RUNX1 / AML1 antibody [EPR23309-113] - ChIP Grade - BSA and Azide free (AB272458)

Chromatin was prepared from K-562 cells according to the Abcam Dual-X-ChIP protocol. Cells were fixed with 1.5 mM EGS for 30mins and then formaldehyde for 10min.
The ChIP was performed with 25 μg of chromatin, 5 μg of ab272456 (red), or 5 μg of rabbit normal IgG ab172730 (gray) and 20 μl of Protein A/G sepharose beads. The immunoprecipitated DNA was quantified by real time PCR (Taqman approach for active and inactive loci, Sybr green approach for heterochromatic loci).
Primers and probes are from paper PMID：20959602

The RUNX1 enrichment profile is consistent with what have been described in literature (PMID : 20959602).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab272456).

• ChIC/CUT&RUN-seq

Supplier Data

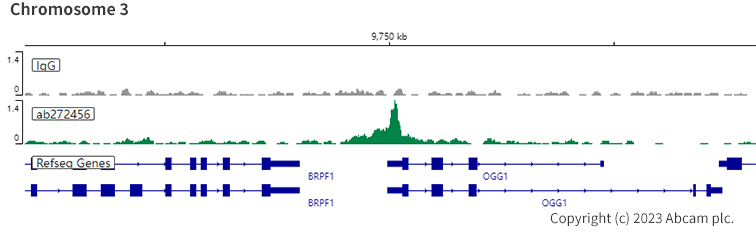

ChIC/CUT&RUN sequencing - Anti-RUNX1 / AML1 antibody [EPR23309-113] - ChIP Grade - BSA and Azide free (AB272458)

ChIC/CUT&RUN was performed using a pAG-MNAse at a final concentration of 700 ng/mL, 2.5 x 10^5 K-562 (Human chronic myelogenous leukemia lymphoblast) cells and 5µg of ab272456 [EPR23309-113]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. Additional screenshots of mapped reads can be found in the Protocol booklet in the Support and downloads section. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab272456).
