Anti-RUNX3 antibody [R3-5G4] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-RUNX3 antibody [R3-5G4] - BSA and Azide free (AB264068)

IHC image of RUNX3 staining in human lymphoma FFPE section, performed on a Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab40278, 1μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, L-arginine and sodium azide (ab40278)

• Flow Cyt (Intra)

Supplier Data

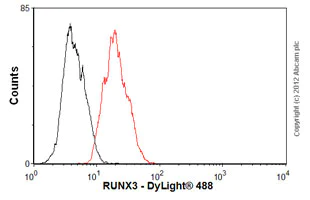

Flow Cytometry (Intracellular) - Anti-RUNX3 antibody [R3-5G4] - BSA and Azide free (AB264068)

Overlay histogram showing HEK293 cells stained with ab40278 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab40278 1μg/1x10⁶ cells) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (ab96879) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (ab91353 2μg/1x10⁶ cells) used under the same conditions. Acquisition of >5000 events was performed.

This data was developed using the same antibody clone in a different buffer formulation containing PBS L-arginine and sodium azide (ab40278).

• WB

Supplier Data

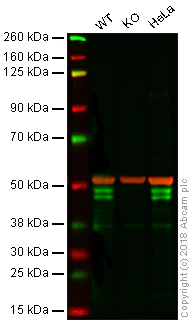

Western blot - Anti-RUNX3 antibody [R3-5G4] - BSA and Azide free (AB264068)

Lane 1 : Wild-type HAP1 whole cell lysate (20 μg)
Lane 2 : RUNX3 knockout HAP1 whole cell lysate (20 μg)
Lane 3 : HeLa whole cell lysate (20 μg)

Lanes 1 - 3 : Merged signal (red and green). Green - ab40278 observed at 44 kDa. Red - loading control, ab176560, observed at 50 kDa.

ab40278 was shown to specifically react with RUNX3 in wild-type HAP1 cells as signal was lost in RUNX3 knockout cells. Wild-type and RUNX3 knockout samples were subjected to SDS-PAGE. ab40278 and ab176560 (Rabbit anti-alpha Tubulin loading control) were incubated overnight at 4°C at 1 μg/ml and 1/20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye^® 800CW) preabsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye^® 680RD) preabsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, L-arginine and sodium azide (ab40278)

All lanes:

Western blot - Anti-RUNX3 antibody [R3-5G4] (<a href='/en-us/products/primary-antibodies/runx3-antibody-r3-5g4-ab40278'>ab40278</a>)

Predicted band size: 44 kDa
