Anti-S100 beta antibody - Astrocyte Marker

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-S100 beta antibody - Astrocyte Marker (AB41548)

IHC image of S100 beta staining in a section of formalin-fixed paraffin-embedded normal mouse brain performed on a Leica Biosystems BOND^® RX instrument using the standard protocol. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab41548, 0.1ug/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• IHC-P

AbReview40661****

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-S100 beta antibody - Astrocyte Marker (AB41548)

ab41548 staining S100 beta in Zebrafish body, showing T/S of spinal cord region by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with formaldehyde and blocked with 1% BSA for 10 minutes; antigen retrieval was by heat mediation in citric acid. Samples were incubated with primary antibody (1/10000 in TBS/BSA/azide) for 2 hours at 21°C. A Biotin-conjugated goat anti-rabbit IgG polyclonal (1/250) was used as the secondary antibody.

Image courtesy of Carl Hobbs, King College London, U.K.

• IHC-P

AbReview40567****

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-S100 beta antibody - Astrocyte Marker (AB41548)

ab41548 staining S100 beta in mouse brain tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with formaldehyde and blocked with 1% BSA for 10 minutes; antigen retrieval was by heat mediation in citric acid. Samples were incubated with primary antibody (1/10000 in TBS/BSA/azide) for 2 hours at 21°C. A Biotin-conjugated goat anti-rabbit IgG polyclonal (1/250) was used as the secondary antibody.

At this dilution factor, there is very good delineation of astrocyte processes.

This image is courtesy of an Abreview submitted by Carl Hobbs

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-S100 beta antibody - Astrocyte Marker (AB41548)

IHC image of S100 beta staining in a section of formalin-fixed paraffin-embedded normal rat brain performed on a Leica Biosystems BOND^® RX instrument using the standard protocol. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab41548, 0.1ug/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset secondary-only control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• WB

Project

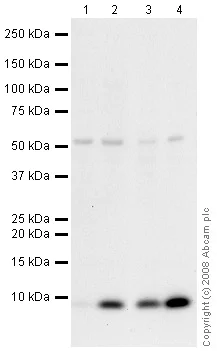

Western blot - Anti-S100 beta antibody - Astrocyte Marker (AB41548)

All lanes:

Western blot - Anti-S100 beta antibody - Astrocyte Marker (ab41548) at 1 µg/mL

Lane 1:

Brain (Mouse) Tissue Lysate at 10 µg

Lane 2:

Brain (Rat) Tissue Lysate at 10 µg

Lane 3:

Spinal Cord (Mouse) Tissue Lysate at 10 µg

Lane 4:

Spinal Cord (Rat) Tissue Lysate at 10 µg

Secondary

All lanes:

Goat polyclonal to Rabbit IgG - H&L - Pre-Adsorbed (HRP) at 1/3000 dilution

Predicted band size: 10 kDa

Observed band size: 52 kDa,9 kDa
