Anti-SARS-CoV-2 Spike Glycoprotein S1 antibody [EPR24852-116] - Human IgG1 (Chimeric)

• I-ELISA

Lab

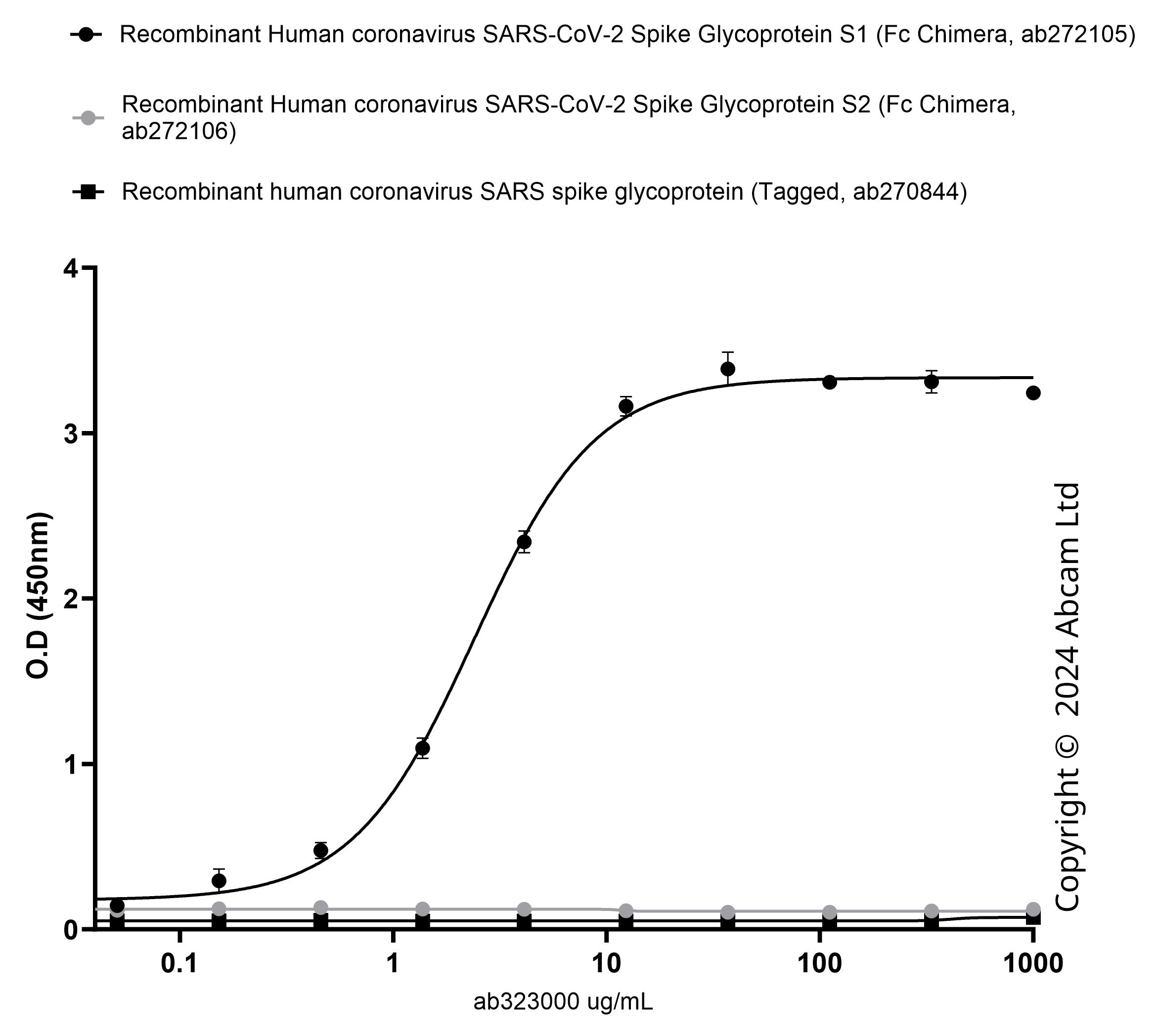

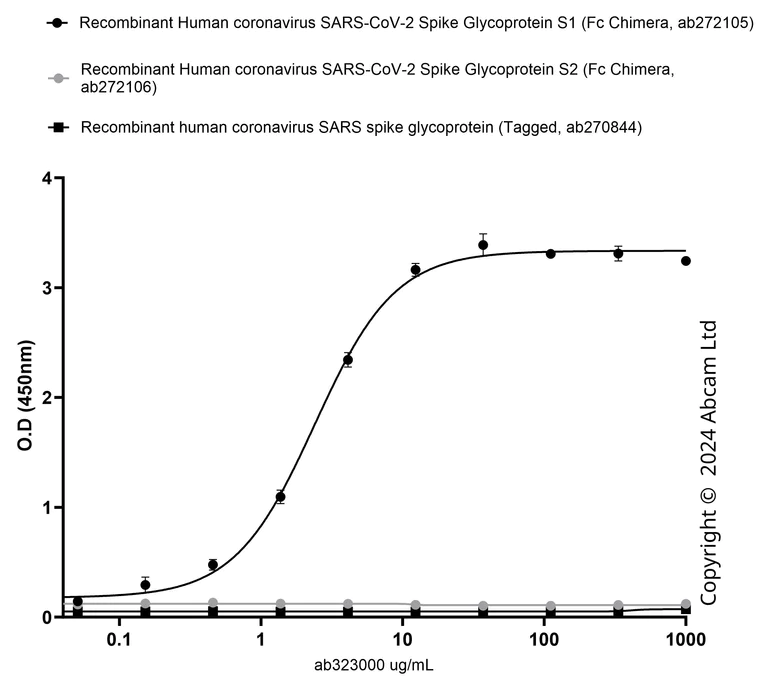

Indirect ELISA - Anti-SARS-CoV-2 Spike Glycoprotein S1 antibody [EPR24852-116] - Human IgG1 (Chimeric) (AB323000)

Indirect ELISA showing primary antibody ab323000 binding to Recombinant Human coronavirus SARS-CoV-2 Spike Glycoprotein S1 (Fc Chimera, ab272105). Plates were coated with Recombinant Human coronavirus SARS-CoV-2 Spike Glycoprotein S1 (Fc Chimera, ab272105), Recombinant Human coronavirus SARS-CoV-2 Spike Glycoprotein S2 (Fc Chimera, ab272106) and Recombinant human coronavirus SARS spike glycoprotein (Tagged, ab270844) at 1000 ng/ml. Binding of ab323000 was assessed in a serial dilution range 0.016- 1000 ng/mL (a 3-fold serial dilution). Secondary antibody, Goat Anti-Human IgG Fc (HRP) preadsorbed (ab98624) was used at 1 : 5000.

• WB

Lab

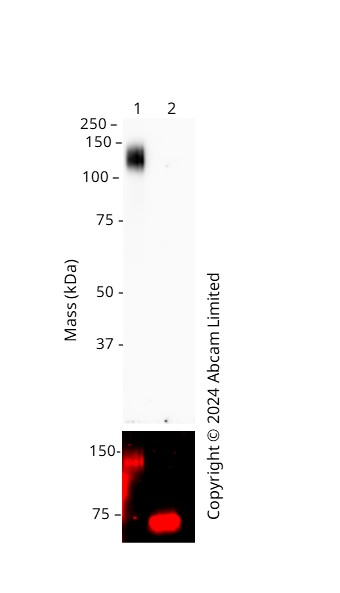

Western blot - Anti-SARS-CoV-2 Spike Glycoprotein S1 antibody [EPR24852-116] - Human IgG1 (Chimeric) (AB323000)

Lane 1 : Recombinant human coronavirus SARS-CoV-2 Spike Glycoprotein S1 (Active, His tagged) (ab273068) at 0.2 ug

Lane 2 : Recombinant SARS-COV-2 NSP2 protein (His tagged) at 0.2 ug

Performed under reducing conditions.

Observed band size : 135 kDa.

False colour image of Western blot : Rabbit monoclonal [EPR24852-116] to SARS-CoV-2 Spike Glycoprotein S1 - Human IgG1 (Chimeric), ab323000 staining at 1/500 dilution, shown in black; Mouse Monoclonal 6X His tag® (ab18184) loading control staining at 1/1000 dilution, shown in red. In Western blot, ab323000 was shown to bind specifically to SARS-CoV-2 spike glycoprotein S1. Samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat Anti-Human IgG Fc (HRP) preadsorbed (ab98624) at 1 : 10000 and Goat anti-Mouse IgG H&L 680RD at 1 : 20000.

Blocking buffer : 3% milk in TBS-0.1% Tween® 20 (TBS-T).

Exposure time : 30 Sec.

All lanes:

Western blot - Anti-SARS-CoV-2 Spike Glycoprotein S1 antibody [EPR24852-116] - Human IgG1 (Chimeric) (ab323000) at 1/500 dilution

Lane 1:

Western blot - Recombinant human coronavirus SARS-CoV-2 Spike Glycoprotein S1 (Active) (<a href='/en-us/products/proteins-peptides/recombinant-human-coronavirus-sars-cov-2-spike-glycoprotein-s1-active-ab273068'>ab273068</a>) at 0.2 µg

Lane 2:

Recombinant SARS-COV-2 NSP2 protein (His tagged) at 0.2 µg

Secondary

Lanes 1 - 2:

Western blot - Goat Anti-Human IgG Fc (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-human-igg-fc-hrp-preadsorbed-ab98624'>ab98624</a>) at 1/10000 dilution

Lanes 1 - 2:

Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

Observed band size: 135 kDa

false

Exposure time: 30s
