AB324888

Anti-SARS-CoV-2 Spike Glycoprotein S2 antibody [EPR25038-122] - Human IgG1 (Chimeric)

Be the first to review this product! Submit a review

|

(0 Publication)

Human Recombinant Monoclonal SPIKE antibody. Suitable for WB, I-ELISA and reacts with Recombinant fragment - SARS-CoV-2 samples.

View Alternative Names

2, S, Spike glycoprotein, S glycoprotein, E2, Peplomer protein

2 Images

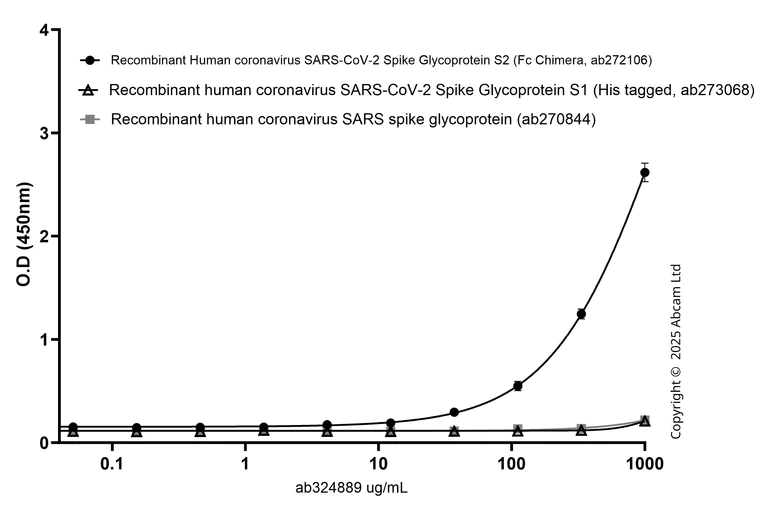

Indirect ELISA - Anti-SARS-CoV-2 Spike Glycoprotein S2 antibody [EPR25038-122] - Human IgG1 (Chimeric) (AB324888)
  • I-ELISA

Supplier Data

Indirect ELISA - Anti-SARS-CoV-2 Spike Glycoprotein S2 antibody [EPR25038-122] - Human IgG1 (Chimeric) (AB324888)

This data was developed using ab324889, the same antibody clone in a different buffer formulation.

Indirect ELISA showing primary antibody ab324889 binding to Recombinant Human coronavirus SARS-CoV-2 Spike Glycoprotein S2 (Fc Chimera, ab272106). Plates were coated with Recombinant Human coronavirus SARS-CoV-2 Spike Glycoprotein S2 (Fc Chimera, ab272106), Recombinant human coronavirus SARS-CoV-2 Spike Glycoprotein S1 (His tagged, ab273068) and Recombinant human coronavirus SARS spike glycoprotein (ab270844) Proteins at 1000 ng/ml. Binding of ab324889 was assessed in a serial dilution range 0.016-1000 ng/mL (a 3-fold serial dilution. Secondary antibody, Goat Anti-Human IgG Fc (HRP) preadsorbed (ab98624) was used at 1 : 5000.

Western blot - Anti-SARS-CoV-2 Spike Glycoprotein S2 antibody [EPR25038-122] - Human IgG1 (Chimeric) (AB324888)
  • WB

Supplier Data

Western blot - Anti-SARS-CoV-2 Spike Glycoprotein S2 antibody [EPR25038-122] - Human IgG1 (Chimeric) (AB324888)

This data was developed using ab324889, the same antibody clone in a different buffer formulation.

False colour image of Western blot : Anti-SARS-CoV-2 Spike Glycoprotein S2 antibody [EPR25038-122] - BSA and Azide free - Human IgG1 (Chimeric) (ab324889) staining at 1/1000 dilution, shown in black.

In Western blot, ab324889 was shown to bind specifically to SARS-CoV-2 Spike Glycoprotein S2. Samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3% milk in TBS-0.1% Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4°C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1h at room temperature, washed again four times then imaged.

Blocking buffer : 3% milk in TBS-0.1% Tween® 20 (TBS-T)

All lanes:

Western blot - Anti-SARS-CoV-2 S Glycoprotein S2 antibody [EPR25038-122] - Human IgG1 (Chimeric) - BSA & Azide free (<a href='/en-us/products/primary-antibodies/sars-cov-2-spike-glycoprotein-s2-antibody-epr25038-122-human-igg1-chimeric-bsa-and-azide-free-ab324889'>ab324889</a>) at 1/1000 dilution

Lane 1:

Western blot - Recombinant Human coronavirus SARS-CoV-2 Spike Glycoprotein S2 (Fc Chimera) (<a href='/en-us/products/proteins-peptides/recombinant-human-coronavirus-sars-cov-2-spike-glycoprotein-s2-fc-chimera-ab272106'>ab272106</a>) at 0.2 µg

Lane 2:

Western blot - Recombinant Human coronavirus SARS-CoV-2 nucleocapsid protein (His tag) (<a href='/en-us/products/proteins-peptides/recombinant-human-coronavirus-sars-cov-2-nucleocapsid-protein-his-tag-ab273530'>ab273530</a>) at 0.2 µg

Secondary

All lanes:

Western blot - Goat Anti-Human IgG Fc (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-human-igg-fc-hrp-preadsorbed-ab98624'>ab98624</a>) at 1/10000 dilution

Observed band size: 135 kDa

false

Exposure time: 10s

Key facts

Host species

Human

Clonality

Monoclonal

Clone number

EPR25038-122

Isotype

IgG1

Carrier free

No

Reacts with

SARS-CoV-2

Applications

I-ELISA, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Specificity

Cross-reacts with the SARS-CoV-2 Omicron variant spike protein.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IELISA" : {"fullname" : "Indirect ELISA", "shortname":"I-ELISA"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Recombinant fragment - SARS-CoV-2": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "", "WB-species-notes": "<p></p>", "IELISA-species-checked": "testedAndGuaranteed", "IELISA-species-dilution-info": "", "IELISA-species-notes": "<p></p>" }, "SARS-CoV-2": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "", "IELISA-species-checked": "predicted", "IELISA-species-dilution-info": "", "IELISA-species-notes": "" } } }

Product details

This human monoclonal chimeric antibody has been engineered from a RabMAb parent antibody (ab283913). By necessity, some rabbit sequence is retained as part of the variable domain. When multiplexing with other rabbit-derived antibodies, using cross absorbed Fc-reactive secondary antibodies are recommended.

Want a custom formulation?
This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Spike protein S1. Attaches the virion to the cell membrane by interacting with host receptor, initiating the infection. The major receptor is host ACE2 (PubMed : 32142651, PubMed : 32155444, PubMed : 33607086). When S2/S2' has been cleaved, binding to the receptor triggers direct fusion at the cell membrane (PubMed : 34561887). When S2/S2' has not been cleaved, binding to the receptor results in internalization of the virus by endocytosis leading to fusion of the virion membrane with the host endosomal membrane (PubMed : 32075877, PubMed : 32221306). Alternatively, may use NRP1/NRP2 (PubMed : 33082294, PubMed : 33082293) and integrin as entry receptors (PubMed : 35150743). The use of NRP1/NRP2 receptors may explain the tropism of the virus in human olfactory epithelial cells, which express these molecules at high levels but ACE2 at low levels (PubMed : 33082293). The stalk domain of S contains three hinges, giving the head unexpected orientational freedom (PubMed : 32817270).. Spike protein S2. Precursor of the fusion protein processed in the biosynthesis of the S protein and the formation of virus particle. Mediates fusion of the virion and cellular membranes by functioning as a class I viral fusion protein. Contains two viral fusion peptides that are unmasked after cleavage. The S2/S2' cleavage occurs during virus entry at the cell membrane by host TMPRSS2 (PubMed : 32142651) or during endocytosis by host CSTL (PubMed : 32703818, PubMed : 34159616). In either case, this triggers an extensive and irreversible conformational change leading to fusion of the viral envelope with the cellular cytoplasmic membrane, releasing viral genomic RNA into the host cell cytoplasm (PubMed : 34561887). Under the current model, the protein has at least three conformational states : pre-fusion native state, pre-hairpin intermediate state, and post-fusion hairpin state. During fusion of the viral and target cell membranes, the coiled coil regions (heptad repeats) adopt a trimer-of-hairpins structure and position the fusion peptide in close proximity to the C-terminal region of the ectodomain. Formation of this structure appears to promote apposition and subsequent fusion of viral and target cell membranes.. Spike protein S2'. Subunit of the fusion protein that is processed upon entry into the host cell. Mediates fusion of the virion and cellular membranes by functioning as a class I viral fusion protein. Contains a viral fusion peptide that is unmasked after S2 cleavage. This cleavage can occur at the cell membrane by host TMPRSS2 or during endocytosis by host CSTL (PubMed : 32703818, PubMed : 34159616). In either case, this triggers an extensive and irreversible conformational change that leads to fusion of the viral envelope with the cellular cytoplasmic membrane, releasing viral genomic RNA into the host cell cytoplasm (PubMed : 34561887). Under the current model, the protein has at least three conformational states : pre-fusion native state, pre-hairpin intermediate state, and post-fusion hairpin state. During fusion of the viral and target cell membranes, the coiled coil regions (heptad repeats) adopt a trimer-of-hairpins structure and position the fusion peptide in close proximity to the C-terminal region of the ectodomain. Formation of this structure appears to promote apposition and subsequent fusion of viral and target cell membranes.
See full target information S

Additional targets

SARS-CoV-2 Spike Glycoprotein S2

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.
For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
