Human Recombinant Monoclonal SPIKE antibody. Carrier free. Suitable for I-ELISA and reacts with Recombinant full length protein - SARS-CoV-2 samples. Cited in 2 publications.

Be the first to review this product! Submit a review

Images

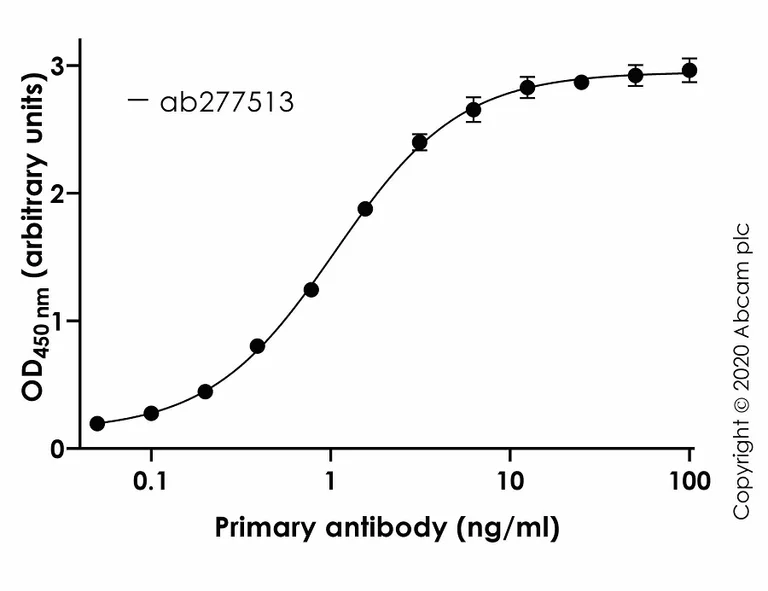

Indirect ELISA - Anti-SARS-CoV-2 Spike RBD antibody [CV30] - BSA and Azide free (AB277515), expandable thumbnail

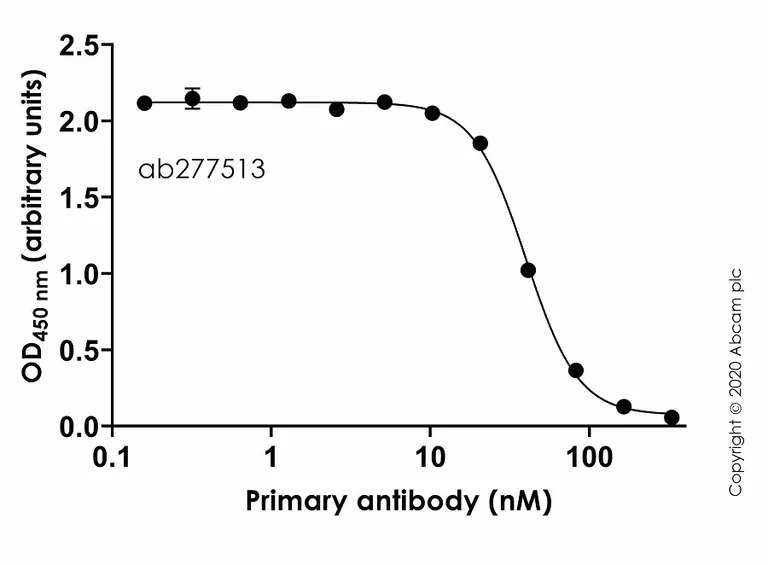

  • Indirect ELISA - Anti-SARS-CoV-2 Spike RBD antibody [CV30] - BSA and Azide free (AB277515), expandable thumbnail

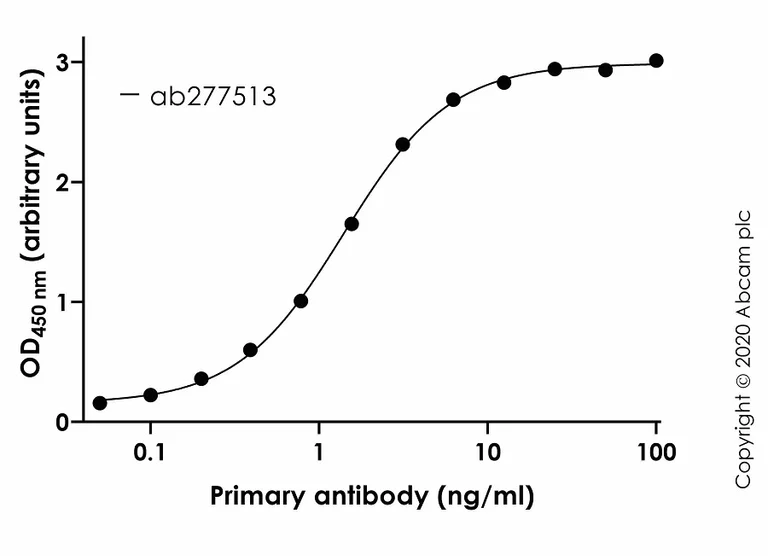

  • Indirect ELISA - Anti-SARS-CoV-2 Spike RBD antibody [CV30] - BSA and Azide free (AB277515), expandable thumbnail

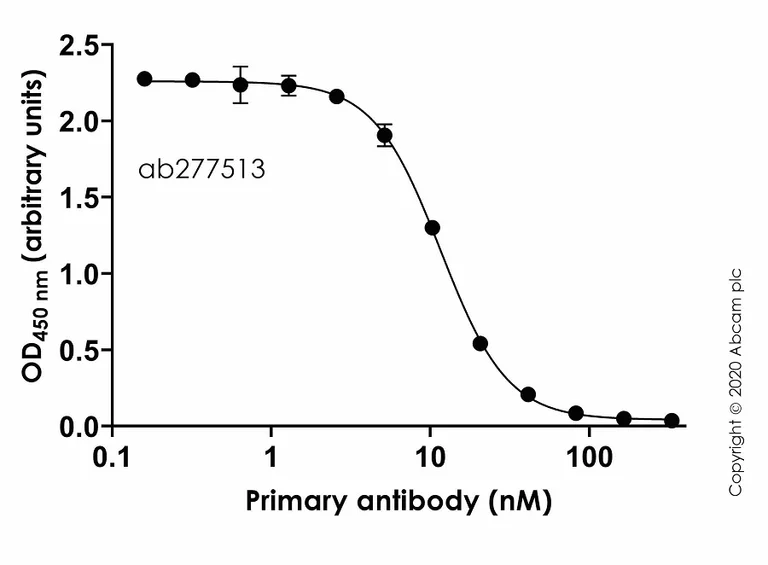

  • Indirect ELISA - Anti-SARS-CoV-2 Spike RBD antibody [CV30] - BSA and Azide free (AB277515), expandable thumbnail

Publications

Key facts

Isotype

IgG1

Host species

Human

Storage buffer

Constituents: 100% PBS

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
I-ELISA
Recombinant full length protein - SARS-CoV-2
Tested
SARS-CoV-2
Predicted

Tested
Tested

Species

Recombinant full length protein - SARS-CoV-2

Dilution info

-

Notes

-

Predicted
Predicted

Species

SARS-CoV-2

Dilution info

-

Notes

-

Target data

Function

Spike protein S1Attaches the virion to the cell membrane by interacting with host receptor, initiating the infection. The major receptor is host ACE2 (PubMed:32142651, PubMed:33607086, PubMed:32155444). When S2/S2' has been cleaved, binding to the receptor triggers direct fusion at the cell membrane (PubMed:34561887). When S2/S2' has not been cleaved, binding to the receptor results in internalization of the virus by endocytosis leading to fusion of the virion membrane with the host endosomal membrane (PubMed:32221306, PubMed:32075877). Alternatively, may use NRP1/NRP2 (PubMed:33082294, PubMed:33082293) and integrin as entry receptors (PubMed:35150743). The use of NRP1/NRP2 receptors may explain the tropism of the virus in human olfactory epithelial cells, which express these molecules at high levels but ACE2 at low levels (PubMed:33082293). The stalk domain of S contains three hinges, giving the head unexpected orientational freedom (PubMed:32817270).Spike protein S2Precursor of the fusion protein processed in the biosynthesis of the S protein and the formation of virus particle. Mediates fusion of the virion and cellular membranes by functioning as a class I viral fusion protein. Contains two viral fusion peptides that are unmasked after cleavage. The S2/S2' cleavage occurs during virus entry at the cell membrane by host TMPRSS2 (PubMed:32142651) or during endocytosis by host CSTL (PubMed:32703818, PubMed:34159616). In either case, this triggers an extensive and irreversible conformational change leading to fusion of the viral envelope with the cellular cytoplasmic membrane, releasing viral genomic RNA into the host cell cytoplasm (PubMed:34561887). Under the current model, the protein has at least three conformational states: pre-fusion native state, pre-hairpin intermediate state, and post-fusion hairpin state. During fusion of the viral and target cell membranes, the coiled coil regions (heptad repeats) adopt a trimer-of-hairpins structure and position the fusion peptide in close proximity to the C-terminal region of the ectodomain. Formation of this structure appears to promote apposition and subsequent fusion of viral and target cell membranes.Spike protein S2'Subunit of the fusion protein that is processed upon entry into the host cell. Mediates fusion of the virion and cellular membranes by functioning as a class I viral fusion protein. Contains a viral fusion peptide that is unmasked after S2 cleavage. This cleavage can occur at the cell membrane by host TMPRSS2 or during endocytosis by host CSTL (PubMed:32703818, PubMed:34159616). In either case, this triggers an extensive and irreversible conformational change that leads to fusion of the viral envelope with the cellular cytoplasmic membrane, releasing viral genomic RNA into the host cell cytoplasm (PubMed:34561887). Under the current model, the protein has at least three conformational states: pre-fusion native state, pre-hairpin intermediate state, and post-fusion hairpin state. During fusion of the viral and target cell membranes, the coiled coil regions (heptad repeats) adopt a trimer-of-hairpins structure and position the fusion peptide in close proximity to the C-terminal region of the ectodomain. Formation of this structure appears to promote apposition and subsequent fusion of viral and target cell membranes.

Alternative names

Recommended products

Human Recombinant Monoclonal SPIKE antibody. Carrier free. Suitable for I-ELISA and reacts with Recombinant full length protein - SARS-CoV-2 samples. Cited in 2 publications.

Alternative names

Key facts

Isotype

IgG1

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Carrier free

Yes

Clone number

CV30

Specificity

Reported Affinity to SARS-CoV-2 RBD: 3.6 nM

Reported Neutralisation: Achieves 100% neutralisation by blocking Spike-ACE2 interaction through an interaction that is slightly higher affinity

Reported binding epitope: (from crystal structure of CV30 bound to RBD) – 29 residues in the concave ACE2-binding epitope (also known as the receptor-binding motif (RBM)) of the SARS-CoV-2 RBD

No cross-reactivity to SARS-CoV-1 Spike protein due to low conservation of interacting residues.

Light chain type

kappa

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

Notes

CV30 cross-reacts with both SARS-CoV-2 Spike RBD and Ectodomain. CV30 demonstrates significant neutralising ability in in-direct ELISA, measuring competitive binding of CV30 to SARS-CoV-2 Spike RBD in the presence of human ACE2.

ab277515 is the carrier-free version of Anti-SARS-CoV-2 Spike RBD antibody [CV30] ab277513.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

The SARS-CoV-2 Spike RBD also known commonly as the Receptor Binding Domain of the spike protein plays an important role in viral entry into host cells. This domain has a mass of approximately 21 kDa. It is located on the surface of the virus and facilitates binding to the host cell receptor primarily ACE2 which permits viral entry and replication. The Spike RBD is also a target for neutralizing antibodies which are essential in immune response against the virus. The domain displays various mutations particularly in variants of concern such as Omicron which can affect binding efficiency and immune evasion.

Biological function summary

The SARS-CoV-2 Spike RBD interacts directly with the host ACE2 receptor to mediate entry of the virus into host cells. This interaction is necessary for the virus to fuse with the host cell membrane which allows viral RNA to enter the host cell and begin replication. The Spike protein of which the RBD is a part forms a trimeric complex on the virus surface that is important for host interaction. Variations in the Spike RBD such as mutations like Arg319-Phe541 have significant impacts on the binding affinity to ACE2 and the effectiveness of vaccine-elicited antibodies.

Pathways

The Spike RBD of SARS-CoV-2 is vital in the entry pathway of the virus into the host cell. It is prominently involved in the ACE2-mediated signaling pathway with ACE2 playing the key role as the cellular receptor. This pathway is integral to the pathogenesis of COVID-19. Additionally the presence of the virus in host cells can trigger inflammatory pathways via infection-induced signaling cascades which can lead to exacerbated immune responses.

Associated diseases and disorders

The SARS-CoV-2 Spike RBD is inherently linked to COVID-19 pathogenesis. Variants such as Omicron have alterations within the RBD that may confer increased transmissibility and resistance to neutralizing antibodies. These mutations can influence disease severity and vaccine effectiveness. The interaction between the Spike RBD and ACE2 receptor underlies the symptomatic manifestations of COVID-19 including respiratory distress and systemic inflammation. The emergence of RBD-targeted therapeutics and vaccines addresses its critical role in infection aiming to block the binding and prevent disease progression.
