Rabbit Recombinant Monoclonal SDHA antibody. Carrier free. Suitable for IHC-P, WB and reacts with Human, Mouse, Rat samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (AB248864), expandable thumbnail
  • Western blot - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (AB248864), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (AB248864), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (AB248864), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (AB248864), expandable thumbnail

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Constituents: PBS

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PICC/IFWB
Human
Tested
Not recommended
Tested
Mouse
Predicted
Not recommended
Expected
Rat
Predicted
Not recommended
Expected

Tested
Tested

Species

Human

Dilution info

-

Notes

Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Predicted
Predicted

Species

Mouse, Rat

Dilution info

-

Notes

-

Not recommended
Not recommended

Species

Human, Mouse, Rat

Dilution info

-

Notes

-

Tested
Tested

Species

Human

Dilution info

-

Notes

-

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Target data

Function

Flavoprotein (FP) subunit of succinate dehydrogenase (SDH) that is involved in complex II of the mitochondrial electron transport chain and is responsible for transferring electrons from succinate to ubiquinone (coenzyme Q) (PubMed:10746566, PubMed:24781757). SDH also oxidizes malate to the non-canonical enol form of oxaloacetate, enol-oxaloacetate (By similarity). Enol-oxaloacetate, which is a potent inhibitor of the succinate dehydrogenase activity, is further isomerized into keto-oxaloacetate (By similarity). Can act as a tumor suppressor (PubMed:20484225).

Alternative names

Recommended products

Rabbit Recombinant Monoclonal SDHA antibody. Carrier free. Suitable for IHC-P, WB and reacts with Human, Mouse, Rat samples.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Carrier free

Yes

Clone number

EPR9042(B)

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

+4°C

Storage information

Do Not Freeze

Notes

ab248864 is the carrier-free version of Anti-SDHA antibody [EPR9042(B)] ab139181.

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Succinate dehydrogenase complex flavoprotein subunit A (SDHA) also known as complex II Fp or SDH2 plays an important role in the mitochondrial electron transport chain and the tricarboxylic acid (TCA) cycle. It functions as a flavoprotein oxidoreductase catalyzing the oxidation of succinate to fumarate. With a molecular mass of approximately 72 kDa SDHA is expressed in the inner mitochondrial membrane of eukaryotic cells where it is a core component of the succinate dehydrogenase complex (SDHC). The complex is essential for cellular respiration and energy production.

Biological function summary

SDHA participates in the TCA cycle by accepting electrons from succinate which it donates to the coenzyme Q in the electron transport chain. This essential role connects SDHA to the regulation of ATP production in cells. SDHA operates as part of the larger succinate dehydrogenase (SDH) complex which includes other subunits such as SDHB SDHC and SDHD. This structurally integrated multisubunit complex influences mitochondrial integrity and cellular energy homeostasis.

Pathways

SDHA is deeply involved in the TCA cycle and oxidative phosphorylation pathway. As a part of these pathways it links to other critical enzymes such as fumarase and aconitase working in concert to drive the conversion of biochemical fuel into usable cellular energy. Its interactions with coenzyme Q and cytochrome complex enzymes are important for electron flow and proton gradient formation across the mitochondrial membrane. Such interactions are central to cellular respiration and energy generation.

Associated diseases and disorders

Mutations in SDHA correlate with various mitochondrial diseases and cancer syndromes. Specifically SDHA mutations have an association with Leigh syndrome and certain types of mitochondrial complex II deficiency. These mutations disrupt the function of the SDH complex causing metabolic imbalances and energy production issues. Furthermore the integral interaction of SDHA with other SDH subunits means that alterations can impact this entire enzymatic complex with implications for cellular respiration and disease progression.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

6 product images

  • Western blot - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864), expandable thumbnail

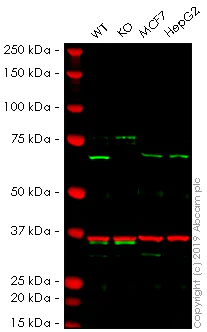

    Western blot - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864)

    This data was developed using Anti-SDHA antibody [EPR9042(B)] ab139181, the same antibody clone in a different buffer formulation.

    Lanes 1 - 4: Merged signal (red and green). Green - Anti-SDHA antibody [EPR9042(B)] ab139181 observed at 72 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa.

    Anti-SDHA antibody [EPR9042(B)] ab139181 was shown to recognize SDHA in wild-type HEK-293 cells as signal was lost at the expected MW in SDHA knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and SDHA knockout samples were subjected to SDS-PAGE. The membrane was blocked with 3% Milk. Anti-SDHA antibody [EPR9042(B)] ab139181 and Anti-GAPDH antibody [6C5] - Loading Control ab8245 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

    All lanes: Western blot - Anti-SDHA antibody [EPR9042(B)] (Anti-SDHA antibody [EPR9042(B)] ab139181) at 1/1000 dilution

    Lane 1: Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

    Lane 2: SDHA knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

    Lane 3: MCF7 (Human breast adenocarcinoma cell line) whole cell lysate at 20 µg

    Lane 4: Hep G2 (Human liver hepatocellular carcinoma cell line) whole cell lysate at 20 µg

    Performed under reducing conditions.

    Predicted band size: 72 kDa

    Observed band size: 72 kDa

  • Western blot - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864), expandable thumbnail

    Western blot - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864)

    This data was developed using Anti-SDHA antibody [EPR9042(B)] ab139181, the same antibody clone in a different buffer formulation.

    All lanes: Western blot - Anti-SDHA antibody [EPR9042(B)] (Anti-SDHA antibody [EPR9042(B)] ab139181) at 1/1000 dilution

    Lane 1: Human fetal heart tissue lysate at 10 µg

    Lane 2: Human fetal kidney tissue lysate at 10 µg

    Lane 3: HepG2 cell lysate at 10 µg

    Lane 4: HeLa cell lysate at 10 µg

    Secondary

    All lanes: HRP labelled goat anti-rabbit at 1/2000 dilution

    Predicted band size: 72 kDa

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864)

    This data was developed using Anti-SDHA antibody [EPR9042(B)] ab139181, the same antibody clone in a different buffer formulation.Immunohistochemical analysis of paraffin-embedded Human kidney tissue labelling SDHA with Anti-SDHA antibody [EPR9042(B)] ab139181 at 1/100 dilution.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864)

    This data was developed using Anti-SDHA antibody [EPR9042(B)] ab139181, the same antibody clone in a different buffer formulation.Immunohistochemical analysis of paraffin-embedded Human testis tissue labelling SDHA with Anti-SDHA antibody [EPR9042(B)] ab139181 at 1/100 dilution.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864)

    This data was developed using Anti-SDHA antibody [EPR9042(B)] ab139181, the same antibody clone in a different buffer formulation.Immunohistochemical analysis of paraffin embedded Normal Human Liver tissue using Anti-SDHA antibody [EPR9042(B)] ab139181 showing +ve staining.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9042(B)] - BSA and Azide free (ab248864)

    This data was developed using Anti-SDHA antibody [EPR9042(B)] ab139181, the same antibody clone in a different buffer formulation.Immunohistochemical analysis of paraffin embedded Normal Human Colon tissue using Anti-SDHA antibody [EPR9042(B)] ab139181 showing +ve staining.

    Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
