Name: Anti-SDHA antibody [EPR9043(B)]
SKU: ab137040
Rating: 4 (4 reviews)

Rabbit Recombinant Monoclonal SDHA antibody. Suitable for IHC-P, IP, WB, ICC/IF, Flow Cyt (Intra) and reacts with Mouse, Rat, Human samples. Cited in 27 publications.

Related conjugates and formulations

ab240098
Carrier free
Anti-SDHA antibody [EPR9043(B)] - BSA and Azide free
ab305832
Conjugated
PE Anti-SDHA antibody [EPR9043(B)]
ab305834
Conjugated
HRP Anti-SDHA antibody [EPR9043(B)]
ab310449
Conjugated
Alexa Fluor® 594 Anti-SDHA antibody [EPR9043(B)]
ab309691
Conjugated
Alexa Fluor® 488 Anti-SDHA antibody [EPR9043(B)]
ab312451
Conjugated
Alexa Fluor® 568 Anti-SDHA antibody [EPR9043(B)]
ab311977
Conjugated
Alexa Fluor® 555 Anti-SDHA antibody [EPR9043(B)]
ab305833
Conjugated
APC Anti-SDHA antibody [EPR9043(B)]
ab310057
Conjugated
Alexa Fluor® 647 Anti-SDHA antibody [EPR9043(B)]
ab321101
Conjugated
Alexa Fluor® 750 Anti-SDHA antibody [EPR9043(B)]

Images

Western blot - Anti-SDHA antibody [EPR9043(B)] (AB137040), expandable thumbnail

Publications

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Abcam Recommends

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IHC-P	IP	WB	ICC/IF	Flow Cyt (Intra)
Human	Tested	Tested	Tested	Tested	Tested
Mouse	Tested	Expected	Tested	Expected	Expected
Rat	Tested	Expected	Tested	Expected	Expected

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/50 - 1/1000	Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/50 - 1/1000	Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.
Species Human	Dilution info 1/50 - 1/1000	Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/10 - 1/20	Notes Unpurified dilution 1/10 - 1/100.

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/1000 - 1/5000	Notes Unpurified dilution 1/1000 - 1/10000.
Species Rat	Dilution info 1/1000 - 1/5000	Notes Unpurified dilution 1/1000 - 1/10000.
Species Human	Dilution info 1/1000 - 1/5000	Notes Unpurified dilution 1/1000 - 1/10000.

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/100 - 1/250	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Human	Dilution info 1/10 - 1/20	Notes Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody. Unpurified dilution 1/10 - 1/100.

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Associated Products

Select an associated product type

7 products for Alternative Product

Target data

See full target information SDHA

Function

Flavoprotein (FP) subunit of succinate dehydrogenase (SDH) that is involved in complex II of the mitochondrial electron transport chain and is responsible for transferring electrons from succinate to ubiquinone (coenzyme Q) (PubMed:10746566, PubMed:24781757). SDH also oxidizes malate to the non-canonical enol form of oxaloacetate, enol-oxaloacetate (By similarity). Enol-oxaloacetate, which is a potent inhibitor of the succinate dehydrogenase activity, is further isomerized into keto-oxaloacetate (By similarity). Can act as a tumor suppressor (PubMed:20484225).

Alternative names

SDH2, SDHF, SDHA, Flavoprotein subunit of complex II, Malate dehydrogenase [quinone] flavoprotein subunit, Fp

Recommended products

Rabbit Recombinant Monoclonal SDHA antibody. Suitable for IHC-P, IP, WB, ICC/IF, Flow Cyt (Intra) and reacts with Mouse, Rat, Human samples. Cited in 27 publications.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR9043(B)
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Succinate dehydrogenase complex flavoprotein subunit A (SDHA) also known as complex II Fp or SDH2 plays an important role in the mitochondrial electron transport chain and the tricarboxylic acid (TCA) cycle. It functions as a flavoprotein oxidoreductase catalyzing the oxidation of succinate to fumarate. With a molecular mass of approximately 72 kDa SDHA is expressed in the inner mitochondrial membrane of eukaryotic cells where it is a core component of the succinate dehydrogenase complex (SDHC). The complex is essential for cellular respiration and energy production.

Biological function summary

SDHA participates in the TCA cycle by accepting electrons from succinate which it donates to the coenzyme Q in the electron transport chain. This essential role connects SDHA to the regulation of ATP production in cells. SDHA operates as part of the larger succinate dehydrogenase (SDH) complex which includes other subunits such as SDHB SDHC and SDHD. This structurally integrated multisubunit complex influences mitochondrial integrity and cellular energy homeostasis.

Pathways

SDHA is deeply involved in the TCA cycle and oxidative phosphorylation pathway. As a part of these pathways it links to other critical enzymes such as fumarase and aconitase working in concert to drive the conversion of biochemical fuel into usable cellular energy. Its interactions with coenzyme Q and cytochrome complex enzymes are important for electron flow and proton gradient formation across the mitochondrial membrane. Such interactions are central to cellular respiration and energy generation.

Associated diseases and disorders

Mutations in SDHA correlate with various mitochondrial diseases and cancer syndromes. Specifically SDHA mutations have an association with Leigh syndrome and certain types of mitochondrial complex II deficiency. These mutations disrupt the function of the SDH complex causing metabolic imbalances and energy production issues. Furthermore the integral interaction of SDHA with other SDH subunits means that alterations can impact this entire enzymatic complex with implications for cellular respiration and disease progression.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

13 product images

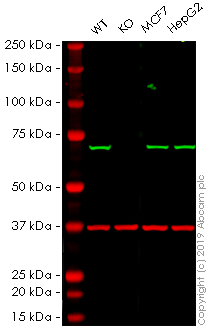

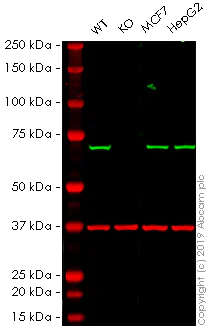

Western blot - Anti-SDHA antibody [EPR9043(B)] (ab137040)
Lanes 1 - 4: Merged signal (red and green). Green - ab137040 observed at 72 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245, observed at 37 kDa.
ab137040 was shown to specifically react with SDHA in wild-type HEK-293 cells as signal was lost in SDHA knockout cell line Human SDHA knockout HEK-293 cell line ab261853 (knockout cell lysate Human SDHA knockout HEK-293 cell lysate ab261657). Wild-type and SDHA knockout samples were subjected to SDS-PAGE. The membrane was blocked with 3% milk. ab137040 and Anti-GAPDH antibody [6C5] - Loading Control ab8245 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.
All lanes: Western blot - Anti-SDHA antibody [EPR9043(B)] (ab137040) at 1/1000 dilution
Lane 1: Wild-type HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2: SDHA knockout HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg
Lane 2: Western blot - Human SDHA knockout HEK-293 cell line (Human SDHA knockout HEK-293 cell line ab261853)
Lane 3: MCF7 (Human breast adenocarcinoma cell line) whole cell lysate at 20 µg
Lane 4: Hep G2 (Human liver hepatocellular carcinoma cell line) whole cell lysate at 20 µg
Performed under reducing conditions.
Predicted band size: 72 kDa

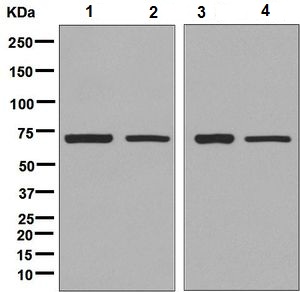

Western blot - Anti-SDHA antibody [EPR9043(B)] (ab137040)
All lanes: Western blot - Anti-SDHA antibody [EPR9043(B)] (ab137040) at 1/1000 dilution
Lane 1: HeLa cell lysate at 10 µg
Lane 2: HepG2 cell lysate at 10 µg
Lane 3: HT1080 cell lysate at 10 µg
Lane 4: Jurkat cell lysate at 10 µg
Secondary
All lanes: HRP conjugated Goat anti Rabbit IgG at 1/2000 dilution
Predicted band size: 72 kDa

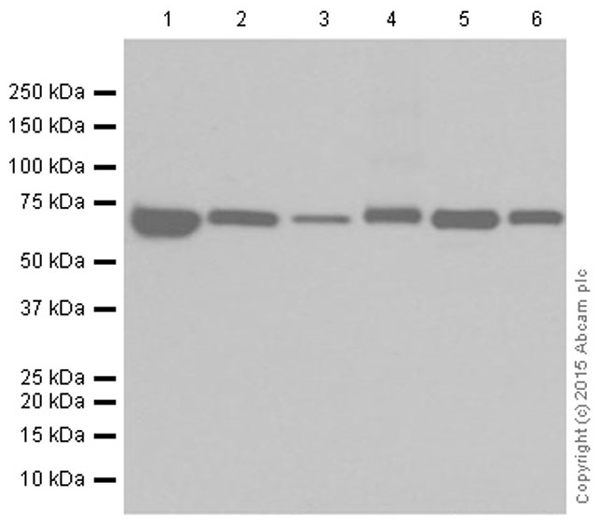

Western blot - Anti-SDHA antibody [EPR9043(B)] (ab137040)
Blocking buffer: 5% NFDM /TBST
Diluting buffer: 5% NFDM /TBST
All lanes: Western blot - Anti-SDHA antibody [EPR9043(B)] (ab137040) at 1/5000 dilution
Lane 1: HeLa (human cervix adenocarcinoma) whole cell lysate at 20 µg
Lane 2: HepG2 (human hepatocellular carcinoma) whole cell lysate at 20 µg
Lane 3: Jurkat (human acute T cell leukemia) whole cell lysate at 20 µg
Lane 4: Mouse brain tissue lysate at 20 µg
Lane 5: Mouse kidney tissue lysate at 20 µg
Lane 6: Rat brain tissue lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 72 kDa
Observed band size: 72 kDa

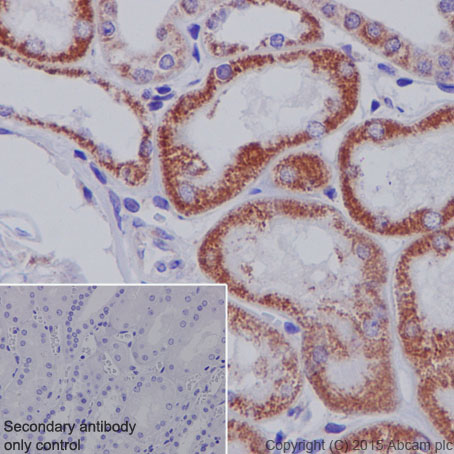

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9043(B)] (ab137040)
ab137040 staining SDHA in rat kidney tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with paraformaldehyde and antigen retrieval was by heat mediation in a EDTA buffer. Samples were incubated with primary antibody at a dilution of 1/1000. A goat anti-rabbit IgG H&L (HRP) Goat Anti-Rabbit IgG H&L (HRP) ab97051 was used as the secondary antibody at a dilution of 1/500.
Negative control 1: PBS in place of primary antibody.

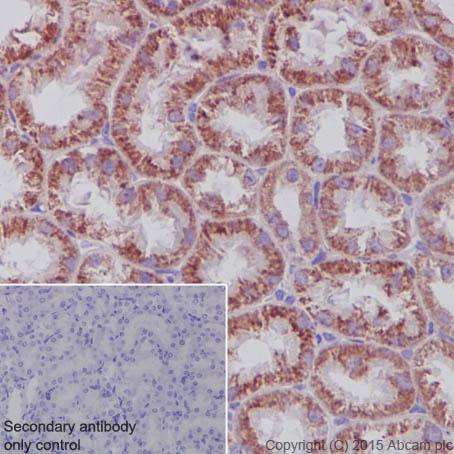

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9043(B)] (ab137040)
ab137040 staining SDHA in mouse kidney tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with paraformaldehyde and antigen retrieval was by heat mediation in a EDTA buffer. Samples were incubated with primary antibody at a dilution of 1/1000. A goat anti-rabbit IgG H&L (HRP) Goat Anti-Rabbit IgG H&L (HRP) ab97051 was used as the secondary antibody at a dilution of 1/500.
Negative control 1: PBS in place of primary antibody.
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9043(B)] (ab137040)
ab137040 staining SDHA in human kidney tissue sections by Immunohistochemistry (IHC-P - paraformaldehyde-fixed, paraffin-embedded sections). Tissue was fixed with paraformaldehyde and antigen retrieval was by heat mediation in a EDTA buffer. Samples were incubated with primary antibody at a dilution of 1/1000. A goat anti-rabbit IgG H&L (HRP) Goat Anti-Rabbit IgG H&L (HRP) ab97051 was used as the secondary antibody at a dilution of 1/500.
Negative control 1: PBS in place of primary antibody.

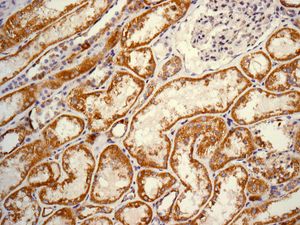

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9043(B)] (ab137040)
Immunohistochemichal analysis of paraffin embedded human kidney tissue labelling SDHA with ab137040 at 1/50 dilution.
Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

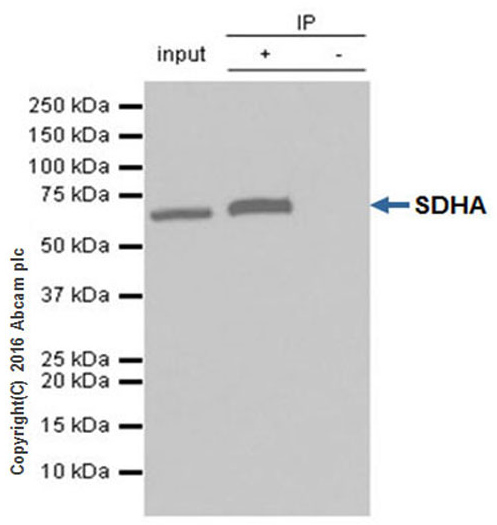

Immunoprecipitation - Anti-SDHA antibody [EPR9043(B)] (ab137040)
ab137040 immunoprecipitating SDHA. 10μg of Jurkat (Human T cell leukemia cell line from peripheral blood) cell lysate was incubated with primary antibody at a dilution of 1/20 and VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at a dilution of 1/10000.
Lane 1: Jurkat whole cell lysate 10ug
Lane 2: ab137040 IP in Jurkat whole cell lysate
Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab137040 in Jurkat whole cell lysate
All lanes: Immunoprecipitation - Anti-SDHA antibody [EPR9043(B)] (ab137040)
Predicted band size: 72 kDa
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SDHA antibody [EPR9043(B)] (ab137040)
Immunohistochemichal analysis of paraffin embedded human testis tissue labelling SDHA with ab137040 at 1/50 dilution.
Perform heat mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

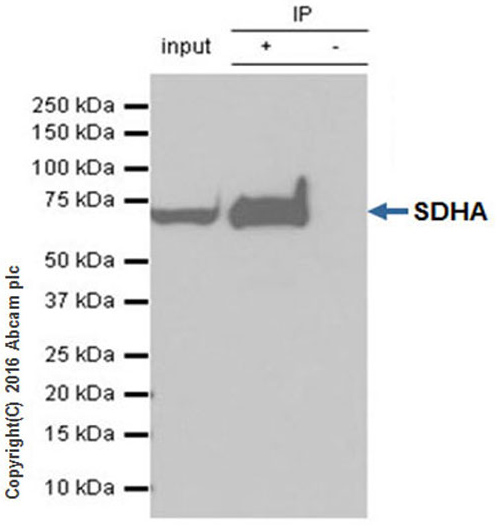

Immunoprecipitation - Anti-SDHA antibody [EPR9043(B)] (ab137040)
ab137040 immunoprecipitating SDHA. 10μg of HeLa (Human epithelial cell line from cervix adenocarcinoma) cell lysate was incubated with primary antibody at a dilution of 1/20 and VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at a dilution of 1/10000.
Lane 1: HeLa whole cell lysate (10ug)
Lane 2: ab137040 IP in HeLa whole cell lysate
Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab137040 in HeLa whole cell lysate
All lanes: Immunoprecipitation - Anti-SDHA antibody [EPR9043(B)] (ab137040)
Predicted band size: 72 kDa
Immunocytochemistry/ Immunofluorescence - Anti-SDHA antibody [EPR9043(B)] (ab137040)
Immunofluorescence analysis of HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labelling SDHA with ab137040 at 1/100 dilution.

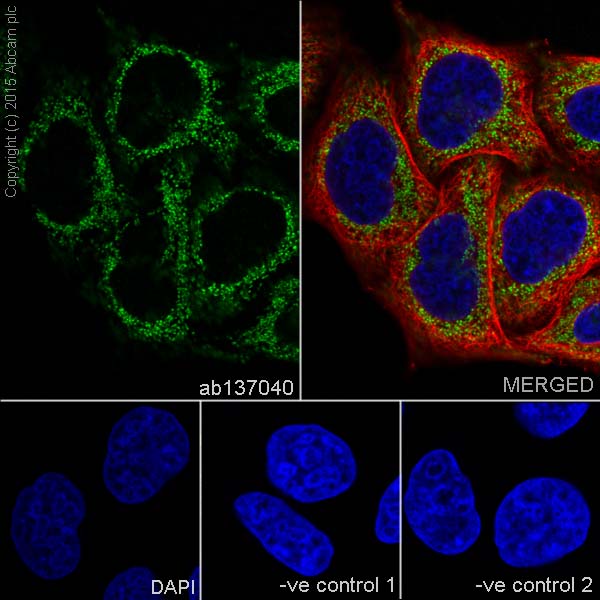

Immunocytochemistry/ Immunofluorescence - Anti-SDHA antibody [EPR9043(B)] (ab137040)
ab137040 staining SDHA in HeLa (human cervix adenocarcinoma) cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with 4% Paraformaldehyde and permeabilized with 0.1% Triton X-100. Samples were incubated with primary antibody at a dilution of 1/250. A goat anti rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody. Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 were used as counterstains for primary antibody ab137040 and secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 respectively and DAPI was used as a nuclear counterstain.
Negative control 1: Rabbit primary antibody and anti-mouse secondary antibody (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120)
Negative control 2: Mouse primary antibody (Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291) and anti-rabbit secondary antibody (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077)

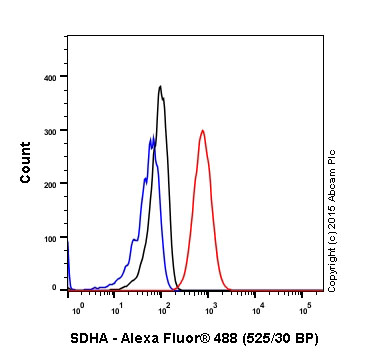

Flow Cytometry (Intracellular) - Anti-SDHA antibody [EPR9043(B)] (ab137040)
ab137040 staining SDHAin the human cell line HeLa (human cervix adenocarcinoma) by intracellular flow cytometry. Cells were fixed with 4% paraformaldehyde and the sample was incubated with the primary antibody at a dilution of 1/500. A goat anti rabbit IgG (Alexa Fluor^® 488) at a dilution of 1/500 was used as the secondary antibody.
Isoytype control: Rabbit monoclonal IgG (Black)
Unlabelled control: Cell without incubation with primary antibody and secondary antibody (Blue)
