Rabbit Recombinant Monoclonal SERCA2 ATPase antibody. Suitable for IHC-P, WB, ICC/IF, Flow Cyt (Intra) and reacts with Human, Mouse, Rat samples. Cited in 17 publications.


Images

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...
Loading...

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PWBICC/IFFlow Cyt (Intra)
Human
Tested
Tested
Tested
Tested
Mouse
Expected
Tested
Expected
Expected
Rat
Expected
Tested
Expected
Expected

Tested
Tested

Species

Human

Dilution info

1/50 - 1/100

Notes

The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat.

Perform heat-mediated antigen retrieval before commencing with IHC staining protocol.

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Mouse

Dilution info

1/5000 - 1/10000

Notes

For unpurified use at 1/20000 - 1/100000.

Species

Rat

Dilution info

1/5000 - 1/10000

Notes

For unpurified use at 1/20000 - 1/100000.

Species

Human

Dilution info

1/5000 - 1/10000

Notes

For unpurified use at 1/20000 - 1/100000.

Tested
Tested

Species

Human

Dilution info

1/100 - 1/250

Notes

-

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Tested
Tested

Species

Human

Dilution info

1/100 - 1/1000

Notes

ab172730 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.

Expected
Expected

Species

Mouse, Rat

Dilution info

Use at an assay dependent concentration.

Notes

-

Target data

Function

This magnesium-dependent enzyme catalyzes the hydrolysis of ATP coupled with the translocation of calcium from the cytosol to the sarcoplasmic reticulum lumen (PubMed:16402920). Involved in autophagy in response to starvation. Upon interaction with VMP1 and activation, controls ER-isolation membrane contacts for autophagosome formation (PubMed:28890335). Also modulates ER contacts with lipid droplets, mitochondria and endosomes (PubMed:28890335).Isoform 2Involved in the regulation of the contraction/relaxation cycle. Acts as a regulator of TNFSF11-mediated Ca(2+) signaling pathways via its interaction with TMEM64 which is critical for the TNFSF11-induced CREB1 activation and mitochondrial ROS generation necessary for proper osteoclast generation. Association between TMEM64 and SERCA2 in the ER leads to cytosolic Ca(2+) spiking for activation of NFATC1 and production of mitochondrial ROS, thereby triggering Ca(2+) signaling cascades that promote osteoclast differentiation and activation.

Alternative names

Recommended products

  1. Loading...
  2. Loading...
  3. Loading...
  4. Loading...

Rabbit Recombinant Monoclonal SERCA2 ATPase antibody. Suitable for IHC-P, WB, ICC/IF, Flow Cyt (Intra) and reacts with Human, Mouse, Rat samples. Cited in 17 publications.

Alternative names

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EPR9392

Purification technique

Affinity purification Protein A

Specificity

The mouse and rat recommendation is based on the WB results. We do not guarantee IHC-P for mouse and rat.

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

Biological function summary

The proper regulation of calcium ion levels by SERCA2 ATPase is essential for muscle contraction and relaxation cycles. SERCA2 exists as a part of the complex machinery in muscle cells closely interacting with phospholamban in the cardiac muscle to regulate its activity. Efficient functioning of SERCA2 directly influences calcium ion storage in the sarcoplasmic reticulum affecting muscle physiology and performance.

Activity summary

SERCA2 ATPase also known as sarco/endoplasmic reticulum Ca²⁺-ATPase 2 or ATP2A2 is an important pump responsible for the active transport of calcium ions from the cytosol into the sarcoplasmic or endoplasmic reticulum. This protein has a molecular weight of 110 kDa. It plays an important role in maintaining calcium homeostasis in muscle cells and is expressed in various tissues but particularly in cardiac and skeletal muscle. This pump uses energy from ATP hydrolysis to move calcium ions against their concentration gradient.

Pathways

The involvement of SERCA2 ATPase in the calcium signaling pathway and excitation-contraction coupling is significant. The protein's function is intimately linked with RYR2 (ryanodine receptor 2) as they both participate in the regulation of calcium ion flow in muscle cells. This interaction is necessary for the proper release and uptake of calcium ions during muscle contraction and relaxation cycles.

Associated diseases and disorders

SERCA2 ATPase mutations or dysregulation can lead to cardiac diseases such as heart failure and muscle disorders like Brody myopathy. Heart failure often results from impaired calcium handling due to disruptions in the interaction between SERCA2 and associated proteins like phospholamban. Abnormalities in SERCA2 expression or function can lead to either excessive storage or insufficient release of calcium contributing to the pathological state of these conditions.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

9 product images

  • Western blot - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435), expandable thumbnail

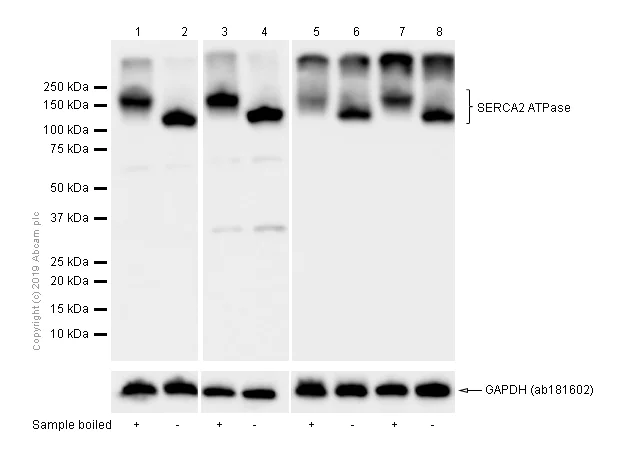

    Western blot - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435)

    Blocking/Diluting buffer: 5% NFDM/TBST

    Suggest to use non-boiled samples, as boiling process could cause membrane protein aggregates (PMID: 16023741 and PMID: 8670158).

    All lanes: Western blot - Anti-SERCA2 ATPase antibody [EPR9392] (AB150435) at 1/5000 dilution

    Lane 1: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates boiled at 20 µg

    Lane 2: HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates unboiled at 20 µg

    Lane 3: HepG2 (Human hepatocellular carcinoma epithelial cell) whole cell lysates boiled at 20 µg

    Lane 4: HepG2 (Human hepatocellular carcinoma epithelial cell) whole cell lysates unboiled at 20 µg

    Lane 5: Mouse brain lysates boiled at 20 µg

    Lane 6: Mouse brain lysates unboiled at 20 µg

    Lane 7: Rat brain lysates boiled at 20 µg

    Lane 8: Rat brain lysates unboiled at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (AB97051) at 1/20000 dilution

    Predicted band size: 115 kDa

    Observed band size: 115 kDa, 140 kDa

    Suggest to use non-boiled samples, as boiling process could cause membrane protein aggregates (PMID: 16023741 and PMID: 8670158).

    This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab150435).

  • Immunocytochemistry/ Immunofluorescence - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435)

    Immunocytochemistry/ Immunofluorescence analysis of HepG2 (Human hepatocellular carcinoma epithelial cell) cells labeling SERCA2 ATPase with Purified ab150435 at 1/100 dilution (10 μg/mL). Cells were fixed in 100% Methanol. Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) was used as the secondary antibody at 1/1000 (2 μg/mL) dilution. DAPI (blue) was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human lung carcinoma tissue sections labeling SERCA2 ATPase with purified ab150435 at 1/50 dilution (20 µg/mL). Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

  • Flow Cytometry (Intracellular) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435), expandable thumbnail

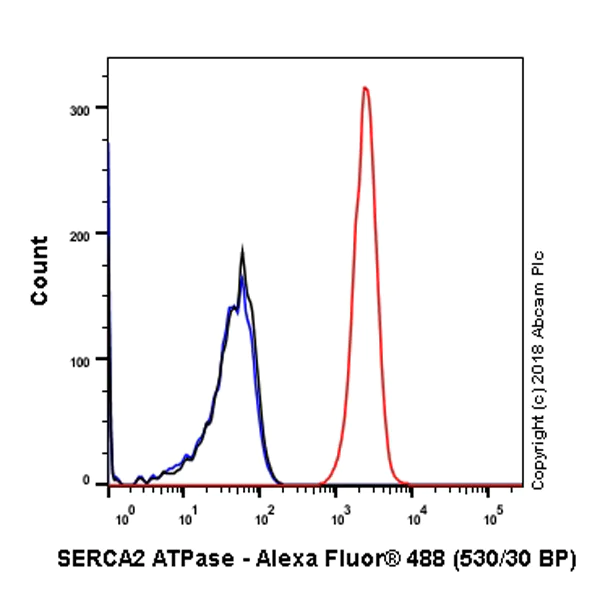

    Flow Cytometry (Intracellular) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435)

    Intracellular Flow Cytometry analysis of HepG2 (Human hepatocellular carcinoma epithelial cell) cells labeling SERCA2 ATPase with Purified ab150435 at 1/1000 dilution (1 μg/mL) (Red). Cells were fixed with 80% Methanol and permeabilised with 0.1% Tween-20. A Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) secondary antibody was used at 1/2000. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human brain tissue sections labeling SERCA2 ATPase with purified ab150435 at 1/50 dilution (20 µg/mL). Perform heat mediated antigen retrieval using ab93684 (Tris/EDTA buffer, pH 9.0). ImmunoHistoProbe one step HRP Polymer (ready to use) was used as the secondary antibody. Negative control: PBS instead of the primary antibody. Hematoxylin was used as a counterstain.

  • Immunocytochemistry/ Immunofluorescence - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435)

    Immunofluorescence analysis of HeLa cells labelling SERCA2 ATPase with unpurified ab150435 at 1/100.

  • Flow Cytometry (Intracellular) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435), expandable thumbnail

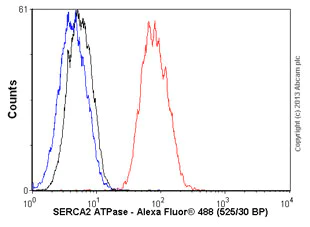

    Flow Cytometry (Intracellular) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435)

    Overlay histogram showing HepG2 cells stained with unpurified ab150435 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab150435, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor® 488 goat anti-rabbit IgG (H&L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x106 cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in HepG2 cells fixed with 4% paraformaldehyde (10 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435)

    Immunohistochemical analysis of paraffin embedded Human liver tissue labelling SERCA2 ATPase with unpurified ab150435 at 1/50.

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SERCA2 ATPase antibody [EPR9392] (ab150435)

    Immunohistochemical analysis of paraffin embedded Human kidney tissue labelling SERCA2 ATPase with unpurified ab150435 at 1/50.

    Perform heat mediated antigen retrieval before commencing with IHC staining protocol.
