Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)

Rabbit Recombinant Monoclonal Serotonin transporter antibody. Suitable for mIHC, WB, IHC-P, IP and reacts with Mouse, Rat, Transfected cell lysate - Mouse samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-Serotonin transporter antibody [EPR26259-61] (AB308443), expandable thumbnail

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	mIHC	WB	IHC-P	IP	IHC-Fr	ICC/IF	Flow Cyt (Intra)
Human	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended
Mouse	Tested	Tested	Tested	Tested	Not recommended	Not recommended	Not recommended
Rat	Tested	Tested	Tested	Expected	Not recommended	Not recommended	Not recommended
Transfected cell lysate - Mouse	Not recommended	Tested	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended

Tested
Tested

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Transfected cell lysate - Mouse, Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Transfected cell lysate - Mouse	Dilution info 1/1000	Notes -
Species Mouse	Dilution info 1/1000	Notes -
Species Rat	Dilution info 1/1000	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/500	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.
Species Rat	Dilution info 1/500	Notes Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Transfected cell lysate - Mouse	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/30	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Transfected cell lysate - Mouse, Human	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Mouse, Rat, Transfected cell lysate - Mouse, Human	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Mouse, Rat, Transfected cell lysate - Mouse, Human	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Mouse, Rat, Transfected cell lysate - Mouse, Human	Dilution info -	Notes -

Target data

See full target information Slc6a4

Function

Serotonin transporter that cotransports serotonin with one Na(+) ion in exchange for one K(+) ion and possibly one proton in an overall electroneutral transport cycle. Transports serotonin across the plasma membrane from the extracellular compartment to the cytosol thus limiting serotonin intercellular signaling (By similarity) (PubMed:9037532, PubMed:9547354). Essential for serotonin homeostasis in the central nervous system. In the developing somatosensory cortex, acts in glutamatergic neurons to control serotonin uptake and its trophic functions accounting for proper spatial organization of cortical neurons and elaboration of sensory circuits. In the mature cortex, acts primarily in brainstem raphe neurons to mediate serotonin uptake from the synaptic cleft back into the pre-synaptic terminal thus terminating serotonin signaling at the synapse (PubMed:25600870, PubMed:9547354). Modulates mucosal serotonin levels in the gastrointestinal tract through uptake and clearance of serotonin in enterocytes. Required for enteric neurogenesis and gastrointestinal reflexes (PubMed:27111230). Regulates blood serotonin levels by ensuring rapid high affinity uptake of serotonin from plasma to platelets, where it is further stored in dense granules via vesicular monoamine transporters and then released upon stimulation (PubMed:18317590). Mechanistically, the transport cycle starts with an outward-open conformation having Na1(+) and Cl(-) sites occupied. The binding of a second extracellular Na2(+) ion and serotonin substrate leads to structural changes to outward-occluded to inward-occluded to inward-open, where the Na2(+) ion and serotonin are released into the cytosol. Binding of intracellular K(+) ion induces conformational transitions to inward-occluded to outward-open and completes the cycle by releasing K(+) possibly together with a proton bound to Asp-98 into the extracellular compartment. Na1(+) and Cl(-) ions remain bound throughout the transport cycle (By similarity) (PubMed:9037532, PubMed:9547354). Additionally, displays serotonin-induced channel-like conductance for monovalent cations, mainly Na(+) ions. The channel activity is uncoupled from the transport cycle and may contribute to the membrane resting potential or excitability (By similarity).

Alternative names

Htt, Sert, Slc6a4, Sodium-dependent serotonin transporter, SERT, 5HT transporter, Solute carrier family 6 member 4, 5HTT

Recommended products

Rabbit Recombinant Monoclonal Serotonin transporter antibody. Suitable for mIHC, WB, IHC-P, IP and reacts with Mouse, Rat, Transfected cell lysate - Mouse samples.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: 59% PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Clone number: EPR26259-61
Purification technique: Affinity purification Protein A
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage duration: 1-2 weeks
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: -20°C
Aliquoting information: Upon delivery aliquot
Storage information: Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

The serotonin transporter (SERT) also known as 5-HTT or SLC6A4 is an important protein that facilitates the reuptake of serotonin (5-HT) from the synaptic cleft back into the presynaptic neuron. This reuptake process terminates the serotonin signaling effectively controlling its availability in the brain. SERT is approximately 620 amino acids in length with a mass of around 70 kDa. Primarily expressed in the central nervous system it is also found in peripheral tissues. Its widespread presence highlights its critical role in regulating mood and cognition via serotonin modulation.

Biological function summary

The function of SERT impacts neurotransmitter balance significantly as it is integral to serotonin regulation. By removing serotonin from the synaptic cleft and recycling it SERT maintains neurotransmitter homeostasis. SERT is not usually part of a larger protein complex but acts independently to modulate serotonin levels. The activity of SERT affects various neurological processes contributing to mood maintenance and behavioral controls.

Pathways

Serotonin transporter influences the serotonin signaling pathway which is important for mood regulation and cognitive functions. It works alongside other proteins like monoamine oxidase which degrades serotonin and serotonin receptors that mediate its effects. Additionally SERT is involved in the pharmacological pathways of antidepressants. Escitalopram oxalate and other selective serotonin reuptake inhibitors (SSRIs) target SERT to block the reuptake of serotonin increasing its extracellular levels and synaptic availability.

Associated diseases and disorders

SERT has a strong association with depressive disorders and anxiety due to its role in serotonin regulation. Alterations in SERT expression or function can lead to disruptions in the serotonergic system potentially resulting in mood disorders. SSRIs like escitalopram oxalate are well-known treatments that target SERT to alleviate symptoms. Moreover mutations and polymorphisms in the SERT gene have been linked to various psychiatric conditions illustrating a genetic connection to the protein’s function.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

18 product images

Western blot - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)

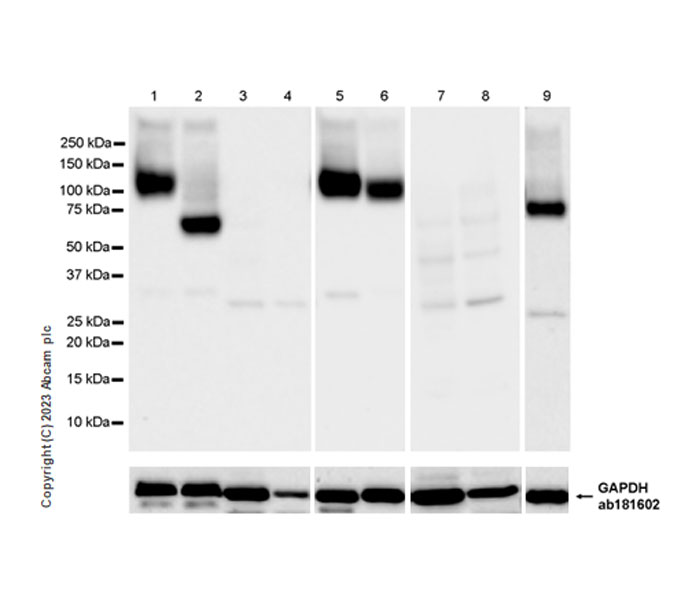

Serotonin transporter Western blot staining using rabbit Anti-Serotonin transporter antibody
Blocking and diluting buffer and concentration: 5% NFDM/TBST.

Serotonin transporter is a glycoprotein of approximately 100 kDa and detected as a 70 kDa band after treated with Protein Deglycosylation MIX II.

Negative control: heart, lung (PMID:9037532, PMID: 7869097).

In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200, 000 dilution.

Exposure time: Lanes 1-4: 8 seconds.; Lanes 5-8: 15 seconds.; Lane 9: 125 seconds.
All lanes: Western blot - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443) at 1/1000 dilution
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/20000 dilution
Predicted band size: 70 kDa
Observed band size: 100 kDa, 70 kDa
Multiplex immunohistochemistry - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)

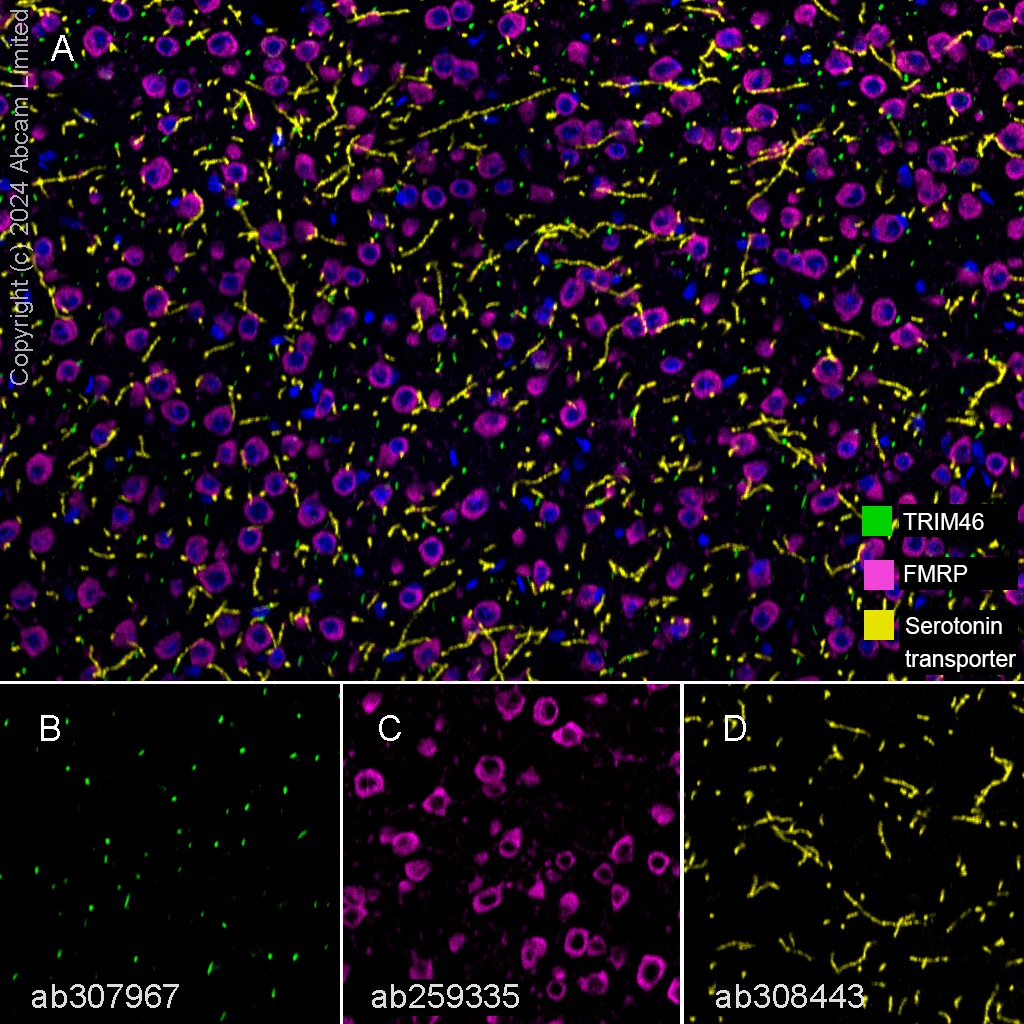

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse cerebrum tissue staining TRIM46 with Anti-TRIM46 antibody [EPR26957-34] ab307967 at a 1:5000 (0.102 ug/ml) dilution, FMRP with Anti-FMRP antibody [EPR23852-90] ab259335 at 1:10000 (0.04 ug/ml) dilution and Serotonin transporter with ab308443 at a 1:500 (0.052 ug/ml) dilution followed by secondary antibody Opal Polymer HRP Ms + Rb.
Panel A: merged staining of anti-TRIM46 (green; Opal^™520), anti-FMRP (magenta; Opal^™690) and anti-Serotonin transporter (yellow; Opal^™570) on mouse cerebrum.
Panel B: anti-TRIM46 staining the proximal part of the axon in mouse cerebrum.
Panel C: anti-FMRP staining neurons in mouse cerebrum.
Panel D: anti-Serotonin transporter staining dendrites in mouse cerebrum.
Nuclear DNA was labeled with DAPI (shown in blue).
The section was incubated in three rounds of staining: in the order of Anti-TRIM46 antibody [EPR26957-34] ab307967, Anti-FMRP antibody [EPR23852-90] ab259335 and ab308443 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Multiplex immunohistochemistry - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse hippocampus tissue staining TRIM46 with Anti-TRIM46 antibody [EPR26957-34] ab307967 at a 1:5000 (0.102 ug/ml) dilution, FMRP with Anti-FMRP antibody [EPR23852-90] ab259335 at 1:10000 ( 0.04 µg/ml) dilution and Serotonin transporter with ab308443 at a 1:500 (0.052 ug/ml) dilution followed by secondary antibody Opal Polymer HRP Ms + Rb.
Panel A: merged staining of anti-TRIM46 (green; Opal^™520), anti-FMRP (magenta; Opal^™690) and anti-Serotonin transporter (yellow; Opal^™570) on mouse hippocampus.
Panel B: anti-TRIM46 staining the proximal part of the axon in mouse hippocampus.
Panel C: anti-FMRP staining neurons in mouse hippocampus.
Panel D: anti-Serotonin transporter staining dendrites in mouse hippocampus.
Nuclear DNA was labeled with DAPI (shown in blue).
The section was incubated in three rounds of staining: in the order of Anti-TRIM46 antibody [EPR26957-34] ab307967, Anti-FMRP antibody [EPR23852-90] ab259335 and ab308443 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Multiplex immunohistochemistry - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Rat cerebrum tissue staining TRIM46 with Anti-TRIM46 antibody [EPR26957-34] ab307967 at a 1:5000 (0.102 ug/ml) dilution, FMRP with Anti-FMRP antibody [EPR23852-90] ab259335 at 1:10000 (0.04 ug/ml) dilution and Serotonin transporter with ab308443 at a 1:500 (0.052 ug/ml) dilution followed by secondary antibody Opal Polymer HRP Ms + Rb.
Panel A: merged staining of anti-TRIM46 (green; Opal^™520), anti-FMRP (magenta; Opal^™690) and anti-Serotonin transporter (yellow; Opal^™570) on rat cerebrum.
Panel B: anti-TRIM46 staining the proximal part of the axon in rat cerebrum.
Panel C: anti-FMRP staining neurons in rat cerebrum.
Panel D: anti-Serotonin transporter staining dendrites in rat cerebrum.
Nuclear DNA was labeled with DAPI (shown in blue).
The section was incubated in three rounds of staining: in the order of Anti-TRIM46 antibody [EPR26957-34] ab307967, Anti-FMRP antibody [EPR23852-90] ab259335 and ab308443 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Multiplex immunohistochemistry - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Rat hippocampus tissue staining TRIM46 with Anti-TRIM46 antibody [EPR26957-34] ab307967 at a 1:5000 (0.102 ug/ml) dilution, FMRP with Anti-FMRP antibody [EPR23852-90] ab259335 at 1:10000 (0.04 ug/ml) dilution and Serotonin transporter with ab308443 at a 1:500 (0.052 ug/ml) dilution followed by secondary antibody Opal Polymer HRP Ms + Rb.
Panel A: merged staining of anti-TRIM46 (green; Opal^™520), anti-FMRP (magenta; Opal^™690) and anti-Serotonin transporter (yellow; Opal^™570) on rat hippocampus.
Panel B: anti-TRIM46 staining the proximal part of the axon in rat hippocampus.
Panel C: anti-FMRP staining neurons in rat hippocampus.
Panel D: anti-Serotonin transporter staining dendrites in rat hippocampus..
Nuclear DNA was labeled with DAPI (shown in blue).
The section was incubated in three rounds of staining: in the order of Anti-TRIM46 antibody [EPR26957-34] ab307967, Anti-FMRP antibody [EPR23852-90] ab259335 and ab308443 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Multiplex immunohistochemistry - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Rat spinal cord tissue staining TRIM46 with Anti-TRIM46 antibody [EPR26957-34] ab307967 at a 1:5000 (0.102 ug/ml) dilution, FMRP with Anti-FMRP antibody [EPR23852-90] ab259335 at 1:10000 (0.04 ug/ml) dilution and Serotonin transporter with ab308443 at a 1:500 (0.052 ug/ml) dilution followed by secondary antibody Opal Polymer HRP Ms + Rb.
Panel A: merged staining of anti-TRIM46 (green; Opal^™520), anti-FMRP (magenta; Opal^™690) and anti-Serotonin transporter (yellow; Opal^™570) on rat spinal cord.
Panel B: anti-TRIM46 staining the proximal part of the axon in rat spinal cord.
Panel C: anti-FMRP staining neurons in rat spinal cord.
Panel D: anti-Serotonin transporter staining dendrites in rat spinal cord.
Nuclear DNA was labeled with DAPI (shown in blue).
The section was incubated in three rounds of staining: in the order of Anti-TRIM46 antibody [EPR26957-34] ab307967, Anti-FMRP antibody [EPR23852-90] ab259335 and ab308443 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Multiplex immunohistochemistry - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse cerebrum tissue staining TRIM46 with Anti-TRIM46 antibody [EPR26957-34] ab307967 at a 1:5000 (0.102 ug/ml) dilution, VAChT with Anti-VAChT antibody [EPR29154-71] ab317452 at 1:1000 (0.508 ug/ml) dilution and Serotonin transporter with ab308443 at a 1:500 (0.052 ug/ml) dilution followed by secondary antibody Opal Polymer HRP Ms + Rb.
Panel A: merged staining of anti-TRIM46 (green; Opal^™520), anti-VAChT (magenta; Opal^™690) and anti-Serotonin transporter (yellow; Opal^™570) on mouse cerebrum.
Panel B: anti-TRIM46 staining the proximal part of the axon in mouse cerebrum.
Panel C: anti-VAChT staining vesicle in mouse cerebrum.
Panel D: anti-Serotonin transporter staining dendrites in mouse cerebrum.
Nuclear DNA was labeled with DAPI (shown in blue).
The section was incubated in three rounds of staining: in the order of Anti-TRIM46 antibody [EPR26957-34] ab307967, Anti-VAChT antibody [EPR29154-71] ab317452 and ab308443 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Multiplex immunohistochemistry - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Rat cerebrum tissue staining TRIM46 with Anti-TRIM46 antibody [EPR26957-34] ab307967 at a 1:5000 (0.102 ug/ml) dilution, VAChT with Anti-VAChT antibody [EPR29154-71] ab317452 at 1:1000 (0.508 ug/ml) dilution and Serotonin transporter with ab308443 at a 1:500 (0.052 ug/ml) dilution followed by secondary antibody Opal Polymer HRP Ms + Rb.
Panel A: merged staining of anti-TRIM46 (green; Opal^™520), anti-VAChT (magenta; Opal^™690) and anti-Serotonin transporter (yellow; Opal^™570) on rat cerebrum.
Panel B: anti-TRIM46 staining the proximal part of the axon in rat cerebrum.
Panel C: anti-VAChT staining vesicle in rat cerebrum.
Panel D: anti-Serotonin transporter staining dendrites in rat cerebrum.
Nuclear DNA was labeled with DAPI (shown in blue).
The section was incubated in three rounds of staining: in the order of Anti-TRIM46 antibody [EPR26957-34] ab307967, Anti-VAChT antibody [EPR29154-71] ab317452 and ab308443 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Multiplex immunohistochemistry - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Rat hippocampus tissue staining TRIM46 with Anti-TRIM46 antibody [EPR26957-34] ab307967 at a 1:5000 (0.102 ug/ml) dilution, VAChT with Anti-VAChT antibody [EPR29154-71] ab317452 at 1:1000 (0.508 ug/ml) dilution and Serotonin transporter with ab308443 at a 1:500 (0.052 ug/ml) dilution followed by secondary antibody Opal Polymer HRP Ms + Rb.
Panel A: merged staining of anti-TRIM46 (green; Opal^™520), anti-VAChT (magenta; Opal^™690) and anti-Serotonin transporter (yellow; Opal^™570) on rat hippocampus.
Panel B: anti-TRIM46 staining the proximal part of the axon in rat hippocampus.
Panel C: anti-VAChT staining vesicle in rat hippocampus.
Panel D: anti-Serotonin transporter staining dendrites in rat hippocampus.
Nuclear DNA was labeled with DAPI (shown in blue).
The section was incubated in three rounds of staining: in the order of Anti-TRIM46 antibody [EPR26957-34] ab307967, Anti-VAChT antibody [EPR29154-71] ab317452 and ab308443 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Multiplex immunohistochemistry - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded Mouse hippocampus tissue staining TRIM46 with Anti-TRIM46 antibody [EPR26957-34] ab307967 at a 1:5000 (0.102 ug/ml) dilution, VAChT with Anti-VAChT antibody [EPR29154-71] ab317452 at 1:1000 (0.508 ug/ml) dilution and Serotonin transporter with ab308443 at a 1:500 (0.052 ug/ml) dilution followed by secondary antibody Opal Polymer HRP Ms + Rb.
Panel A: merged staining of anti-TRIM46 (green; Opal^™520), anti-VAChT (magenta; Opal^™690) and anti-Serotonin transporter (yellow; Opal^™570) on mouse hippocampus.
Panel B: anti-TRIM46 staining the proximal part of the axon in mouse hippocampus.
Panel C: anti-VAChT staining vesicle in mouse hippocampus.
Panel D: anti-Serotonin transporter staining dendrites in mouse hippocampus.
Nuclear DNA was labeled with DAPI (shown in blue).
The section was incubated in three rounds of staining: in the order of Anti-TRIM46 antibody [EPR26957-34] ab307967, Anti-VAChT antibody [EPR29154-71] ab317452 and ab308443 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.
The immunostaining was performed on a Leica Biosystems BOND^® RX instrument with an Opal^™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

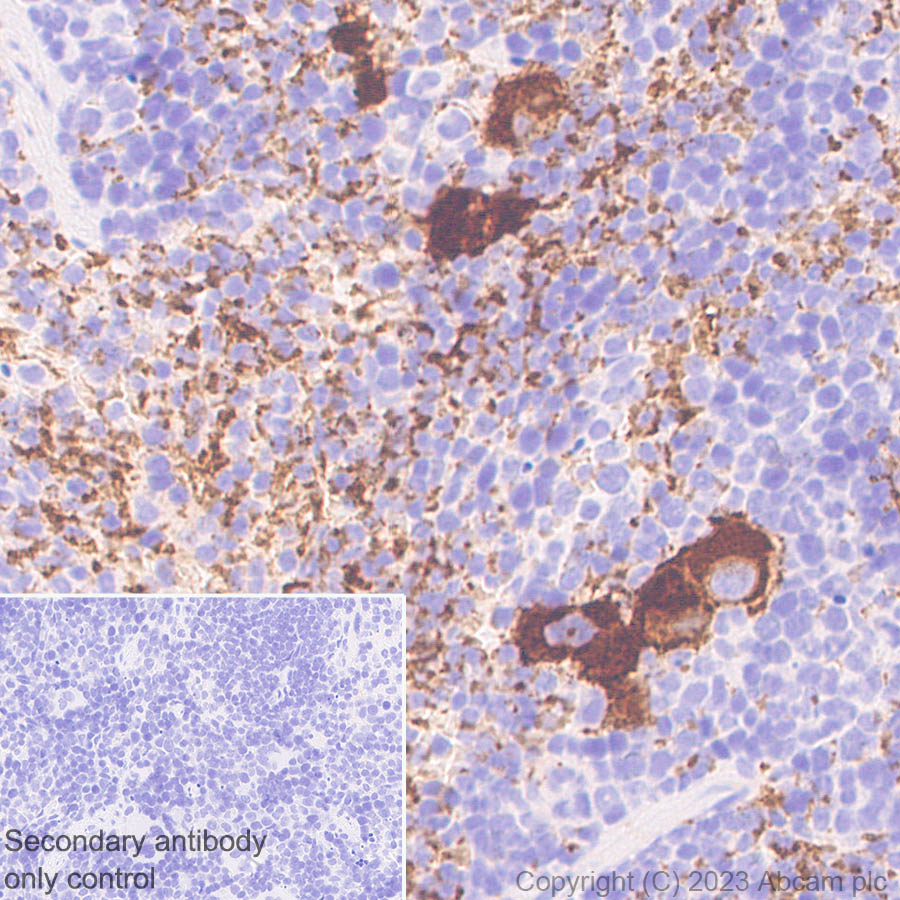

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labelling Serotonin transporter with ab308443 at 1/500 (1.052 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on megakaryocyte and platelets in rat spleen (PMID: 7869097). The section was incubated with ab308443 for 30 mins at room temperature. The
immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Immunohistochemical analysis of paraffin-embedded Rat cerebrum tissue labelling Serotonin transporter with ab308443 at 1/500 (1.052 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on rat cerebrum (PMID: 7869097, 23127756). The section was incubated with ab308443 for 30 mins at room temperature. The
immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

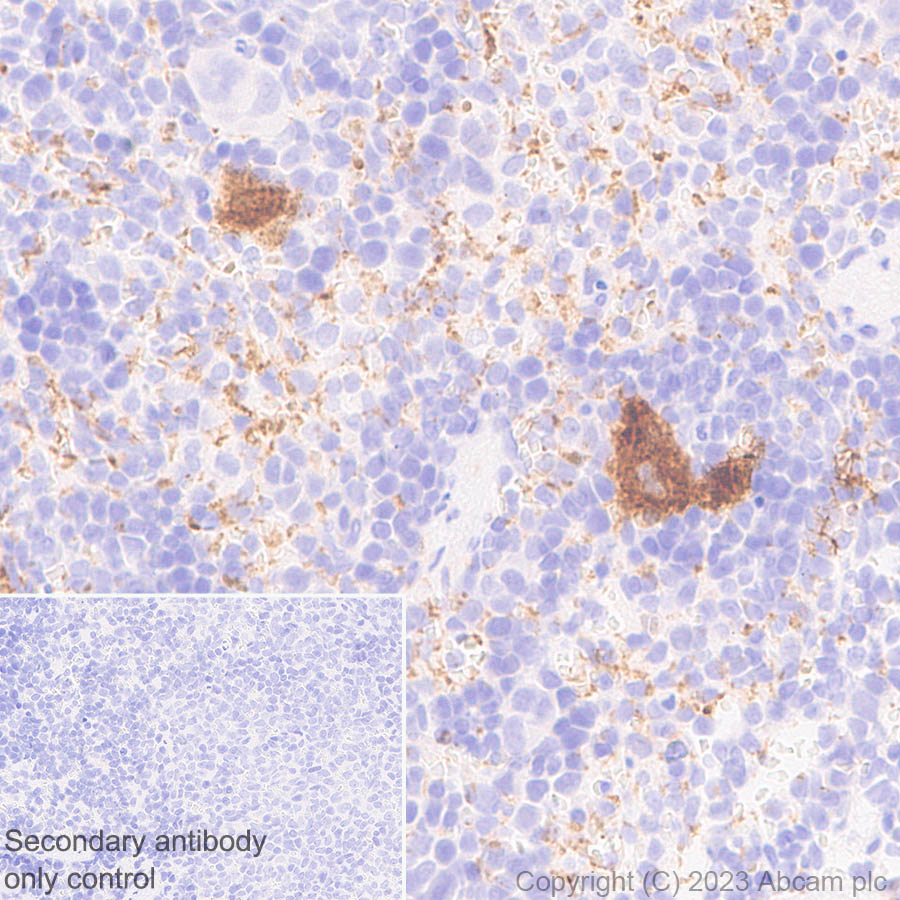

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labelling Serotonin transporter with ab308443 at 1/500 (1.052 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on megakaryocyte and platelets in mouse spleen (PMID: 7869097). The section was incubated with ab308443 for 30 mins at room temperature. The
immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labelling Serotonin transporter with ab308443 at 1/500 (1.052 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on mouse cerebrum (PMID: 7869097, 23127756). The section was incubated with ab308443 for 30 mins at room temperature. The
immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

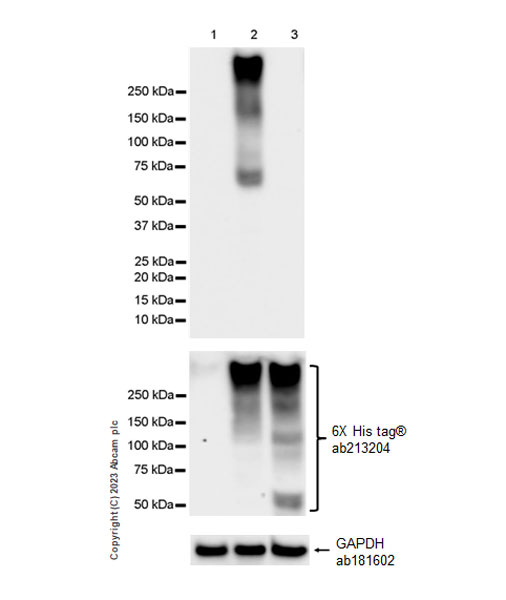

Western blot - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Blocking and diluting buffer and concentration: 5% NFDM/TBST.

This antibody does not cross-react with mouse Noradrenaline transporter. In Western blot, anti-His antibody (Anti-6X His tag® antibody [EPR20547] - ChIP Grade ab213204) staining at 1/5000 dilution.

In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200, 000 dilution.

Exposure time: 15 seconds
All lanes: Western blot - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443) at 1/1000 dilution
Lane 1: HEK-293 (human embryonic kidney) transfected with an empty vector (vector control), containing a myc-His-tag®, whole cell lysate at 20 µg
Lane 2: HEK-293 transfected with Slc6a4 (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg
Lane 3: HEK-293 transfected with Slc6a2 (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution
Predicted band size: 70 kDa
Observed band size: 70 kDa
Exposure time: 15s

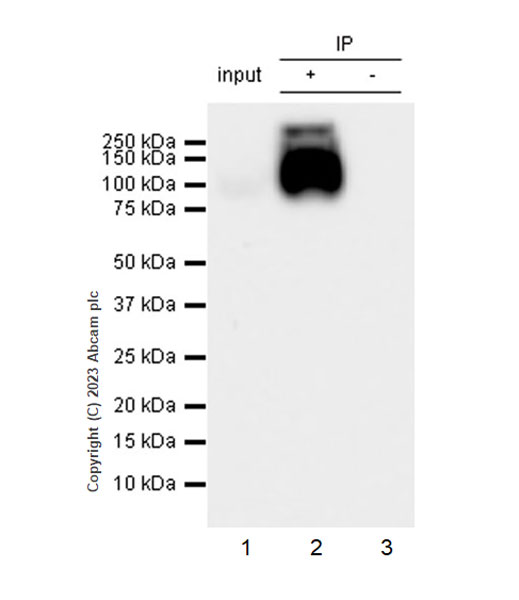

Immunoprecipitation - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Serotonin transporter was immunoprecipitated from 0.35 mg Mouse platelet lysate with ab308443 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab308443 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.

Lane 1: Mouse platelet lysate

Lane 2: abAB308443 IP in Mouse platelet lysate

Lane 3:Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab308443 in mouse platelet lysate

Blocking and dilution buffer and concentration: 5% NFDM/TBST.

Exposure time: 3 seconds
All lanes: Immunoprecipitation - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443) at 1/30 dilution
All lanes: Mouse platelet lysate at 10 µg
Secondary
All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Observed band size: 100 kDa
Exposure time: 3s

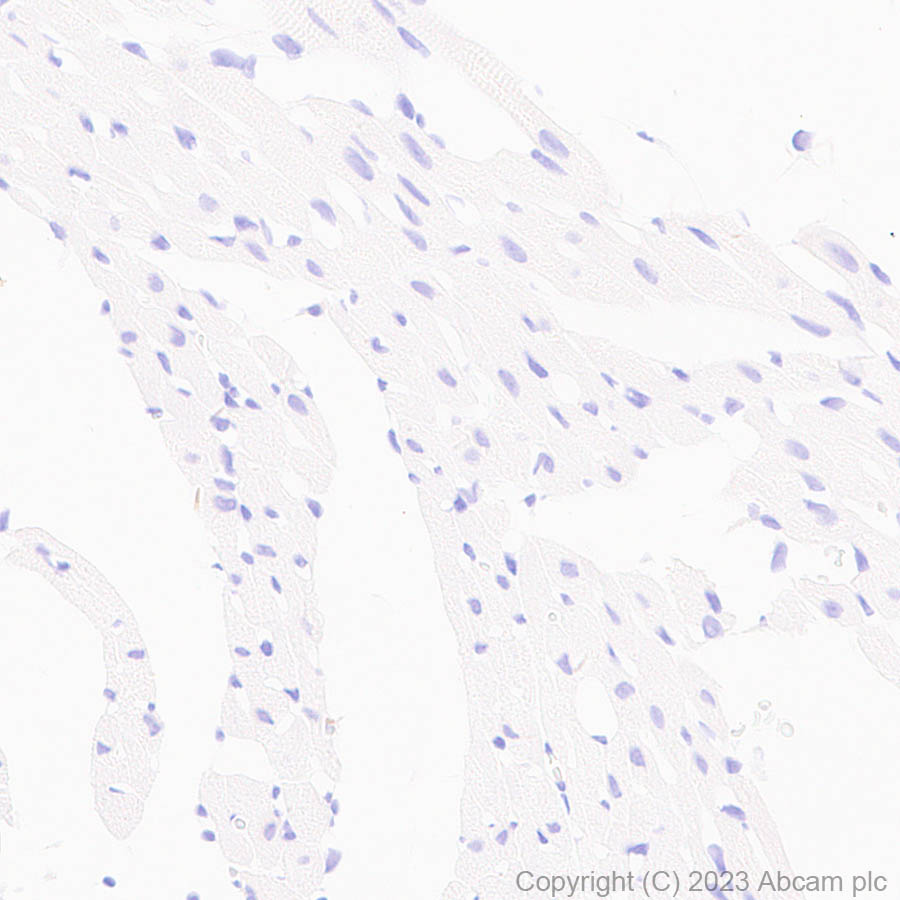

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Immunohistochemical analysis of paraffin-embedded Rat cardiac muscle tissue labelling Serotonin transporter with ab308443 at 1/500 (1.052 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control: No staining on rat cardiac muscle. The section was incubated with ab308443 for 30 mins at room temperature. The
immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Serotonin transporter antibody [EPR26259-61] (ab308443)
Immunohistochemical analysis of paraffin-embedded Mouse cardiac muscle tissue labelling Serotonin transporter with ab308443 at 1/500 (1.052 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control: No staining on mouse cardiac muscle. The section was incubated with ab308443 for 30 mins at room temperature. The
immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.

Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins
