Anti-SF2 antibody

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SF2 antibody (AB38017)

IHC image of SF2 staining in Human normal spleen formalin fixed paraffin embedded tissue section, performed on a Leica BondTM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab38017, 5μg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-SF2 antibody (AB38017)

ICC/IF image of ab38017 stained human HeLa cells. The cells were PFA fixed (10 min), permabilised in TBS-T (20 min) and incubated with the antibody (ab38017, 5μg/ml) for 1h at room temperature. 1%BSA / 10% normal serum / 0.3M glycine was used to quench autofluorescence and block non-specific protein-protein interactions. The secondary antibody (green) was Alexa Fluor® 488 goat anti-rabbit IgG (H+L) used at a 1/1000 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red). DAPI was used to stain the cell nuclei (blue).

• WB

Ap

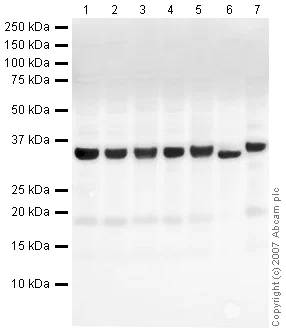

Western blot - Anti-SF2 antibody (AB38017)

SF2 is extensively phosphorylated on serine residues in the RS domain (SwissProt).

ab38017 is targeted against all isoforms of the SF2 protein.

All lanes:

Western blot - Anti-SF2 antibody (ab38017) at 1 µg/mL

Lane 1:

HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

Lane 2:

Western blot - Jurkat whole cell lysate (<a href='/en-us/products/cell-lysates/jurkat-whole-cell-lysate-ab7899'>ab7899</a>) at 10 µg

Lane 3:

Western blot - A-431 whole cell lysate (<a href='/en-us/products/cell-lysates/a-431-whole-cell-lysate-ab7909'>ab7909</a>) at 10 µg

Lane 4:

Western blot - HEK-293 whole cell lysate (<a href='/en-us/products/cell-lysates/hek-293-whole-cell-lysate-ab7902'>ab7902</a>) at 10 µg

Lane 5:

Hep G2 whole cell lysate (<a href='/en-us/products/unavailable/hep-g2-whole-cell-lysate-ab7900'>ab7900</a>) at 10 µg

Lane 6:

MCF-7 (Human breast adenocarcinoma cell line) Whole Cell Lysate at 10 µg

Lane 7:

SHSY-5Y (Human neuroblastoma cell line) Whole Cell Lysate at 10 µg

Secondary

All lanes:

IRDye 680 Conjugated Goat Anti-Rabbit IgG (H+L) at 1/10000 dilution

Predicted band size: 28 kDa

Observed band size: 34 kDa

false

• WB

AbReview10498****

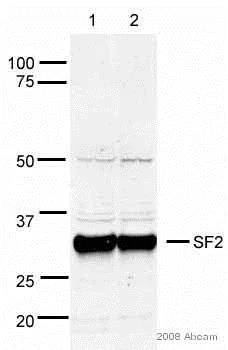

Western blot - Anti-SF2 antibody (AB38017)

All lanes:

Western blot - Anti-SF2 antibody (ab38017) at 1 µg/mL

Lane 1:

HeLa whole cell lysate at 20 µg

Lane 2:

293T whole cell lysate at 20 µg

Secondary

All lanes:

Alexa Fluor® conjugated goat anti-rabbit antibody at 1/10000 dilution

Predicted band size: 28 kDa

Observed band size: 34 kDa,50 kDa

true

Exposure time: 10s

This image is courtesy of an anonymous Abreview
