Knockout Tested Rabbit Recombinant Monoclonal SIRP alpha antibody. Suitable for WB, IHC-P, ICC/IF, Flow Cyt and reacts with Human samples. Cited in 4 publications.


Images

Flow Cytometry - Anti-SIRP alpha antibody [EPR22930-163] (AB260039), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR22930-163] (AB260039), expandable thumbnail
  • Western blot - Anti-SIRP alpha antibody [EPR22930-163] (AB260039), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-SIRP alpha antibody [EPR22930-163] (AB260039), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR22930-163] (AB260039), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IPWBIHC-PICC/IFFlow Cyt
Human
Not recommended
Tested
Tested
Tested
Tested

Not recommended
Not recommended

Species

Human

Dilution info

-

Notes

-

Tested
Tested

Species

Human

Dilution info

1/1000

Notes

-

Tested
Tested

Species

Human

Dilution info

1/500

Notes

-

Tested
Tested

Species

Human

Dilution info

1/250

Notes

-

Tested
Tested

Species

Human

Dilution info

1/2020

Notes

-

Associated Products

Select an associated product type

6 products for Alternative Product

Target data

Function

Immunoglobulin-like cell surface receptor for CD47. Acts as docking protein and induces translocation of PTPN6, PTPN11 and other binding partners from the cytosol to the plasma membrane. Supports adhesion of cerebellar neurons, neurite outgrowth and glial cell attachment. May play a key role in intracellular signaling during synaptogenesis and in synaptic function (By similarity). Involved in the negative regulation of receptor tyrosine kinase-coupled cellular responses induced by cell adhesion, growth factors or insulin. Mediates negative regulation of phagocytosis, mast cell activation and dendritic cell activation. CD47 binding prevents maturation of immature dendritic cells and inhibits cytokine production by mature dendritic cells.

Alternative names

Tyrosine-protein phosphatase non-receptor type substrate 1, SHP substrate 1, SHPS-1, Brain Ig-like molecule with tyrosine-based activation motifs, CD172 antigen-like family member A, Inhibitory receptor SHPS-1, Macrophage fusion receptor, MyD-1 antigen, Signal-regulatory protein alpha-1, Signal-regulatory protein alpha-2, Signal-regulatory protein alpha-3, p84, Bit, Sirp-alpha-1, Sirp-alpha-2, Sirp-alpha-3, BIT, MFR, SIRP, SHPS1, PTPNS1, MYD1, SIRPA

Recommended products

Knockout Tested Rabbit Recombinant Monoclonal SIRP alpha antibody. Suitable for WB, IHC-P, ICC/IF, Flow Cyt and reacts with Human samples. Cited in 4 publications.

Alternative names

Tyrosine-protein phosphatase non-receptor type substrate 1, SHP substrate 1, SHPS-1, Brain Ig-like molecule with tyrosine-based activation motifs, CD172 antigen-like family member A, Inhibitory receptor SHPS-1, Macrophage fusion receptor, MyD-1 antigen, Signal-regulatory protein alpha-1, Signal-regulatory protein alpha-2, Signal-regulatory protein alpha-3, p84, Bit, Sirp-alpha-1, Sirp-alpha-2, Sirp-alpha-3, BIT, MFR, SIRP, SHPS1, PTPNS1, MYD1, SIRPA

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

EPR22930-163

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

SIRP alpha also known as CD172a is a transmembrane receptor protein with a mass ranging between 70-110 kDa due to glycosylation. This protein extensively expresses on the surface of myeloid cells neurons and a subset of T-cells and is part of the immunoglobulin superfamily. SIRP alpha interacts with its ligand CD47 a widely expressed glycoprotein involved in immune response regulation. Its mechanical action primarily involves signal regulation through the recruitment of SHP-1 and SHP-2 two cytoplasmic tyrosine phosphatases.

Biological function summary

SIRP alpha functions significantly in the regulation of phagocytosis acting as a "don't eat me" signal to macrophages upon binding with CD47. It does not act alone; rather it is part of a complex that recruits SHP-1 and SHP-2 leading to inhibition of dephosphorylation activities essential for engulfment processes. This regulatory mechanism is important for maintaining cellular homeostasis ensuring that healthy cells are not mistakenly destroyed by the immune system.

Pathways

SIRP alpha plays an important role in the innate immune pathways involving the regulation of phagocytosis and cell-cell adhesion. Particularly it fits into the immune checkpoint pathways where it interacts closely with proteins like CD47 and plays a role in the interaction between the immune system and cancer cells. Through these pathways SIRP alpha helps maintain balance in the immune response allowing for the recognition of self versus non-self therefore preventing autoimmunity while facilitating the clearance of pathogens.

Associated diseases and disorders

SIRP alpha is implicated in cancer and autoimmune diseases. In cancer its interaction with CD47 allows tumor cells to escape phagocytosis promoting tumor survival and growth. In autoimmune disorders dysregulated SIRP alpha expression or signaling could miscommunicate immune signals leading to the destruction of healthy tissue. Understanding the link between SIRP alpha and these conditions can reveal potential targets for therapeutic development especially using inhibitors or modulators targeting the SIRP alpha-CD47 interaction.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

8 product images

  • Flow Cytometry - Anti-SIRP alpha antibody [EPR22930-163] (ab260039), expandable thumbnail

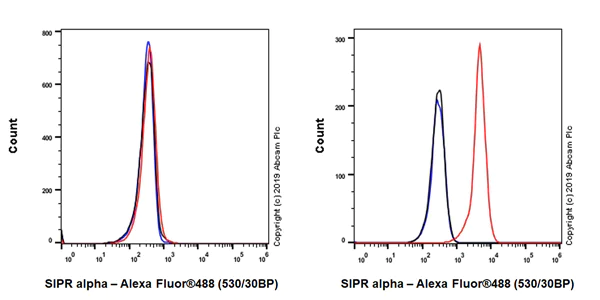

    Flow Cytometry - Anti-SIRP alpha antibody [EPR22930-163] (ab260039)

    Flow cytometric analysis of Jurkat (Human T cell leukemia T lymphocyte, Left) / THP-1 (Human monocytic leukemia monocyte, Right) cells labeling SIRP alpha with ab260039 at 1\600 compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Black isotype control and an unlabeled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 was used as the secondary antibody.

    Negative control: Jurkat.

    Gated on viable cells.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR22930-163] (ab260039), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR22930-163] (ab260039)

    Immunohistochemical analysis of paraffin-embedded human spleen tissue labeling SIRP alpha with ab260039 at 1/500 followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on the human spleen is observed. The section was incubated with ab260039 for 15 mins at room temperature. The immunostaining staining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with hematoxylin.

    Secondary antibody only control: Ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

  • Western blot - Anti-SIRP alpha antibody [EPR22930-163] (ab260039), expandable thumbnail

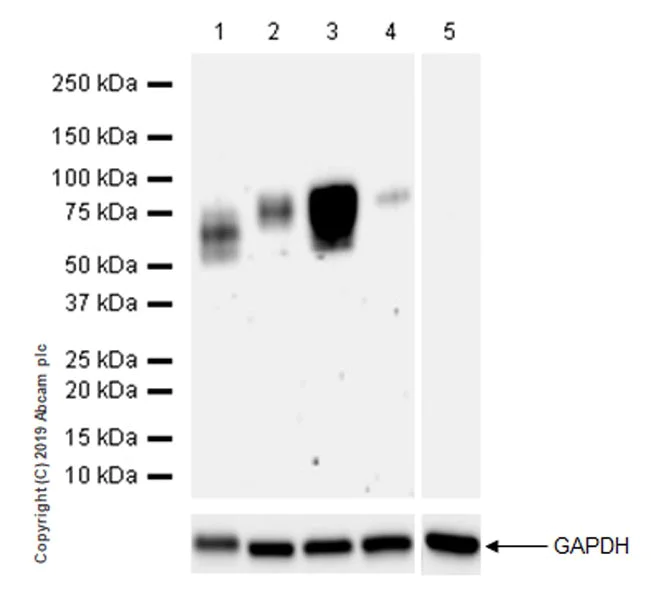

    Western blot - Anti-SIRP alpha antibody [EPR22930-163] (ab260039)

    Blocking and diluting buffer and concentration: 5% NFDM/TBST.

    There are many forms of SIRP alpha because of different glycosylation and phosphotyrosine modification.

    The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID: 9712903).

    Negative control: Jurkat (PMID: 17982459).

    Exposure time: 3 minutes

    All lanes: Western blot - Anti-SIRP alpha antibody [EPR22930-163] (ab260039) at 1/1000 dilution

    Lane 1: Human brain lysate at 20 µg

    Lane 2: U-937 (human histiocytic lymphoma monocyte) whole cell lysate at 20 µg

    Lane 3: SK-MEL-28 (human malignant melanoma) whole cell lysate at 20 µg

    Lane 4: SK-MEL-2 (human skin malignant melanoma) whole cell lysate at 20 µg

    Lane 5: Jurkat (human T-cell leukemia lymphocyte) whole cell lysate at 20 µg

    Secondary

    All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

    Predicted band size: 55 kDa

    Observed band size: 85 kDa

  • Immunocytochemistry/ Immunofluorescence - Anti-SIRP alpha antibody [EPR22930-163] (ab260039), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-SIRP alpha antibody [EPR22930-163] (ab260039)

    Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized SK-MEL-28 (human malignant melanoma melanoma) cells labeling SIRP alpha with ab260039 at 1/250 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution (Green). Confocal image showing membranous staining in SK-MEL-28 cells Negative control: Jurkat (PMID: 17982459) is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The nuclear counterstain was DAPI (Blue).

    Secondary antibody only control: Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 AlexaFluor®488 Goat anti-Rabbit secondary at 1/1000 dilution.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR22930-163] (ab260039), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR22930-163] (ab260039)

    Immunohistochemical analysis of paraffin-embedded human cerebrum tissue labeling SIRP alpha with ab260039 at 1/500 followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Positive staining on the human cerebrum (PMID: 9062191) is observed. The section was incubated with ab260039 for 15 mins at room temperature. The immunostaining staining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with hematoxylin.

    Secondary antibody only control: Ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

    Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins.

  • Western blot - Anti-SIRP alpha antibody [EPR22930-163] (ab260039), expandable thumbnail

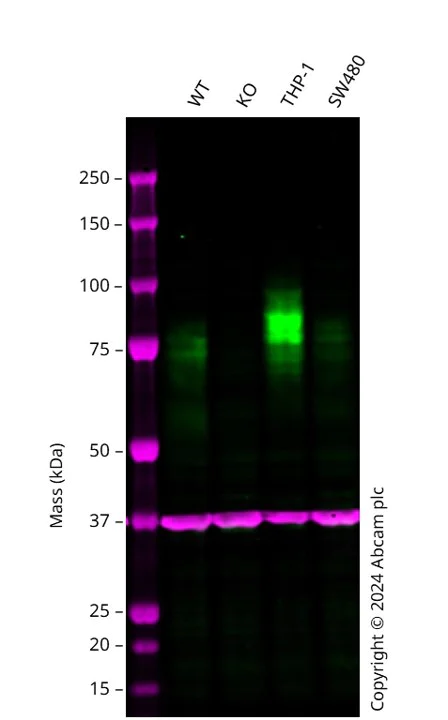

    Western blot - Anti-SIRP alpha antibody [EPR22930-163] (ab260039)

    Western blot: Anti-SIRPA antibody [EPR22930-163] (ab260039) staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (Anti-GAPDH antibody [6C5] - Loading Control ab8245) loading control staining at 1/20000 dilution, shown in magenta. In Western blot, ab260039 was shown to bind specifically to SIRPA. A band was observed at 75-85 kDa in wild-type A549 cell lysates with no signal observed at this size in SIRPA knockout cell line. To generate this image, wild-type and SIRPA knockout A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

    All lanes: Western blot - Anti-SIRP alpha antibody [EPR22930-163] (ab260039) at 1/1000 dilution

    Lane 1: Wild-type A549 cell lysate at 20 µg

    Lane 2: SIRPA knockout A549 cell lysate at 20 µg

    Lane 3: THP-1 cell lysate at 20 µg

    Lane 4: SW480 cell lysate at 20 µg

    Secondary

    All lanes: Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

    Performed under reducing conditions.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR22930-163] (ab260039), expandable thumbnail
    This image is courtesy of a customer review submitted by Christos Efstathiou

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR22930-163] (ab260039)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of formaldehyde-fixed human lung tissue staining with ab260039 at 1/250 dilution. Sections were cut at 2 µm from lung tissues and mounted on poly-L-lysin coated slides. Samples were incubated with the primary antibody with BSA 5% in PBS for 16 hours at 25°C. Then, the slides were washed in PBS pH 7.4, incubated with secondary antibody Alexa Fluor™ 568 Goat anti-rabbit IgG(H+L) at 1/250 dilution for 30 min at room temperature. Blocking was done using 5% BSA for 20 minutes at 25°C. The second step was performed using primary antibody to CD68 for 1h at room temperature. Then, the slides were washed in PBS pH 7.4, incubated with the appropriate anti mouse secondary antibody 1/250 dilution for 30 min and the DNA was counterstained with Hoechst 33342 at 1µg/ml for 30 min at room temperature. After final washes with PBS, coverslips were mounted on the top of the samples using homemade Mowiol mounting medium.

  • Flow Cytometry - Anti-SIRP alpha antibody [EPR22930-163] (ab260039), expandable thumbnail

    Flow Cytometry - Anti-SIRP alpha antibody [EPR22930-163] (ab260039)

    Flow cytometry staining of human peripheral blood mononuclear cells (PBMCs) with ab260039 (right) or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (left). PBMCs were incubated for 30 mins on ice in 1x PBS containing 10 µg/ml human IgG and 10 % normal goat serum to block FC receptors and non-specific protein-protein interaction followed by the antibody ab260039 or Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (1x 106 in 100 µl at 0.2 μg/ml (1/2,500 dilution)) for 30 mins on ice. The cells were simultaneously stained with CD14.

    The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 dilution for 30 mins on ice

    Acquisition of >30000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter. Events were gated on CD14+.
