Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)

Rabbit Recombinant Monoclonal SIRP alpha antibody. Carrier free. Suitable for WB, IHC-P, ICC/IF, Flow Cyt (Intra) and reacts with Mouse, Rat samples.

Be the first to review this product! Submit a review

Images

Western blot - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (AB288445), expandable thumbnail

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: 100% PBS
Form: Liquid
Clonality: Monoclonal

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application

Product promiseTestedExpectedPredictedNot recommended

	IP	WB	IHC-P	ICC/IF	Flow Cyt (Intra)
Human	Not recommended	Not recommended	Not recommended	Not recommended	Not recommended
Mouse	Not recommended	Tested	Tested	Expected	Tested
Rat	Not recommended	Tested	Tested	Expected	Not recommended

Not recommended
Not recommended

Species	Dilution info	Notes
Species Mouse, Rat, Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info -	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human	Dilution info -	Notes -

Expected
Expected

Species	Dilution info	Notes
Species Mouse, Rat	Dilution info Use at an assay dependent concentration.	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Rat	Dilution info -	Notes -

Tested
Tested

Species	Dilution info	Notes
Species Mouse	Dilution info 1/50	Notes -

Not recommended
Not recommended

Species	Dilution info	Notes
Species Human, Rat	Dilution info -	Notes -

Target data

See full target information Sirpa

Function

Immunoglobulin-like cell surface receptor for CD47 (PubMed:18045614). Acts as a docking protein and induces translocation of PTPN6, PTPN11 and other binding partners from the cytosol to the plasma membrane. Supports adhesion of cerebellar neurons, neurite outgrowth and glial cell attachment. May play a key role in intracellular signaling during synaptogenesis and in synaptic function. Involved in the negative regulation of receptor tyrosine kinase-coupled cellular responses induced by cell adhesion, growth factors or insulin. Mediates negative regulation of phagocytosis, mast cell activation and dendritic cell activation. CD47 binding prevents maturation of immature dendritic cells and inhibits cytokine production by mature dendritic cells (By similarity). Plays a role in antiviral immunity and limits new world arenavirus infection by decreasing virus internalization (PubMed:30726215). Receptor for THBS1 (By similarity). Interaction with THBS1 stimulates phosphorylation of SIRPA (By similarity). In response to THBS1, involved in ROS signaling in non-phagocytic cells, stimulating NADPH oxidase-derived ROS production (By similarity).

Alternative names

CD172a, Bit, Myd1, Ptpns1, Shps1, Sirp, Sirpa, Tyrosine-protein phosphatase non-receptor type substrate 1, SHP substrate 1, SHPS-1, Brain Ig-like molecule with tyrosine-based activation motifs, CD172 antigen-like family member A, Inhibitory receptor SHPS-1, MyD-1 antigen, Signal-regulatory protein alpha-1, p84, Sirp-alpha-1, mSIRP-alpha1

Recommended products

Rabbit Recombinant Monoclonal SIRP alpha antibody. Carrier free. Suitable for WB, IHC-P, ICC/IF, Flow Cyt (Intra) and reacts with Mouse, Rat samples.

Key facts

Isotype: IgG
Host species: Rabbit
Storage buffer: pH: 7.2 - 7.4
Constituents: 100% PBS
Form: Liquid
Clonality: Monoclonal
Immunogen: The exact immunogen used to generate this antibody is proprietary information.
Carrier free: Yes
Clone number: EPR24187-17
Purification technique: Affinity purification Protein A
Specificity: ICC and Flow Cyt applications do not react with Rat species.
Concentration

Storage

Shipped at conditions: Blue Ice
Appropriate short-term storage conditions: +4°C
Appropriate long-term storage conditions: +4°C

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.

This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.

Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.

This product is compatible with the Maxpar^® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar^® is a trademark of Fluidigm Canada Inc.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

SIRP alpha also known as CD172a is a transmembrane receptor protein with a mass ranging between 70-110 kDa due to glycosylation. This protein extensively expresses on the surface of myeloid cells neurons and a subset of T-cells and is part of the immunoglobulin superfamily. SIRP alpha interacts with its ligand CD47 a widely expressed glycoprotein involved in immune response regulation. Its mechanical action primarily involves signal regulation through the recruitment of SHP-1 and SHP-2 two cytoplasmic tyrosine phosphatases.

Biological function summary

SIRP alpha functions significantly in the regulation of phagocytosis acting as a "don't eat me" signal to macrophages upon binding with CD47. It does not act alone; rather it is part of a complex that recruits SHP-1 and SHP-2 leading to inhibition of dephosphorylation activities essential for engulfment processes. This regulatory mechanism is important for maintaining cellular homeostasis ensuring that healthy cells are not mistakenly destroyed by the immune system.

Pathways

SIRP alpha plays an important role in the innate immune pathways involving the regulation of phagocytosis and cell-cell adhesion. Particularly it fits into the immune checkpoint pathways where it interacts closely with proteins like CD47 and plays a role in the interaction between the immune system and cancer cells. Through these pathways SIRP alpha helps maintain balance in the immune response allowing for the recognition of self versus non-self therefore preventing autoimmunity while facilitating the clearance of pathogens.

Associated diseases and disorders

SIRP alpha is implicated in cancer and autoimmune diseases. In cancer its interaction with CD47 allows tumor cells to escape phagocytosis promoting tumor survival and growth. In autoimmune disorders dysregulated SIRP alpha expression or signaling could miscommunicate immune signals leading to the destruction of healthy tissue. Understanding the link between SIRP alpha and these conditions can reveal potential targets for therapeutic development especially using inhibitors or modulators targeting the SIRP alpha-CD47 interaction.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

10 product images

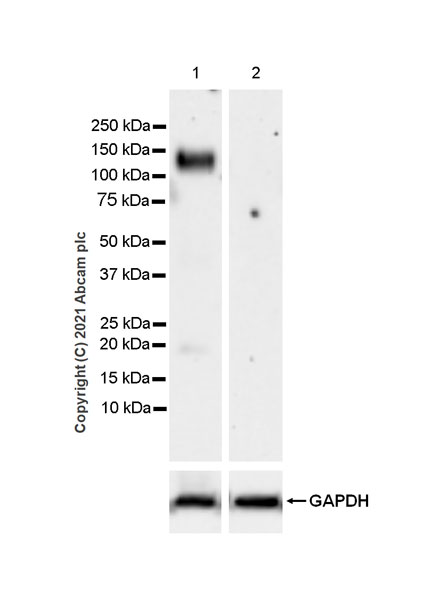

Western blot - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration: The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID: 24143245).
Negative control: A20 (PMID:9712903).
Exposure time: 70 seconds
All lanes: Western blot - Anti-SIRP alpha antibody [EPR24187-17] (Anti-SIRP alpha antibody [EPR24187-17] ab259357) at 1/1000 dilution
Lane 1: RAW264.7 (mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysate at 20 µg
Lane 2: A20 (mouse reticum sarcoma b lymphocyte) whole cell lysate at 20 µg
Secondary
All lanes: Western blot - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution
Predicted band size: 55 kDa
Observed band size: 120 kDa

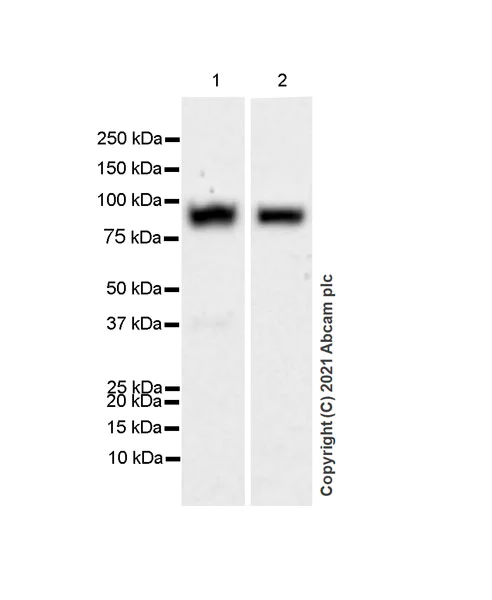

Western blot - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration: The expression profile/ molecular weight observed is consistent with what has been described in the literature (PMID:28545141).
Exposure time: Lane 1: 125 seconds; Lane 2: 3 minutes

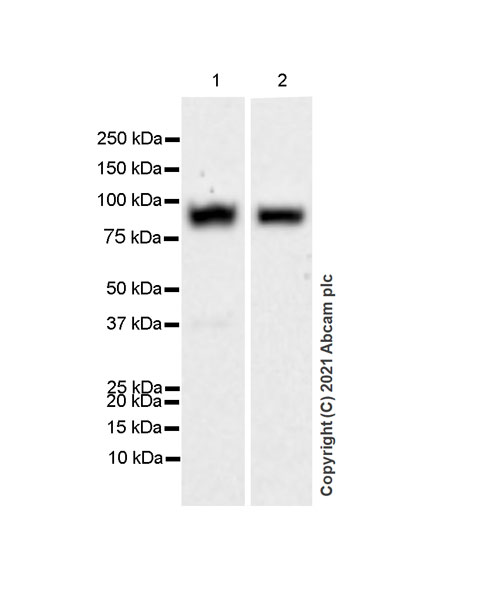

All lanes: Western blot - Anti-SIRP alpha antibody [EPR24187-17] (Anti-SIRP alpha antibody [EPR24187-17] ab259357) at 1/1000 dilution
Lane 1: Mouse cerebellum tissue lysate at 20 µg
Lane 2: Rat hippocampus tissue lysate at 20 µg
Secondary
All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/50000 dilution
Predicted band size: 55 kDa
Observed band size: 85 kDa
Flow Cytometry (Intracellular) - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.

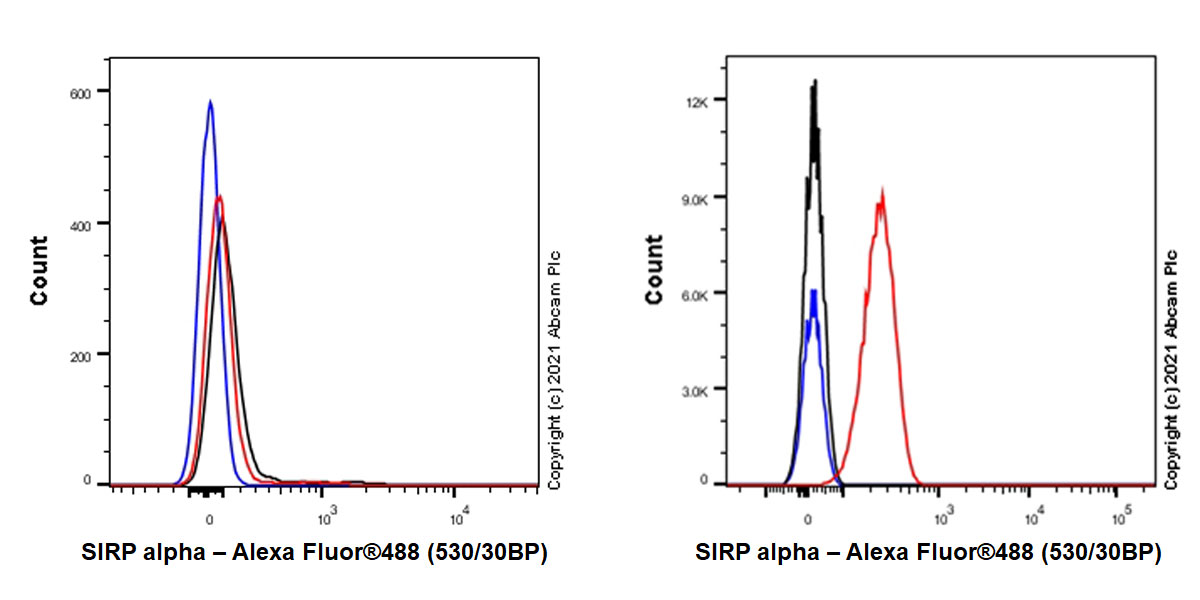

Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized A20 (Mouse reticulum sarcoma B lymphocyte, Left) / RAW 264.7 (Mouse Abelson murine leukemia virus-induced tumor macrophage, Right) cells labelling SIRP alpha with Anti-SIRP alpha antibody [EPR24187-17] ab259357 at 1/50 dilution (1ug)/ (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/2000 dilution was used as the secondary antibody.
Immunocytochemistry/ Immunofluorescence - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized RAW 264.7 cells labelling SIRP alpha with Anti-SIRP alpha antibody [EPR24187-17] ab259357 at 1/100 (4.41 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing membranous and cytoplasmic staining in RAW 264.7 cell line. Negative control: A20 (PMID: 9712903) . Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) preadsorbed at 1/1000 2 ug/ml dilution.

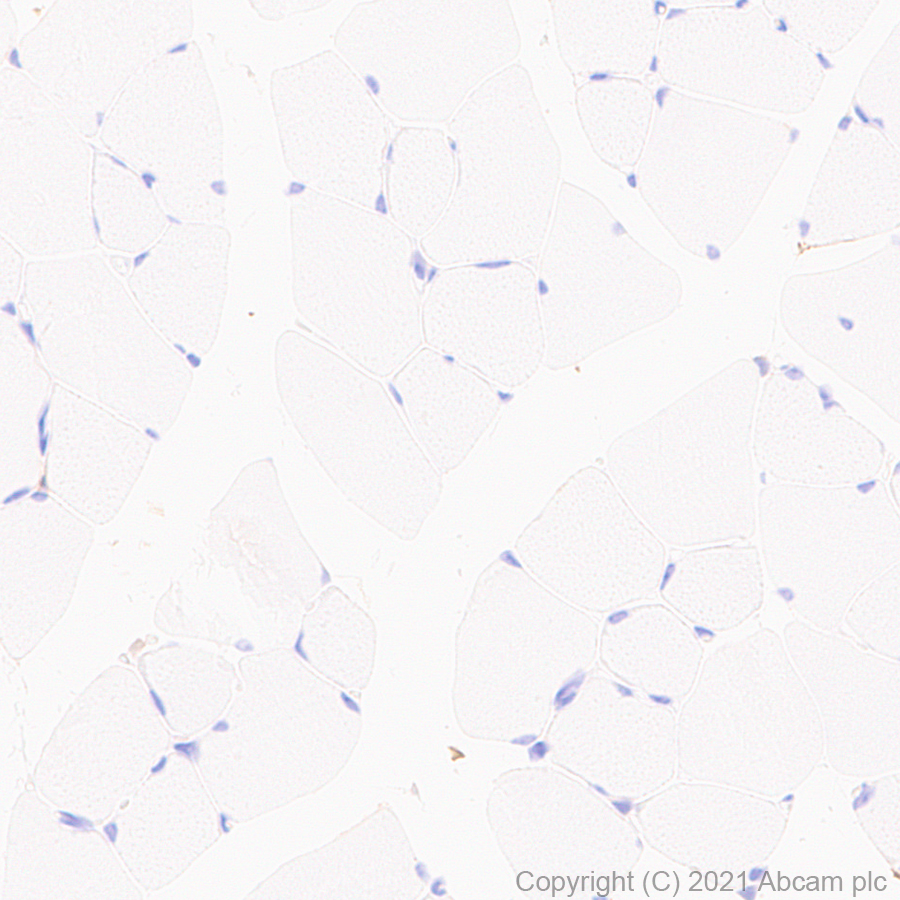

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse skeletal muscle tissue labelling SIRP alpha with Anti-SIRP alpha antibody [EPR24187-17] ab259357 at 1/1000 (0.441 ug/ml) followed by a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used. Negative control: no staining on mouse skeletal muscle. The section was incubated with Anti-SIRP alpha antibody [EPR24187-17] ab259357 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Rat spleen tissue labelling SIRP alpha with Anti-SIRP alpha antibody [EPR24187-17] ab259357 at 1/1000 (0.441 ug/ml) followed by a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used. Positive staining on rat spleen. The section was incubated with Anti-SIRP alpha antibody [EPR24187-17] ab259357 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Rat cerebrum tissue labelling SIRP alpha with Anti-SIRP alpha antibody [EPR24187-17] ab259357 at 1/1000 (0.441 ug/ml) followed by a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used. Positive staining on rat cerebrum. The section was incubated with Anti-SIRP alpha antibody [EPR24187-17] ab259357 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse lung carcinoma tissue labelling SIRP alpha with Anti-SIRP alpha antibody [EPR24187-17] ab259357 at 1/1000 (0.441 ug/ml) followed by a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used. Positive staining on mouse lung carcinoma. The section was incubated with Anti-SIRP alpha antibody [EPR24187-17] ab259357 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

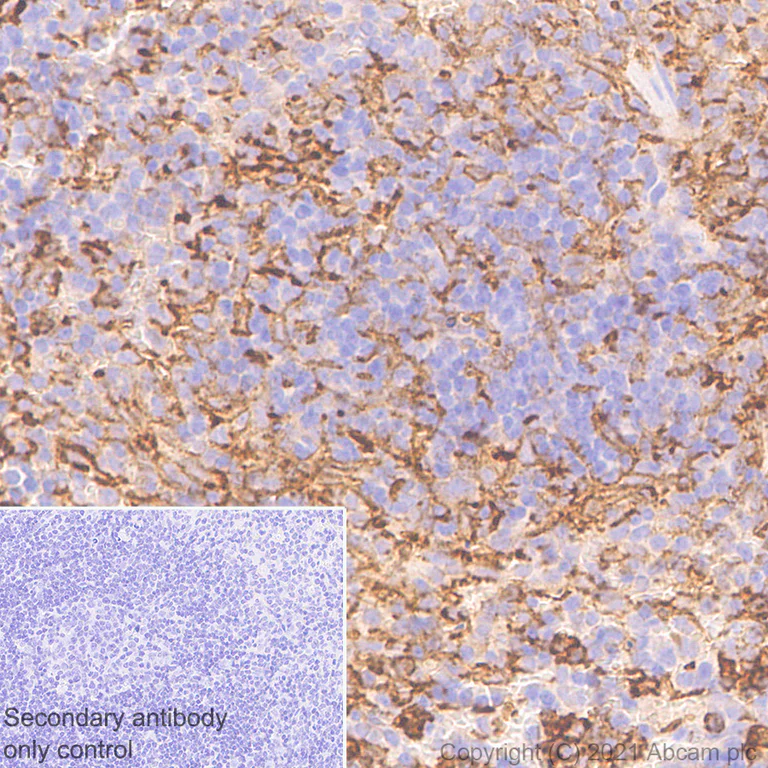

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse spleen tissue labelling SIRP alpha with Anti-SIRP alpha antibody [EPR24187-17] ab259357 at 1/1000 (0.441 ug/ml) followed by a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used. Positive staining on mouse spleen. The section was incubated with Anti-SIRP alpha antibody [EPR24187-17] ab259357 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins

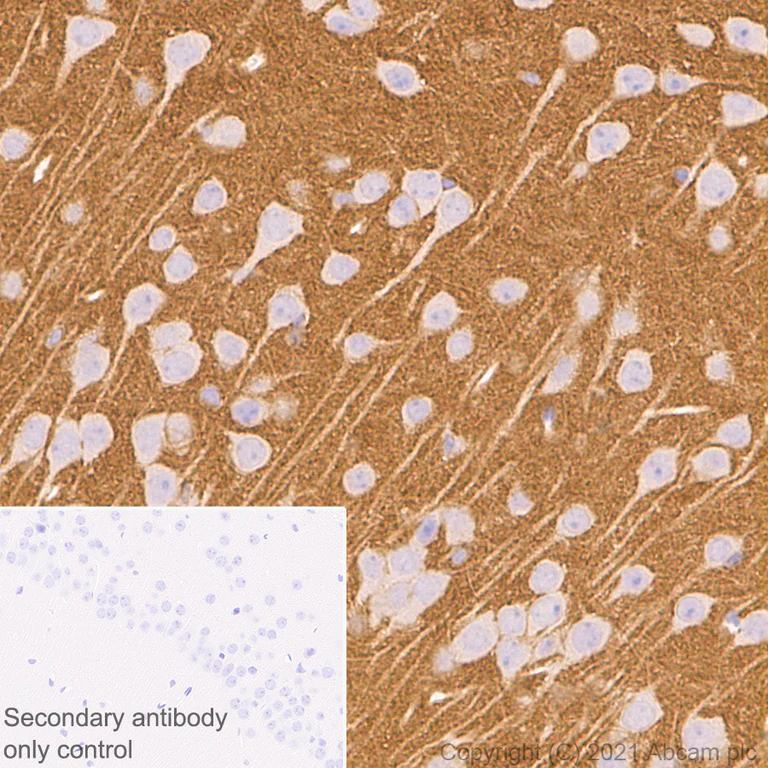

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SIRP alpha antibody [EPR24187-17] - BSA and Azide free (ab288445)
This data was developed using Anti-SIRP alpha antibody [EPR24187-17] ab259357, the same antibody clone in a different buffer formulation.
Immunohistochemical analysis of paraffin-embedded Mouse cerebrum tissue labelling SIRP alpha with Anti-SIRP alpha antibody [EPR24187-17] ab259357 at 1/1000 (0.441 ug/ml) followed by a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used. Positive staining on mouse cerebrum. The section was incubated with Anti-SIRP alpha antibody [EPR24187-17] ab259357 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.
Secondary antibody only control: Secondary antibody is a ready to use Leica DS9800 (BOND™, Polymer Refine Detection) was used.
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins
