AB313640

Anti-SLC12A1/NKCC2 antibody [EPR28176-90]

BOND RX™ Validated
20ul selling size
RabMAb
Recombinant
What is this?

Be the first to review this product! Submit a review

(0 Publication)

Rabbit Recombinant Monoclonal SLC12A1/NKCC2 antibody. Suitable for WB, IHC-P and reacts with Human, Mouse, Rat, Recombinant fragment - Mouse samples.

View Alternative Names

Nkcc2, Slc12a1, Solute carrier family 12 member 1, Bumetanide-sensitive sodium-(potassium)-chloride cotransporter 1, Kidney-specific Na-K-Cl symporter, Na-K-2Cl cotransporter 2, BSC1, mNKCC2

12 Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Immunohistochemical analysis of paraffin-embedded Human liver tissue labeling SLC12A1/NKCC2 with ab313640 at 1/2000 (0.253 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control : No staining on human liver. The section was incubated with ab313640 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling SLC12A1/NKCC2 with ab313640 at 1/2000 (0.253 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on the distal tubules of human kidney. The section was incubated with ab313640 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Immunohistochemical analysis of paraffin-embedded Mouse kidney tissue labeling SLC12A1/NKCC2 with ab313640 at 1/2000 (0.253 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on the distal tubules of mouse kidney (PMID : 20385770, PMID : 29993276). The section was incubated with ab313640 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Immunohistochemical analysis of paraffin-embedded Rat kidney tissue labeling SLC12A1/NKCC2 with ab313640 at 1/2000 (0.253 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Positive staining on the distal tubules of rat kidney. The section was incubated with ab313640 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Immunohistochemical analysis of paraffin-embedded Mouse liver tissue labeling SLC12A1/NKCC2 with ab313640 at 1/2000 (0.253 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control : No staining on mouse liver (PMID : 8621642). The section was incubated with ab313640 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Immunohistochemical analysis of paraffin-embedded Rat liver tissue labeling SLC12A1/NKCC2 with ab313640 at 1/2000 (0.253 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Negative control : No staining on rat liver. The section was incubated with ab313640 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin. Secondary antibody only control : Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

Multiplex immunohistochemistry - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

mIHC

Supplier Data

Multiplex immunohistochemistry - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Multiplex immunohistochemistry analysis of formalin/PFA-fixed paraffin-embedded mouse kidney tissue staining GLEPP1/PTPRO with ab322047 at a 1 : 2000 (0.261 ug/ml) dilution, ab313640 anti-SLC12A1 used at 1 : 2000 (0.253 ug/ml) dilution and ab254222 anti-Angiotensin Converting Enzyme 1 used at a 1 : 4000 (0.141 ug/ml) dilution.

Panel A : merged staining of anti-PTPRO (magenta; Opal™690), anti-SCL12A1 (green; Opal™520) and anti-Angiotensin Converting Enzyme 1 (gray; Opal™570) on mouse kidney.
Panel B : anti-PTPRO staining glomerulus in mouse kidney.
Panel C : anti-SCL12A1 staining distal tubules in mouse kidney.
Panel D : anti-Angiotensin Converting Enzyme 1 staining proximal tubules in mouse kidney.
Nuclear DNA was labeled with DAPI (shown in blue).

The section was incubated in three rounds of staining : in the order of ab322047, ab313640 and ab254222 for 30 mins at room temperature. Each round was followed by a separate fluorescent tyramide signal amplification system.

The immunostaining was performed on a Leica Biosystems BOND® RX instrument with an Opal™ 4-color kit. Image acquisition was performed with Leica SP8 confocal microscope.

Nuclear counter stain with DAPI.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

Supplier Data

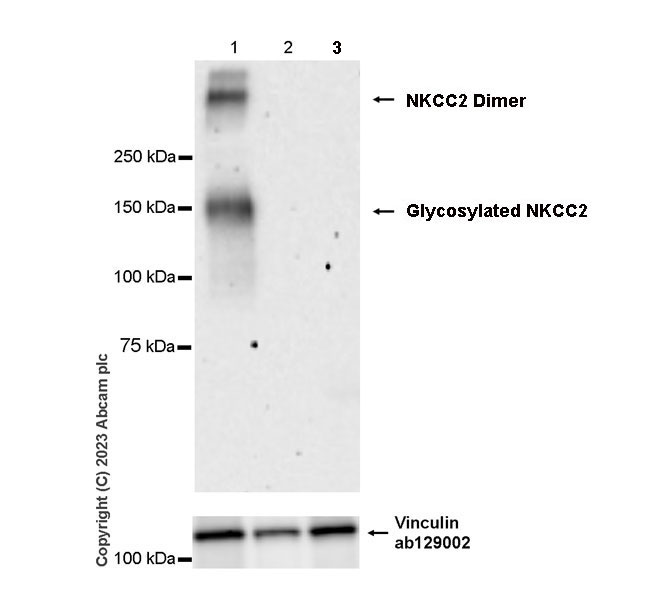

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : liver, lung (PMID : 7573490).

The expression profile/ molecular weight observed is consistent with what has been described in literature (PMID : 22759959).

Samples are non-boiled as boiling may cause protein aggregation.

In Western blot, anti- Vinculin antibody (ab129002) loading control staining at 1/10000 dilution.

All lanes:

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (ab313640) at 1/1000 dilution

Lane 1:

Human kidney tissue lysate at 20 µg

Lane 2:

Human liver tissue lysate at 20 µg

Lane 3:

Human lung tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 150 kDa,270 kDa

false

Exposure time: 180s

Supplier Data

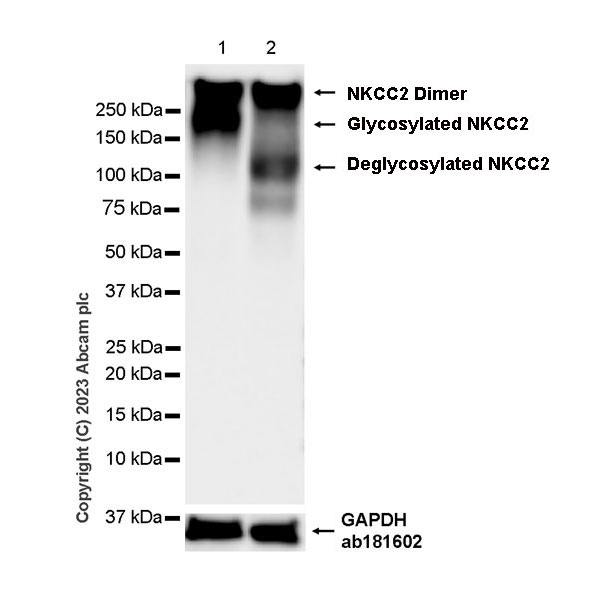

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

SLC12A1/NKCC2 is a glycoprotein of approximately 150 kDa and detected as a 135-kDa band after treated with deglycosylation treatment.

The expression profile/ molecular weight observed is consistent with what has been described in literature (PMID : 22759959).

Samples are non-boiled as boiling may cause protein aggregation.

In Western blot, anti-GAPDH antibody (ab181602) loading control staining at 1/200000 dilution.

All lanes:

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (ab313640) at 1/1000 dilution

Lane 1:

Untreated Mouse kidney tissue lysate at 20 µg

Lane 2:

Mouse kidney tissue lysate treated with Peptide:N-glycosidase F (PNGase F) at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 135 kDa,150 kDa,270 kDa

false

Exposure time: 15s

Supplier Data

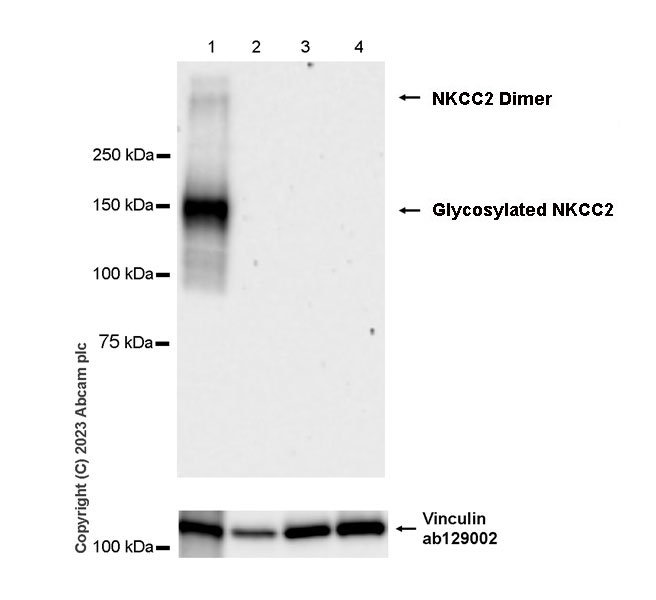

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Negative control : liver, lung, spleen (PMID : 7573490).

The expression profile/ molecular weight observed is consistent with what has been described in literature (PMID : 22759959).

In Western blot, anti- Vinculin antibody (ab129002) loading control staining at 1/10000 dilution.

Samples are non-boiled as boiling may cause protein aggregation.

All lanes:

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (ab313640) at 1/1000 dilution

Lane 1:

Mouse kidney tissue lysate at 20 µg

Lane 2:

Mouse liver tissue lysate at 20 µg

Lane 3:

Mouse spleen tissue lysate at 20 µg

Lane 4:

Mouse lung tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 150 kDa,270 kDa

false

Exposure time: 180s

Supplier Data

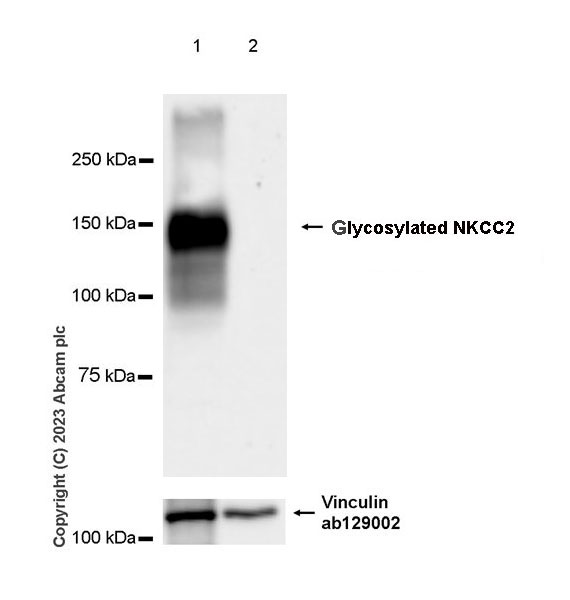

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Blocking and diluting buffer and concentration : 5% NFDM/TBST Negative control : liver (PMID : 7573490). The expression profile/ molecular weight observed is consistent with what has been described in literature (PMID : 22759959). Samples are non-boiled as boiling may cause protein aggregation. In Western blot, anti- Vinculin antibody (ab129002) loading control staining at 1/10000 dilution. Exposure time : 48 seconds

All lanes:

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (ab313640) at 1/1000 dilution

Lane 1:

Rat kidney tissue lysate at 20 µg

Lane 2:

Rat liver tissue lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 150 kDa

false

Exposure time: 48s

Supplier Data

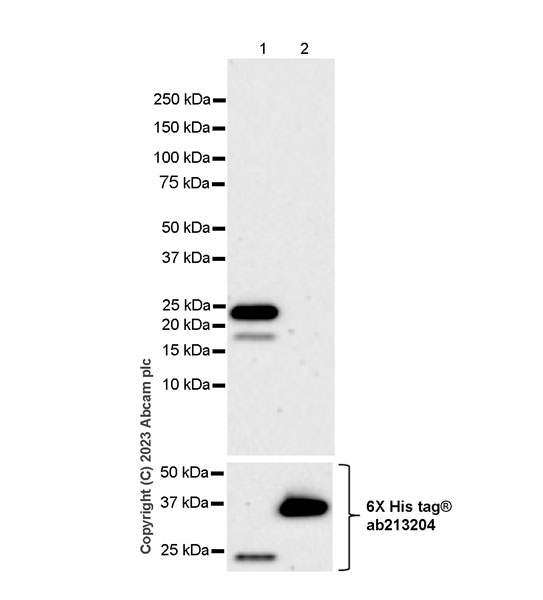

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (AB313640)

Blocking and diluting buffer and concentration : 5% NFDM/TBST This antibody does not cross-react with SLC12A2. In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution. Exposure time : 180 seconds

All lanes:

Western blot - Anti-SLC12A1/NKCC2 antibody [EPR28176-90] (ab313640) at 1/1000 dilution

Lane 1:

His-tagged mouse SLC12A1/NKCC2 fragment at 2 ng

Lane 2:

His-tagged mouse SLC12A2 fragment at 30 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 25 kDa

false

Exposure time: 180s

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR28176-90

Isotype

IgG

Carrier free

Reacts with

Human, Mouse, Rat

Applications

IHC-P, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/2000", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "" }, "Mouse": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/2000", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "" }, "Rat": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/2000", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "" }, "Recombinant fragment - Mouse": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "ICCIF-species-checked": "notRecommended", "ICCIF-species-dilution-info": "", "ICCIF-species-notes": "", "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "IP-species-checked": "notRecommended", "IP-species-dilution-info": "", "IP-species-notes": "" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

- High batch-to-batch consistency and reproducibility
- Improved sensitivity and specificity
- Long-term security of supply
- Animal-free batch production

For more information, read more on recombinant antibodies.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The SLC12A1 protein also known as the NKCC2 transporter is an important player in ion transport within renal physiology. With a molecular weight of around 120 kDa NKCC2 functions in the reabsorption of sodium potassium and chloride ions a function facilitated by its location in the thick ascending limb of the loop of Henle in the kidneys. This location and functionality are critical for renal concentration mechanisms and contribute to the maintenance of electrolyte and fluid balance.

Biological function summary

This transporter plays an essential role in concentrating urine and regulating blood pressure. NKCC2 is a part of the larger solute carrier family and does not usually form complexes with other proteins. It facilitates the trans-epithelial movement of Na+ K+ and 2Cl- ions from the lumen into renal epithelial cells which is fundamental for the creation of an osmotic gradient essential for water reabsorption.

Pathways

The SLC12A1 protein is a significant component of renal electrolyte transport and blood pressure regulation pathways. It is intricately involved in the renin-angiotensin-aldosterone system (RAAS) which regulates blood volume and systemic vascular resistance. In these pathways NKCC2's activity tightly connects it to other ion channel proteins and transporters such as ENaC which also play roles in blood pressure regulation by influencing sodium handling in the nephron.

Dysregulation of NKCC2 function can result in Bartter syndrome and hypertension. Bartter syndrome a rare disorder characterized by salt wasting and electrolyte imbalances stems from mutations affecting NKCC2. This transporter also impacts hypertension where its dysregulation can alter sodium reabsorption processes linking it to other proteins involved in blood pressure control such as the mineralocorticoid receptor. Understanding the role of NKCC2 provides insight into potential therapeutic targets for these conditions.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Renal sodium, potassium and chloride ion cotransporter that mediates the transepithelial NaCl reabsorption in the thick ascending limb and plays an essential role in the urinary concentration and volume regulation. Electrically silent transporter system.. Isoform A. High affinity, high capacity cotransporter for sodium, potassium and chloride ions, with a coupling ratio 1Na(+) : 1K(+) : 2Cl(-).. Isoform B. High affinity, low capacity cotransporter for sodium, potassium and chloride ions, with a coupling ratio 1Na(+) : 1K(+) : 2Cl(-).. Isoform F. Low affinity, low capacity cotransporter for sodium, potassium and chloride ions, with a coupling ratio 1Na(+) : 1K(+) : 2Cl(-).

See full target information Slc12a1

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
