Anti-Smad2 (phospho S255) antibody [EPR2856(N)] - BSA and Azide free

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad2 (phospho S255) antibody [EPR2856(N)] - BSA and Azide free (AB219598)

Immunohistochemical analysis of formalin fixed paraffin embedded Human transitional cell carcinoma of bladder labeling Smad2 (phospho S255) with ab188334 at 1/100 dilution and HRP Polymer for Rabbit IgG. Counterstained with Hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab188334).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad2 (phospho S255) antibody [EPR2856(N)] - BSA and Azide free (AB219598)

Immunohistochemical analysis of formalin fixed paraffin embedded Human endometrium labeling Smad2 (phospho S255) with ab188334 at 1/100 dilution and HRP Polymer for Rabbit IgG. Counterstained with Hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab188334).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IP

Supplier Data

Immunoprecipitation - Anti-Smad2 (phospho S255) antibody [EPR2856(N)] - BSA and Azide free (AB219598)

Immunoprecipitation of Hela cells treated with Okadaic acis and Calyculin A (Lane 1) or PBS (Lane 2) labeling Smad2 (phospho S255) with ab188334 at 1/50 dilution and Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1500 dilution

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab188334).

All lanes:

Immunoprecipitation - Anti-Smad2 (phospho S255) antibody [EPR2856(N)] (<a href='/en-us/products/primary-antibodies/smad2-phospho-s255-antibody-epr2856n-ab188334'>ab188334</a>)

Predicted band size: 52 kDa

false

• ChIC/CUT&RUN-seq

Supplier Data

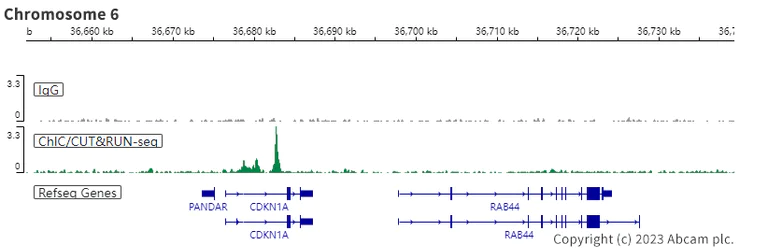

ChIC/CUT&RUN sequencing - Anti-Smad2 (phospho S255) antibody [EPR2856(N)] - BSA and Azide free (AB219598)

ChIC/CUT&RUN was performed using a pAG-MNAse at a final concentration of 700 ng/µL, 2 x 10^5 HaCaT (human skin keratinocyte) cells and 5µg of ab188334 [EPR2856(N)]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. Additional screenshots of mapped reads can be found in the Protocol booklet in the Product Protocol section. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab188334).

• Dot

Lab

Dot Blot - Anti-Smad2 (phospho S255) antibody [EPR2856(N)] - BSA and Azide free (AB219598)

Dot blot analysis of Smad2 (S255) phospho peptide (Lane 1), Smad2 non-phospho peptide (Lane 2), labelling Smad2 (S255) phospho peptide with ab188334 at a dilution of 1 : 1000 dilution (1.365ug/ml). A Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) was used as the secondary antibody at a dilution of 1 : 20,000 dilution. Blocking buffer : 5% NFDM/TBST. Dilution buffer : 5% NFDM /TBST .

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab188334).
