Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free
- BOND RX™ Validated
- RabMAb
- Recombinant
- KO Validated
- What is this?
4
(1 Review)
|
(0 Publication)
Rabbit Recombinant Monoclonal SMAD2 phospho S467 antibody. Carrier free. Suitable for ICC/IF, IP, Dot, WB, Flow Cyt (Intra), IHC-P and reacts with Mouse, Human, Rat, Synthetic peptide - Human samples.
View Alternative Names
MADH2, MADR2, SMAD2, SMAD family member 2, SMAD 2, hSMAD2, JV18-1, Mad-related protein 2, Mothers against decapentaplegic homolog 2, hMAD-2, MAD homolog 2, Mothers against DPP homolog 2
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.

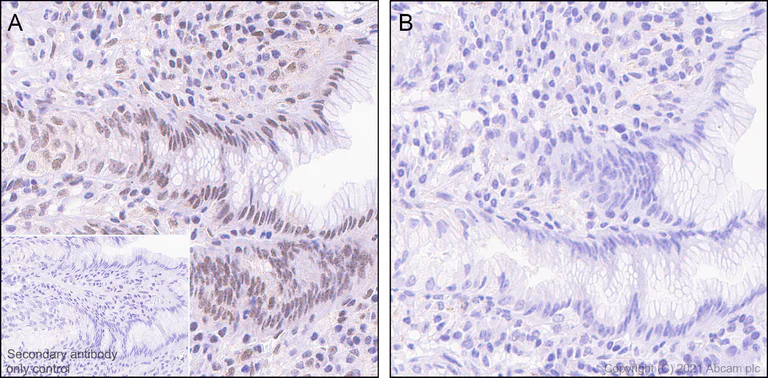

Immunohistochemical analysis of paraffin-embedded human stomach tissue labelling Smad2 (phospho S467) with ab280888 at 1/2000 (0.262 μg/ml) dilution followed by ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on human stomach without alkaline phosphatase treatment (image A). No signal was detected when tissues were treated with alkaline phosphatase (image B). The section was incubated with ab280888 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
- Flow Cyt (Intra)
Supplier Data

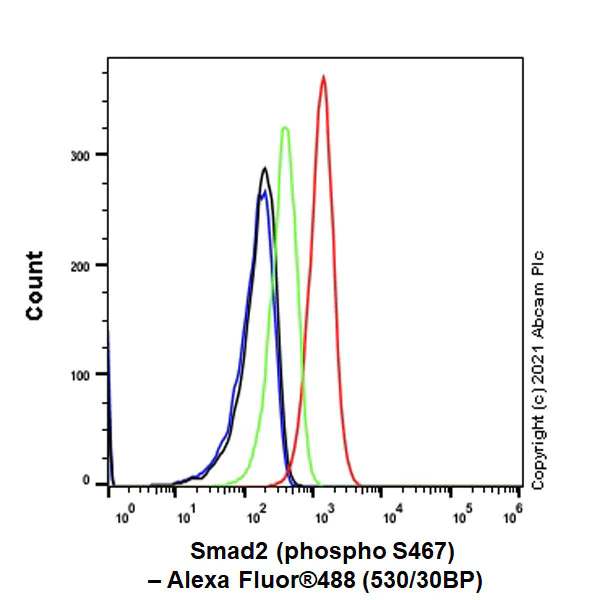

Flow Cytometry (Intracellular) - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (human cervix adenocarcinoma epithelial cell) treated with 20ng/ml TGF beta1 for 15 minutes (Red)/ Untreated control (Green) cells labelling Smad2 (phospho S467) with ab280888 at 1/5000 dilution (0.01μg)/ red (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.
The up-regulation of pSmad2 (S467) is induced by TGF-beta1 treatment in HeLa (PMID : 24959295).
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.

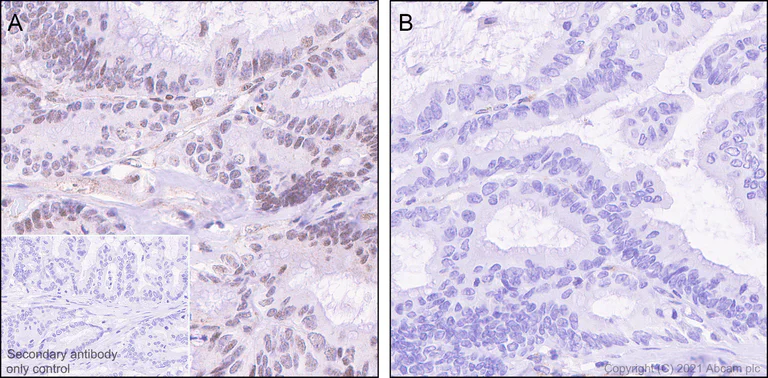

Immunohistochemical analysis of paraffin-embedded human colon carcinoma tissue labelling Smad2 (phospho S467) with ab280888 at 1/2000 (0.262 μg/ml) dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on human colon carcinoma without alkaline phosphatase treatment (image A). No signal was detected when tissues were treated with alkaline phosphatase (image B). The section was incubated with ab280888 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
- ICC/IF
Supplier Data

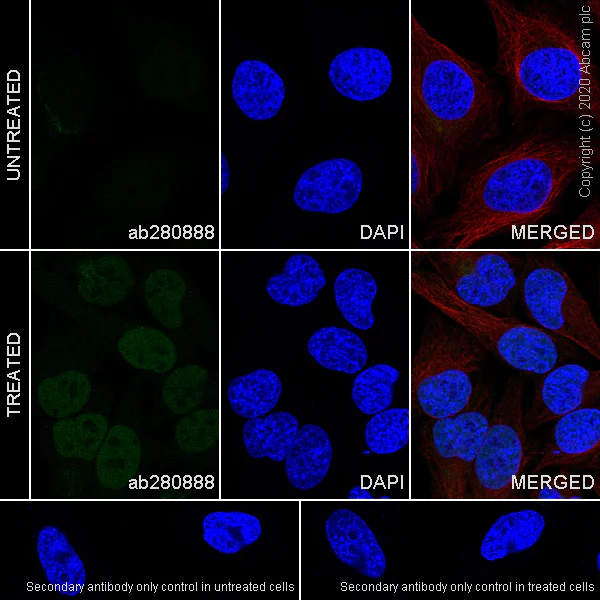

Immunocytochemistry/ Immunofluorescence - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa cells labelling Smad2 (phospho S467) with ab280888 at 1/50 (10.48 μg/ml) dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green).
Confocal image showing mainly nuclear staining in HeLa cells treated with TGF-β1 (20 ng/ml) for 15 mins.
ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The nuclear counterstain was DAPI (Blue).
Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.
- IP
Supplier Data

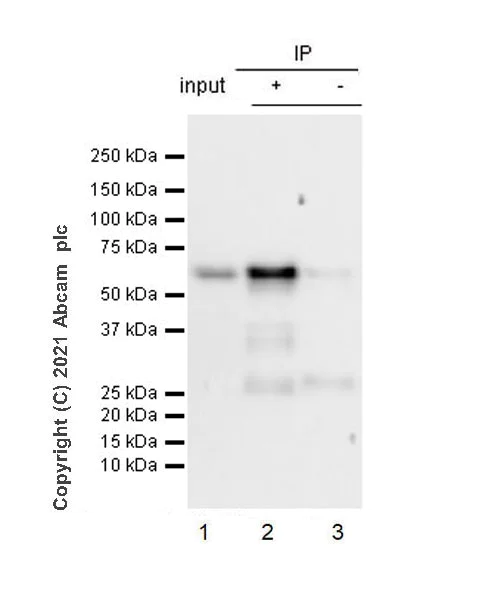

Immunoprecipitation - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Smad2 (phospho S467) was immunoprecipitated from 0.35 mg HeLa (human cervix adenocarcinoma epithelial cell) treated with 20ng/ml TGF beta1 for 15 minutes, whole cell lysate 10 μg with ab280888 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab280888 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.
Lane 1 : HeLa treated with 20ng/ml TGF beta1 for 15 minutes, whole cell lysate 10 μg
Lane 2 : ab280888 IP in HeLa treated with 20ng/ml TGF beta1 for 15 minutes whole cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab280888 in HeLa treated with 20ng/ml TGF beta1 for 15 minutes whole cell lysate
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 15 seconds.
All lanes:
Immunoprecipitation - Anti-Smad2 (phospho S467) antibody [EPR23681-40] (<a href='/en-us/products/primary-antibodies/smad2-phospho-s467-antibody-epr23681-40-ab280888'>ab280888</a>)
Predicted band size: 52 kDa
Observed band size: 60 kDa
false
- Flow Cyt (Intra)
Supplier Data

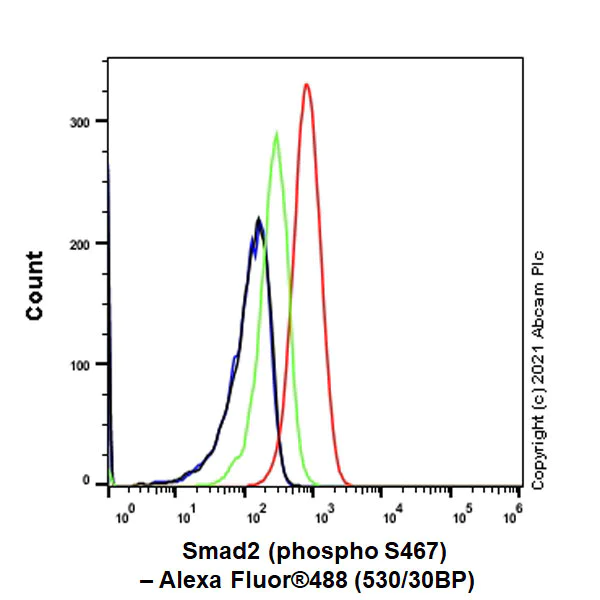

Flow Cytometry (Intracellular) - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Intracellular flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized NIH/3T3 (mouse embryonic fibroblast) treated with 20ng/ml TGF beta1 for 15 minutes (Red)/ Untreated control (Green) cells labelling Smad2 (phospho S467) with ab280888 at 1/5000 dilution (0.01μg)/ red (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue).
Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.
The up-regulation of pSmad2 (S467) is induced by TGF-beta1 treatment in NIH/3T3 (PMID : 24347165).
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.

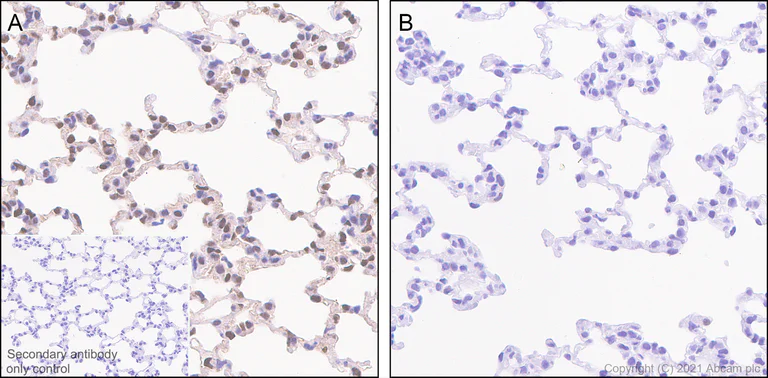

Immunohistochemical analysis of paraffin-embedded rat lung tissue labelling Smad2 (phospho S467) with ab280888 at 1/2000 (0.262 μg/ml) dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on rat lung without alkaline phosphatase treatment (image A). No signal was detected when tissues were treated with alkaline phosphatase (image B). The section was incubated with ab280888 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
- ICC/IF
Supplier Data

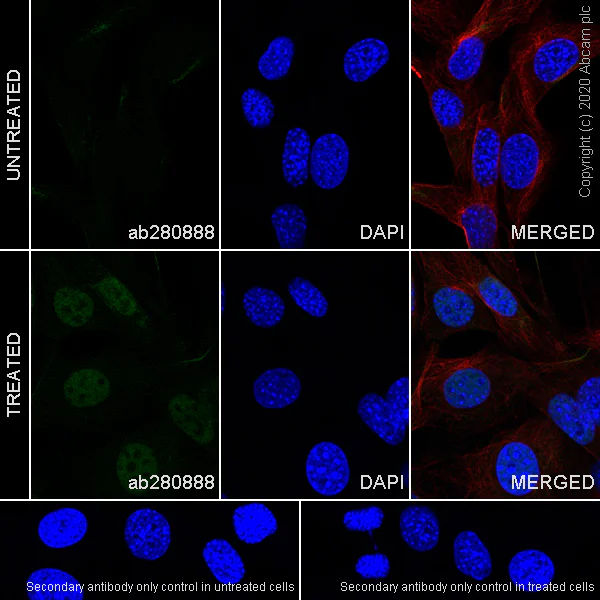

Immunocytochemistry/ Immunofluorescence - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized NIH/3T3 cells labelling Smad2 (phospho S467) with ab280888 at 1/50 (10.48 μg/ml) dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green).
Confocal image showing mainly nuclear staining in NIH/3T3 cells treated with TGF-β1 (20 ng/ml) for 15 mins.
ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).
Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.

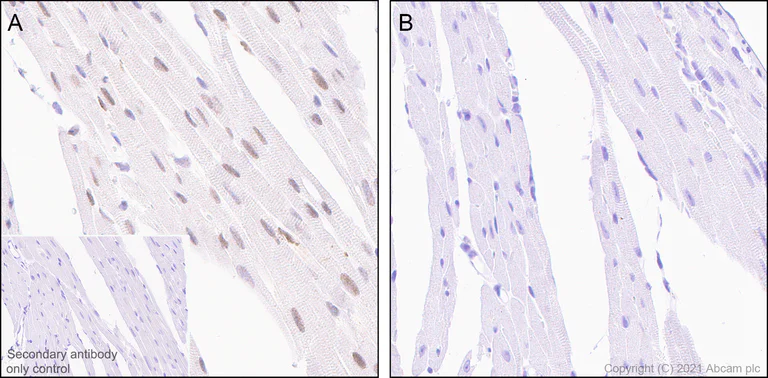

Immunohistochemical analysis of paraffin-embedded mouse cardiac muscle tissue labelling Smad2 (phospho S467) with ab280888 at 1/2000 (0.262 μg/ml) dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on mouse cardiac muscle without alkaline phosphatase treatment (image A). No signal was detected when tissues were treated with alkaline phosphatase (image B). The section was incubated with ab280888 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Counterstained with Hematoxylin.
Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).
Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
- IP
Supplier Data

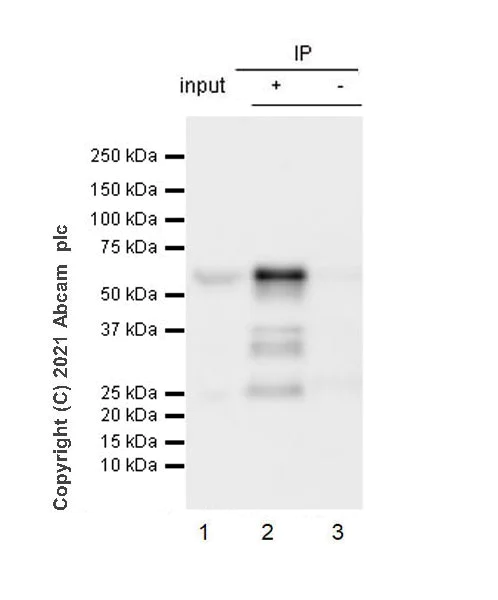

Immunoprecipitation - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Smad2 (phospho S467) was immunoprecipitated from 0.35 mg NIH/3T3 (mouse embryonic fibroblast) treated with 20ng/ml TGF beta1 50 μM MG-132 for 15 minutes, whole cell lysate 10 μg with ab280888 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab280888 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.
Lane 1 : NIH/3T3 treated with 20ng/ml TGF beta1 50 μM MG-132 for 15 minutes, whole cell lysate 10 μg
Lane 2 : ab280888 IP in NIH/3T3 treated with 20ng/mltreated with 20ng/ml TGF beta1 50 μM MG-132 for 15 minutes, whole cell lysate
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab280888 in NIH/3T3 treated with 20ng/mltreated with 20ng/ml TGF beta1 50 μM MG-132 for 15 minutes, whole cell lysate
Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 32 seconds.
All lanes:
Immunoprecipitation - Anti-Smad2 (phospho S467) antibody [EPR23681-40] (<a href='/en-us/products/primary-antibodies/smad2-phospho-s467-antibody-epr23681-40-ab280888'>ab280888</a>)
Predicted band size: 52 kDa
Observed band size: 60 kDa
false
- WB
Lab

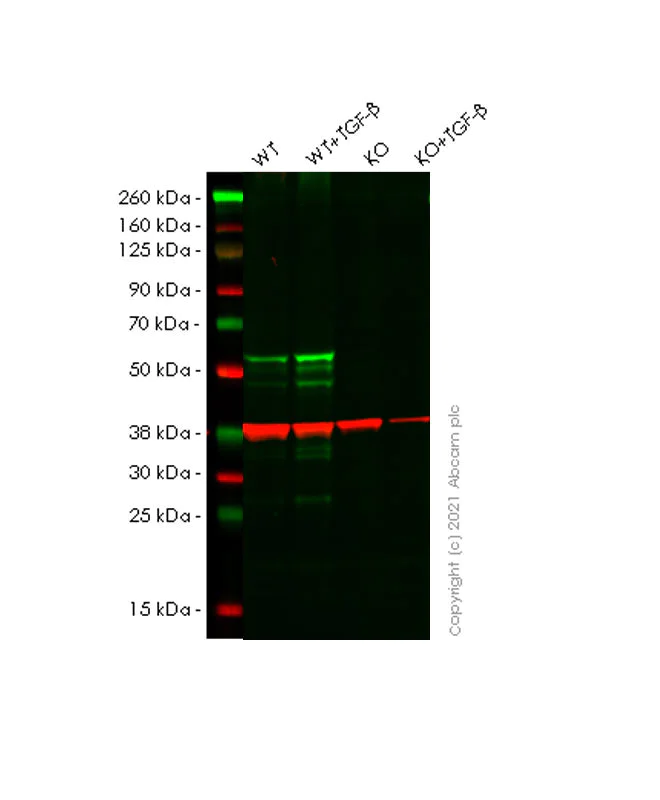

Western blot - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration : Intercept® (TBS) Blocking Buffer diluted with an equal volume of 0.1% TBS
Lanes 1-4 : Merged signal (red and green). Green - ab280888 observed at 60 kDa. Red - loading control ab8245 (Mouse monoclonal [6C5] to GAPDH) observed at 36 kDa.
ab280888 Anti-Smad2 (phospho S467) antibody [EPR23681-40] was shown to specifically react with Smad2 in wild-type HeLa cells. Loss of signal was observed when knockout cell line ab255430 (knockout cell lysate (ab263833) was used. Wild-type and Smad2 knockout samples were subjected to SDS-PAGE.
ab280888 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated at 4℃ overnight at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 10000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-Smad2 (phospho S467) antibody [EPR23681-40] (<a href='/en-us/products/primary-antibodies/smad2-phospho-s467-antibody-epr23681-40-ab280888'>ab280888</a>) at 1/1000 dilution
Lane 1:
Wild-type HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate at 20 µg
Lane 2:
Wild-type HeLa (human cervix adenocarcinoma epithelial cell) treated with 20 ng/ml TGF beta1 for 15 minutes, whole cell lysate at 20 µg
Lane 2:
Western blot - Human SMAD2 knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-smad2-knockout-hela-cell-line-ab255430'>ab255430</a>)
Lane 3:
Smad2 knockout HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate at 20 µg
Lane 4:
Smad2 knockout HeLa (human cervix adenocarcinoma epithelial cell), treated with 20 ng/ml TGF beta1 for 15 minutes, whole cell lysate at 20 µg
Secondary
All lanes:
Goat Anti-Rabbit IgG H&L (IRDye® 800CW) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) and Goat Anti-Mouse IgG H&L (IRDye® 680RD) (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-irdye-680rd-preadsorbed-ab216776'>ab216776</a>) at 1/20000 dilution
Predicted band size: 52 kDa
Observed band size: 60 kDa
false
- WB
Lab

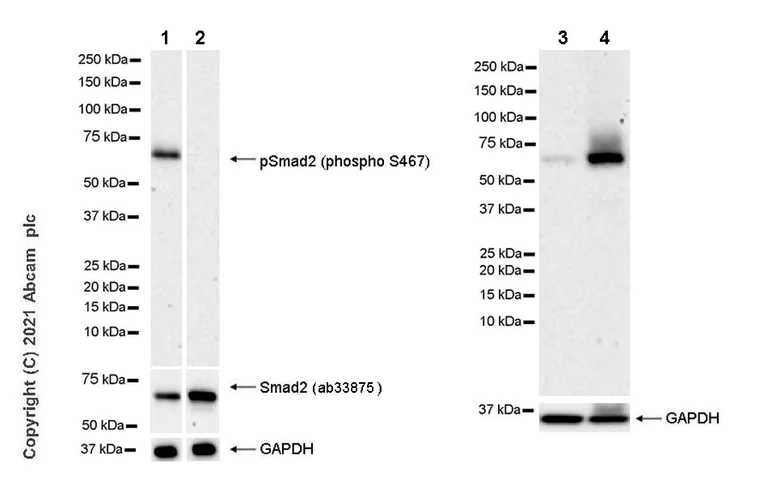

Western blot - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration : 5% NFDM/TBST
The molecular weight observed is consistent with what has been described in the literature. (PMID : 24959295)
The up-regulation of pSmad2 (S467) is induced by TGF-beta1 treatment in HeLa (PMID : 24959295).
Exposure time : 3 minutes.
All lanes:
Western blot - Anti-Smad2 (phospho S467) antibody [EPR23681-40] (<a href='/en-us/products/primary-antibodies/smad2-phospho-s467-antibody-epr23681-40-ab280888'>ab280888</a>) at 1/1000 dilution
Lane 1:
HeLa (human cervix adenocarcinoma epithelial cell) treated with 20ng/ml TGF beta1 for 15 minutes, whole cell lysate at 10 µg
Lane 2:
HeLa treated with 20ng/ml TGF beta1 for 15 minutes whole cell lysate (phosphatase treated membrane) at 10 µg
Lane 3:
HeLa whole cell lysate at 20 µg
Lane 4:
HeLa treated with 20ng/ml TGF beta1 for 15 minutes, whole cell lysate at 20 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 52 kDa
Observed band size: 60 kDa
false
- WB
Lab

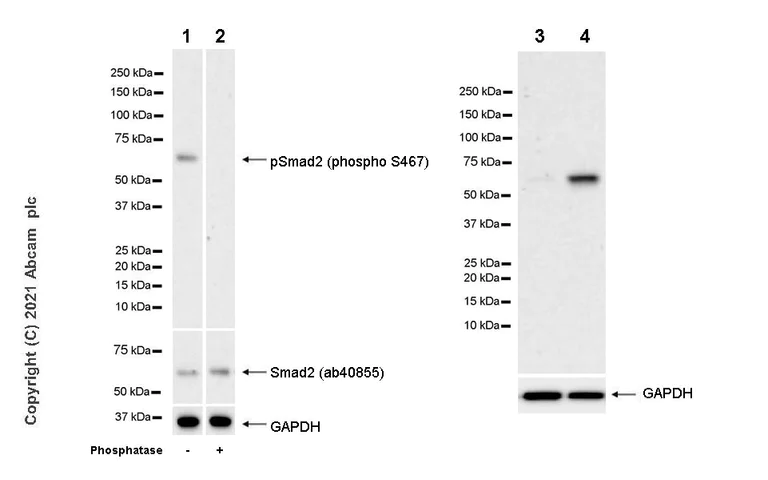

Western blot - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Blocking and diluting buffer and concentration : 5% NFDM/TBST
The molecular weight observed is consistent with what has been described in the literature. (PMID : 24347165)
The up-regulation of pSmad2 (S467) is induced by TGF-beta1 treatment in NIH/3T3 (PMID : 24347165)
Exposure time : 3 minutes.
All lanes:
Western blot - Anti-Smad2 (phospho S467) antibody [EPR23681-40] (<a href='/en-us/products/primary-antibodies/smad2-phospho-s467-antibody-epr23681-40-ab280888'>ab280888</a>) at 1/1000 dilution
Lane 1:
NIH/3T3 (mouse embryonic fibroblast) treated with 20ng/ml TGF beta1 and 50 μM MG-132 for 15 minutes, whole cell lysate at 10 µg
Lane 2:
NIH/3T3 treated with 20ng/ml TGF beta1 and 50 μM MG-132 for 15 minutes whole cell lysate (phosphatase treated membrane) at 10 µg
Lane 3:
NIH/3T3 whole cell lysate at 10 µg
Lane 4:
NIH/3T3 treated with 20ng/ml TGF beta1 and 50 μM MG-132 for 15 minutes, whole cell lysate at 10 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 52 kDa
Observed band size: 60 kDa
false
- Dot
Supplier Data
Dot Blot - Anti-Smad2 (phospho S467) antibody [EPR23681-40] - BSA and Azide free (AB280897)
This data was developed using ab280888, the same antibody clone in a different buffer formulation.
Dot blot analysis of Smad2 (phospho S467) using ab280888 at 1 : 1000 (0.524 μg/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) at 1 : 100,000 dilution.
Lane 1 : Smad2 peptide (aa 458-467)
Lane 2 : Smad2 (phospho S465) peptide (aa 458-467)
Lane 3 : Smad2 (phospho aa S465/S467) peptide (aa 458-467)
Lane 4 : Smad2 (phospho S467) peptide (aa 458-467)
Exposure time : 3 minutes
Blocking and diluting buffer and concentration : 5% NFDM/TBST
Related conjugates and formulations (7)
-
603 Alexa Fluor® 568
Alexa Fluor® 568 Anti-Smad2 (phospho S467) antibody [EPR23681-40]
-
Anti-Smad2 (phospho S467) antibody [EPR23681-40]
-
519 Alexa Fluor® 488
Alexa Fluor® 488 Anti-Smad2 (phospho S467) antibody [EPR23681-40]
-
660 APC
APC Anti-Smad2 (phospho S467) antibody [EPR23681-40]
-
578 PE
PE Anti-Smad2 (phospho S467) antibody [EPR23681-40]
-
617 Alexa Fluor® 594
Alexa Fluor® 594 Anti-Smad2 (phospho S467) antibody [EPR23681-40]
-
565 Alexa Fluor® 555
Alexa Fluor® 555 Anti-Smad2 (phospho S467) antibody [EPR23681-40]
Reactivity data
Product details
ab280897 is the carrier-free version of ab280888.
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Conjugation ready
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.
Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.
Compatibility
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Supplementary information
This supplementary information is collated from multiple sources and compiled automatically.
Biological function summary
Smad2 acts as an intracellular mediator for TGF-β signaling a pathway important for regulating cell proliferation differentiation and apoptosis. Smad2 typically functions as part of a heteromeric complex with Smad4 another key player in TGF-β signaling. Upon activation phosphorylated Smad2 combines with Smad4 to form a complex that translocates into the nucleus. This complex then binds to specific DNA sequences to regulate the transcription of target genes involved in processes such as cell growth inhibition and extracellular matrix production.
Pathways
Smad2 is integral to the TGF-β and activin receptor signaling pathways. These pathways are essential in controlling cell growth and immune responses. Smad2 interacts with other proteins such as Smad3 in addition to Smad4 to modulate gene expression effectively. The interaction between Smad2 and these proteins ensures precise control of cellular responses to external stimuli emphasizing its pivotal role in maintaining cellular homeostasis.
