Anti-Smad3 antibody [EP568Y] - BSA and Azide free

20 product images

•

  Immunocytochemistry/ Immunofluorescence - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Clone EP568Y (ab157372) has been successfully conjugated by Abcam. This image was generated using Anti-Smad3 antibody [EP568Y] (Alexa Fluor® 488). Please refer to Alexa Fluor® 488 Anti-Smad3 antibody [EP568Y] ab204257 for protocol details.

  Alexa Fluor® 488 Anti-Smad3 antibody [EP568Y] ab204257 staining Smad3 in HepG2 cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with Alexa Fluor® 488 Anti-Smad3 antibody [EP568Y] ab204257 at 1/100 dilution (shown in green) and Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  This product also gave a positive signal under the same testing conditions in HepG2 cells fixed with 100% methanol (5 min).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human liver tissue labelling Smad3 with purified Anti-Smad3 antibody [EP568Y] ab40854 at 1/2000. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. A prediluted HRP-polymer conjugated anti-rabbit IgG was used as the secondary antibody. Counterstained with Hematoxylin.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Smad3 antibody [EP568Y] ab40854).

•

  Flow Cytometry (Intracellular) - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Intracellular Flow Cytometry analysis of HT-29 cells labelling Smad3 with purified Anti-Smad3 antibody [EP568Y] ab40854 at 1/210 (red). Cells were fixed with 2% paraformaldehyde. A FITC-conjugated goat anti-rabbit IgG (1/150) was used as the secondary antibody. Green - Isotype control, rabbit monoclonal IgG.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Smad3 antibody [EP568Y] ab40854).

•

  This image is courtesy of a customer review submitted by Francesco Elia Marino

  Immunocytochemistry/ Immunofluorescence - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  This ICC/IF data was generated using the same anti-Smad3 antibody clone, EP568Y, in a different buffer formulation (cat# Anti-Smad3 antibody [EP568Y] ab40854).


  Anti-Smad3 antibody [EP568Y] ab40854 staining Smad3 in human granulosa cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with paraformaldehyde, permeabilized with ethanol and triton and blocked for 1 hour at 26°C. Samples were incubated with primary antibody (1/200) for 16 hours at 4°C. An undiluted IRDye^® 800CW-conjugated goat anti-rabbit IgG (H+L) polyclonal was used as the secondary antibody. Left - negative control (4 replicates).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Clone EP568Y (ab157372) has been successfully conjugated by Abcam. This image was generated using Anti-Smad3 antibody [EP568Y] (Alexa Fluor® 647). Please refer to Alexa Fluor® 647 Anti-Smad3 antibody [EP568Y] ab204461 for protocol details.

  Alexa Fluor® 647 Anti-Smad3 antibody [EP568Y] ab204461 staining Smad3 in HepG2 cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with Alexa Fluor® 647 Anti-Smad3 antibody [EP568Y] ab204461 at 1/100 dilution (shown in red) and Alexa Fluor® 488 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

  This product also gave a positive signal under the same testing conditions in HepG2 cells fixed with 100% methanol (5 min).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Clone EP568Y (ab157372) has been successfully conjugated by Abcam. This image was generated using Anti-Smad3 antibody [EP568Y] (PE). Please refer to PE Anti-Smad3 antibody [EP568Y] ab208751 for protocol details.

  PE Anti-Smad3 antibody [EP568Y] ab208751 staining Smad3 in HepG2 cells. The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4°C with PE Anti-Smad3 antibody [EP568Y] ab208751 at 1/1000 dilution (pseudocolored in green) and Alexa Fluor® 647 Anti-Tubulin antibody [YOL1/34] - Microtubule Marker ab195884, Rat monoclonal to Tubulin (Alexa Fluor^® 647), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

  Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

•

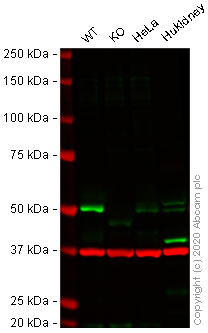

  Western blot - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Smad3 antibody [EP568Y] ab40854).


  Lanes 1 - 4: Merged signal (red and green). Green - Anti-Smad3 antibody [EP568Y] ab40854 observed at 48 kDa. Red - loading control, Anti-GAPDH antibody [6C5] - Loading Control ab8245 (Mouse anti-GAPDH antibody [6C5]) observed at 37kDa.

  Anti-Smad3 antibody [EP568Y] ab40854 was shown to react with Smad3 in western blot. Membranes were blocked in 3% milk in TBS-T (0.1% Tween^®) before incubation with Anti-Smad3 antibody [EP568Y] ab40854 and Anti-GAPDH antibody [6C5] - Loading Control ab8245 (Mouse anti-GAPDH antibody [6C5]) overnight at 4°C at a 1 in 1000 Dilution and a 1 in 20000 dilution respectively. Blots were incubated with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

  All lanes: Western blot - Anti-Smad3 antibody [EP568Y] (Anti-Smad3 antibody [EP568Y] ab40854) at 1/1000 dilution

  Lane 1: Wild-type A549 (Human lung carcinoma cell line) whole cell lysate at 20 µg

  Lane 2: Western blot - Human SMAD3 knockout A549 cell lysate (Human SMAD3 knockout A549 cell lysate ab264513)

  Lane 3: HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

  Lane 4: Human Kidney cell lysate at 20 µg

  Performed under reducing conditions.

  Predicted band size: 48 kDa

  Observed band size: 50 kDa

•

  Immunocytochemistry/ Immunofluorescence - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Immunocytochemsitry/Immunofluorescence analysis of HepG2 cells labelling Smad3 (green) with purified Anti-Smad3 antibody [EP568Y] ab40854 at 1/2000. Cells were fixed with 4% paraformaldehyde. An Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/200) was used as the secondary antibody. Counterstained with DAPI (blue).

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Smad3 antibody [EP568Y] ab40854).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human prostate carcinoma tissue labelling unpurified Anti-Smad3 antibody [EP568Y] ab40854 at 1/100 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Smad3 antibody [EP568Y] ab40854).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human breast carcinoma tissue labelling unpurified Anti-Smad3 antibody [EP568Y] ab40854.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Smad3 antibody [EP568Y] ab40854).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human gastric adenocarcinoma tissue labelling unpurified Anti-Smad3 antibody [EP568Y] ab40854.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Smad3 antibody [EP568Y] ab40854).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human glioma tissue labelling unpurified Anti-Smad3 antibody [EP568Y] ab40854.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Smad3 antibody [EP568Y] ab40854).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human lung adenocarcinoma tissue labelling unpurified Anti-Smad3 antibody [EP568Y] ab40854.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Smad3 antibody [EP568Y] ab40854).

•

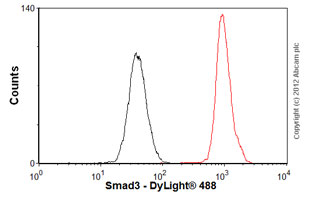

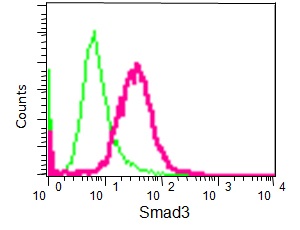

  Flow Cytometry (Intracellular) - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  Overlay histogram showing HCT116 cells stained with unpurified Anti-Smad3 antibody [EP568Y] ab40854 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (Anti-Smad3 antibody [EP568Y] ab40854, 1/100 dilution) for 30 min at 22°C. The secondary antibody used was DyLight^® 488 goat anti-rabbit IgG (H+L) (Goat Anti-Rabbit IgG H&L (DyLight® 488) preadsorbed ab96899) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Smad3 antibody [EP568Y] ab40854).

•

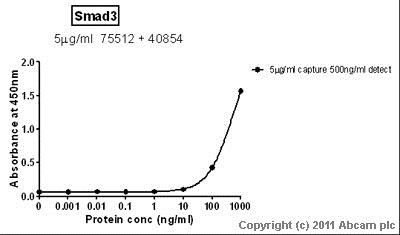

  Sandwich ELISA - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  This ELISA data was generated using the same anti-Smad3 antibody clone, EP568Y, in a different buffer formulation (cat# Anti-Smad3 antibody [EP568Y] ab40854).


  Standard Curve for Smad3 (Analyte: Smad3 protein (His tag) (Recombinant Human Smad3 protein ab89353, unpurified)); dilution range 1pg/ml to 1μg/ml using Capture Antibody Mouse monoclonal [AF9F7] to Smad3 (ab75512) at 5μg/ml and Detector Antibody Rabbit monoclonal [EP568Y] to Smad3 (Anti-Smad3 antibody [EP568Y] ab40854) at 0.5μg/ml.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  This IHC data was generated using the same anti-Smad3 antibody clone, EP568Y, in a different buffer formulation (cat# Anti-Smad3 antibody [EP568Y] ab40854).


  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colonic adenocarcinoma tissue labelling Smad3 with unpurified Anti-Smad3 antibody [EP568Y] ab40854.

•

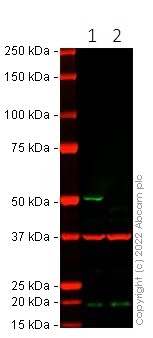

  Western blot - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Smad3 antibody [EP568Y] ab40854).

  False colour image of Western blot: Anti-Smad3 antibody [EP568Y] staining at 1/1000 dilution, shown in green; Mouse anti-GAPDH antibody [6C5] (Anti-GAPDH antibody [6C5] - Loading Control ab8245) loading control staining at 1/20000 dilution, shown in red. In Western blot, Anti-Smad3 antibody [EP568Y] ab40854 was shown to bind specifically to Smad3. A band was observed at 50 kDa in wild-type A549 cell lysates with no signal observed at this size in SMAD3 CRISPR-Cas9 edited cell line Human SMAD3 knockout A549 cell line ab277888 (CRISPR-Cas9 edited cell lysate None). The band observed in the CRISPR-Cas9 edited lysate lane below 50 kDa is likely to represent a truncated form of Smad3. This has not been investigated further and the functional properties of the gene product have not been determined. To generate this image, wild-type and SMAD3 CRISPR-Cas9 edited A549 cell lysates were analysed. First, samples were run on an SDS-PAGE gel then transferred onto a nitrocellulose membrane. Membranes were blocked in 3 % milk in TBS-0.1 % Tween^® 20 (TBS-T) before incubation with primary antibodies overnight at 4 °C. Blots were washed four times in TBS-T, incubated with secondary antibodies for 1 h at room temperature, washed again four times then imaged. Secondary antibodies used were Goat anti-Rabbit IgG H&L 800CW and Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution.

  All lanes: Western blot - Anti-Smad3 antibody [EP568Y] (Anti-Smad3 antibody [EP568Y] ab40854) at 1/1000 dilution

  Lane 1: Wild-type A549 cell lysate at 20 µg

  Lane 2: Western blot - Human SMAD3 knockout A549 cell line (Human SMAD3 knockout A549 cell line ab277888)

  Lane 2: SMAD3 CRISPR-Cas9 edited A549 cell lysate at 20 µg

  Secondary

  Lanes 1 - 2: Goat anti-Rabbit IgG H&L 800CW at 1/20000 dilution

  Lanes 1 - 2: Goat anti-Mouse IgG H&L 680RD at 1/20000 dilution

  Performed under reducing conditions.

  Predicted band size: 48 kDa

  Observed band size: 50 kDa

•

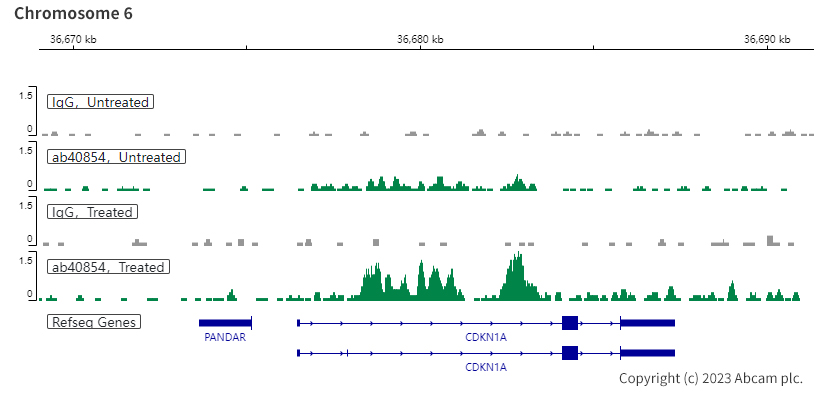

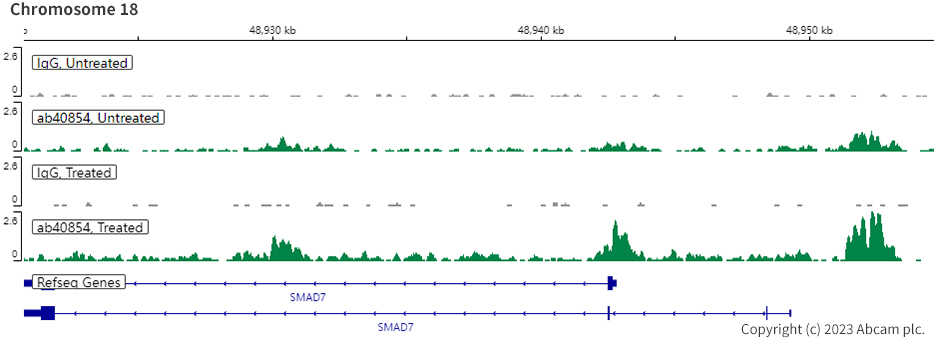

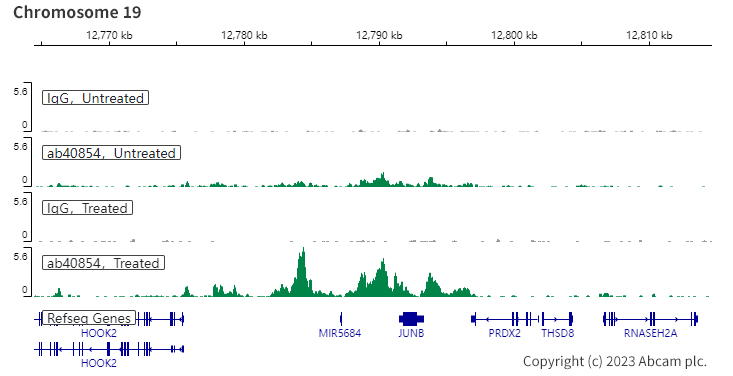

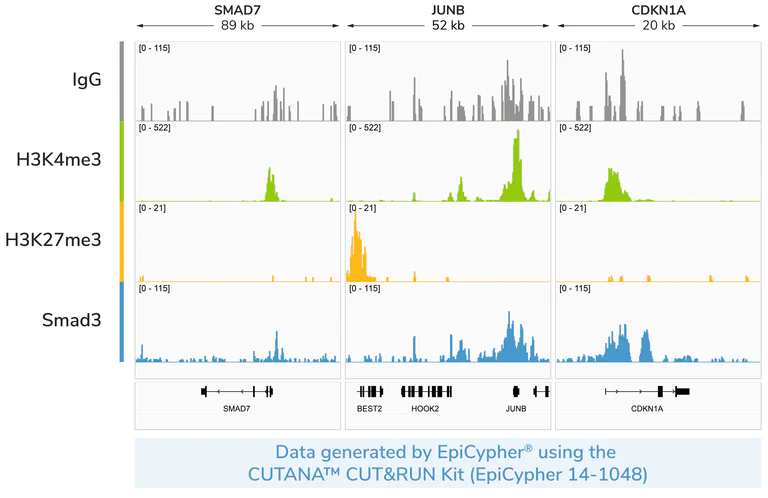

  ChIC/CUT&RUN sequencing - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Smad3 antibody [EP568Y] ab40854).
  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 A549 (Human lung carcinoma cell line) cells treated with hTGF-β1 (7 ng/mL 1 h) and 5 µg of Anti-Smad3 antibody [EP568Y] ab40854 [EP568Y]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

•

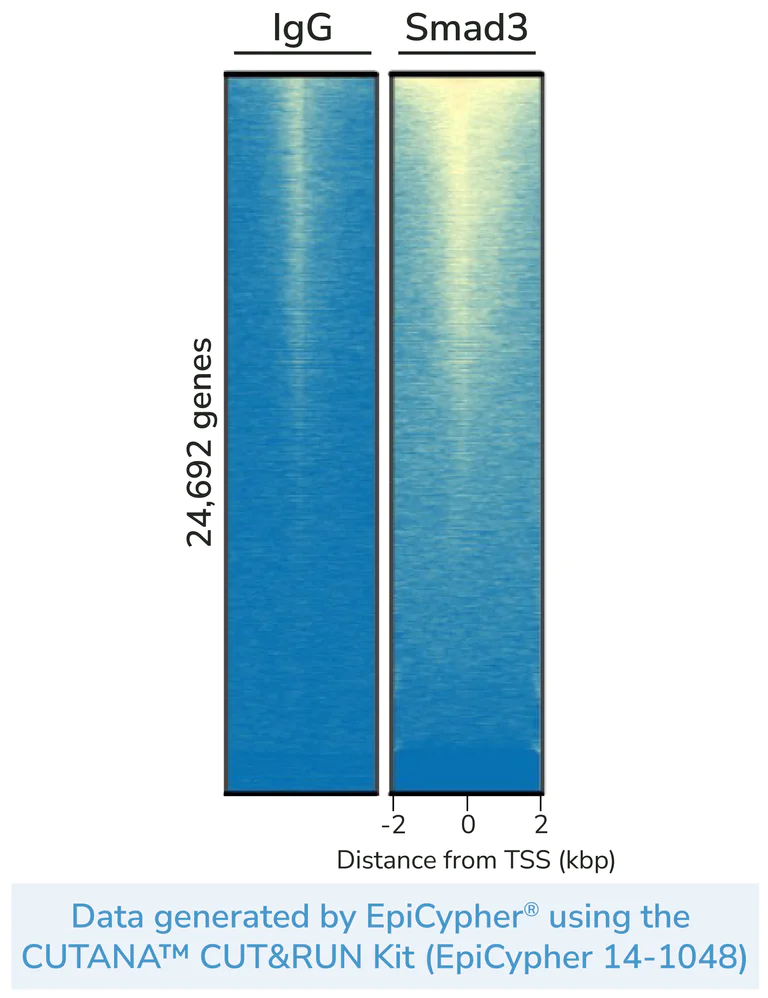

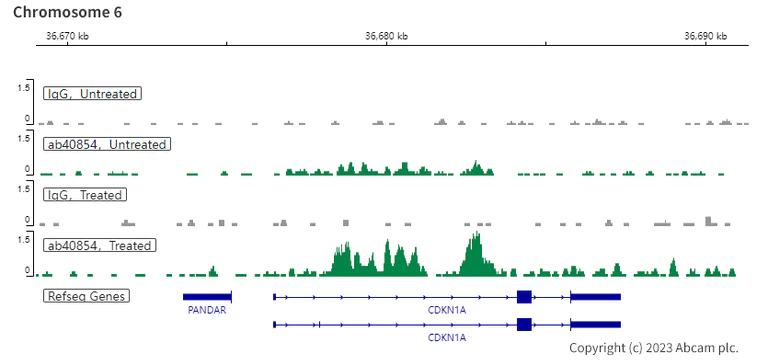

  ChIC/CUT&RUN sequencing - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Smad3 antibody [EP568Y] ab40854).
  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 A549 (Human lung carcinoma cell line) cells treated with hTGF-β1 (7 ng/mL 1 h) and 5 µg of Anti-Smad3 antibody [EP568Y] ab40854 [EP568Y]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

•

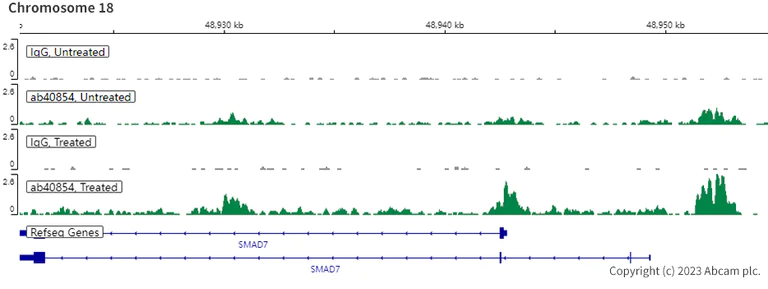

  ChIC/CUT&RUN sequencing - Anti-Smad3 antibody [EP568Y] - BSA and Azide free (ab157372)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Smad3 antibody [EP568Y] ab40854).
  ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700ng/mL, 2.5 x 10^5 A549 (Human lung carcinoma cell line) cells treated with hTGF-β1 (7 ng/mL 1 h) and 5 µg of Anti-Smad3 antibody [EP568Y] ab40854 [EP568Y]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.
