Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free

• ICC/IF

Unknown

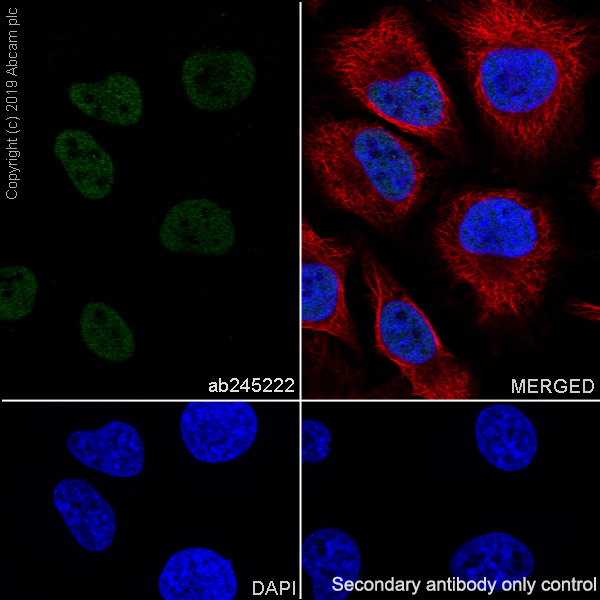

Immunocytochemistry/ Immunofluorescence - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling SMARCD1 with ab245222 at 1/50 dilution, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution (Green). Confocal image showing nuclear staining in HeLa cells. ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab245222).

• Flow Cyt (Intra)

Unknown

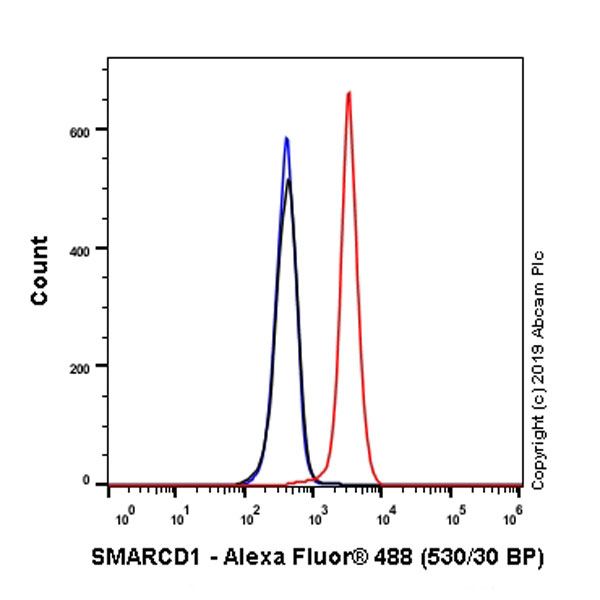

Flow Cytometry (Intracellular) - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized HeLa (Human cervix adenocarcinoma epithelial cell) cells labelling SMARCD1 with ab245222 at 1/500 dilution (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab245222).

• IP

Supplier Data

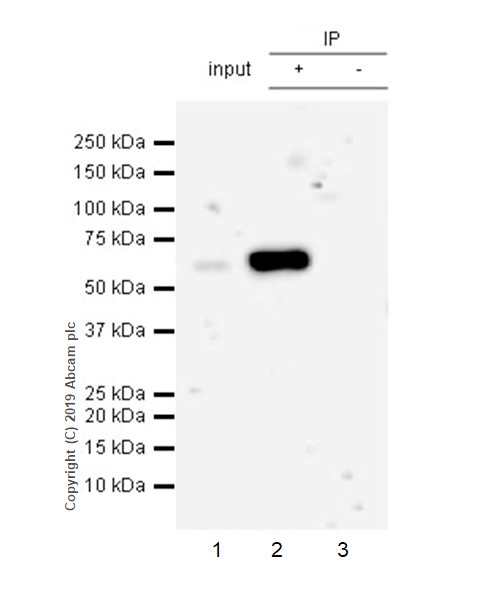

Immunoprecipitation - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

SMARCD1 was immunoprecipitated from 0.35 mg of HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate whole cell lysate with ab245222 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab245222 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used as secondary antibody at 1/5000 dilution.

Lane 1 : HeLa whole cell lysate 10 (Input).
Lane 2 : ab245222 IP in HeLa whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab245222 in HeLa whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 3 minutes.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab245222).

All lanes:

Immunoprecipitation - Anti-SMARCD1 antibody [EPR23170-71] (<a href='/en-us/products/primary-antibodies/smarcd1-antibody-epr23170-71-ab245222'>ab245222</a>)

Predicted band size: 58 kDa

Observed band size: 58 kDa

false

• Flow Cyt (Intra)

Unknown

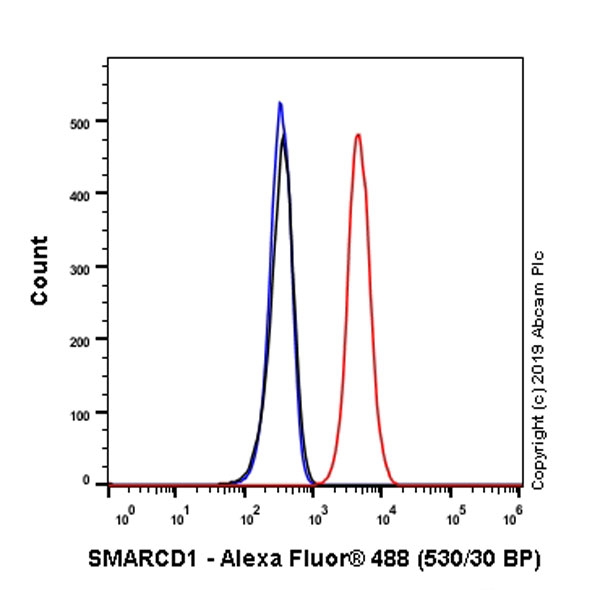

Flow Cytometry (Intracellular) - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized NIH/3T3 (Mouse embryonic fibroblast) cells labelling SMARCD1 with ab245222 at 1/500 dilution (Red) compared with a Rabbit monoclonal IgG (ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab245222).

• ICC/IF

Unknown

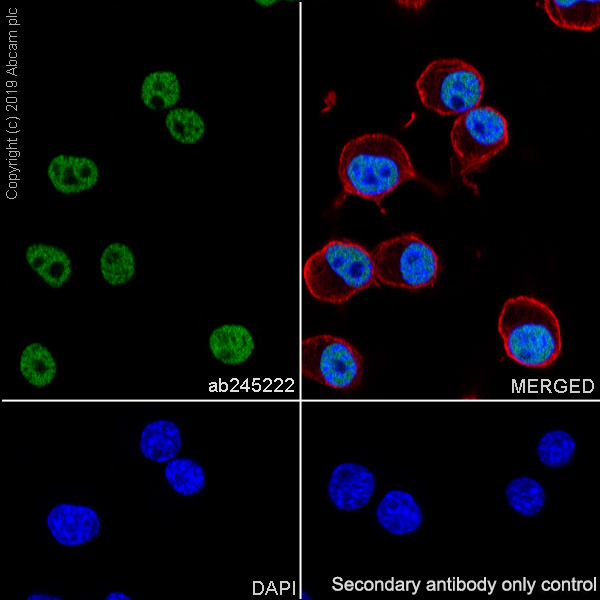

Immunocytochemistry/ Immunofluorescence - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized Neuro-2a (mouse neuroblastoma neuroblast) cells labelling SMARCD1 with ab245222 at 1/50 dilution, followed by ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution (Green). Confocal image showing nuclear staining in Neuro-2a cells. ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab245222).

• IP

Supplier Data

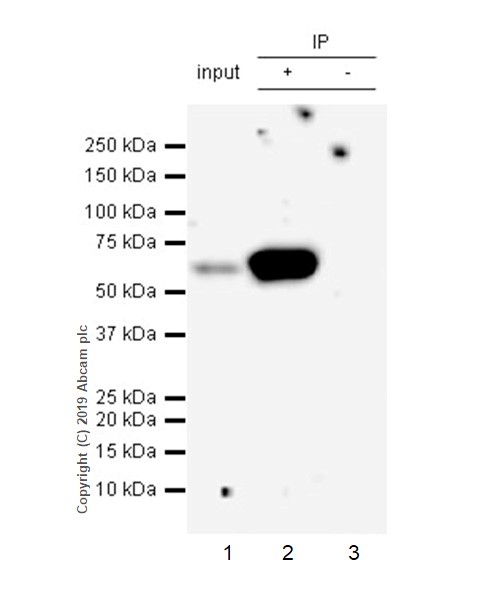

Immunoprecipitation - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

SMARCD1 was immunoprecipitated from 0.35 mg of NIH/3T3 (Mouse embryonic fibroblast) whole cell lysate with ab245222 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab245222 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used as secondary antibody at 1/5000 dilution.

Lane 1 : NIH/3T3 whole cell lysate 10 (Input).
Lane 2 : ab245222 IP in NIH/3T3 whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab245222 in NIH/3T3 whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.
Exposure time : 3 minutes.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab245222).

All lanes:

Immunoprecipitation - Anti-SMARCD1 antibody [EPR23170-71] (<a href='/en-us/products/primary-antibodies/smarcd1-antibody-epr23170-71-ab245222'>ab245222</a>)

Predicted band size: 58 kDa

Observed band size: 58 kDa

false

• WB

Lab

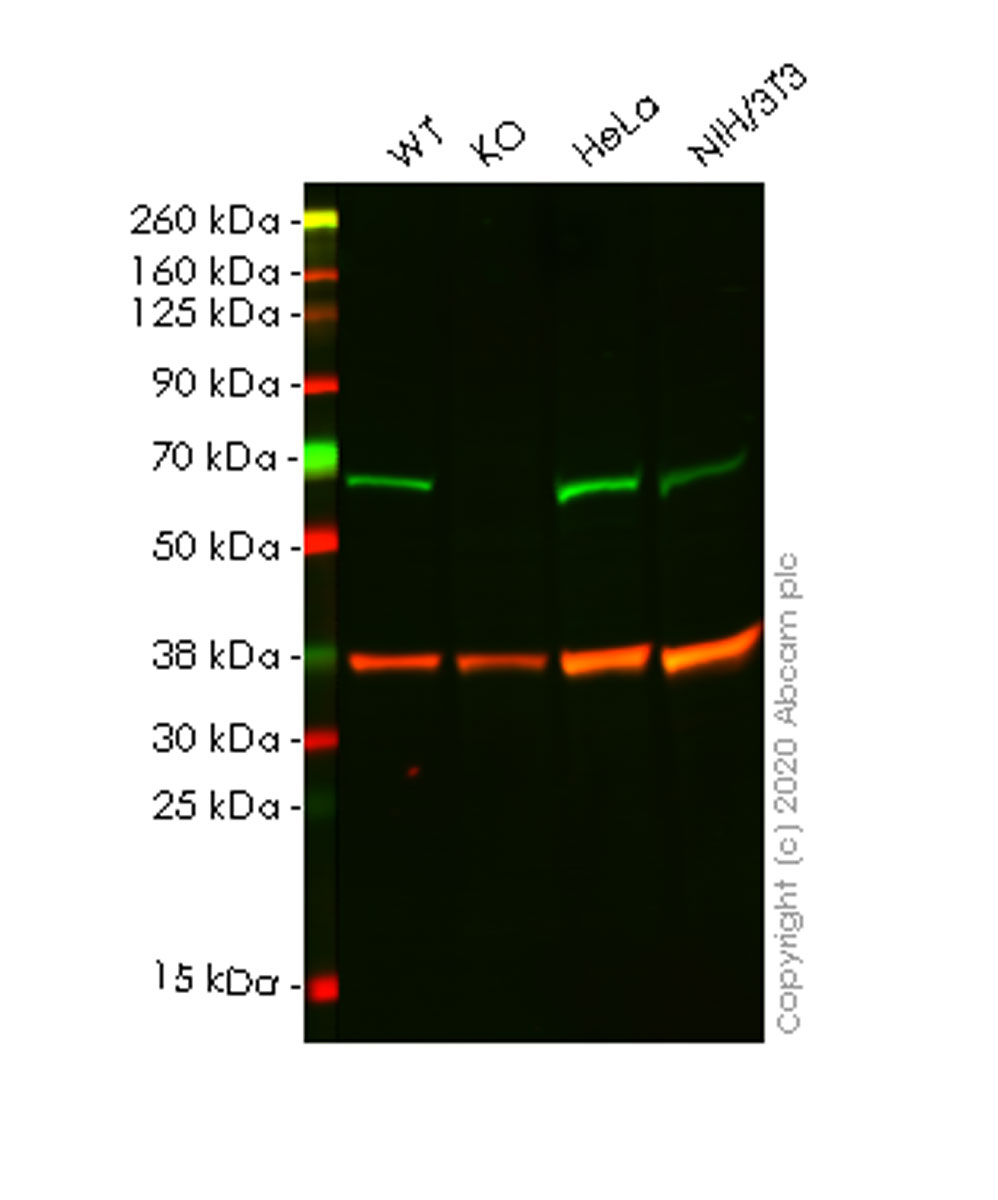

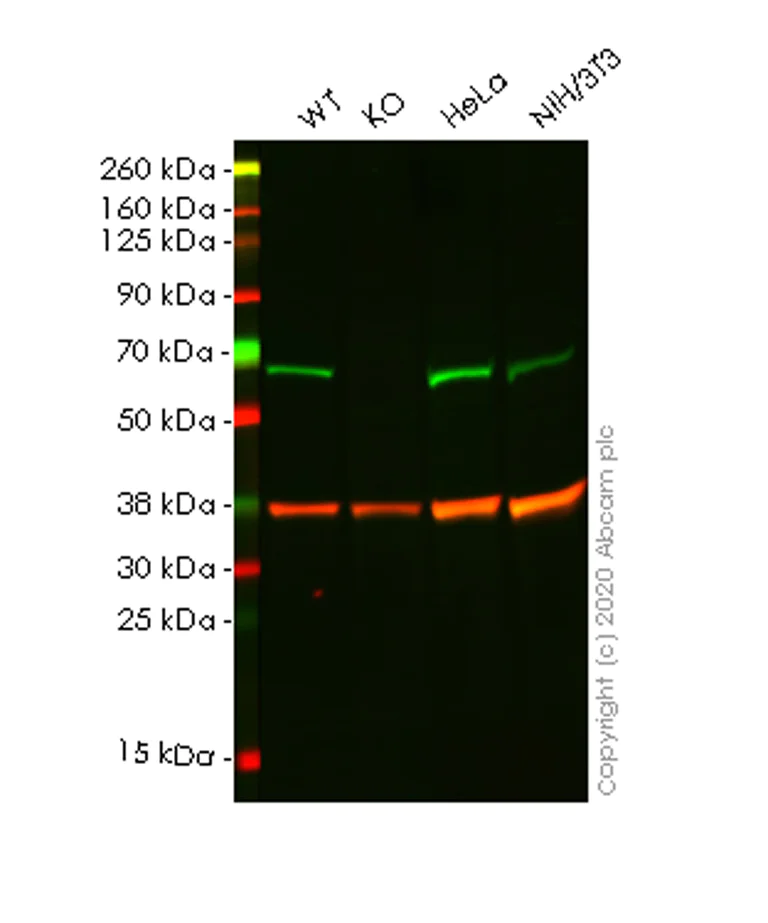

Western blot - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

This data was developed using ab245222, the same antibody clone in a different buffer formulation.

Lanes 1-4 : Merged signal (red and green). Green - ab245222 observed at 58 kDa. Red - loading control ab8245 observed at 36 kDa.

ab245222 Anti-SMARCD1 antibody [EPR23170-71] was shown to specifically react with SMARCD1 in wild-type HEK-293T cells. Loss of signal was observed when knockout cell line ab266458 (knockout cell lysate ab259143) was used. Wild-type and SMARCD1 knockout samples were subjected to SDS-PAGE. ab245222 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-SMARCD1 antibody [EPR23170-71] (<a href='/en-us/products/primary-antibodies/smarcd1-antibody-epr23170-71-ab245222'>ab245222</a>) at 1/1000 dilution

Lane 1:

Wild-type HEK-293T (Human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 20 µg

Lane 2:

SMARCD1 knockout HEK-293T (Human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 20 µg

Lane 2:

Western blot - Human SMARCD1 knockout HEK-293T cell line (<a href='/en-us/products/cell-lines/human-smarcd1-knockout-hek-293t-cell-line-ab266458'>ab266458</a>)

Lane 3:

HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

Lane 4:

NIH/3T3 (Mouse embryonic fibroblast cell line) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-irdye-800cw-preadsorbed-ab216773'>ab216773</a>) at 1/10000 dilution

Predicted band size: 58 kDa

Observed band size: 58 kDa

false

• ChIC/CUT&RUN-seq

Lab

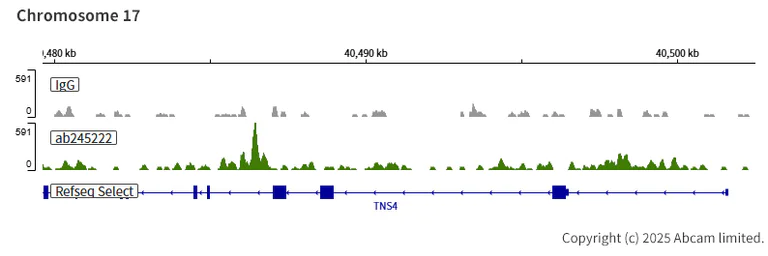

ChIC/CUT&RUN sequencing - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (,ab245222).

ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 HeLa (human cervical adenocarcinoma epithelial cell) cells and 5 µg of ab245222 [EPR23170]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown.
The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

• ChIC/CUT&RUN-seq

Lab

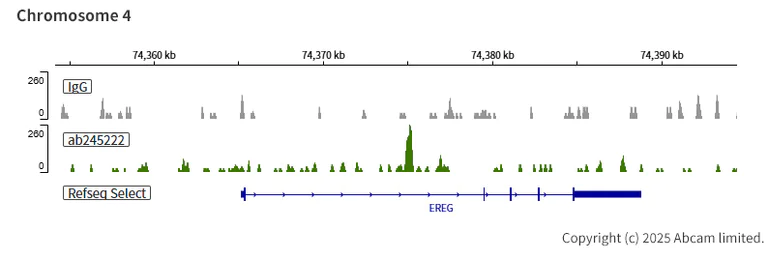

ChIC/CUT&RUN sequencing - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (,ab245222).

ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 HeLa (human cervical adenocarcinoma epithelial cell) cells and 5 µg of ab245222 [EPR23170]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown.
The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

• ChIC/CUT&RUN-seq

Lab

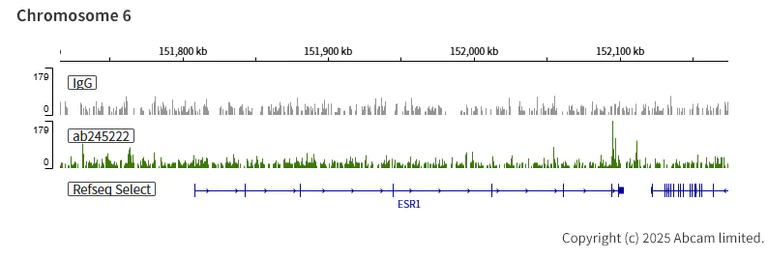

ChIC/CUT&RUN sequencing - Anti-SMARCD1 antibody [EPR23170-71] - BSA and Azide free (AB269463)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (,ab245222).

ChIC/CUT&RUN was performed using a pAG-MNase at a final concentration of 700 ng/mL, 2.5 x 10^5 HeLa (human cervical adenocarcinoma epithelial cell) cells and 5 µg of ab245222 [EPR23170]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown.
The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.
